The AudioTrack class represents an audio track in the project. More...

#include <src/gui/dsp/audio_track.h>

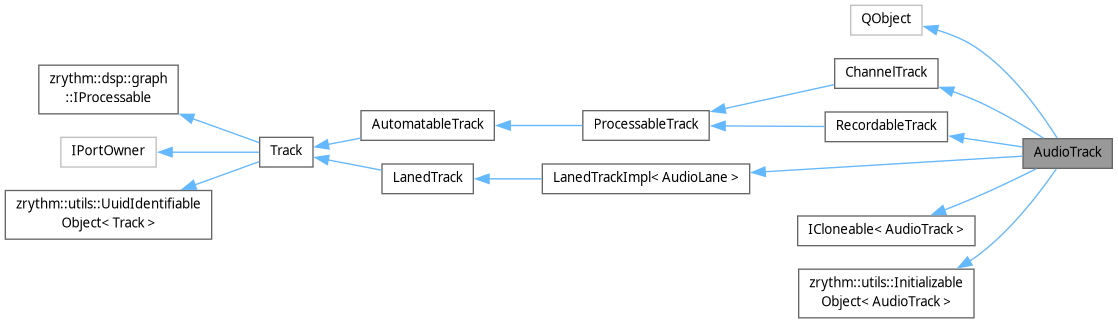

Inheritance diagram for AudioTrack:

[legend]

Collaboration diagram for AudioTrack:

[legend]

Public Member Functions
void	init_loaded (PluginRegistry &plugin_registry, PortRegistry &port_registry) override
	Adds additional metadata to track members after deserialization.

void	init_after_cloning (const AudioTrack &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

void	fill_events (const EngineProcessTimeInfo &time_nfo, std::pair< AudioPort &, AudioPort & > stereo_ports)
	Wrapper for audio tracks to fill in StereoPorts from the timeline data.

void	clear_objects () override
	Removes all objects recursively from the track.

bool	validate () const override
	Verifies the identifiers on a live Track (in the project, not a clone).

void	get_regions_in_range (std::vector< Region * > &regions, const Position p1, const Position p2) override
	Returns all the regions inside the given range, or all the regions if both p1 and p2 are NULL.

void	append_ports (std::vector< Port * > &ports, bool include_plugins) const final
	Appends all channel ports and optionally plugin ports to the array.

void	timestretch_buf (const AudioRegion r, AudioClip clip, unsigned_frame_t in_frame_offset, double timestretch_ratio, float lbuf_after_ts, float rbuf_after_ts, unsigned_frame_t out_frame_offset, unsigned_frame_t frames_to_process)

Public Member Functions inherited from ChannelTrack
void	init_loaded (gui::old_dsp::plugins::PluginRegistry &plugin_registry, PortRegistry &port_registry) override
	Adds additional metadata to track members after deserialization.

auto &	get_channel ()

auto &	get_channel () const

Fader *	get_fader (bool post_fader)
	Returns the Fader (if applicable).

bool	get_muted () const override
	Returns if the track is muted.

bool	get_listened () const override
	Returns if the track is listened.

bool	get_implied_soloed () const override
	Returns whether the track is not soloed on its own but its direct out (or its direct out's direct out, etc.) is soloed.

bool	get_soloed () const override

void	set_listened (bool listen, bool trigger_undo, bool auto_select, bool fire_events)
	Generates a menu to be used for channel-related items, eg, fader buttons, direct out, etc.

void	set_soloed (bool solo, bool trigger_undo, bool auto_select, bool fire_events)
	Sets track soloed, updates UI and optionally adds the action to the undo stack.

void	set_muted (bool mute, bool trigger_undo, bool auto_select, bool fire_events)
	Sets track muted and optionally adds the action to the undo stack.

Fader::Type	get_fader_type ()
	Returns the Fader::Type.

Fader::Type	get_prefader_type ()

Public Member Functions inherited from ProcessableTrack
	ProcessableTrack (PortRegistry &port_registry, bool new_identity)

bool	get_monitor_audio () const
	Returns whether monitor audio is on.

void	set_monitor_audio (bool monitor, bool auto_select, bool fire_events)
	Sets whether monitor audio is on.

void	fill_midi_events (const EngineProcessTimeInfo &time_nfo, dsp::MidiEventVector &midi_events)
	Wrapper for MIDI/instrument/chord tracks to fill in MidiEvents from the timeline data.

void	process_block (EngineProcessTimeInfo time_nfo) override

Public Member Functions inherited from AutomatableTrack
	AutomatableTrack (PortRegistry &port_registry, bool new_identity)

AutomationTracklist &	get_automation_tracklist () const

void	set_automation_visible (bool visible)
	Set automation visible and fire events.

void	generate_automation_tracks ()
	Generates automatables for the track.

void	clear_objects () override
	Removes all objects recursively from the track.

void	get_regions_in_range (std::vector< Region * > &regions, const Position p1, const Position p2) override
	Returns all the regions inside the given range, or all the regions if both p1 and p2 are NULL.

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, AutomatableTrack> && FinalClass<base_type<DerivedT>>
std::optional< PluginPtrVariant >	get_plugin_at_slot (this DerivedT &&self, PluginSlot slot)
	Returns the plugin at the given slot, if any.

void	generate_automation_tracks_for_plugin (const Plugin::Uuid &plugin_id)
	Generates automatables for the plugin.

Public Member Functions inherited from Track
Tracklist *	get_tracklist () const

dsp::PortConnectionsManager *	get_port_connections_manager () const

bool	has_piano_roll () const

bool	should_be_visible () const
	Returns whether the track should be visible.

bool	is_tempo () const

bool	is_folder () const

bool	is_audio_group () const

bool	is_midi_group () const

bool	is_audio_bus () const

bool	is_midi_bus () const

bool	is_modulator () const

bool	is_chord () const

bool	is_marker () const

bool	is_audio () const

bool	is_instrument () const

bool	is_midi () const

bool	is_master () const

bool	is_deletable () const

bool	is_copyable () const

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
double	get_full_visible_height (this DerivedT &&self)
	Returns the full visible height (main height + height of all visible automation tracks + height of all visible lanes).

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
bool	multiply_heights (this DerivedT &&self, double multiplier, bool visible_only, bool check_only)

bool	is_auditioner () const
	Whether this track is part of the SampleProcessor auditioner tracklist.

bool	can_be_group_target () const

bool	is_frozen () const

template<FinalRegionSubclass RegionT, FinalClass SelfT>
void	insert_region (this SelfT &self, ArrangerObjectUuidReference region_ref, AutomationTrack *at, std::optional< int > lane_pos, std::optional< int > idx, bool gen_name)
	Inserts a Region to the given lane or AutomationTrack of the track, at the given index.

void	write_audio_clip_to_pool_after_adding_audio_region (AudioClip &clip) const

template<FinalRegionSubclass RegionT>
void	add_region (this auto &self, auto region_ref, AutomationTrack *at, std::optional< int > lane_pos, bool gen_name)
	Appends a Region to the given lane or AutomationTrack of the track.

void	append_objects (std::vector< ArrangerObjectPtrVariant > &objects) const
	Appends all the objects in the track to `objects`.

void	unselect_all ()
	Unselects all arranger objects in the track.

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
bool	contains_uninstantiated_plugin (this DerivedT &&self)

utils::Utf8String	get_node_name () const override
	Returns a human friendly name of the node.

void	add_folder_parents (std::vector< FoldableTrack * > &parents, bool prepend) const
	Adds the track's folder parents to the given vector.

FoldableTrack *	get_direct_folder_parent () const
	Returns the closest foldable parent or NULL.

void	remove_from_folder_parents ()
	Remove the track from all folders.

utils::Utf8String	get_name () const
	Getter for the track name.

bool	set_name_with_action_full (const utils::Utf8String &name)
	Internally called by set_name_with_action().

void	set_name_with_action (const utils::Utf8String &name)
	Setter to be used by the UI to create an undoable action.

void	set_name (const Tracklist &tracklist, const utils::Utf8String &name, bool pub_events)
	Setter for the track name.

utils::Utf8String	get_unique_name (const Tracklist &tracklist, const utils::Utf8String &name)
	Returns a unique name for a new track based on the given name.

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the frames/ticks of each position in each child of the track recursively.

int	get_index () const

void	set_index (int index)

auto	get_input_signal_type () const

auto	get_output_signal_type () const

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
void	get_plugins (this DerivedT &&self, std::vector< zrythm::gui::old_dsp::plugins::Plugin * > &arr)
	Fills in the given array with all plugins in the track.

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
void	activate_all_plugins (this DerivedT &&self, bool activate)
	Activate or deactivate all plugins.

utils::Utf8String	get_comment () const

void	set_comment (const utils::Utf8String &comment, bool undoable)

void	set_comment_with_action (const utils::Utf8String &comment)

void	set_color (const Color &color, bool undoable, bool fire_events)
	Sets the track color.

void	set_icon (const utils::Utf8String &icon_name, bool undoable, bool fire_events)
	Sets the track icon.

void	track_freeze (bool freeze)
	Freezes or unfreezes the track.

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
PluginPtrVariant	insert_plugin (this DerivedT &&self, PluginUuid plugin_id, plugins::PluginSlot slot, bool instantiate_plugin, bool replacing_plugin, bool moving_plugin, bool confirm, bool gen_automatables, bool recalc_graph, bool fire_events)
	Wrapper over Channel.add_plugin() and ModulatorTrack.insert_modulator().

template<typename SelfT> requires ( std::derived_from<SelfT, ChannelTrack> \|\| std::is_same_v<SelfT, ModulatorTrack>)
void	remove_plugin (this SelfT &self, plugins::PluginSlot slot)
	Wrapper over Channel::remove_plugin() and ModulatorTrack::remove_modulator().

template<typename SelfT> requires ( std::derived_from<SelfT, ChannelTrack> \|\| std::is_same_v<SelfT, ModulatorTrack>)
plugins::PluginSlot	get_plugin_slot (this const SelfT &self, const PluginUuid &plugin_id)

void	disconnect_track ()
	Disconnects the track from the processing chain and removes any plugins it contains.

bool	is_enabled () const

bool	get_enabled () const

bool	get_disabled () const

void	set_enabled (bool enabled)

void	set_enabled (bool enabled, bool trigger_undo, bool auto_select, bool fire_events)

int	get_total_bars (const Transport &transport, int total_bars) const

void	set_caches (CacheType types)
	Set various caches (snapshots, track name hash, plugin input/output ports, etc).

bool	is_in_active_project () const override

void	set_port_metadata_from_owner (dsp::PortIdentifier &id, PortRange &range) const override
	Function that will be called by the Port to update the identifier's relevant members based on this port owner.

utils::Utf8String	get_full_designation_for_port (const dsp::PortIdentifier &id) const override

void	set_selection_status_getter (TrackSelectionStatusGetter getter)

void	unset_selection_status_getter ()

auto &	get_plugin_registry () const

auto &	get_plugin_registry ()

auto &	get_port_registry () const

auto &	get_port_registry ()

auto &	get_object_registry () const

auto &	get_object_registry ()

auto	get_type () const

auto	get_icon_name () const

Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual nframes_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies.

virtual void	clear_external_buffer (nframes_t block_length)

virtual bool	needs_external_buffer_clear_on_early_return () const

Public Member Functions inherited from IPortOwner
virtual void	on_control_change_event (const PortUuid &port_uuid, const dsp::PortIdentifier &id, float val)
	Will be called when a control port's value changes.

virtual void	on_midi_activity (const dsp::PortIdentifier &id)
	Called during processing if the MIDI port contains new MIDI events.

virtual bool	should_sum_data_from_backend () const
	Whether during processing, the port should sum the data from its backend buffers coming in.

virtual bool	should_bounce_to_master (utils::audio::BounceStep step) const
	Whether the port should add its data to the master output when bouncing.

virtual bool	are_events_on_midi_channel_approved (midi_byte_t channel) const
	Returns whether MIDI events on this channel on an input port should be processed (not ignored).

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< Track >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

void	copy_members_from (const UuidIdentifiableObject &other)

Public Member Functions inherited from LanedTrackImpl< AudioLane >
void	init_loaded (PluginRegistry &plugin_registry, PortRegistry &port_registry) override
	Adds additional metadata to track members after deserialization.

bool	create_missing_lanes (int pos)
	Creates missing TrackLane's until pos.

void	remove_empty_last_lanes ()
	Removes the empty last lanes of the Track (except the last one).

bool	has_soloed_lanes () const
	Returns whether the track has any soloed lanes.

double	get_visible_lane_heights () const
	Gets the total height of all visible lanes (if any).

void	generate_lanes ()
	Generates lanes for the track.

void	clear_objects () override
	Removes all objects recursively from the track.

void	get_regions_in_range (std::vector< Region * > &regions, const dsp::Position p1, const dsp::Position p2) override
	Returns all the regions inside the given range, or all the regions if both p1 and p2 are NULL.

int	get_lane_index (const AudioLane &lane) const

AudioLane &	get_lane_at (const size_t index)

Public Member Functions inherited from LanedTrack
void	set_lanes_visible (bool visible)
	Set lanes visible and fire events.

Public Member Functions inherited from RecordableTrack
void	init_loaded (PluginRegistry &plugin_registry, PortRegistry &port_registry) override
	Adds additional metadata to track members after deserialization.

bool	get_recording () const

void	set_recording (this auto &&self, bool recording)
	Sets recording and connects/disconnects the JACK ports.

std::optional< ArrangerObjectPtrVariant >	get_recording_region () const

template<typename DerivedT>
void	init_recordable_track (this DerivedT &self, GenericBoolGetter autoarm_enabled_checker)
	Initializes a recordable track.

Public Member Functions inherited from ICloneable< AudioTrack >
std::unique_ptr< AudioTrack >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< AudioTrack >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

AudioTrack *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

AudioTrack *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< AudioTrack >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Public Member Functions inherited from zrythm::utils::InitializableObject< AudioTrack >
	Z_DISABLE_COPY_MOVE (InitializableObject)

Friends
class	InitializableObject

void	to_json (nlohmann::json &j, const AudioTrack &track)

void	from_json (const nlohmann::json &j, AudioTrack &track)

Additional Inherited Members
Public Types inherited from ChannelTrack
using	Channel = zrythm::gui::Channel

Public Types inherited from AutomatableTrack
using	Plugin = gui::old_dsp::plugins::Plugin

using	PluginRegistry = gui::old_dsp::plugins::PluginRegistry

Public Types inherited from Track
enum class	Type { Instrument , Audio , Master , Chord , Marker , Tempo , Modulator , AudioBus , AudioGroup , Midi , MidiBus , MidiGroup , Folder }
	The Track's type. More...

using	PortType = dsp::PortType

using	PluginRegistry = gui::old_dsp::plugins::PluginRegistry

using	PluginPtrVariant = PluginRegistry::VariantType

using	PluginSlot = plugins::PluginSlot

using	TrackSelectionStatusGetter = std::function<bool (const TrackUuid &)>

using	Color = zrythm::utils::Color

using	Position = zrythm::dsp::Position

Public Types inherited from IPortOwner
using	TrackUuid = dsp::PortIdentifier::TrackUuid

using	PluginUuid = dsp::PortIdentifier::PluginUuid

using	PortUuid = dsp::PortIdentifier::PortUuid

Public Types inherited from LanedTrackImpl< AudioLane >
using	RegionT

using	TrackLaneType

Static Public Member Functions inherited from Track
static Fader::Type	type_get_prefader_type (const Type type)
	Returns the prefader type.

static constexpr bool	type_can_have_direct_out (Type type)

static bool	type_can_have_region_type (Type type, ArrangerObject::Type region_type)

static constexpr bool	type_is_copyable (Type type)

static constexpr bool	type_is_deletable (Type type)
	Returns whether a track of the given type should be deletable by the user.

static Type	type_get_from_plugin_descriptor (const zrythm::plugins::PluginDescriptor &descr)

static consteval bool	type_has_mono_compat_switch (const Type tt)

static constexpr bool	type_is_compatible_for_moving (const Type type1, const Type type2)
	Returns if regions in tracks from `type1` can be moved to `type2`.

static constexpr bool	type_has_piano_roll (const Type type)
	Returns if the Track should have a piano roll.

static constexpr bool	type_has_inputs (const Type type)
	Returns if the Track should have an inputs selector.

static bool	type_can_be_group_target (const Type type)
	Returns if the Track can be a direct route target.

template<typename T>
static consteval Type	get_type_for_class ()

static TrackUniquePtrVariant	create_unique_from_type (Type type)

static Track *	from_variant (const TrackPtrVariant &variant)

static bool	is_plugin_descriptor_valid_for_slot_type (const plugins::PluginDescriptor &descr, zrythm::plugins::PluginSlotType slot_type, Track::Type track_type)
	Returns if `descr` can be dropped at `slot_type` in a track of type `track_type`.

static void	create_with_action (Type type, const zrythm::plugins::PluginConfiguration pl_setting, const FileDescriptor file_descr, const dsp::Position *pos, int index, int num_tracks, int disable_track_idx, TracksReadyCallback ready_cb)
	Creates a new track with the given parameters.

static Track *	create_empty_at_idx_with_action (Type type, int index)
	Creates a new empty track at the given index.

static Track *	create_for_plugin_at_idx_w_action (Type type, const zrythm::plugins::PluginConfiguration *pl_setting, int index)
	Creates a new track for the given plugin at the given index.

template<typename T = Track>
static T *	create_for_plugin_at_idx_w_action (const zrythm::plugins::PluginConfiguration *pl_setting, int index)

static Track *	create_empty_with_action (Type type)
	Creates a new empty track at the end of the tracklist.

template<typename T = Track>
static T *	create_empty_with_action ()

static TrackUniquePtrVariant	create_track (Type type, const utils::Utf8String &name, int pos)
	Create a track of the given type with the given name and position.

Static Public Member Functions inherited from zrythm::utils::InitializableObject< AudioTrack >
static std::shared_ptr< AudioTrack >	create_shared (Args &&... args)
	Creates a shared pointer to initialized object.

static std::unique_ptr< AudioTrack >	create_unique (Args &&... args)
	Creates a unique pointer to initialized object.

Data Fields inherited from ChannelTrack
Channel *	channel_ = nullptr
	Owned channel object.

Data Fields inherited from ProcessableTrack
std::unique_ptr< TrackProcessor >	processor_
	The TrackProcessor, used for processing.

Data Fields inherited from AutomatableTrack
AutomationTracklist *	automation_tracklist_ = nullptr

bool	automation_visible_ = false
	Flag to set automations visible or not.

Data Fields inherited from Track
bool	bounce_ {}
	Set to ON during bouncing if this track should be included.

bool	bounce_to_master_ = false
	Whether to temporarily route the output to master (e.g., when bouncing the track on its own without its parents).

bool	disconnecting_ = false
	Whether currently disconnecting.

bool	trigger_midi_activity_ = false
	Flag to tell the UI that this channel had MIDI activity.

std::optional< AudioClip::Uuid >	frozen_clip_id_
	Pool ID of the clip if track is frozen (unset if not frozen).

Tracklist *	tracklist_ = nullptr
	Pointer to owner tracklist, if any.

std::optional< TrackSelectionStatusGetter >	track_selection_status_getter_
	Track selection status getter.

Data Fields inherited from LanedTrackImpl< AudioLane >
TrackLaneList	lanes_
	Lanes in this track containing Regions.

std::vector< std::unique_ptr< AudioLane > >	lane_snapshots_
	Snapshots used during playback.

Data Fields inherited from LanedTrack
bool	lanes_visible_ = false
	Flag to set lanes visible or not.

int	last_lane_idx_ = 0
	Lane index of region before recording paused.

int	last_lane_created_ = 0
	Last lane created during this drag.

bool	block_auto_creation_and_deletion_ = false
	Block auto-creating or deleting lanes.

Data Fields inherited from RecordableTrack
std::optional< PortUuidReference >	recording_id_
	Recording or not.

bool	record_set_automatically_ = false
	Whether record was set automatically when the channel was selected.

std::optional< Region::Uuid >	recording_region_
	Region currently recording on.

bool	recording_start_sent_ = false
	This is a flag to let the recording manager know that a START signal was already sent for recording.

bool	recording_stop_sent_ = false
	This is a flag to let the recording manager know that a STOP signal was already sent for recording.i.

bool	recording_paused_ = false
	This must only be set by the RecordingManager when temporarily pausing recording, eg when looping or leaving the punch range.

Data Fields inherited from ICloneable< AudioTrack >
friend	Derived

Static Public Attributes inherited from Track
static constexpr int	MIN_HEIGHT = 26

static constexpr int	DEF_HEIGHT = 52

Protected Member Functions inherited from ChannelTrack
	ChannelTrack (TrackRegistry &track_registry, PluginRegistry &plugin_registry, PortRegistry &port_registry, bool new_identity)

void	append_member_ports (std::vector< Port * > &ports, bool include_plugins) const

void	copy_members_from (const ChannelTrack &other, ObjectCloneType clone_type)

bool	validate_base () const

void	init_channel ()
	Initializes the channel.

Protected Member Functions inherited from ProcessableTrack
void	fill_events_common (const EngineProcessTimeInfo &time_nfo, dsp::MidiEventVector *midi_events, std::optional< std::pair< AudioPort &, AudioPort & > > stereo_ports) const
	Common logic for audio and MIDI/instrument tracks to fill in MidiEvents or StereoPorts from the timeline data.

void	copy_members_from (const ProcessableTrack &other, ObjectCloneType clone_type)

void	append_member_ports (std::vector< Port * > &ports, bool include_plugins) const

Protected Member Functions inherited from AutomatableTrack
void	copy_members_from (const AutomatableTrack &other, ObjectCloneType clone_type)

bool	validate_base () const

void	set_playback_caches () override
	Set the playback caches for a track.

Protected Member Functions inherited from Track
	Track (Type type, PortType in_signal_type, PortType out_signal_type, PluginRegistry &plugin_registry, PortRegistry &port_registry, ArrangerObjectRegistry &obj_registry)
	Constructor to be used by subclasses.

void	copy_members_from (const Track &other, ObjectCloneType clone_type)

bool	validate_base () const

void	add_region_if_in_range (const dsp::Position p1, const dsp::Position p2, std::vector< Region * > &regions, Region *region)

Protected Member Functions inherited from LanedTrackImpl< AudioLane >
void	copy_members_from (const LanedTrackImpl &other, ObjectCloneType clone_type)

bool	validate_base () const

void	set_playback_caches () override
	Set the playback caches for a track.

Protected Member Functions inherited from RecordableTrack
	RecordableTrack (PortRegistry &port_registry, bool new_identity)

void	copy_members_from (const RecordableTrack &other, ObjectCloneType clone_type)

void	append_member_ports (std::vector< Port * > &ports, bool include_plugins) const

ControlPort &	get_recording_port () const

Protected Member Functions inherited from zrythm::utils::InitializableObject< AudioTrack >
	InitializableObject ()=default
	Protected constructor to prevent instantiation.

Protected Attributes inherited from ProcessableTrack
PortRegistry &	port_registry_

Protected Attributes inherited from Track
PluginRegistry &	plugin_registry_

PortRegistry &	port_registry_

ArrangerObjectRegistry &	object_registry_

int	pos_ = 0
	Position in the Tracklist.

Type	type_ = {}
	The type of track this is.

utils::Utf8String	name_
	Track name, used in channel too.

utils::Utf8String	icon_name_
	Icon name of the track.

bool	visible_ = true
	Track Widget created dynamically.

bool	filtered_ = false
	Track will be hidden if true (temporary and not serializable).

double	main_height_ { DEF_HEIGHT }
	Height of the main part (without lanes).

bool	enabled_ = true
	Active (enabled) or not.

Color	color_
	Track color.

PortType	in_signal_type_ = {}
	The input signal type (eg audio bus tracks have audio input signals).

PortType	out_signal_type_ = {}
	The output signal type (eg midi tracks have MIDI output signals).

utils::Utf8String	comment_
	User comments.

Detailed Description

The AudioTrack class represents an audio track in the project.

It inherits from ChannelTrack, LanedTrack, and AutomatableTrack, providing functionality for managing audio channels, lanes, and automation.

Definition at line 18 of file audio_track.h.

Member Function Documentation

◆ append_ports()

void AudioTrack::append_ports	(	std::vector< Port * > &	ports,
		bool	include_plugins ) const

finalvirtual

Appends all channel ports and optionally plugin ports to the array.

Implements Track.

◆ clear_objects()

void AudioTrack::clear_objects ( )

overridevirtual

Removes all objects recursively from the track.

Reimplemented from Track.

◆ fill_events()

void AudioTrack::fill_events	(	const EngineProcessTimeInfo &	time_nfo,
		std::pair< AudioPort &, AudioPort & >	stereo_ports )

Wrapper for audio tracks to fill in StereoPorts from the timeline data.

Note: The engine splits the cycle so transport loop related logic is not needed.

Parameters

stereo_ports StereoPorts to fill.

◆ get_regions_in_range()

void AudioTrack::get_regions_in_range	(	std::vector< Region * > &	regions,
		const Position *	p1,
		const Position *	p2 )

overridevirtual

Returns all the regions inside the given range, or all the regions if both p1 and p2 are NULL.

Returns: The number of regions returned.

Reimplemented from Track.

◆ init_after_cloning()

void AudioTrack::init_after_cloning	(	const AudioTrack &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< AudioTrack >.

◆ init_loaded()

void AudioTrack::init_loaded	(	PluginRegistry &	plugin_registry,
		PortRegistry &	port_registry )

overridevirtual

Adds additional metadata to track members after deserialization.

Note: Each implementor must chain up to its direct superclass.

Implements Track.

◆ validate()

bool AudioTrack::validate ( ) const

overridevirtual

Verifies the identifiers on a live Track (in the project, not a clone).

Returns: True if pass.

Implements Track.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		AudioTrack &	track )

friend

Definition at line 96 of file audio_track.h.

◆ InitializableObject

friend class InitializableObject

friend

Definition at line 34 of file audio_track.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const AudioTrack &	track )

friend

Definition at line 87 of file audio_track.h.

The documentation for this class was generated from the following file:

src/gui/dsp/audio_track.h

Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ append_ports()

◆ clear_objects()

◆ fill_events()

◆ get_regions_in_range()

◆ init_after_cloning()

◆ init_loaded()

◆ validate()

Friends And Related Symbol Documentation

◆ from_json

◆ InitializableObject

◆ to_json
