A processor to be used in the routing graph for playing samples independent of the timeline. More...

#include <src/gui/dsp/sample_processor.h>

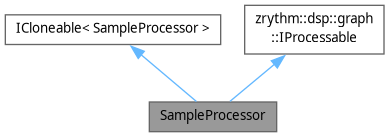

Inheritance diagram for SampleProcessor:

[legend]

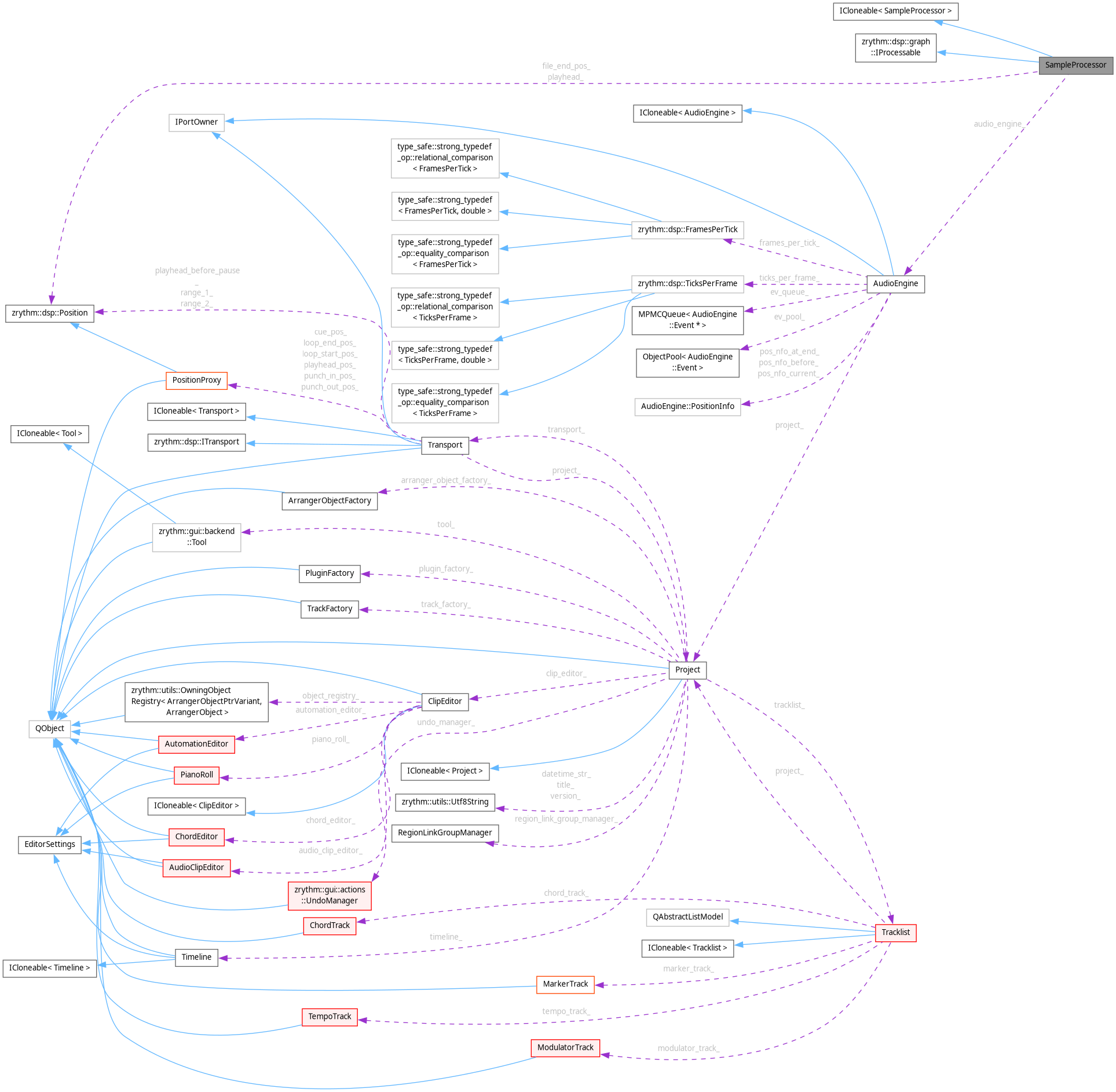

Collaboration diagram for SampleProcessor:

[legend]

Public Types
using	Position = zrythm::dsp::Position

using	PluginConfiguration = zrythm::plugins::PluginConfiguration

Public Member Functions
	SampleProcessor (AudioEngine *engine)

bool	is_in_active_project () const

void	init_after_cloning (const SampleProcessor &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

void	init_loaded (AudioEngine *engine)

void	load_instrument_if_empty ()
	Loads the instrument from the settings.

void	prepare_process (nframes_t nframes)
	Clears the buffers.

void	process_block (EngineProcessTimeInfo time_nfo) override
	Process the samples for the given number of frames.

utils::Utf8String	get_node_name () const override
	Returns a human friendly name of the node.

nframes_t	get_single_playback_latency () const override
	Returns the latency of only the given processable, without adding the previous/next latencies.

void	remove_sample_playback (SamplePlayback &sp)
	Removes a SamplePlayback from the array.

void	queue_metronome_countin ()
	Queues a metronomem tick at the given offset.

void	queue_metronome (Metronome::Type type, nframes_t offset)
	Queues a metronomem tick at the given local offset.

void	queue_sample_from_file (const char *path)
	Adds a sample to play to the queue from a file path.

void	queue_file (const FileDescriptor &file)
	Adds a file (audio or MIDI) to the queue.

void	queue_chord_preset (const ChordPreset &chord_pset)
	Adds a chord preset to the queue.

void	stop_file_playback ()
	Stops playback of files (auditioning).

void	disconnect ()

TempoTrack *	get_tempo_track () const
	Get the tempo track from the actual project, using audio_engine_.

void	find_and_queue_metronome (Position start_pos, Position end_pos, nframes_t loffset)
	Finds all metronome events (beat and bar changes) within the given range and adds them to the queue.

Public Member Functions inherited from ICloneable< SampleProcessor >
std::unique_ptr< SampleProcessor >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< SampleProcessor >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

SampleProcessor *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

SampleProcessor *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< SampleProcessor >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual void	clear_external_buffer (nframes_t block_length)

virtual bool	needs_external_buffer_clear_on_early_return () const

Data Fields
std::vector< SamplePlayback >	current_samples_
	An array of samples currently being played.

std::unique_ptr< Tracklist >	tracklist_
	Tracklist for file auditioning.

std::unique_ptr< zrythm::plugins::PluginConfiguration >	instrument_setting_
	Instrument for MIDI auditioning.

std::unique_ptr< dsp::MidiEvents >	midi_events_

std::unique_ptr< Fader >	fader_
	Fader connected to the main output.

Position	playhead_
	Playhead for the tracklist (used when auditioning files).

Position	file_end_pos_
	Position the file ends at.

bool	roll_ = false
	Whether to roll or not.

AudioEngine *	audio_engine_ = nullptr
	Pointer to owner audio engine, if any.

std::binary_semaphore	rebuilding_sem_ { 1 }
	Semaphore to be locked while rebuilding the sample processor tracklist and graph.

Data Fields inherited from ICloneable< SampleProcessor >
friend	Derived

Friends
void	to_json (nlohmann::json &j, const SampleProcessor &sp)

void	from_json (const nlohmann::json &j, SampleProcessor &sp)

Detailed Description

A processor to be used in the routing graph for playing samples independent of the timeline.

Also used for auditioning files.

Definition at line 35 of file sample_processor.h.

Member Typedef Documentation

◆ PluginConfiguration

using SampleProcessor::PluginConfiguration = zrythm::plugins::PluginConfiguration

Definition at line 41 of file sample_processor.h.

◆ Position

using SampleProcessor::Position = zrythm::dsp::Position

Definition at line 40 of file sample_processor.h.

Member Function Documentation

◆ find_and_queue_metronome()

void SampleProcessor::find_and_queue_metronome	(	Position	start_pos,
		Position	end_pos,
		nframes_t	loffset )

Finds all metronome events (beat and bar changes) within the given range and adds them to the queue.

Parameters

end_pos	End position, exclusive.
loffset	Local offset (this is where `start_pos` starts at).

◆ get_node_name()

utils::Utf8String SampleProcessor::get_node_name ( ) const

inlineoverridevirtual

Returns a human friendly name of the node.

Implements zrythm::dsp::graph::IProcessable.

Definition at line 74 of file sample_processor.h.

◆ get_single_playback_latency()

nframes_t SampleProcessor::get_single_playback_latency ( ) const

inlineoverridevirtual

Returns the latency of only the given processable, without adding the previous/next latencies.

Reimplemented from zrythm::dsp::graph::IProcessable.

Definition at line 79 of file sample_processor.h.

◆ get_tempo_track()

TempoTrack * SampleProcessor::get_tempo_track ( ) const

Get the tempo track from the actual project, using audio_engine_.

Returns: The tempo track, or nullptr if not found.

◆ init_after_cloning()

void SampleProcessor::init_after_cloning	(	const SampleProcessor &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< SampleProcessor >.

◆ load_instrument_if_empty()

void SampleProcessor::load_instrument_if_empty ( )

Loads the instrument from the settings.

To be called when the engine is activated, once.

◆ process_block()

void SampleProcessor::process_block ( EngineProcessTimeInfo time_nfo )

overridevirtual

Process the samples for the given number of frames.

Reimplemented from zrythm::dsp::graph::IProcessable.

◆ queue_metronome()

void SampleProcessor::queue_metronome	(	Metronome::Type	type,
		nframes_t	offset )

Queues a metronomem tick at the given local offset.

Realtime function.

◆ queue_metronome_countin()

void SampleProcessor::queue_metronome_countin ( )

Queues a metronomem tick at the given offset.

Used for countin.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		SampleProcessor &	sp )

friend

Definition at line 150 of file sample_processor.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const SampleProcessor &	sp )

friend

Definition at line 146 of file sample_processor.h.

Field Documentation

◆ audio_engine_

AudioEngine* SampleProcessor::audio_engine_ = nullptr

Pointer to owner audio engine, if any.

Definition at line 191 of file sample_processor.h.

◆ current_samples_

std::vector<SamplePlayback> SampleProcessor::current_samples_

An array of samples currently being played.

Definition at line 163 of file sample_processor.h.

◆ fader_

std::unique_ptr<Fader> SampleProcessor::fader_

Fader connected to the main output.

Definition at line 174 of file sample_processor.h.

◆ file_end_pos_

Position SampleProcessor::file_end_pos_

Position the file ends at.

Once this position is reached, SampleProcessor.roll will be set to false.

Definition at line 185 of file sample_processor.h.

◆ instrument_setting_

std::unique_ptr<zrythm::plugins::PluginConfiguration> SampleProcessor::instrument_setting_

Instrument for MIDI auditioning.

Definition at line 169 of file sample_processor.h.

◆ midi_events_

std::unique_ptr<dsp::MidiEvents> SampleProcessor::midi_events_

Definition at line 171 of file sample_processor.h.

◆ playhead_

Position SampleProcessor::playhead_

Playhead for the tracklist (used when auditioning files).

Definition at line 177 of file sample_processor.h.

◆ rebuilding_sem_

std::binary_semaphore SampleProcessor::rebuilding_sem_ { 1 }

Semaphore to be locked while rebuilding the sample processor tracklist and graph.

Definition at line 195 of file sample_processor.h.

◆ roll_

bool SampleProcessor::roll_ = false

Whether to roll or not.

Definition at line 188 of file sample_processor.h.

◆ tracklist_

std::unique_ptr<Tracklist> SampleProcessor::tracklist_

Tracklist for file auditioning.

Definition at line 166 of file sample_processor.h.

The documentation for this class was generated from the following file:

src/gui/dsp/sample_processor.h
