The audio engine. More...

#include <src/gui/dsp/engine.h>

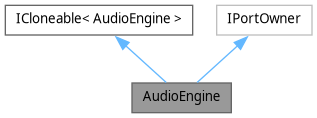

Inheritance diagram for AudioEngine:

[legend]

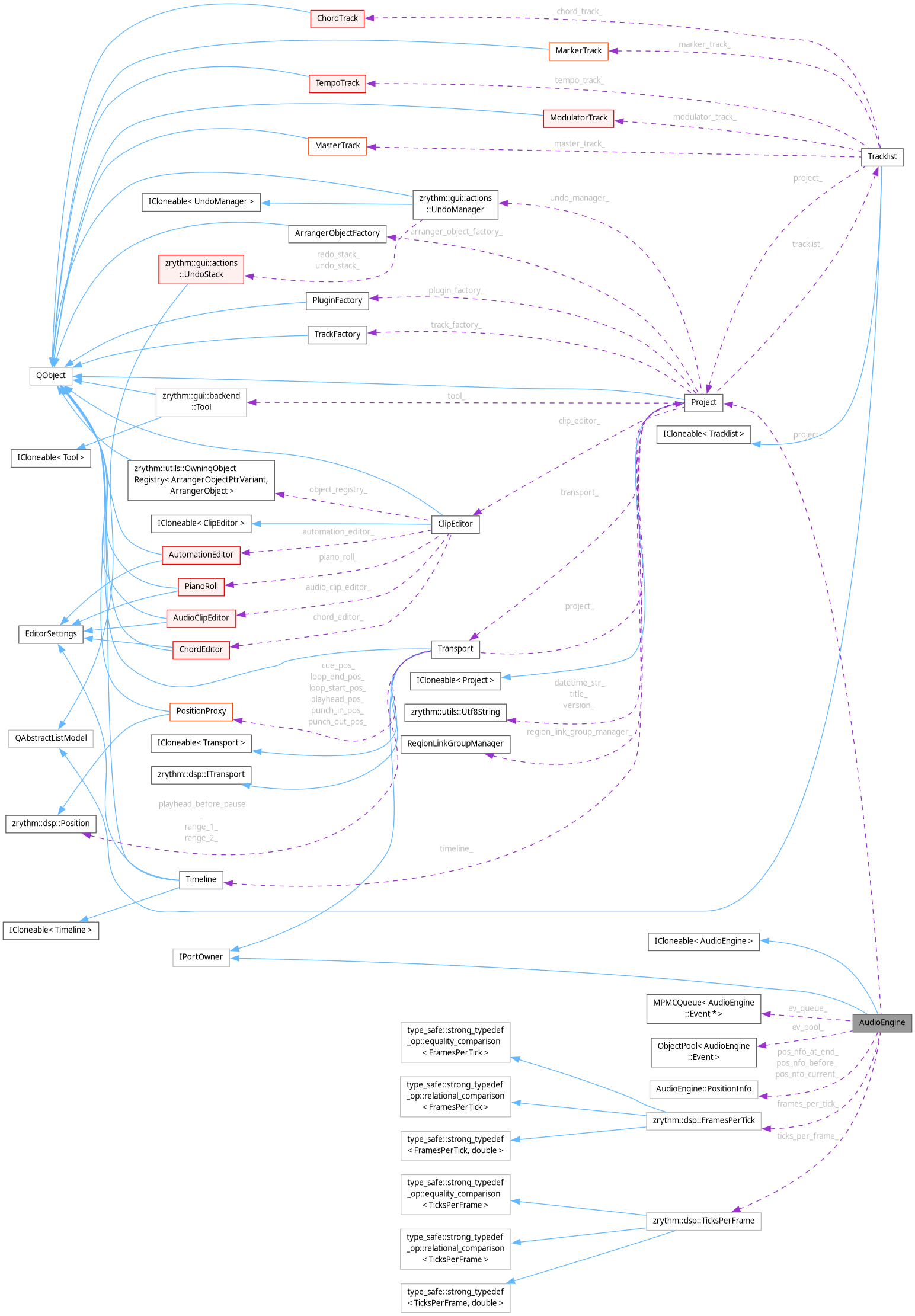

Collaboration diagram for AudioEngine:

[legend]

Data Structures
class	Event
	Audio engine event. More...

struct	PositionInfo

struct	State

Public Types
enum class	JackTransportType { TimebaseMaster , TransportClient , NoJackTransport }

enum class	SampleRate { SR_22050 , SR_32000 , SR_44100 , SR_48000 , SR_88200 , SR_96000 , SR_192000 }
	Samplerates to be used in comboboxes. More...

enum class	AudioEngineEventType { AUDIO_ENGINE_EVENT_BUFFER_SIZE_CHANGE , AUDIO_ENGINE_EVENT_SAMPLE_RATE_CHANGE }
	Audio engine event type. More...

enum class	BufferSize { _16 , _32 , _64 , _128 , _256 , _512 , _1024 , _2048 , _4096 }
	Buffer sizes to be used in combo boxes. More...

Public Types inherited from IPortOwner
using	TrackUuid = dsp::PortIdentifier::TrackUuid

using	PluginUuid = dsp::PortIdentifier::PluginUuid

using	PortUuid = dsp::PortIdentifier::PortUuid

Public Member Functions
	AudioEngine (Project *project=nullptr)
	Create a new audio engine.

	~AudioEngine () override
	Closes any connections and free's data.

auto &	get_port_registry ()

auto &	get_port_registry () const

TrackRegistry &	get_track_registry ()

TrackRegistry &	get_track_registry () const

bool	has_handled_buffer_size_change () const

bool	is_in_active_project () const override

void	set_port_metadata_from_owner (dsp::PortIdentifier &id, PortRange &range) const override
	Function that will be called by the Port to update the identifier's relevant members based on this port owner.

utils::Utf8String	get_full_designation_for_port (const dsp::PortIdentifier &id) const override

void	wait_for_pause (State &state, bool force_pause, bool with_fadeout)

void	realloc_port_buffers (nframes_t buf_size)

void	rename_port_backend (Port &port)
	Renames the port on the backend side.

void	set_port_exposed_to_backend (Port &port, bool expose)
	Sets whether to expose the port to the backend and exposes it or removes it.

void	init_loaded (Project *project)

void	resume (State &state)

void	wait_n_cycles (int n)
	Waits for n processing cycles to finish.

void	append_ports (std::vector< Port * > &ports)

void	pre_setup ()
	Sets up the audio engine before the project is initialized/loaded.

void	setup ()
	Sets up the audio engine after the project is initialized/loaded.

void	activate (bool activate)
	Activates the audio engine to start processing and receiving events.

void	update_frames_per_tick (int beats_per_bar, bpm_t bpm, sample_rate_t sample_rate, bool thread_check, bool update_from_ticks, bool bpm_change)
	Updates frames per tick based on the time sig, the BPM, and the sample rate.

bool	process_events ()
	Timeout function to be called periodically by Glib.

bool	process_prepare (nframes_t nframes, SemaphoreRAII< moodycamel::LightweightSemaphore > *sem=nullptr)
	To be called by each implementation to prepare the structures before processing.

int	process (nframes_t total_frames_to_process)
	Processes current cycle.

void	post_process (nframes_t roll_nframes, nframes_t nframes)
	To be called after processing for common logic.

void	fill_out_bufs (nframes_t nframes)
	Called to fill in the external buffers at the end of the processing cycle.

void	set_buffer_size (uint32_t buf_size)
	Request the backend to set the buffer size.

void	reset_bounce_mode ()
	Reset the bounce mode on the engine, all tracks and regions to OFF.

void	init_after_cloning (const AudioEngine &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

std::pair< AudioPort &, AudioPort & >	get_monitor_out_ports ()

std::pair< AudioPort &, AudioPort & >	get_dummy_input_ports ()

void	panic_all ()
	Queues MIDI note off to event queues.

Public Member Functions inherited from ICloneable< AudioEngine >
std::unique_ptr< AudioEngine >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< AudioEngine >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

AudioEngine *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

AudioEngine *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< AudioEngine >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Public Member Functions inherited from IPortOwner
virtual void	on_control_change_event (const PortUuid &port_uuid, const dsp::PortIdentifier &id, float val)
	Will be called when a control port's value changes.

virtual void	on_midi_activity (const dsp::PortIdentifier &id)
	Called during processing if the MIDI port contains new MIDI events.

virtual bool	should_sum_data_from_backend () const
	Whether during processing, the port should sum the data from its backend buffers coming in.

virtual bool	should_bounce_to_master (utils::audio::BounceStep step) const
	Whether the port should add its data to the master output when bouncing.

virtual bool	are_events_on_midi_channel_approved (midi_byte_t channel) const
	Returns whether MIDI events on this channel on an input port should be processed (not ignored).

Static Public Member Functions
static AudioEngine *	get_active_instance ()

static int	buffer_size_enum_to_int (BufferSize buffer_size)
	Returns the int value corresponding to the given AudioEngineBufferSize.

static int	samplerate_enum_to_int (SampleRate samplerate)
	Returns the int value corresponding to the given AudioEngineSamplerate.

static void	set_default_backends (bool reset_to_dummy)
	Detects the best backends on the system and sets them to GSettings.

Data Fields
Project *	project_ = nullptr
	Pointer to owner project, if any.

std::atomic_uint64_t	cycle_ = 0
	Cycle count to know which cycle we are in.

void *	client_ = nullptr

std::atomic_bool	handled_jack_buffer_size_change_ = false
	Whether pending jack buffer change was handled (buffers reallocated).

JackTransportType	transport_type_ = (JackTransportType) 0
	Whether transport master/client or no connection with jack transport.

AudioBackend	audio_backend_ = (AudioBackend) 0
	Current audio backend.

MidiBackend	midi_backend_ = (MidiBackend) 0
	Current MIDI backend.

nframes_t	block_length_ = 0
	Audio buffer size (block length), per channel.

size_t	midi_buf_size_ = 0
	Size of MIDI port buffers in bytes.

sample_rate_t	sample_rate_ = 0
	Sample rate.

dsp::FramesPerTick	frames_per_tick_
	Number of frames/samples per tick.

dsp::TicksPerFrame	ticks_per_frame_
	Reciprocal of frames_per_tick_.

int	buf_size_set_ = 0
	True iff buffer size callback fired.

std::unique_ptr< Router >	router_
	The processing graph router.

std::unique_ptr< HardwareProcessor >	hw_in_processor_
	Input device processor.

std::unique_ptr< HardwareProcessor >	hw_out_processor_
	Output device processor.

std::unique_ptr< MidiPort >	midi_clock_in_
	MIDI Clock input TODO.

std::unique_ptr< MidiPort >	midi_clock_out_
	MIDI Clock output.

std::unique_ptr< ControlRoom >	control_room_
	The ControlRoom.

std::unique_ptr< AudioPool >	pool_
	Audio file pool.

std::optional< PortUuidReference >	dummy_left_input_
	Used during tests to pass input data for recording.

std::optional< PortUuidReference >	dummy_right_input_

std::optional< PortUuidReference >	monitor_out_left_
	Monitor - these should be the last ports in the signal chain.

std::optional< PortUuidReference >	monitor_out_right_

std::atomic_bool	trigger_midi_activity_ { false }
	Flag to tell the UI that this channel had MIDI activity.

std::unique_ptr< MidiPort >	midi_editor_manual_press_
	Manual note press events from the piano roll.

std::unique_ptr< MidiPort >	midi_in_
	Port used for receiving MIDI in messages for binding CC and other non-recording purposes.

nframes_t	nframes_ = 0
	Number of frames/samples in the current cycle, per channel.

moodycamel::LightweightSemaphore	port_operation_lock_ { 1 }
	Semaphore for blocking DSP while a plugin and its ports are deleted.

std::atomic_bool	run_ { false }
	Ok to process or not.

bool	preparing_to_export_ = false
	To be set to true when preparing to export.

std::atomic_bool	exporting_ { false }
	Whether currently exporting.

std::atomic_bool	panic_ { false }
	Send note off MIDI everywhere.

std::unique_ptr< juce::Thread >	dummy_audio_thread_
	Dummy audio DSP processing thread.

dsp::PanLaw	pan_law_ = {}
	Pan law.

dsp::PanAlgorithm	pan_algo_ = {}
	Pan algorithm.

RtDuration	max_time_taken_ {}
	Time taken to process in the last cycle.

RtTimePoint	timestamp_start_ {}
	Timestamp at the start of the current cycle.

RtTimePoint	last_timestamp_start_ {}
	Expected timestamp at the end of the current cycle.

nframes_t	remaining_latency_preroll_ = 0
	Timestamp at end of previous cycle.

QPointer< dsp::PortConnectionsManager >	port_connections_manager_

std::unique_ptr< SampleProcessor >	sample_processor_

std::atomic_bool	capture_cc_ { false }
	To be set to 1 when the CC from the Midi in port should be captured.

std::array< midi_byte_t, 3 >	last_cc_captured_ {}
	Last MIDI CC captured.

SteadyTimePoint	last_xrun_notification_
	Last time an XRUN notification was shown.

bool	denormal_prevention_val_positive_ = true
	Whether the denormal prevention value (1e-12 ~ 1e-20) is positive.

float	denormal_prevention_val_ = 1e-12f

BounceMode	bounce_mode_ = BounceMode::BOUNCE_OFF
	If this is on, only tracks/regions marked as "for bounce" will be allowed to make sound.

utils::audio::BounceStep	bounce_step_ = {}
	Bounce step cache.

bool	bounce_with_parents_ = false
	Whether currently bouncing with parents (cache).

std::unique_ptr< Metronome >	metronome_
	The metronome.

MPMCQueue< Event * >	ev_queue_ { ENGINE_MAX_EVENTS }
	Event queue.

ObjectPool< Event >	ev_pool_ { ENGINE_MAX_EVENTS }
	Object pool of event structs to avoid allocation.

bool	processing_events_ = false
	ID of the event processing source func.

SteadyTimePoint	last_events_process_started_
	Time last event processing started.

SteadyTimePoint	last_events_processed_
	Time last event processing completed.

std::atomic_bool	cycle_running_ { false }
	Whether the cycle is currently running.

bool	pre_setup_ = false
	Whether the engine is already pre-set up.

bool	setup_ = false
	Whether the engine is already set up.

bool	activated_ = false
	Whether the engine is currently activated.

bool	destroying_ = false
	Whether the engine is currently undergoing destruction.

bool	updating_frames_per_tick_ = false
	True while updating frames per tick.

PositionInfo	pos_nfo_before_ = {}
	Position info at the end of the previous cycle before moving the transport.

PositionInfo	pos_nfo_current_ = {}
	Position info at the start of the current cycle.

PositionInfo	pos_nfo_at_end_ = {}
	Expected position info at the end of the current cycle.

Data Fields inherited from ICloneable< AudioEngine >
friend	Derived

Friends
void	to_json (nlohmann::json &j, const AudioEngine &engine)

void	from_json (const nlohmann::json &j, AudioEngine &engine)

Detailed Description

The audio engine.

Definition at line 110 of file engine.h.

Member Enumeration Documentation

◆ AudioEngineEventType

enum class AudioEngine::AudioEngineEventType

strong

Audio engine event type.

Definition at line 137 of file engine.h.

◆ BufferSize

enum class AudioEngine::BufferSize

strong

Buffer sizes to be used in combo boxes.

Definition at line 166 of file engine.h.

◆ JackTransportType

enum class AudioEngine::JackTransportType

strong

Definition at line 113 of file engine.h.

◆ SampleRate

enum class AudioEngine::SampleRate

strong

Samplerates to be used in comboboxes.

Definition at line 123 of file engine.h.

Constructor & Destructor Documentation

◆ AudioEngine()

AudioEngine::AudioEngine ( Project * project = nullptr )

Create a new audio engine.

This only initializes the engine and does not connect to any backend.

Member Function Documentation

◆ activate()

void AudioEngine::activate ( bool activate )

Activates the audio engine to start processing and receiving events.

Parameters

activate Activate or deactivate.

◆ get_full_designation_for_port()

utils::Utf8String AudioEngine::get_full_designation_for_port ( const dsp::PortIdentifier & id ) const

overridevirtual

Reimplemented from IPortOwner.

◆ get_port_registry() [1/2]

auto & AudioEngine::get_port_registry ( )

inline

Definition at line 242 of file engine.h.

◆ get_port_registry() [2/2]

auto & AudioEngine::get_port_registry ( ) const

inline

Definition at line 243 of file engine.h.

◆ has_handled_buffer_size_change()

bool AudioEngine::has_handled_buffer_size_change ( ) const

inline

Definition at line 247 of file engine.h.

◆ init_after_cloning()

void AudioEngine::init_after_cloning	(	const AudioEngine &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< AudioEngine >.

◆ init_loaded()

void AudioEngine::init_loaded ( Project * project )

Parameters

project

Exceptions

ZrythmError if failed to initialize.

◆ is_in_active_project()

bool AudioEngine::is_in_active_project ( ) const

overridevirtual

Implements IPortOwner.

◆ panic_all()

void AudioEngine::panic_all ( )

Queues MIDI note off to event queues.

Note: This pushes the events to the queued events, not the active events.

◆ post_process()

void AudioEngine::post_process	(	nframes_t	roll_nframes,
		nframes_t	nframes )

To be called after processing for common logic.

Parameters

roll_nframes	Frames to roll (add to the playhead - if transport rolling).
nframes	Total frames for this processing cycle.

◆ process()

int AudioEngine::process ( nframes_t total_frames_to_process )

Processes current cycle.

To be called by each implementation in its callback.

◆ process_prepare()

bool AudioEngine::process_prepare	(	nframes_t	nframes,
		SemaphoreRAII< moodycamel::LightweightSemaphore > *	sem = nullptr )

To be called by each implementation to prepare the structures before processing.

Clears buffers, marks all as unprocessed, etc.

Parameters

sem	SemamphoreRAII to check if acquired. If not acquired before calling this function, it will only clear output buffers and return true.

Returns: Whether the cycle should be skipped.

◆ rename_port_backend()

void AudioEngine::rename_port_backend ( Port & port )

inline

Renames the port on the backend side.

Definition at line 273 of file engine.h.

◆ set_buffer_size()

void AudioEngine::set_buffer_size ( uint32_t buf_size )

Request the backend to set the buffer size.

The backend is expected to call the buffer size change callbacks.

See also: jack_set_buffer_size().

◆ set_default_backends()

static void AudioEngine::set_default_backends ( bool reset_to_dummy )

static

Detects the best backends on the system and sets them to GSettings.

Parameters

reset_to_dummy Whether to reset the backends to dummy before attempting to set defaults.

◆ set_port_exposed_to_backend()

void AudioEngine::set_port_exposed_to_backend	(	Port &	port,
		bool	expose )

Sets whether to expose the port to the backend and exposes it or removes it.

It checks what the backend is using the engine's audio backend or midi backend settings.

◆ set_port_metadata_from_owner()

void AudioEngine::set_port_metadata_from_owner	(	dsp::PortIdentifier &	id,
		PortRange &	range ) const

overridevirtual

Function that will be called by the Port to update the identifier's relevant members based on this port owner.

Parameters

id	The identifier to update.

Implements IPortOwner.

◆ update_frames_per_tick()

void AudioEngine::update_frames_per_tick	(	int	beats_per_bar,
		bpm_t	bpm,
		sample_rate_t	sample_rate,
		bool	thread_check,
		bool	update_from_ticks,
		bool	bpm_change )

Updates frames per tick based on the time sig, the BPM, and the sample rate.

Parameters

thread_check	Whether to throw a warning if not called from GTK thread.
update_from_ticks	Whether to update the positions based on ticks (true) or frames (false).
bpm_change	Whether this is a BPM change.

◆ wait_for_pause()

void AudioEngine::wait_for_pause	(	State &	state,
		bool	force_pause,
		bool	with_fadeout )

Parameters

force_pause Whether to force transport pause, otherwise for engine to process and handle the pause request.

◆ wait_n_cycles()

void AudioEngine::wait_n_cycles ( int n )

Waits for n processing cycles to finish.

Used during tests.

Friends And Related Symbol Documentation

◆ to_json

void to_json	(	nlohmann::json &	j,
		const AudioEngine &	engine )

friend

Definition at line 444 of file engine.h.

Field Documentation

◆ activated_

bool AudioEngine::activated_ = false

Whether the engine is currently activated.

Definition at line 782 of file engine.h.

◆ audio_backend_

AudioBackend AudioEngine::audio_backend_ = (AudioBackend) 0

Current audio backend.

Definition at line 522 of file engine.h.

◆ block_length_

nframes_t AudioEngine::block_length_ = 0

Audio buffer size (block length), per channel.

Definition at line 528 of file engine.h.

◆ bounce_mode_

BounceMode AudioEngine::bounce_mode_ = BounceMode::BOUNCE_OFF

If this is on, only tracks/regions marked as "for bounce" will be allowed to make sound.

Automation and everything else will work as normal.

Definition at line 729 of file engine.h.

◆ bounce_step_

utils::audio::BounceStep AudioEngine::bounce_step_ = {}

Bounce step cache.

Definition at line 732 of file engine.h.

◆ bounce_with_parents_

bool AudioEngine::bounce_with_parents_ = false

Whether currently bouncing with parents (cache).

Definition at line 735 of file engine.h.

◆ buf_size_set_

int AudioEngine::buf_size_set_ = 0

True iff buffer size callback fired.

Definition at line 545 of file engine.h.

◆ capture_cc_

std::atomic_bool AudioEngine::capture_cc_ { false }

To be set to 1 when the CC from the Midi in port should be captured.

Definition at line 698 of file engine.h.

◆ client_

void* AudioEngine::client_ = nullptr

Definition at line 505 of file engine.h.

◆ control_room_

std::unique_ptr<ControlRoom> AudioEngine::control_room_

The ControlRoom.

Definition at line 571 of file engine.h.

◆ cycle_

std::atomic_uint64_t AudioEngine::cycle_ = 0

Cycle count to know which cycle we are in.

Useful for debugging.

Definition at line 499 of file engine.h.

◆ cycle_running_

std::atomic_bool AudioEngine::cycle_running_ { false }

Whether the cycle is currently running.

Definition at line 773 of file engine.h.

◆ denormal_prevention_val_

float AudioEngine::denormal_prevention_val_ = 1e-12f

Definition at line 721 of file engine.h.

◆ denormal_prevention_val_positive_

bool AudioEngine::denormal_prevention_val_positive_ = true

Whether the denormal prevention value (1e-12 ~ 1e-20) is positive.

This should be swapped often to avoid DC offset prevention algorithms removing it.

See https://www.earlevel.com/main/2019/04/19/floating-point-denormals/ for details.

Definition at line 720 of file engine.h.

◆ destroying_

bool AudioEngine::destroying_ = false

Whether the engine is currently undergoing destruction.

Definition at line 785 of file engine.h.

◆ dummy_audio_thread_

std::unique_ptr<juce::Thread> AudioEngine::dummy_audio_thread_

Dummy audio DSP processing thread.

Used during tests or when no audio backend is available.

Use signalThreadShouldExit() to stop the thread.

Note: The thread will join automatically when the engine is destroyed.

Definition at line 654 of file engine.h.

◆ dummy_left_input_

std::optional<PortUuidReference> AudioEngine::dummy_left_input_

Used during tests to pass input data for recording.

Will be ignored if NULL.

Definition at line 581 of file engine.h.

◆ dummy_right_input_

std::optional<PortUuidReference> AudioEngine::dummy_right_input_

Definition at line 582 of file engine.h.

◆ ev_pool_

ObjectPool<Event> AudioEngine::ev_pool_ { ENGINE_MAX_EVENTS }

Object pool of event structs to avoid allocation.

Definition at line 756 of file engine.h.

◆ ev_queue_

MPMCQueue<Event *> AudioEngine::ev_queue_ { ENGINE_MAX_EVENTS }

Event queue.

Events such as buffer size change request and sample size change request should be queued here.

The engine will skip processing while the queue still has events or is currently processing events.

Definition at line 751 of file engine.h.

◆ exporting_

std::atomic_bool AudioEngine::exporting_ { false }

Whether currently exporting.

Definition at line 640 of file engine.h.

◆ frames_per_tick_

dsp::FramesPerTick AudioEngine::frames_per_tick_

Number of frames/samples per tick.

Definition at line 537 of file engine.h.

◆ handled_jack_buffer_size_change_

std::atomic_bool AudioEngine::handled_jack_buffer_size_change_ = false

Whether pending jack buffer change was handled (buffers reallocated).

To be set to zero when a change starts and 1 when the change is fully processed.

Definition at line 514 of file engine.h.

◆ hw_in_processor_

std::unique_ptr<HardwareProcessor> AudioEngine::hw_in_processor_

Input device processor.

Definition at line 551 of file engine.h.

◆ hw_out_processor_

std::unique_ptr<HardwareProcessor> AudioEngine::hw_out_processor_

Output device processor.

Definition at line 554 of file engine.h.

◆ last_cc_captured_

std::array<midi_byte_t, 3> AudioEngine::last_cc_captured_ {}

Last MIDI CC captured.

Definition at line 701 of file engine.h.

◆ last_events_process_started_

SteadyTimePoint AudioEngine::last_events_process_started_

Time last event processing started.

Definition at line 765 of file engine.h.

◆ last_events_processed_

SteadyTimePoint AudioEngine::last_events_processed_

Time last event processing completed.

Definition at line 768 of file engine.h.

◆ last_timestamp_start_

RtTimePoint AudioEngine::last_timestamp_start_ {}

Expected timestamp at the end of the current cycle.

Timestamp at start of previous cycle.

Definition at line 683 of file engine.h.

◆ last_xrun_notification_

SteadyTimePoint AudioEngine::last_xrun_notification_

Last time an XRUN notification was shown.

This is to prevent multiple XRUN notifications being shown so quickly that Zrythm becomes unusable.

Definition at line 709 of file engine.h.

◆ max_time_taken_

RtDuration AudioEngine::max_time_taken_ {}

Time taken to process in the last cycle.

Max time taken in the last few processing cycles.

This is used by the DSP usage meter, which also clears the value to 0 upon reading it.

Note: Could use a lock since it is written to by 2 different threads, but there are no consequences if it has bad data.

Definition at line 674 of file engine.h.

◆ metronome_

std::unique_ptr<Metronome> AudioEngine::metronome_

The metronome.

Definition at line 738 of file engine.h.

◆ midi_backend_

MidiBackend AudioEngine::midi_backend_ = (MidiBackend) 0

Current MIDI backend.

Definition at line 525 of file engine.h.

◆ midi_buf_size_

size_t AudioEngine::midi_buf_size_ = 0

Size of MIDI port buffers in bytes.

Definition at line 531 of file engine.h.

◆ midi_clock_in_

std::unique_ptr<MidiPort> AudioEngine::midi_clock_in_

MIDI Clock input TODO.

This port is exposed to the backend.

Definition at line 561 of file engine.h.

◆ midi_clock_out_

std::unique_ptr<MidiPort> AudioEngine::midi_clock_out_

MIDI Clock output.

This port is exposed to the backend.

Definition at line 568 of file engine.h.

◆ midi_editor_manual_press_

std::unique_ptr<MidiPort> AudioEngine::midi_editor_manual_press_

Manual note press events from the piano roll.

The events from here should be read by the corresponding track processor's MIDI in port (TrackProcessor.midi_in). To avoid having to recalculate the graph to reattach this port to the correct track processor, only connect this port to the initial processor in the routing graph and fetch the events manually when processing the corresponding track processor.

Definition at line 611 of file engine.h.

◆ midi_in_

std::unique_ptr<MidiPort> AudioEngine::midi_in_

Port used for receiving MIDI in messages for binding CC and other non-recording purposes.

This port is exposed to the backend.

Definition at line 619 of file engine.h.

◆ monitor_out_left_

std::optional<PortUuidReference> AudioEngine::monitor_out_left_

Monitor - these should be the last ports in the signal chain.

The L/R ports are exposed to the backend.

Definition at line 590 of file engine.h.

◆ monitor_out_right_

std::optional<PortUuidReference> AudioEngine::monitor_out_right_

Definition at line 591 of file engine.h.

◆ nframes_

nframes_t AudioEngine::nframes_ = 0

Number of frames/samples in the current cycle, per channel.

Note: This is used by the engine internally.

Definition at line 626 of file engine.h.

◆ pan_algo_

dsp::PanAlgorithm AudioEngine::pan_algo_ = {}

Pan algorithm.

Definition at line 660 of file engine.h.

◆ pan_law_

dsp::PanLaw AudioEngine::pan_law_ = {}

Pan law.

Definition at line 658 of file engine.h.

◆ panic_

std::atomic_bool AudioEngine::panic_ { false }

Send note off MIDI everywhere.

Definition at line 643 of file engine.h.

◆ pool_

std::unique_ptr<AudioPool> AudioEngine::pool_

Audio file pool.

Definition at line 574 of file engine.h.

◆ port_connections_manager_

QPointer<dsp::PortConnectionsManager> AudioEngine::port_connections_manager_

Definition at line 693 of file engine.h.

◆ port_operation_lock_

moodycamel::LightweightSemaphore AudioEngine::port_operation_lock_ { 1 }

Semaphore for blocking DSP while a plugin and its ports are deleted.

Definition at line 631 of file engine.h.

◆ pos_nfo_at_end_

PositionInfo AudioEngine::pos_nfo_at_end_ = {}

Expected position info at the end of the current cycle.

Definition at line 808 of file engine.h.

◆ pos_nfo_before_

PositionInfo AudioEngine::pos_nfo_before_ = {}

Position info at the end of the previous cycle before moving the transport.

Definition at line 798 of file engine.h.

◆ pos_nfo_current_

PositionInfo AudioEngine::pos_nfo_current_ = {}

Position info at the start of the current cycle.

Definition at line 803 of file engine.h.

◆ pre_setup_

bool AudioEngine::pre_setup_ = false

Whether the engine is already pre-set up.

Definition at line 776 of file engine.h.

◆ preparing_to_export_

bool AudioEngine::preparing_to_export_ = false

To be set to true when preparing to export.

Definition at line 637 of file engine.h.

◆ processing_events_

bool AudioEngine::processing_events_ = false

ID of the event processing source func.

Whether currently processing events.

Definition at line 762 of file engine.h.

◆ project_

Project* AudioEngine::project_ = nullptr

Pointer to owner project, if any.

Definition at line 492 of file engine.h.

◆ remaining_latency_preroll_

nframes_t AudioEngine::remaining_latency_preroll_ = 0

Timestamp at end of previous cycle.

When first set, it is equal to the max playback latency of all initial trigger nodes.

Definition at line 691 of file engine.h.

◆ router_

std::unique_ptr<Router> AudioEngine::router_

The processing graph router.

Definition at line 548 of file engine.h.

◆ run_

std::atomic_bool AudioEngine::run_ { false }

Ok to process or not.

Definition at line 634 of file engine.h.

◆ sample_processor_

std::unique_ptr<SampleProcessor> AudioEngine::sample_processor_

Definition at line 695 of file engine.h.

◆ sample_rate_

sample_rate_t AudioEngine::sample_rate_ = 0

Sample rate.

Definition at line 534 of file engine.h.

◆ setup_

bool AudioEngine::setup_ = false

Whether the engine is already set up.

Definition at line 779 of file engine.h.

◆ ticks_per_frame_

dsp::TicksPerFrame AudioEngine::ticks_per_frame_

Reciprocal of frames_per_tick_.

Definition at line 542 of file engine.h.

◆ timestamp_start_

RtTimePoint AudioEngine::timestamp_start_ {}

Timestamp at the start of the current cycle.

Definition at line 677 of file engine.h.

◆ transport_type_

JackTransportType AudioEngine::transport_type_ = (JackTransportType) 0

Whether transport master/client or no connection with jack transport.

Definition at line 519 of file engine.h.

◆ trigger_midi_activity_

std::atomic_bool AudioEngine::trigger_midi_activity_ { false }

Flag to tell the UI that this channel had MIDI activity.

When processing this and setting it to 0, the UI should create a separate event using EVENTS_PUSH.

Definition at line 599 of file engine.h.

◆ updating_frames_per_tick_

bool AudioEngine::updating_frames_per_tick_ = false

True while updating frames per tick.

See engine_update_frames_per_tick().

Definition at line 792 of file engine.h.

The documentation for this class was generated from the following file:

src/gui/dsp/engine.h

Data Structures

Public Types

Public Member Functions

Static Public Member Functions

Data Fields

Friends

Detailed Description

Member Enumeration Documentation

◆ AudioEngineEventType

◆ BufferSize

◆ JackTransportType

◆ SampleRate

Constructor & Destructor Documentation

◆ AudioEngine()

Member Function Documentation

◆ activate()

◆ get_full_designation_for_port()

◆ get_port_registry() [1/2]

◆ get_port_registry() [2/2]

◆ has_handled_buffer_size_change()

◆ init_after_cloning()

◆ init_loaded()

◆ is_in_active_project()

◆ panic_all()

◆ post_process()

◆ process()

◆ process_prepare()

◆ rename_port_backend()

◆ set_buffer_size()

◆ set_default_backends()

◆ set_port_exposed_to_backend()

◆ set_port_metadata_from_owner()

◆ update_frames_per_tick()

◆ wait_for_pause()

◆ wait_n_cycles()

Friends And Related Symbol Documentation

◆ to_json

Field Documentation

◆ activated_

◆ audio_backend_

◆ block_length_

◆ bounce_mode_

◆ bounce_step_

◆ bounce_with_parents_

◆ buf_size_set_

◆ capture_cc_

◆ client_

◆ control_room_

◆ cycle_

◆ cycle_running_

◆ denormal_prevention_val_

◆ denormal_prevention_val_positive_

◆ destroying_

◆ dummy_audio_thread_

◆ dummy_left_input_

◆ dummy_right_input_

◆ ev_pool_

◆ ev_queue_

◆ exporting_

◆ frames_per_tick_

◆ handled_jack_buffer_size_change_

◆ hw_in_processor_

◆ hw_out_processor_

◆ last_cc_captured_

◆ last_events_process_started_

◆ last_events_processed_

◆ last_timestamp_start_

◆ last_xrun_notification_

◆ max_time_taken_

◆ metronome_

◆ midi_backend_

◆ midi_buf_size_

◆ midi_clock_in_

◆ midi_clock_out_

◆ midi_editor_manual_press_

◆ midi_in_

◆ monitor_out_left_

◆ monitor_out_right_

◆ nframes_

◆ pan_algo_
