Hardware processor. More...

#include <src/gui/dsp/hardware_processor.h>

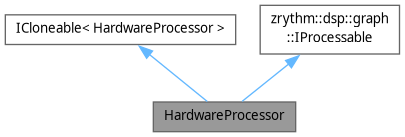

Inheritance diagram for HardwareProcessor:

[legend]

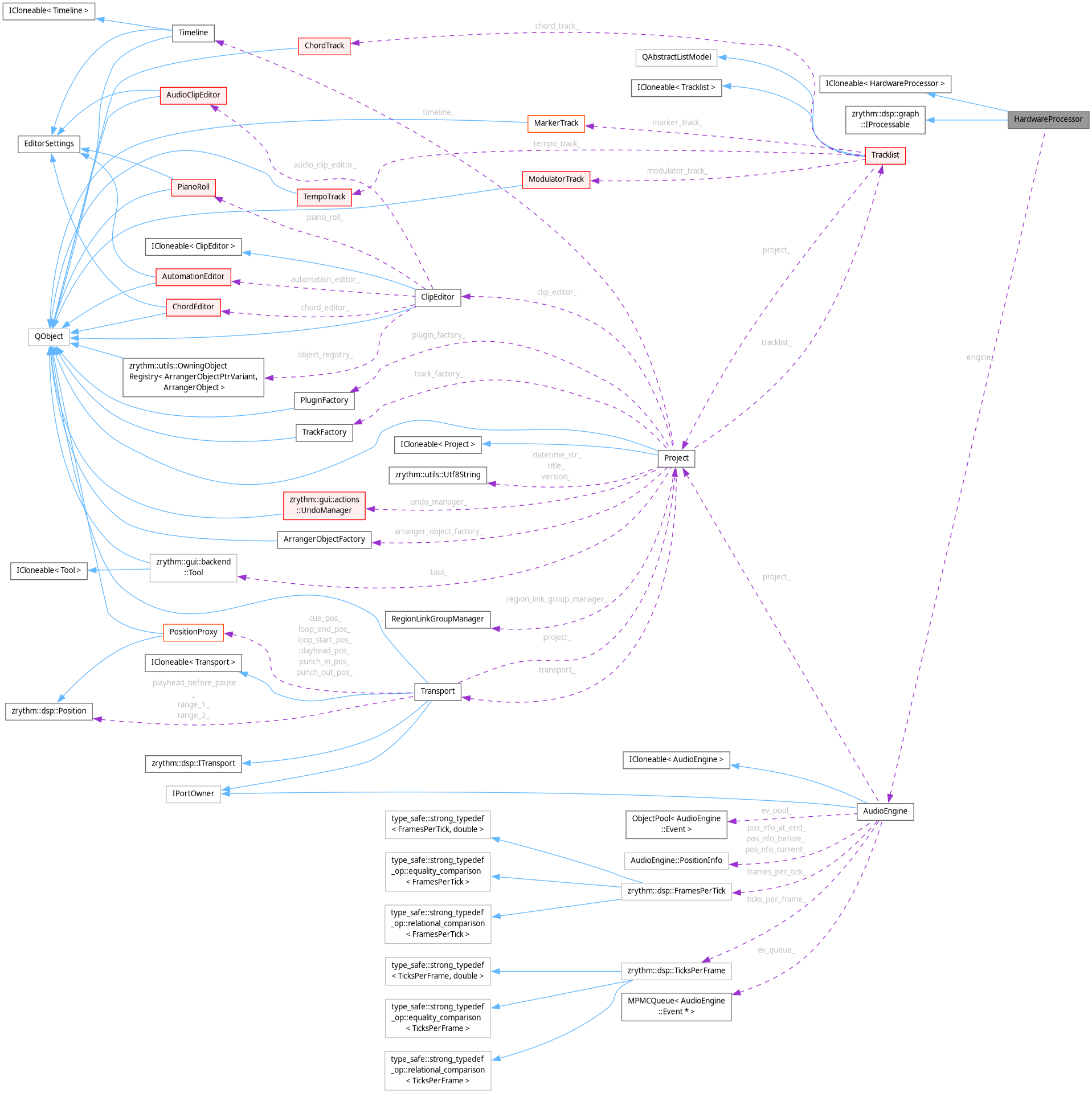

Collaboration diagram for HardwareProcessor:

[legend]

Public Types
using	PortFlow = zrythm::dsp::PortFlow

Public Member Functions
	HardwareProcessor (bool input, AudioEngine *engine)

void	init_loaded (AudioEngine *engine)

bool	is_in_active_project () const

void	rescan_ext_ports ()
	Rescans the hardware ports and appends any missing ones.

ExtPort *	find_ext_port (const utils::Utf8String &id)
	Finds an ext port from its ID (type + full name).

template<typename T = Port>
T *	find_port (const utils::Utf8String &id)
	Finds a port from its ID (type + full name).

void	setup ()
	Sets up the ports but does not start them.

void	activate (bool activate)
	Starts or stops the ports.

void	process (nframes_t nframes)
	Processes the data.

utils::Utf8String	get_node_name () const override
	Returns a human friendly name of the node.

void	init_after_cloning (const HardwareProcessor &other, ObjectCloneType clone_type) override
	To be used during serialization.

Public Member Functions inherited from ICloneable< HardwareProcessor >
std::unique_ptr< HardwareProcessor >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< HardwareProcessor >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

HardwareProcessor *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

HardwareProcessor *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< HardwareProcessor >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual nframes_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies.

virtual void	process_block (EngineProcessTimeInfo time_nfo)

virtual void	clear_external_buffer (nframes_t block_length)

virtual bool	needs_external_buffer_clear_on_early_return () const

Data Fields
bool	is_input_ = false
	Whether this is the processor at the start of the graph (input) or at the end (output).

std::vector< utils::Utf8String >	selected_midi_ports_
	Ports selected by the user in the preferences to enable.

std::vector< utils::Utf8String >	selected_audio_ports_

std::vector< std::unique_ptr< ExtPort > >	ext_audio_ports_
	All known external ports.

std::vector< std::unique_ptr< ExtPort > >	ext_midi_ports_

std::vector< std::unique_ptr< AudioPort > >	audio_ports_
	Ports to be used by Zrythm, corresponding to the external ports.

std::vector< std::unique_ptr< MidiPort > >	midi_ports_

bool	setup_ = false
	Whether set up already.

bool	activated_ = false
	Whether currently active.

quint64	rescan_timeout_id_ = 0

AudioEngine *	engine_ = nullptr
	Pointer to owner engine, if any.

Data Fields inherited from ICloneable< HardwareProcessor >
friend	Derived

Friends
void	to_json (nlohmann::json &j, const HardwareProcessor &p)

void	from_json (const nlohmann::json &j, HardwareProcessor &p)

Detailed Description

Hardware processor.

Definition at line 23 of file hardware_processor.h.

Member Typedef Documentation

◆ PortFlow

using HardwareProcessor::PortFlow = zrythm::dsp::PortFlow

Definition at line 28 of file hardware_processor.h.

Member Function Documentation

◆ activate()

void HardwareProcessor::activate ( bool activate )

Starts or stops the ports.

Parameters

activate True to activate, false to deactivate

◆ find_ext_port()

ExtPort * HardwareProcessor::find_ext_port ( const utils::Utf8String & id )

Finds an ext port from its ID (type + full name).

See also: ExtPort.get_id()

◆ get_node_name()

utils::Utf8String HardwareProcessor::get_node_name ( ) const

overridevirtual

Returns a human friendly name of the node.

Implements zrythm::dsp::graph::IProcessable.

◆ init_after_cloning()

void HardwareProcessor::init_after_cloning	(	const HardwareProcessor &	other,
		ObjectCloneType	clone_type )

overridevirtual

To be used during serialization.

Implements ICloneable< HardwareProcessor >.

◆ rescan_ext_ports()

void HardwareProcessor::rescan_ext_ports ( )

Rescans the hardware ports and appends any missing ones.

Note: This was a GSource callback.

Friends And Related Symbol Documentation

◆ to_json

void to_json	(	nlohmann::json &	j,
		const HardwareProcessor &	p )

friend

Definition at line 93 of file hardware_processor.h.

Field Documentation

◆ activated_

bool HardwareProcessor::activated_ = false

Whether currently active.

Definition at line 142 of file hardware_processor.h.

◆ audio_ports_

std::vector<std::unique_ptr<AudioPort> > HardwareProcessor::audio_ports_

Ports to be used by Zrythm, corresponding to the external ports.

Definition at line 135 of file hardware_processor.h.

◆ engine_

AudioEngine* HardwareProcessor::engine_ = nullptr

Pointer to owner engine, if any.

Definition at line 147 of file hardware_processor.h.

◆ ext_audio_ports_

std::vector<std::unique_ptr<ExtPort> > HardwareProcessor::ext_audio_ports_

All known external ports.

Definition at line 129 of file hardware_processor.h.

◆ ext_midi_ports_

std::vector<std::unique_ptr<ExtPort> > HardwareProcessor::ext_midi_ports_

Definition at line 130 of file hardware_processor.h.

◆ is_input_

bool HardwareProcessor::is_input_ = false

Whether this is the processor at the start of the graph (input) or at the end (output).

Definition at line 114 of file hardware_processor.h.

◆ midi_ports_

std::vector<std::unique_ptr<MidiPort> > HardwareProcessor::midi_ports_

Definition at line 136 of file hardware_processor.h.

◆ rescan_timeout_id_

quint64 HardwareProcessor::rescan_timeout_id_ = 0

Definition at line 144 of file hardware_processor.h.

◆ selected_audio_ports_

std::vector<utils::Utf8String> HardwareProcessor::selected_audio_ports_

Definition at line 124 of file hardware_processor.h.

◆ selected_midi_ports_

std::vector<utils::Utf8String> HardwareProcessor::selected_midi_ports_

Ports selected by the user in the preferences to enable.

To be cached at startup (need restart for changes to take effect).

This is only for inputs.

Definition at line 123 of file hardware_processor.h.

◆ setup_

bool HardwareProcessor::setup_ = false

Whether set up already.

Definition at line 139 of file hardware_processor.h.

The documentation for this class was generated from the following file:

src/gui/dsp/hardware_processor.h
