zrythm::dsp::graph::IProcessable Class Reference

Interface for objects that can be processed in the DSP graph. More...

#include <src/dsp/graph_node.h>

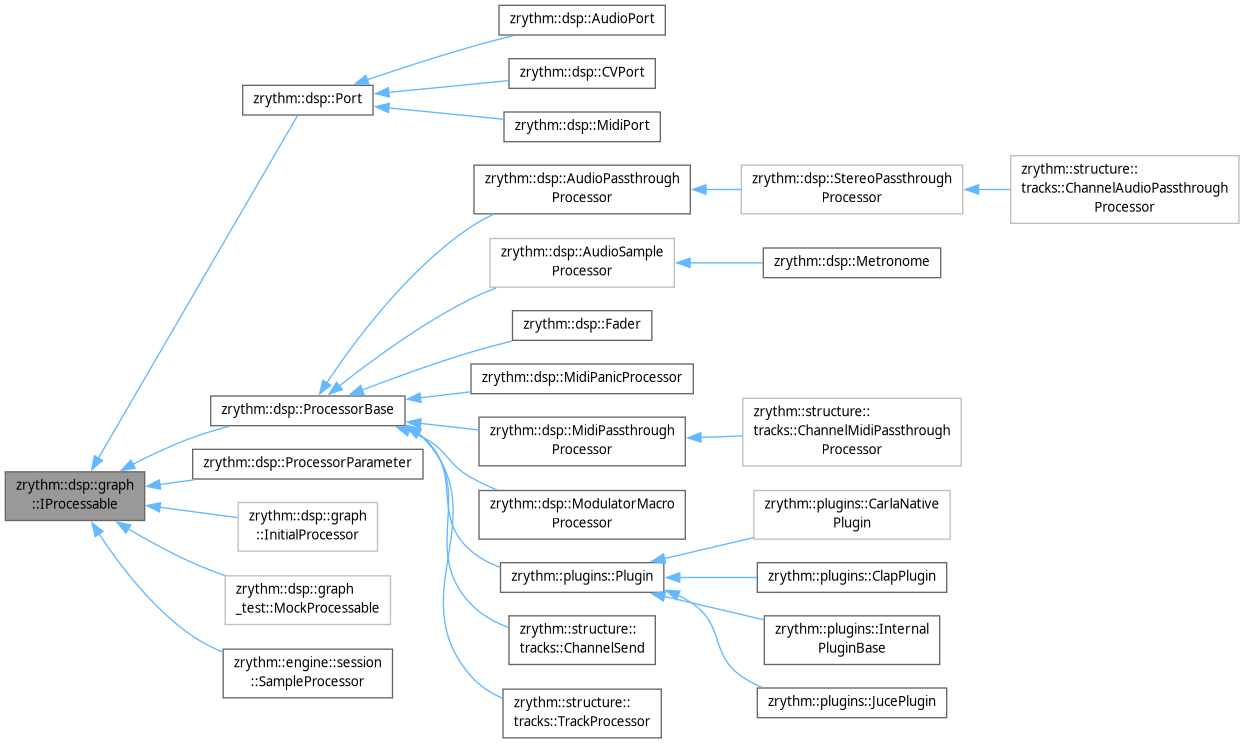

Inheritance diagram for zrythm::dsp::graph::IProcessable:

Public Member Functions
virtual utils::Utf8String	get_node_name () const =0
	Returns a human friendly name of the node.
virtual nframes_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies.
virtual void	prepare_for_processing (const GraphNode *node, units::sample_rate_t sample_rate, nframes_t max_block_length)
	Called to allocate resources required for processing.
virtual void	process_block (EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport) noexcept
virtual void	release_resources ()
	Called to release resources allocated by prepare_for_processing().

Detailed Description

Interface for objects that can be processed in the DSP graph.

The IProcessable interface defines the basic functionality required for objects that can be processed as part of the DSP graph. It provides methods to get the node name, the single playback latency, and to process the block of audio/MIDI data.

Implementations of this interface are expected to be used as nodes in the DSP graph, where they will be processed during the audio/MIDI processing cycle.

Definition at line 52 of file graph_node.h.

Constructor & Destructor Documentation

~IProcessable()

virtual zrythm::dsp::graph::IProcessable::~IProcessable ( )

inlinevirtual

Definition at line 55 of file graph_node.h.

Member Function Documentation

get_node_name()

virtual utils::Utf8String zrythm::dsp::graph::IProcessable::get_node_name ( ) const

pure virtual

Returns a human friendly name of the node.

Implemented in zrythm::dsp::graph::InitialProcessor, zrythm::dsp::Port, zrythm::dsp::ProcessorBase, zrythm::dsp::ProcessorParameter, and zrythm::engine::session::SampleProcessor.

get_single_playback_latency()

virtual nframes_t zrythm::dsp::graph::IProcessable::get_single_playback_latency ( ) const

inlinevirtual

Returns the latency of only the given processable, without adding the previous/next latencies.

Reimplemented in zrythm::dsp::Port, zrythm::engine::session::SampleProcessor, zrythm::plugins::CarlaNativePlugin, zrythm::plugins::ClapPlugin, and zrythm::plugins::JucePlugin.

Definition at line 66 of file graph_node.h.

prepare_for_processing()

virtual void zrythm::dsp::graph::IProcessable::prepare_for_processing ( const GraphNode * node, units::sample_rate_t sample_rate, nframes_t max_block_length )

inlinevirtual

Called to allocate resources required for processing.

Parameters

node	The node in the processing graph. Null means we are processing outside of a graph context and must be handled gracefully.
sample_rate
max_block_length

Reimplemented in zrythm::dsp::AudioPort, zrythm::dsp::CVPort, zrythm::dsp::MidiPort, zrythm::dsp::ProcessorBase, and zrythm::dsp::ProcessorParameter.

Definition at line 79 of file graph_node.h.

process_block()

virtual void zrythm::dsp::graph::IProcessable::process_block ( EngineProcessTimeInfo time_nfo, const dsp::ITransport & transport )

inlinevirtualnoexcept

Reimplemented in zrythm::dsp::ProcessorBase, zrythm::dsp::ProcessorParameter, and zrythm::engine::session::SampleProcessor.

Definition at line 86 of file graph_node.h.

release_resources()

virtual void zrythm::dsp::graph::IProcessable::release_resources ( )

inlinevirtual

Called to release resources allocated by prepare_for_processing().

This may be called multiple times.

Reimplemented in zrythm::dsp::AudioPort, zrythm::dsp::CVPort, zrythm::dsp::MidiPort, zrythm::dsp::ProcessorBase, and zrythm::dsp::ProcessorParameter.

Definition at line 96 of file graph_node.h.

---

The documentation for this class was generated from the following file:

• src/dsp/graph_node.h
