zrythm::dsp::ProcessorBase Class Reference

A base class for processors in the DSP graph. More...

#include <src/dsp/processor_base.h>

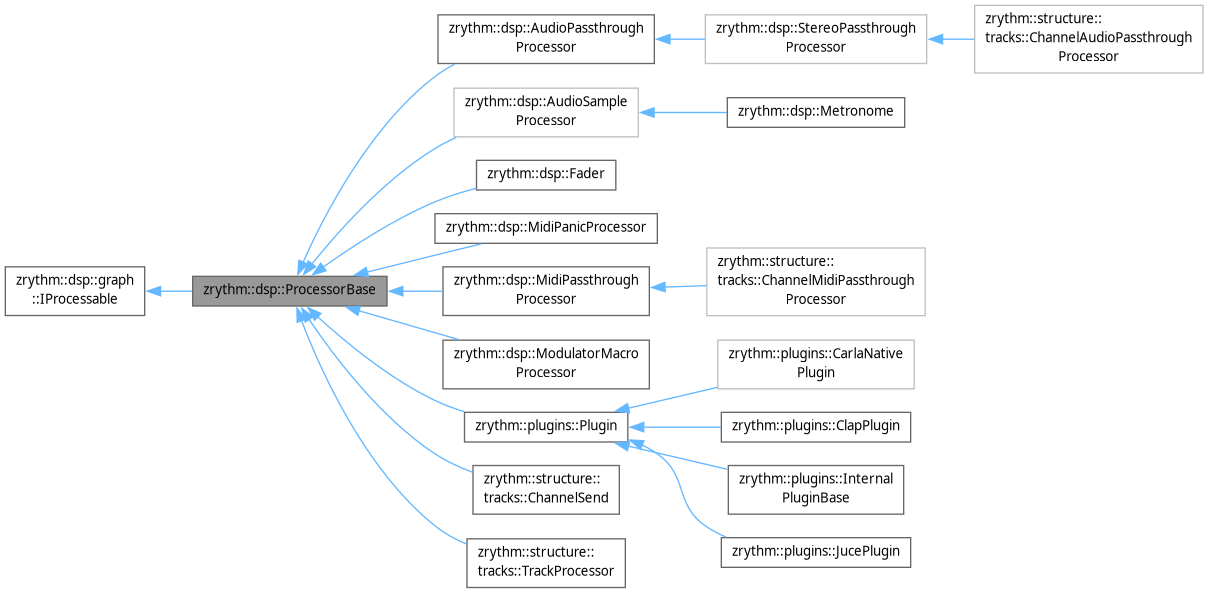

Inheritance diagram for zrythm::dsp::ProcessorBase:

Collaboration diagram for zrythm::dsp::ProcessorBase:

Data Structures
struct	ParameterChangeTracker
	Tracks parameter value changes across processing cycles. More...
struct	ProcessorBaseDependencies

Public Member Functions
	ProcessorBase (ProcessorBaseDependencies dependencies, utils::Utf8String name={ u8"ProcessorBase" })
void	set_name (const utils::Utf8String &name)
	Set a custom name to be used in the DSP graph.
void	add_input_port (const dsp::PortUuidReference &uuid)
void	add_output_port (const dsp::PortUuidReference &uuid)
void	add_parameter (const dsp::ProcessorParameterUuidReference &uuid)
auto &	get_input_ports () const
auto &	get_output_ports () const
auto &	get_parameters () const
const ParameterChangeTracker &	change_tracker () const noexcept
	Returns the change tracker.
utils::Utf8String	get_node_name () const final
	Returns a human friendly name of the node.
void	process_block (dsp::graph::EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept final
	Calls custom_process_block() internally after processing all the parameters.
void	prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length) final
	Called to allocate resources required for processing.
void	release_resources () final
	Called to release resources allocated by prepare_for_processing().
Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual units::sample_u32_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies (zero latency by default).

Protected Member Functions
virtual void	custom_process_block (dsp::graph::EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept
	Custom processor logic after processing all owned parameters.
virtual void	custom_prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length)
virtual void	custom_release_resources ()
auto	dependencies () const

Friends
void	to_json (nlohmann::json &j, const ProcessorBase &p)
void	from_json (const nlohmann::json &j, ProcessorBase &p)

Detailed Description

A base class for processors in the DSP graph.

Note

Custom connections to processors should only be made on their output ports (because input ports are clared after processing processors).

Definition at line 22 of file processor_base.h.

Member Function Documentation

change_tracker()

const ParameterChangeTracker & zrythm::dsp::ProcessorBase::change_tracker ( ) const

inlinenoexcept

Returns the change tracker.

Only valid to call during custom_process_block() (while is_processing_ is true).

Definition at line 138 of file processor_base.h.

custom_prepare_for_processing()

virtual void zrythm::dsp::ProcessorBase::custom_prepare_for_processing ( const graph::GraphNode * node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length )

inlineprotectedvirtual

Definition at line 181 of file processor_base.h.

custom_process_block()

virtual void zrythm::dsp::ProcessorBase::custom_process_block ( dsp::graph::EngineProcessTimeInfo time_nfo, const dsp::ITransport & transport, const dsp::TempoMap & tempo_map )

protectedvirtualnoexcept

Custom processor logic after processing all owned parameters.

By default, this does passthrough to same-type ports.

Reimplemented in zrythm::dsp::AudioSampleProcessor, zrythm::dsp::Fader, zrythm::dsp::Metronome, zrythm::dsp::MidiPanicProcessor, zrythm::dsp::ModulatorMacroProcessor, zrythm::plugins::Plugin, zrythm::structure::tracks::ChannelSend, and zrythm::structure::tracks::TrackProcessor.

custom_release_resources()

virtual void zrythm::dsp::ProcessorBase::custom_release_resources ( )

inlineprotectedvirtual

Definition at line 188 of file processor_base.h.

dependencies()

auto zrythm::dsp::ProcessorBase::dependencies ( ) const

inlineprotected

Definition at line 190 of file processor_base.h.

get_input_ports()

auto & zrythm::dsp::ProcessorBase::get_input_ports ( ) const

inline

Definition at line 128 of file processor_base.h.

get_node_name()

utils::Utf8String zrythm::dsp::ProcessorBase::get_node_name ( ) const

inlinefinalvirtual

Returns a human friendly name of the node.

Implements zrythm::dsp::graph::IProcessable.

Definition at line 148 of file processor_base.h.

get_output_ports()

auto & zrythm::dsp::ProcessorBase::get_output_ports ( ) const

inline

Definition at line 129 of file processor_base.h.

get_parameters()

auto & zrythm::dsp::ProcessorBase::get_parameters ( ) const

inline

Definition at line 130 of file processor_base.h.

prepare_for_processing()

void zrythm::dsp::ProcessorBase::prepare_for_processing ( const graph::GraphNode * node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length )

finalvirtual

Called to allocate resources required for processing.

Parameters

node	The node in the processing graph. Null means we are processing outside of a graph context and must be handled gracefully.
sample_rate
max_block_length

Reimplemented from zrythm::dsp::graph::IProcessable.

process_block()

void zrythm::dsp::ProcessorBase::process_block ( dsp::graph::EngineProcessTimeInfo time_nfo, const dsp::ITransport & transport, const dsp::TempoMap & tempo_map )

finalvirtualnoexcept

Calls custom_process_block() internally after processing all the parameters.

This is done this way to make sure all parameters are processed by the owning processor as intended and to avoid mistakes by leaving it up to processor implementations to do.

Reimplemented from zrythm::dsp::graph::IProcessable.

release_resources()

void zrythm::dsp::ProcessorBase::release_resources ( )

finalvirtual

Called to release resources allocated by prepare_for_processing().

This may be called multiple times.

Reimplemented from zrythm::dsp::graph::IProcessable.

---

The documentation for this class was generated from the following file:

• src/dsp/processor_base.h
