#include <src/structure/tracks/channel_send.h>

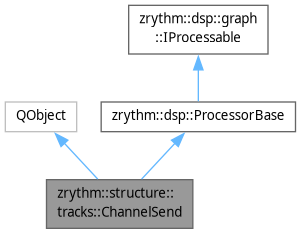

Inheritance diagram for zrythm::structure::tracks::ChannelSend:

[legend]

Collaboration diagram for zrythm::structure::tracks::ChannelSend:

[legend]

Public Member Functions
	ChannelSend (dsp::ProcessorBase::ProcessorBaseDependencies dependencies, dsp::PortType signal_type, int slot, bool is_prefader, QObject *parent=nullptr)
dsp::ProcessorParameter *	amountParam () const
	Send amount (amplitude), 0 to 2 for audio, velocity multiplier for MIDI.
dsp::ProcessorParameter *	enabledParam () const
	Whether this send is enabled.
QVariant	destinationPort () const
	QML accessor for destination port.
void	setDestinationPort (const QVariant &port)
Q_SIGNAL void	destinationPortChanged ()
void	custom_process_block (dsp::graph::EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept override
	Custom processor logic after processing all owned parameters.
void	custom_prepare_for_processing (const dsp::graph::GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length) override
void	custom_release_resources () override
bool	is_prefader () const
bool	is_audio () const
bool	is_midi () const
dsp::AudioPort &	get_stereo_in_port () const
dsp::MidiPort &	get_midi_in_port () const
dsp::AudioPort &	get_stereo_out_port () const
dsp::MidiPort &	get_midi_out_port () const
auto	destination_port () const
	Returns the destination port reference, if set.
void	set_destination_port (dsp::PortUuidReference port)
	Sets the destination port.
void	clear_destination_port ()
	Clears the destination port.
bool	has_destination () const
	Checks if this send has a destination configured.
Public Member Functions inherited from zrythm::dsp::ProcessorBase
	ProcessorBase (ProcessorBaseDependencies dependencies, utils::Utf8String name={ u8"ProcessorBase" })
void	set_name (const utils::Utf8String &name)
	Set a custom name to be used in the DSP graph.
void	add_input_port (const dsp::PortUuidReference &uuid)
void	add_output_port (const dsp::PortUuidReference &uuid)
void	add_parameter (const dsp::ProcessorParameterUuidReference &uuid)
auto &	get_input_ports () const
auto &	get_output_ports () const
auto &	get_parameters () const
const ParameterChangeTracker &	change_tracker () const noexcept
	Returns the change tracker.
utils::Utf8String	get_node_name () const final
	Returns a human friendly name of the node.
void	process_block (dsp::graph::EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept final
	Calls custom_process_block() internally after processing all the parameters.
void	prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length) final
	Called to allocate resources required for processing.
void	release_resources () final
	Called to release resources allocated by prepare_for_processing().
Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual units::sample_u32_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies (zero latency by default).

Properties
zrythm::dsp::ProcessorParameter *	amountParam
zrythm::dsp::ProcessorParameter *	enabledParam
QVariant	destinationPort

Friends
void	to_json (nlohmann::json &j, const ChannelSend &p)
void	from_json (const nlohmann::json &j, ChannelSend &p)
void	init_from (ChannelSend &obj, const ChannelSend &other, utils::ObjectCloneType clone_type)

Additional Inherited Members
Protected Member Functions inherited from zrythm::dsp::ProcessorBase
auto	dependencies () const

Detailed Description

Channel send.

Sends route audio or MIDI signals from a channel to a destination port. The destination must be an input port of the same type (Audio or MIDI).

Definition at line 22 of file channel_send.h.

Constructor & Destructor Documentation

◆ ChannelSend()

zrythm::structure::tracks::ChannelSend::ChannelSend	(	dsp::ProcessorBase::ProcessorBaseDependencies	dependencies,
		dsp::PortType	signal_type,
		int	slot,
		bool	is_prefader,
		QObject *	parent = nullptr )

Parameters

slot	Slot, used only in parameter/port names.

Member Function Documentation

◆ amountParam()

dsp::ProcessorParameter * zrythm::structure::tracks::ChannelSend::amountParam ( ) const

inline

Send amount (amplitude), 0 to 2 for audio, velocity multiplier for MIDI.

Definition at line 62 of file channel_send.h.

◆ custom_prepare_for_processing()

void zrythm::structure::tracks::ChannelSend::custom_prepare_for_processing	(	const dsp::graph::GraphNode *	node,
		units::sample_rate_t	sample_rate,
		units::sample_u32_t	max_block_length )

overridevirtual

Reimplemented from zrythm::dsp::ProcessorBase.

◆ custom_process_block()

void zrythm::structure::tracks::ChannelSend::custom_process_block	(	dsp::graph::EngineProcessTimeInfo	time_nfo,
		const dsp::ITransport &	transport,
		const dsp::TempoMap &	tempo_map )

overridevirtualnoexcept

Custom processor logic after processing all owned parameters.

By default, this does passthrough to same-type ports.

Reimplemented from zrythm::dsp::ProcessorBase.

◆ custom_release_resources()

void zrythm::structure::tracks::ChannelSend::custom_release_resources ( )

overridevirtual

Reimplemented from zrythm::dsp::ProcessorBase.

◆ destination_port()

auto zrythm::structure::tracks::ChannelSend::destination_port ( ) const

inlinenodiscard

Returns the destination port reference, if set.

Definition at line 130 of file channel_send.h.

◆ enabledParam()

dsp::ProcessorParameter * zrythm::structure::tracks::ChannelSend::enabledParam ( ) const

Whether this send is enabled.

When disabled, the send outputs silence (audio) or no events (MIDI).

◆ get_midi_in_port()

dsp::MidiPort & zrythm::structure::tracks::ChannelSend::get_midi_in_port ( ) const

inline

Definition at line 111 of file channel_send.h.

◆ get_midi_out_port()

dsp::MidiPort & zrythm::structure::tracks::ChannelSend::get_midi_out_port ( ) const

inline

Definition at line 121 of file channel_send.h.

◆ get_stereo_in_port()

dsp::AudioPort & zrythm::structure::tracks::ChannelSend::get_stereo_in_port ( ) const

inline

Definition at line 106 of file channel_send.h.

◆ get_stereo_out_port()

dsp::AudioPort & zrythm::structure::tracks::ChannelSend::get_stereo_out_port ( ) const

inline

Definition at line 116 of file channel_send.h.

◆ has_destination()

bool zrythm::structure::tracks::ChannelSend::has_destination ( ) const

inline

Checks if this send has a destination configured.

Definition at line 149 of file channel_send.h.

◆ is_audio()

bool zrythm::structure::tracks::ChannelSend::is_audio ( ) const

inline

Definition at line 103 of file channel_send.h.

◆ is_midi()

bool zrythm::structure::tracks::ChannelSend::is_midi ( ) const

inline

Definition at line 104 of file channel_send.h.

◆ is_prefader()

bool zrythm::structure::tracks::ChannelSend::is_prefader ( ) const

inline

Definition at line 102 of file channel_send.h.

◆ set_destination_port()

void zrythm::structure::tracks::ChannelSend::set_destination_port ( dsp::PortUuidReference port )

Sets the destination port.

Parameters

port	The destination port reference.

Exceptions

std::invalid_argument if the port is not an input port of a compatible type (Audio or MIDI matching this send's type).

Property Documentation

◆ amountParam

zrythm::dsp::ProcessorParameter * zrythm::structure::tracks::ChannelSend::amountParam

read

Definition at line 25 of file channel_send.h.

◆ destinationPort

QVariant zrythm::structure::tracks::ChannelSend::destinationPort

readwrite

Definition at line 27 of file channel_send.h.

◆ enabledParam

zrythm::dsp::ProcessorParameter * zrythm::structure::tracks::ChannelSend::enabledParam

read

Definition at line 26 of file channel_send.h.

The documentation for this class was generated from the following file:

src/structure/tracks/channel_send.h
