Modulator macro button processor. More...

#include <src/dsp/modulator_macro_processor.h>

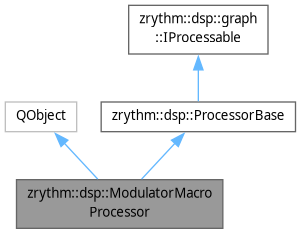

Inheritance diagram for zrythm::dsp::ModulatorMacroProcessor:

[legend]

Collaboration diagram for zrythm::dsp::ModulatorMacroProcessor:

[legend]

Public Member Functions
	ModulatorMacroProcessor (ProcessorBaseDependencies dependencies, int idx, QObject *parent=nullptr)
QString	name () const
utils::Utf8String	get_full_designation_for_port (const dsp::Port &port) const
auto	get_name () const
void	custom_process_block (EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept override
	Custom processor logic after processing all owned parameters.
void	custom_prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, nframes_t max_block_length) override
void	custom_release_resources () override
auto &	get_cv_in_port ()
	CV input port for connecting CV signals to.
auto &	get_cv_out_port ()
	CV output after macro is applied.
auto &	get_macro_param ()
	Control port controlling the amount.
Public Member Functions inherited from zrythm::dsp::ProcessorBase
	ProcessorBase (ProcessorBaseDependencies dependencies, utils::Utf8String name={ u8"ProcessorBase" })
void	set_name (const utils::Utf8String &name)
	Set a custom name to be used in the DSP graph.
void	add_input_port (const dsp::PortUuidReference &uuid)
void	add_output_port (const dsp::PortUuidReference &uuid)
void	add_parameter (const dsp::ProcessorParameterUuidReference &uuid)
auto &	get_input_ports () const
auto &	get_output_ports () const
auto &	get_parameters () const
utils::Utf8String	get_node_name () const final
	Returns a human friendly name of the node.
void	process_block (EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept final
	Calls custom_process_block() internally after processing all the parameters.
void	prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, nframes_t max_block_length) final
	Called to allocate resources required for processing.
void	release_resources () final
	Called to release resources allocated by prepare_for_processing().
Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual nframes_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies.

Properties
QString	name

Friends
void	init_from (ModulatorMacroProcessor &obj, const ModulatorMacroProcessor &other, utils::ObjectCloneType clone_type)
void	to_json (nlohmann::json &j, const ModulatorMacroProcessor &p)
void	from_json (const nlohmann::json &j, ModulatorMacroProcessor &p)

Additional Inherited Members
Protected Member Functions inherited from zrythm::dsp::ProcessorBase
auto	dependencies () const

Detailed Description

Modulator macro button processor.

This class enables users to create macro controls that can scale modulation signals or output fixed values. It contains 1 parameter to control scaling (or set a fixed output CV value), many CV inputs and 1 CV output.

Intended to be used in ModulatorTrack.

Definition at line 24 of file modulator_macro_processor.h.

Member Function Documentation

◆ custom_prepare_for_processing()

void zrythm::dsp::ModulatorMacroProcessor::custom_prepare_for_processing	(	const graph::GraphNode *	node,
		units::sample_rate_t	sample_rate,
		nframes_t	max_block_length )

overridevirtual

Reimplemented from zrythm::dsp::ProcessorBase.

◆ custom_process_block()

void zrythm::dsp::ModulatorMacroProcessor::custom_process_block	(	EngineProcessTimeInfo	time_nfo,
		const dsp::ITransport &	transport,
		const dsp::TempoMap &	tempo_map )
