zrythm::dsp::AudioSampleProcessor Class Reference

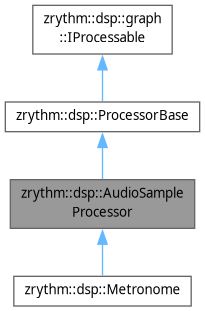

Inheritance diagram for zrythm::dsp::AudioSampleProcessor:

Collaboration diagram for zrythm::dsp::AudioSampleProcessor:

Data Structures
struct	PlayableSampleSingleChannel
	A sample playback handle to be used by the engine. More...

Public Types
using	QueueSingleChannelSampleCallback

Public Member Functions
	AudioSampleProcessor (dsp::ProcessorBase::ProcessorBaseDependencies dependencies)
void	add_sample_to_process (PlayableSampleSingleChannel sample)
	Adds a sample to the queue.
void	set_queue_sample_callback (QueueSingleChannelSampleCallback cb)
auto	get_output_audio_port_non_rt () const
auto	get_output_audio_port_rt () const
void	custom_process_block (EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport) noexcept override
	Custom processor logic after processing all owned parameters.
void	custom_prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, nframes_t max_block_length) override
void	custom_release_resources () override
Public Member Functions inherited from zrythm::dsp::ProcessorBase
	ProcessorBase (ProcessorBaseDependencies dependencies, utils::Utf8String name={ u8"ProcessorBase" })
void	set_name (const utils::Utf8String &name)
	Set a custom name to be used in the DSP graph.
void	add_input_port (const dsp::PortUuidReference &uuid)
void	add_output_port (const dsp::PortUuidReference &uuid)
void	add_parameter (const dsp::ProcessorParameterUuidReference &uuid)
auto &	get_input_ports () const
auto &	get_output_ports () const
auto &	get_parameters () const
utils::Utf8String	get_node_name () const final
	Returns a human friendly name of the node.
void	process_block (EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport) noexcept final
	Calls custom_process_block() internally after processing all the parameters.
void	prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, nframes_t max_block_length) final
	Called to allocate resources required for processing.
void	release_resources () final
	Called to release resources allocated by prepare_for_processing().
Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual nframes_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies.

Additional Inherited Members
Protected Member Functions inherited from zrythm::dsp::ProcessorBase
auto	dependencies () const

Detailed Description

Definition at line 17 of file audio_sample_processor.h.

Member Typedef Documentation

QueueSingleChannelSampleCallback

using zrythm::dsp::AudioSampleProcessor::QueueSingleChannelSampleCallback

Initial value:


    std::function<void (PlayableSampleSingleChannel)>

Definition at line 73 of file audio_sample_processor.h.

Constructor & Destructor Documentation

AudioSampleProcessor()

zrythm::dsp::AudioSampleProcessor::AudioSampleProcessor ( dsp::ProcessorBase::ProcessorBaseDependencies dependencies )

inline

Definition at line 20 of file audio_sample_processor.h.

Member Function Documentation

add_sample_to_process()

void zrythm::dsp::AudioSampleProcessor::add_sample_to_process ( PlayableSampleSingleChannel sample )

inline

Adds a sample to the queue.

Warning

This must only be called during the processing cycle before AudioSampleProcessor gets processed (eg, at the start of the processing cycle by the graph dispatcher, or in a node that is guaranteed to be processed before this). It is not thread-safe otherwise.

Definition at line 84 of file audio_sample_processor.h.

custom_prepare_for_processing()

void zrythm::dsp::AudioSampleProcessor::custom_prepare_for_processing ( const graph::GraphNode * node, units::sample_rate_t sample_rate, nframes_t max_block_length )

inlineoverridevirtual

Reimplemented from zrythm::dsp::ProcessorBase.

Definition at line 175 of file audio_sample_processor.h.

custom_process_block()

void zrythm::dsp::AudioSampleProcessor::custom_process_block ( EngineProcessTimeInfo time_nfo, const dsp::ITransport & transport )

inlineoverridevirtualnoexcept

Custom processor logic after processing all owned parameters.

By default, this does passthrough to same-type ports.

Reimplemented from zrythm::dsp::ProcessorBase.

Reimplemented in zrythm::dsp::Metronome.

Definition at line 111 of file audio_sample_processor.h.

custom_release_resources()

void zrythm::dsp::AudioSampleProcessor::custom_release_resources ( )

inlineoverridevirtual

Reimplemented from zrythm::dsp::ProcessorBase.

Definition at line 184 of file audio_sample_processor.h.

get_output_audio_port_non_rt()

auto zrythm::dsp::AudioSampleProcessor::get_output_audio_port_non_rt ( ) const

inline

Definition at line 104 of file audio_sample_processor.h.

get_output_audio_port_rt()

auto zrythm::dsp::AudioSampleProcessor::get_output_audio_port_rt ( ) const

inline

Definition at line 109 of file audio_sample_processor.h.

set_queue_sample_callback()

void zrythm::dsp::AudioSampleProcessor::set_queue_sample_callback ( QueueSingleChannelSampleCallback cb )

inline

Definition at line 99 of file audio_sample_processor.h.

---

The documentation for this class was generated from the following file:

• src/dsp/audio_sample_processor.h
