Router Class Reference

The Router class manages the processing graph for the audio engine. More...

#include <src/gui/dsp/router.h>

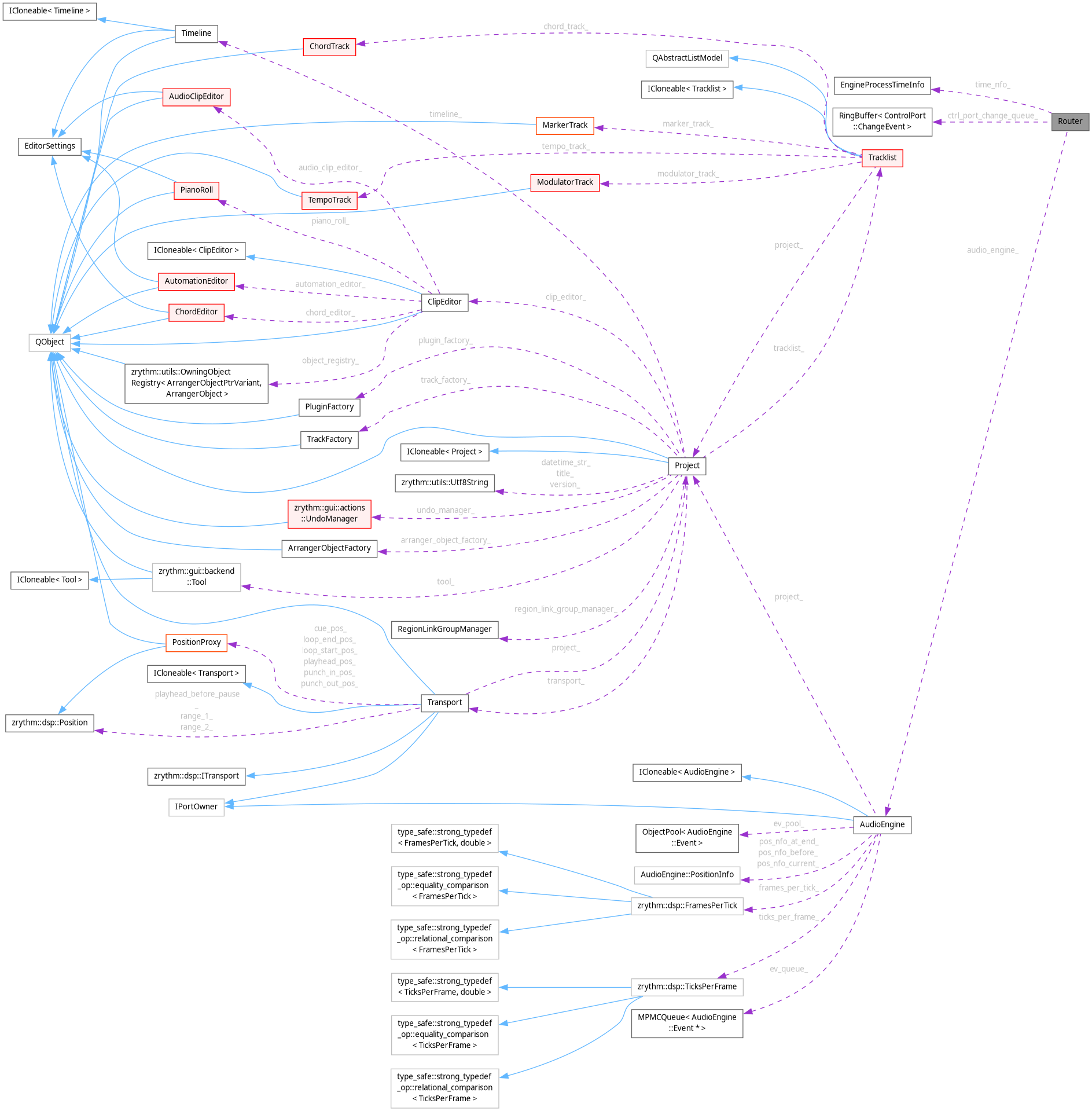

Collaboration diagram for Router:

Public Member Functions
	Router (AudioEngine *engine=nullptr)
void	recalc_graph (bool soft)
	Recalculates the process acyclic directed graph.
void	start_cycle (EngineProcessTimeInfo time_nfo)
	Starts a new cycle.
nframes_t	get_max_route_playback_latency ()
	Returns the max playback latency of the trigger nodes.
bool	is_processing_kickoff_thread () const
	Returns whether this is the thread that kicks off processing (thread that calls router_start_cycle()).
bool	is_processing_thread () const
	Returns if the current thread is a processing thread.
void	queue_control_port_change (const ControlPort::ChangeEvent &change)
	Queues a control port change to be applied when processing starts.

Data Fields
std::unique_ptr< dsp::graph::GraphScheduler >	scheduler_
std::atomic< bool >	graph_setup_in_progress_ = false
	An atomic variable to check if the graph is currently being setup (so that we can avoid accessing buffers changed by this).
EngineProcessTimeInfo	time_nfo_
	Time info for this processing cycle.
nframes_t	max_route_playback_latency_ = 0
	Stored for the currently processing cycle.
nframes_t	global_offset_ = 0
	Current global latency offset (max latency of all routes - remaining latency from engine).
std::binary_semaphore	graph_access_sem_ { 1 }
	Used when recalculating the graph.
bool	callback_in_progress_ = false
unsigned int	process_kickoff_thread_ = 0
	ID of the thread that calls kicks off the cycle.
RingBuffer< ControlPort::ChangeEvent >	ctrl_port_change_queue_ { 32 }
	Message queue for control port changes, used for BPM/time signature changes.
AudioEngine *	audio_engine_ = nullptr

Detailed Description

The Router class manages the processing graph for the audio engine.

The Router class is responsible for maintaining the active processing graph, handling graph setup and recalculation, and managing the processing cycle. It provides methods for starting a new processing cycle, retrieving the maximum playback latency, and checking the current processing thread.

Definition at line 54 of file router.h.

Member Function Documentation

is_processing_kickoff_thread()

bool Router::is_processing_kickoff_thread ( ) const

inlinenodiscard

Returns whether this is the thread that kicks off processing (thread that calls router_start_cycle()).

Definition at line 81 of file router.h.

is_processing_thread()

bool Router::is_processing_thread ( ) const

inlinenodiscard

Returns if the current thread is a processing thread.

Definition at line 89 of file router.h.

queue_control_port_change()

void Router::queue_control_port_change

(

const ControlPort::ChangeEvent &

change

)

Queues a control port change to be applied when processing starts.

Currently only applies to BPM/time signature changes.

recalc_graph()

void Router::recalc_graph

(

bool

soft

)

Recalculates the process acyclic directed graph.

Parameters

soft	If true, only readjusts latencies.

Field Documentation

audio_engine_

AudioEngine* Router::audio_engine_ = nullptr

Definition at line 156 of file router.h.

callback_in_progress_

bool Router::callback_in_progress_ = false

Definition at line 147 of file router.h.

ctrl_port_change_queue_

RingBuffer<ControlPort::ChangeEvent> Router::ctrl_port_change_queue_ { 32 }

Message queue for control port changes, used for BPM/time signature changes.

Definition at line 154 of file router.h.

global_offset_

nframes_t Router::global_offset_ = 0

Current global latency offset (max latency of all routes - remaining latency from engine).

Definition at line 142 of file router.h.

graph_access_sem_

std::binary_semaphore Router::graph_access_sem_ { 1 }

Used when recalculating the graph.

Definition at line 145 of file router.h.

graph_setup_in_progress_

std::atomic<bool> Router::graph_setup_in_progress_ = false

An atomic variable to check if the graph is currently being setup (so that we can avoid accessing buffers changed by this).

Definition at line 131 of file router.h.

max_route_playback_latency_

nframes_t Router::max_route_playback_latency_ = 0

Stored for the currently processing cycle.

Definition at line 137 of file router.h.

process_kickoff_thread_

unsigned int Router::process_kickoff_thread_ = 0

ID of the thread that calls kicks off the cycle.

Definition at line 150 of file router.h.

scheduler_

std::unique_ptr<dsp::graph::GraphScheduler> Router::scheduler_

Definition at line 127 of file router.h.

time_nfo_

EngineProcessTimeInfo Router::time_nfo_

Time info for this processing cycle.

Definition at line 134 of file router.h.

---

The documentation for this class was generated from the following file:

• src/gui/dsp/router.h
