The Tracklist contains all the tracks in the Project. More...

#include <src/gui/dsp/tracklist.h>

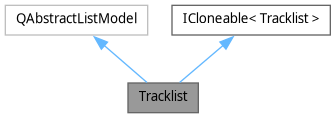

Inheritance diagram for Tracklist:

[legend]

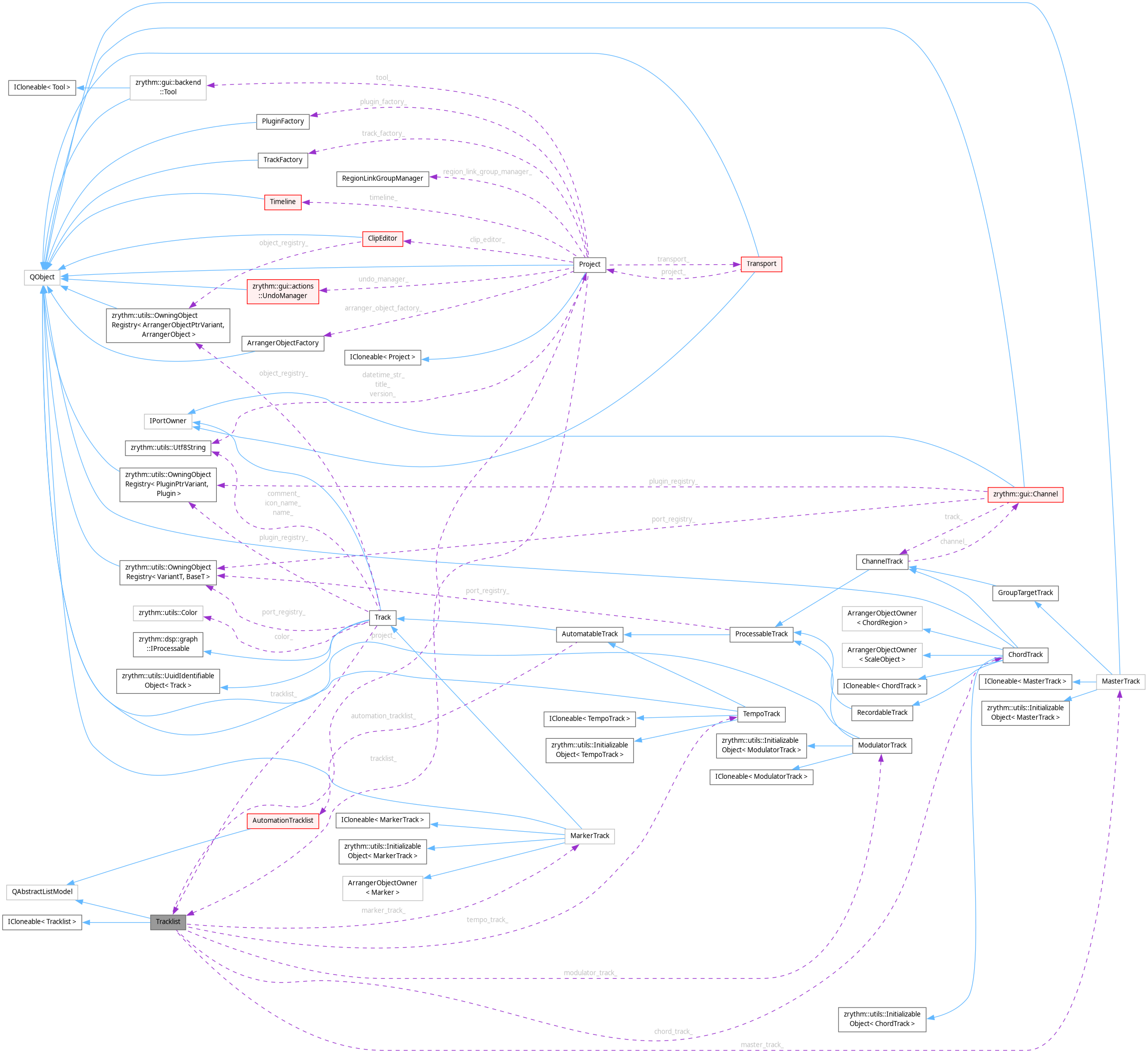

Collaboration diagram for Tracklist:

[legend]

Public Types
enum class	PinOption { PinnedOnly , UnpinnedOnly , Both }
	Used in track search functions. More...

enum	TrackRoles { TrackPtrRole = Qt::UserRole + 1 , TrackNameRole }

using	TrackUuid = Track::Uuid

Public Member Functions
	Tracklist (QObject *parent=nullptr)

	Tracklist (Project &project, PortRegistry &port_registry, TrackRegistry &track_registry, dsp::PortConnectionsManager *port_connections_manager)

	Tracklist (SampleProcessor &sample_processor, PortRegistry &port_registry, TrackRegistry &track_registry, dsp::PortConnectionsManager *port_connections_manager)

QHash< int, QByteArray >	roleNames () const override

int	rowCount (const QModelIndex &parent=QModelIndex()) const override

QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const override

TempoTrack *	getTempoTrack () const

Q_INVOKABLE void	setExclusivelySelectedTrack (QVariant track)

auto	get_track_span () const

bool	is_in_active_project () const

bool	is_auditioner () const

void	init_after_cloning (const Tracklist &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

void	init_loaded (PortRegistry &port_registry, Project project, SampleProcessor sample_processor)
	Initializes the tracklist when loading a project.

void	init_loaded (PortRegistry &port_registry, Project &project)

void	init_loaded (PortRegistry &port_registry, SampleProcessor &sample_processor)

TrackPtrVariant	insert_track (const TrackUuidReference &track_id, int pos, AudioEngine &engine, bool publish_events, bool recalc_graph)
	Adds given track to given spot in tracklist.

TrackPtrVariant	append_track (auto track_id, AudioEngine &engine, bool publish_events, bool recalc_graph)
	Calls insert_track with the given options.

void	remove_track (const TrackUuid &track_id)
	Removes the given track from the tracklist.

void	move_track (TrackUuid track_id, int pos, bool always_before_pos, std::optional< std::reference_wrapper< Router > > router)
	Moves a track from its current position to the position given by `pos`.

std::optional< TrackPtrVariant >	get_track (const TrackUuid &id) const

void	set_track_pinned (TrackUuid track_id, bool pinned, int publish_events, int recalc_graph)
	Pins or unpins the Track.

bool	validate () const

ChordTrack *	get_chord_track () const

std::optional< TrackPtrVariant >	get_first_visible_track (bool pinned) const
	Returns the first visible Track.

std::optional< TrackPtrVariant >	get_prev_visible_track (Track::TrackUuid track_id) const
	Returns the previous visible Track in the same Tracklist as the given one (ie, pinned or not).

std::optional< TrackPtrVariant >	get_next_visible_track (Track::TrackUuid track_id) const
	Returns the next visible Track in the same Tracklist as the given one (ie, pinned or not).

int	get_last_pos (PinOption pin_opt=PinOption::Both, bool visible_only=false) const
	Returns the index of the last Track.

std::optional< TrackPtrVariant >	get_last_track (PinOption pin_opt=PinOption::Both, bool visible_only=false) const
	Returns the last Track.

std::optional< TrackPtrVariant >	get_visible_track_after_delta (Track::TrackUuid track_id, int delta) const
	Returns the Track after delta visible Track's.

int	get_visible_track_diff (Track::TrackUuid src_track, Track::TrackUuid dest_track) const
	Returns the number of visible Tracks between src and dest (negative if dest is before src).

bool	multiply_track_heights (double multiplier, bool visible_only, bool check_only, bool fire_events)
	Multiplies all tracks' heights and returns if the operation was valid.

void	handle_click (TrackUuid track_id, bool ctrl, bool shift, bool dragged)
	Handle a click selection.

std::vector< ArrangerObjectPtrVariant >	get_timeline_objects_in_range (std::optional< std::pair< dsp::Position, dsp::Position > > range=std::nullopt) const

void	clear_selections_for_object_siblings (const ArrangerObject::Uuid &object_id)
	Clears either the timeline selections or the clip editor selections.

void	import_regions (std::vector< std::vector< std::shared_ptr< Region > > > &region_arrays, const FileImportInfo *import_info, TracksReadyCallback ready_cb)
	Imports regions from a region array.

void	move_region_to_track (ArrangerObjectPtrVariant region, const Track::Uuid &to_track_id, int lane_or_at_index, int index)
	Moves the Region to the given Track, maintaining the selection status of the Region.

void	move_plugin_automation (const Plugin::Uuid &plugin_id, const Track::Uuid &prev_track_id, const Track::Uuid &track_id_to_move_to, zrythm::plugins::PluginSlot new_slot)
	Moves the Plugin's automation from one Channel to another.

void	move_plugin (const Plugin::Uuid &plugin_id, const Track::Uuid &target_track_id, plugins::PluginSlot slot, bool confirm_overwrite)
	Moves the plugin to the given slot in the given channel.

zrythm::gui::Channel *	get_channel_for_plugin (const Plugin::Uuid &plugin_id)

void	import_files (std::optional< std::vector< utils::Utf8String > > uri_list, const FileDescriptor orig_file, const Track track, const TrackLane lane, int index, const zrythm::dsp::Position pos, TracksReadyCallback ready_cb)
	Begins file import Handles a file drop inside the timeline or in empty space in the tracklist.

bool	track_name_is_unique (const utils::Utf8String &name, TrackUuid track_to_skip) const
	Returns whether the track name is not taken.

bool	is_track_pinned (size_t index) const
	Returns whether the track at `index` is pinned.

auto	get_track_index (const Track::TrackUuid &track_id) const

auto	get_track_at_index (size_t index) const

auto	get_track_ref_at_index (size_t index) const

bool	is_track_pinned (Track::TrackUuid track_id) const

auto	get_selection_manager ()

void	select_foldable_children_of_current_selections ()
	Also selects the children of foldable tracks in the currently selected tracks.

auto	get_pinned_tracks_cutoff_index () const

void	set_pinned_tracks_cutoff_index (size_t index)

auto	track_count () const

void	mark_track_for_bounce (TrackPtrVariant track_var, bool bounce, bool mark_regions, bool mark_children, bool mark_parents)
	Marks the track for bouncing.

void	mark_all_tracks_for_bounce (bool bounce)

Public Member Functions inherited from ICloneable< Tracklist >
std::unique_ptr< Tracklist >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< Tracklist >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Tracklist *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Tracklist *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< Tracklist >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Data Fields
ChordTrack *	chord_track_ = nullptr
	The chord track, for convenience.

MarkerTrack *	marker_track_ = nullptr
	The marker track, for convenience.

TempoTrack *	tempo_track_ = nullptr
	The tempo track, for convenience.

ModulatorTrack *	modulator_track_ = nullptr
	The modulator track, for convenience.

MasterTrack *	master_track_ = nullptr
	The master track, for convenience.

Project *	project_ = nullptr
	Pointer to owner project, if any.

QPointer< dsp::PortConnectionsManager >	port_connections_manager_
	Width of track widgets.

Data Fields inherited from ICloneable< Tracklist >
friend	Derived

Static Public Attributes
static constexpr std::array< Track::Type, 4 >	unique_track_types_
	A list of track types that must be unique in the tracklist.

Properties
QML_ELEMENT TempoTrack *	tempoTrack

Friends
void	to_json (nlohmann::json &j, const Tracklist &t)

void	from_json (const nlohmann::json &j, Tracklist &t)

Detailed Description

The Tracklist contains all the tracks in the Project.

There should be a clear separation between the Tracklist and the Mixer. The Tracklist should be concerned with Tracks in the arranger, and the Mixer should be concerned with Channels, routing and Port connections.

Definition at line 31 of file tracklist.h.

Member Typedef Documentation

◆ TrackUuid

using Tracklist::TrackUuid = Track::Uuid

Definition at line 38 of file tracklist.h.

Member Enumeration Documentation

◆ PinOption

enum class Tracklist::PinOption

strong

Used in track search functions.

Definition at line 43 of file tracklist.h.

◆ TrackRoles

enum Tracklist::TrackRoles

Definition at line 50 of file tracklist.h.

Member Function Documentation

◆ append_track()

TrackPtrVariant Tracklist::append_track	(	auto	track_id,
		AudioEngine &	engine,
		bool	publish_events,
		bool	recalc_graph )

inline

Calls insert_track with the given options.

Definition at line 140 of file tracklist.h.

◆ clear_selections_for_object_siblings()

void Tracklist::clear_selections_for_object_siblings ( const ArrangerObject::Uuid & object_id )

Clears either the timeline selections or the clip editor selections.

Parameters

object_id The object that is part of the target selections.

◆ get_first_visible_track()

std::optional< TrackPtrVariant > Tracklist::get_first_visible_track ( bool pinned ) const

Returns the first visible Track.

Parameters

pinned 1 to check the pinned tracklist, 0 to check the non-pinned tracklist.

◆ get_last_pos()

int Tracklist::get_last_pos	(	PinOption	pin_opt = PinOption::Both,
		bool	visible_only = false ) const

Returns the index of the last Track.

Parameters

pin_opt	Pin option.
visible_only	Only consider visible Track's.

◆ get_last_track()

std::optional< TrackPtrVariant > Tracklist::get_last_track	(	PinOption	pin_opt = PinOption::Both,
		bool	visible_only = false ) const

inline

Returns the last Track.

Parameters

pin_opt	Pin option.
visible_only	Only consider visible Track's.

Definition at line 237 of file tracklist.h.

◆ get_pinned_tracks_cutoff_index()

auto Tracklist::get_pinned_tracks_cutoff_index ( ) const

inline

Definition at line 467 of file tracklist.h.

◆ get_selection_manager()

auto Tracklist::get_selection_manager ( )

inline

Definition at line 434 of file tracklist.h.

◆ get_track()

std::optional< TrackPtrVariant > Tracklist::get_track ( const TrackUuid & id ) const

inline

Definition at line 173 of file tracklist.h.

◆ get_track_at_index()

auto Tracklist::get_track_at_index ( size_t index ) const

inline

Definition at line 415 of file tracklist.h.

◆ get_track_index()

auto Tracklist::get_track_index ( const Track::TrackUuid & track_id ) const

inline

Definition at line 408 of file tracklist.h.

◆ get_track_ref_at_index()

auto Tracklist::get_track_ref_at_index ( size_t index ) const

inline

Definition at line 422 of file tracklist.h.

◆ get_track_span()

auto Tracklist::get_track_span ( ) const

inline

Definition at line 93 of file tracklist.h.

◆ get_visible_track_after_delta()

std::optional< TrackPtrVariant > Tracklist::get_visible_track_after_delta	(	Track::TrackUuid	track_id,
		int	delta ) const

Returns the Track after delta visible Track's.

Negative delta searches backwards.

This function searches tracks only in the same Tracklist as the given one (ie, pinned or not).

◆ get_visible_track_diff()

int Tracklist::get_visible_track_diff	(	Track::TrackUuid	src_track,
		Track::TrackUuid	dest_track ) const

Returns the number of visible Tracks between src and dest (negative if dest is before src).

The caller is responsible for checking that both tracks are in the same tracklist (ie, pinned or not).

◆ import_files()

void Tracklist::import_files	(	std::optional< std::vector< utils::Utf8String > >	uri_list,
		const FileDescriptor *	orig_file,
		const Track *	track,
		const TrackLane *	lane,
		int	index,
		const zrythm::dsp::Position *	pos,
		TracksReadyCallback	ready_cb )

Begins file import Handles a file drop inside the timeline or in empty space in the tracklist.

Parameters

uri_list	URI list, if URI list was dropped.
file	File, if FileDescriptor was dropped.
track	Track, if any.
lane	TrackLane, if any.
index	Index to insert new tracks at, or -1 to insert at end.
pos	Position the file was dropped at, if inside track.

Exceptions

ZrythmException on error.

◆ import_regions()

void Tracklist::import_regions	(	std::vector< std::vector< std::shared_ptr< Region > > > &	region_arrays,
		const FileImportInfo *	import_info,
		TracksReadyCallback	ready_cb )

Imports regions from a region array.

Parameters

region_arrays
import_info
ready_cb

Exceptions

ZrythmException on error.

◆ init_after_cloning()

void Tracklist::init_after_cloning	(	const Tracklist &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< Tracklist >.

◆ init_loaded() [1/2]

void Tracklist::init_loaded	(	PortRegistry &	port_registry,
		Project &	project )

inline

Definition at line 113 of file tracklist.h.

◆ init_loaded() [2/2]

void Tracklist::init_loaded	(	PortRegistry &	port_registry,
		SampleProcessor &	sample_processor )

inline

Definition at line 118 of file tracklist.h.

◆ insert_track()

TrackPtrVariant Tracklist::insert_track	(	const TrackUuidReference &	track_id,
		int	pos,
		AudioEngine &	engine,
		bool	publish_events,
		bool	recalc_graph )

Adds given track to given spot in tracklist.

Parameters

publish_events	Publish UI events.
recalc_graph	Recalculate routing graph.

Returns: Pointer to the newly added track.

◆ is_auditioner()

bool Tracklist::is_auditioner ( ) const

inline

Definition at line 97 of file tracklist.h.

◆ is_track_pinned() [1/2]

bool Tracklist::is_track_pinned ( size_t index ) const

inline

Returns whether the track at index is pinned.

Definition at line 403 of file tracklist.h.

◆ is_track_pinned() [2/2]

bool Tracklist::is_track_pinned ( Track::TrackUuid track_id ) const

inline

Definition at line 429 of file tracklist.h.

◆ mark_all_tracks_for_bounce()

void Tracklist::mark_all_tracks_for_bounce ( bool bounce )

inline

Definition at line 489 of file tracklist.h.

◆ mark_track_for_bounce()

void Tracklist::mark_track_for_bounce	(	TrackPtrVariant	track_var,
		bool	bounce,
		bool	mark_regions,
		bool	mark_children,
		bool	mark_parents )

Marks the track for bouncing.

Parameters

mark_children	Whether to mark all children tracks as well. Used when exporting stems on the specific track stem only. IMPORTANT: Track.bounce_to_master must be set beforehand if this is true.
mark_parents	Whether to mark all parent tracks as well.

◆ move_plugin()

void Tracklist::move_plugin	(	const Plugin::Uuid &	plugin_id,
		const Track::Uuid &	target_track_id,
		plugins::PluginSlot	slot,
		bool	confirm_overwrite )

Moves the plugin to the given slot in the given channel.

If a plugin already exists, it deletes it and replaces it.

Parameters

confirm_overwrite Whether to show a dialog to confirm the overwrite when a plugin already exists.

◆ move_region_to_track()

void Tracklist::move_region_to_track	(	ArrangerObjectPtrVariant	region,
		const Track::Uuid &	to_track_id,
		int	lane_or_at_index,
		int	index )

Moves the Region to the given Track, maintaining the selection status of the Region.

Assumes that the Region is already in a TrackLane or AutomationTrack.

Parameters

lane_or_at_index	If MIDI or audio, lane position. If automation, automation track index in the automation tracklist. If -1, the track lane or automation track index will be inferred from the region.
index	If MIDI or audio, index in lane in the new track to insert the region to, or -1 to append. If automation, index in the automation track.

Exceptions

ZrythmException on error.

◆ move_track()

void Tracklist::move_track	(	TrackUuid	track_id,
		int	pos,
		bool	always_before_pos,
		std::optional< std::reference_wrapper< Router > >	router )

Moves a track from its current position to the position given by pos.

Parameters

pos	Position to insert at, or -1 to insert at the end.
always_before_pos	Whether the track should always be put before the track currently at `pos`. If this is true, when moving down, the resulting track position will be `pos` - 1.
router	If given, the processing graph will be soft-recalculated.

◆ multiply_track_heights()

bool Tracklist::multiply_track_heights	(	double	multiplier,
		bool	visible_only,
		bool	check_only,
		bool	fire_events )

Multiplies all tracks' heights and returns if the operation was valid.

Parameters

visible_only Only apply to visible tracks.

◆ remove_track()

void Tracklist::remove_track ( const TrackUuid & track_id )

Removes the given track from the tracklist.

Also disconnects the channel (breaks its internal & external connections) and removes any plugins (if any).

◆ select_foldable_children_of_current_selections()

void Tracklist::select_foldable_children_of_current_selections ( )

inline

Also selects the children of foldable tracks in the currently selected tracks.

Definition at line 443 of file tracklist.h.

◆ set_pinned_tracks_cutoff_index()

void Tracklist::set_pinned_tracks_cutoff_index ( size_t index )

inline

Definition at line 468 of file tracklist.h.

◆ track_count()

auto Tracklist::track_count ( ) const

inline

Definition at line 472 of file tracklist.h.

◆ track_name_is_unique()

bool Tracklist::track_name_is_unique	(	const utils::Utf8String &	name,
		TrackUuid	track_to_skip ) const

Returns whether the track name is not taken.

Parameters

track_to_skip Track to skip when searching.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		Tracklist &	t )

friend

Definition at line 506 of file tracklist.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const Tracklist &	t )

friend

Definition at line 498 of file tracklist.h.

Field Documentation

◆ chord_track_

ChordTrack* Tracklist::chord_track_ = nullptr

The chord track, for convenience.

Definition at line 551 of file tracklist.h.

◆ marker_track_

MarkerTrack* Tracklist::marker_track_ = nullptr

The marker track, for convenience.

Definition at line 554 of file tracklist.h.

◆ master_track_

MasterTrack* Tracklist::master_track_ = nullptr

The master track, for convenience.

Definition at line 563 of file tracklist.h.

◆ modulator_track_

ModulatorTrack* Tracklist::modulator_track_ = nullptr

The modulator track, for convenience.

Definition at line 560 of file tracklist.h.

◆ port_connections_manager_

QPointer<dsp::PortConnectionsManager> Tracklist::port_connections_manager_

Width of track widgets.

Definition at line 587 of file tracklist.h.

◆ project_

Project* Tracklist::project_ = nullptr

Pointer to owner project, if any.

Definition at line 582 of file tracklist.h.

◆ tempo_track_

TempoTrack* Tracklist::tempo_track_ = nullptr

The tempo track, for convenience.

Definition at line 557 of file tracklist.h.

◆ unique_track_types_

std::array<Track::Type, 4> Tracklist::unique_track_types_

staticconstexpr

Initial value:

= {
    Track::Type::Chord, Track::Type::Marker, Track::Type::Tempo,
    Track::Type::Modulator
  }

A list of track types that must be unique in the tracklist.

Definition at line 88 of file tracklist.h.

Property Documentation

◆ tempoTrack

QML_ELEMENT TempoTrack * Tracklist::tempoTrack

read

Definition at line 35 of file tracklist.h.

The documentation for this class was generated from the following file:

src/gui/dsp/tracklist.h

Public Types

Public Member Functions

Data Fields

Static Public Attributes

Properties

Friends

Detailed Description

Member Typedef Documentation

◆ TrackUuid

Member Enumeration Documentation

◆ PinOption

◆ TrackRoles

Member Function Documentation

◆ append_track()

◆ clear_selections_for_object_siblings()

◆ get_first_visible_track()

◆ get_last_pos()

◆ get_last_track()

◆ get_pinned_tracks_cutoff_index()

◆ get_selection_manager()

◆ get_track()

◆ get_track_at_index()

◆ get_track_index()

◆ get_track_ref_at_index()

◆ get_track_span()

◆ get_visible_track_after_delta()

◆ get_visible_track_diff()

◆ import_files()

◆ import_regions()

◆ init_after_cloning()

◆ init_loaded() [1/2]

◆ init_loaded() [2/2]

◆ insert_track()

◆ is_auditioner()

◆ is_track_pinned() [1/2]

◆ is_track_pinned() [2/2]

◆ mark_all_tracks_for_bounce()

◆ mark_track_for_bounce()

◆ move_plugin()

◆ move_region_to_track()

◆ move_track()

◆ multiply_track_heights()

◆ remove_track()

◆ select_foldable_children_of_current_selections()

◆ set_pinned_tracks_cutoff_index()

◆ track_count()

◆ track_name_is_unique()

Friends And Related Symbol Documentation

◆ from_json

◆ to_json

Field Documentation

◆ chord_track_

◆ marker_track_

◆ master_track_

◆ modulator_track_

◆ port_connections_manager_

◆ project_

◆ tempo_track_

◆ unique_track_types_

Property Documentation

◆ tempoTrack
