Represents a channel strip on the mixer. More...

#include <src/gui/backend/channel.h>

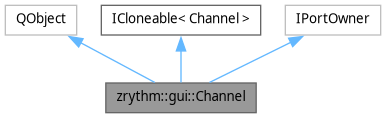

Inheritance diagram for zrythm::gui::Channel:

[legend]

Collaboration diagram for zrythm::gui::Channel:

[legend]

Public Types
using	PortType = zrythm::dsp::PortType

using	PortIdentifier = dsp::PortIdentifier

using	TrackUuid = utils::UuidIdentifiableObject<Track>::Uuid

using	Plugin = gui::old_dsp::plugins::Plugin

using	PluginDescriptor = zrythm::plugins::PluginDescriptor

using	PluginSlot = zrythm::plugins::PluginSlot

using	PluginSlotType = zrythm::plugins::PluginSlotType

using	PluginPtrVariant = gui::old_dsp::plugins::PluginPtrVariant

using	PluginUuid = Plugin::Uuid

Public Types inherited from IPortOwner
using	TrackUuid = dsp::PortIdentifier::TrackUuid

using	PluginUuid = dsp::PortIdentifier::PluginUuid

using	PortUuid = dsp::PortIdentifier::PortUuid

Public Member Functions
	Channel (TrackRegistry &track_registry, PluginRegistry &plugin_registry, PortRegistry &port_registry, OptionalRef< ChannelTrack > track)
	Main constructor used by the others.

	Channel (TrackRegistry &track_registry, PluginRegistry &plugin_registry, PortRegistry &port_registry)
	To be used when deserializing or cloning an existing identity.

Fader *	getFader () const

Fader *	getPreFader () const

AudioPort *	getLeftAudioOut () const

AudioPort *	getRightAudioOut () const

MidiPort *	getMidiOut () const

void	init ()
	Initializes the Channel (performs logic that needs the object to be constructed).

bool	is_in_active_project () const override

void	set_port_metadata_from_owner (dsp::PortIdentifier &id, PortRange &range) const override
	Function that will be called by the Port to update the identifier's relevant members based on this port owner.

utils::Utf8String	get_full_designation_for_port (const dsp::PortIdentifier &id) const override

bool	should_bounce_to_master (utils::audio::BounceStep step) const override
	Whether the port should add its data to the master output when bouncing.

MidiPort &	get_midi_out_port () const

std::pair< AudioPort &, AudioPort & >	get_stereo_out_ports () const

void	reset_fader (bool fire_events)
	Sets fader to 0.0.

void	handle_plugin_import (const Plugin pl, std::optional< PluginSpan > plugins, const PluginDescriptor descr, PluginSlot slot, bool copy, bool ask_if_overwrite)
	Handles import (paste/drop) of plugins or plugin descriptors or mixer selections.

void	prepare_process (nframes_t nframes)
	Prepares the channel for processing.

void	process ()
	Perform processing of the audio signal.

PluginPtrVariant	add_plugin (PluginUuidReference plugin_id, PluginSlot slot, bool confirm, bool moving_plugin, bool gen_automatables, bool recalc_graph, bool pub_events)
	Adds given plugin to given position in the strip.

ChannelTrack &	get_track () const

GroupTargetTrack *	get_output_track () const

void	reconnect_ext_input_ports (AudioEngine &engine)
	Called when the input has changed for Midi, Instrument or Audio tracks.

AutomationTrack *	get_automation_track (PortIdentifier::Flags port_flags) const
	Convenience function to get the automation track of the given type for the channel.

PluginUuid	remove_plugin_from_channel (PluginSlot slot, bool moving_plugin, bool deleting_plugin)
	Removes a plugin at the given slot from the channel.

void	get_plugins (std::vector< Plugin * > &pls)
	Returns all existing plugins in the channel.

void	paste_plugins_to_slot (PluginSpan plugins, PluginSlot slot)
	Paste the selections starting at the slot in the given channel.

bool	get_mono_compat_enabled ()
	Gets whether mono compatibility is enabled.

void	set_mono_compat_enabled (bool enabled, bool fire_events)
	Sets whether mono compatibility is enabled.

bool	get_swap_phase ()
	Gets whether mono compatibility is enabled.

void	set_swap_phase (bool enabled, bool fire_events)
	Sets whether mono compatibility is enabled.

std::optional< PluginPtrVariant >	get_plugin_at_slot (PluginSlot slot) const

auto	get_plugin_slot (const PluginUuid &plugin_id) const -> PluginSlot

std::optional< PluginPtrVariant >	get_plugin_from_id (PluginUuid id) const

std::optional< PluginPtrVariant >	get_instrument () const

void	select_all (PluginSlotType type, bool select)
	Selects/deselects all plugins in the given slot type.

void	set_caches ()
	Sets caches for processing.

void	init_after_cloning (const Channel &other, ObjectCloneType clone_type) override

void	disconnect_channel ()
	Disconnects the channel from the processing chain and removes any plugins it contains.

void	connect_channel (dsp::PortConnectionsManager &mgr, AudioEngine &engine)
	Connects the channel's ports.

void	init_loaded ()

void	handle_recording (long g_frames_start, nframes_t nframes)
	Handles the recording logic inside the process cycle.

void	append_ports (std::vector< Port * > &ports, bool include_plugins)
	Appends all channel ports and optionally plugin ports to the array.

void	expose_ports_to_backend (AudioEngine &engine)
	Exposes the channel's ports to the backend.

void	set_phase (float phase)

float	get_phase () const

void	set_balance_control (float val)

void	add_balance_control (float pan)
	Adds to (or subtracts from) the pan.

float	get_balance_control () const

void	set_track_ptr (ChannelTrack &track)
	Set the track ptr to the channel and all its internals that reference a track (Plugin, Fader, etc.)

bool	has_output () const

Fader &	get_post_fader () const

Fader &	get_pre_fader () const

auto &	get_sends () const

Public Member Functions inherited from ICloneable< Channel >
std::unique_ptr< Channel >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< Channel >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Channel *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Channel *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< Channel >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Public Member Functions inherited from IPortOwner
virtual void	on_control_change_event (const PortUuid &port_uuid, const dsp::PortIdentifier &id, float val)
	Will be called when a control port's value changes.

virtual void	on_midi_activity (const dsp::PortIdentifier &id)
	Called during processing if the MIDI port contains new MIDI events.

virtual bool	should_sum_data_from_backend () const
	Whether during processing, the port should sum the data from its backend buffers coming in.

virtual bool	are_events_on_midi_channel_approved (midi_byte_t channel) const
	Returns whether MIDI events on this channel on an input port should be processed (not ignored).

Data Fields
TrackRegistry &	track_registry_

PortRegistry &	port_registry_

PluginRegistry &	plugin_registry_

std::array< std::optional< PluginUuidReference >, STRIP_SIZE >	midi_fx_
	The MIDI effect strip on instrument/MIDI tracks.

std::array< std::optional< PluginUuidReference >, STRIP_SIZE >	inserts_
	The channel insert strip.

std::optional< PluginUuidReference >	instrument_
	The instrument plugin, if instrument track.

std::array< std::unique_ptr< ChannelSend >, STRIP_SIZE >	sends_
	The sends strip.

std::vector< std::unique_ptr< ExtPort > >	ext_midi_ins_
	External MIDI inputs that are currently connected to this channel as official inputs, unless all_midi_ins is enabled.

bool	all_midi_ins_ = true
	If true, the channel will connect to all MIDI ins found.

std::vector< std::unique_ptr< ExtPort > >	ext_stereo_l_ins_
	External audio L inputs that are currently connected to this channel as official inputs, unless all_stereo_l_ins is enabled.

bool	all_stereo_l_ins_ = false
	If true, the channel will connect to all stereo L ins found.

std::vector< std::unique_ptr< ExtPort > >	ext_stereo_r_ins_
	External audio R inputs that are currently connected to this channel as official inputs, unless all_stereo_r_ins is enabled.

bool	all_stereo_r_ins_ = false
	If true, the channel will connect to all stereo R ins found.

std::array< bool, 16 >	midi_channels_ {}
	1 or 0 flags for each channel to enable it or disable it.

bool	all_midi_channels_ = true
	If true, the channel will accept MIDI messages from all MIDI channels.

Fader *	fader_ = nullptr
	The channel fader.

Fader *	prefader_ = nullptr
	Prefader.

std::optional< PortUuidReference >	midi_out_id_
	MIDI output for sending MIDI signals to other destinations, such as other channels when directly routed (eg MIDI track to ins track).

std::optional< PortUuidReference >	stereo_out_left_id_

std::optional< PortUuidReference >	stereo_out_right_id_

std::optional< TrackUuid >	output_track_uuid_
	Whether or not output_pos corresponds to a Track or not.

std::optional< TrackUuid >	track_uuid_
	Track associated with this channel.

int	width_ = 0
	Channel widget width - reserved for future use.

ChannelTrack *	track_
	Owner track.

Data Fields inherited from ICloneable< Channel >
friend	Derived

Static Public Attributes
static constexpr auto	STRIP_SIZE = zrythm::dsp::STRIP_SIZE

Properties
QML_ELEMENT Fader *	fader

Fader *	preFader

AudioPort *	leftAudioOut

AudioPort *	rightAudioOut

MidiPort *	midiOut

Friends
struct	PluginImportData

void	to_json (nlohmann::json &j, const Channel &c)

void	from_json (const nlohmann::json &j, Channel &c)

Detailed Description

Represents a channel strip on the mixer.

The Channel class encapsulates the functionality of a channel strip, including its plugins, fader, sends, and other properties. It provides methods for managing the channel's state and processing the audio signal.

Channels are owned by Tracks and handle the output part of the signal chain, while TrackProcessor handles the input part.

See also: Track

Definition at line 43 of file channel.h.

Member Typedef Documentation

◆ Plugin

using zrythm::gui::Channel::Plugin = gui::old_dsp::plugins::Plugin

Definition at line 58 of file channel.h.

◆ PluginDescriptor

using zrythm::gui::Channel::PluginDescriptor = zrythm::plugins::PluginDescriptor

Definition at line 59 of file channel.h.

◆ PluginPtrVariant

using zrythm::gui::Channel::PluginPtrVariant = gui::old_dsp::plugins::PluginPtrVariant

Definition at line 62 of file channel.h.

◆ PluginSlot

using zrythm::gui::Channel::PluginSlot = zrythm::plugins::PluginSlot

Definition at line 60 of file channel.h.

◆ PluginSlotType

using zrythm::gui::Channel::PluginSlotType = zrythm::plugins::PluginSlotType

Definition at line 61 of file channel.h.

◆ PluginUuid

using zrythm::gui::Channel::PluginUuid = Plugin::Uuid

Definition at line 63 of file channel.h.

◆ PortIdentifier

using zrythm::gui::Channel::PortIdentifier = dsp::PortIdentifier

Definition at line 56 of file channel.h.

◆ PortType

using zrythm::gui::Channel::PortType = zrythm::dsp::PortType

Definition at line 55 of file channel.h.

◆ TrackUuid

using zrythm::gui::Channel::TrackUuid = utils::UuidIdentifiableObject<Track>::Uuid

Definition at line 57 of file channel.h.

Constructor & Destructor Documentation

◆ Channel() [1/2]

zrythm::gui::Channel::Channel	(	TrackRegistry &	track_registry,
		PluginRegistry &	plugin_registry,
		PortRegistry &	port_registry,
		OptionalRef< ChannelTrack >	track )

explicit

Main constructor used by the others.

Parameters

track_registry
plugin_registry
port_registry
track_id	Must be passed when creating a new Channel identity instance.

◆ Channel() [2/2]

zrythm::gui::Channel::Channel	(	TrackRegistry &	track_registry,
		PluginRegistry &	plugin_registry,
		PortRegistry &	port_registry )

inlineexplicit

To be used when deserializing or cloning an existing identity.

Definition at line 87 of file channel.h.

Member Function Documentation

◆ add_plugin()

PluginPtrVariant zrythm::gui::Channel::add_plugin	(	PluginUuidReference	plugin_id,
		PluginSlot	slot,
		bool	confirm,
		bool	moving_plugin,
		bool	gen_automatables,
		bool	recalc_graph,
		bool	pub_events )

Adds given plugin to given position in the strip.

The plugin must be already instantiated at this point.

Parameters

channel	The Channel.
slot	The position in the strip starting from 0.
plugin	The plugin to add.
confirm	Confirm if an existing plugin will be overwritten.
moving_plugin	Whether or not we are moving the plugin.
gen_automatables	Generatate plugin automatables. To be used when creating a new plugin only.
recalc_graph	Recalculate mixer graph.
pub_events	Publish events.

Exceptions

ZrythmException on error.

◆ connect_channel()

void zrythm::gui::Channel::connect_channel	(	dsp::PortConnectionsManager &	mgr,
		AudioEngine &	engine )

Connects the channel's ports.

This should only be called on project tracks.

◆ get_full_designation_for_port()

utils::Utf8String zrythm::gui::Channel::get_full_designation_for_port ( const dsp::PortIdentifier & id ) const

overridevirtual

Reimplemented from IPortOwner.

◆ get_instrument()

std::optional< PluginPtrVariant > zrythm::gui::Channel::get_instrument ( ) const

inline

Definition at line 293 of file channel.h.

◆ get_midi_out_port()

MidiPort & zrythm::gui::Channel::get_midi_out_port ( ) const

inline

Definition at line 145 of file channel.h.

◆ get_plugins()

void zrythm::gui::Channel::get_plugins ( std::vector< Plugin * > & pls )

Returns all existing plugins in the channel.

Parameters

pls	Vector to add plugins to.

◆ get_post_fader()

Fader & zrythm::gui::Channel::get_post_fader ( ) const

inline

Definition at line 372 of file channel.h.

◆ get_pre_fader()

Fader & zrythm::gui::Channel::get_pre_fader ( ) const

inline

Definition at line 373 of file channel.h.

◆ get_sends()

auto & zrythm::gui::Channel::get_sends ( ) const

inline

Definition at line 375 of file channel.h.

◆ get_stereo_out_ports()

std::pair< AudioPort &, AudioPort & > zrythm::gui::Channel::get_stereo_out_ports ( ) const

inline

Definition at line 149 of file channel.h.

◆ get_track()

ChannelTrack & zrythm::gui::Channel::get_track ( ) const

inline

Definition at line 220 of file channel.h.

◆ getFader()

Fader * zrythm::gui::Channel::getFader ( ) const

inline

Definition at line 108 of file channel.h.

◆ getLeftAudioOut()

AudioPort * zrythm::gui::Channel::getLeftAudioOut ( ) const

inline

Definition at line 110 of file channel.h.

◆ getMidiOut()

MidiPort * zrythm::gui::Channel::getMidiOut ( ) const

inline

Definition at line 122 of file channel.h.

◆ getPreFader()

Fader * zrythm::gui::Channel::getPreFader ( ) const

inline

Definition at line 109 of file channel.h.

◆ getRightAudioOut()

AudioPort * zrythm::gui::Channel::getRightAudioOut ( ) const

inline

Definition at line 116 of file channel.h.

◆ handle_plugin_import()

void zrythm::gui::Channel::handle_plugin_import	(	const Plugin *	pl,
		std::optional< PluginSpan >	plugins,
		const PluginDescriptor *	descr,
		PluginSlot	slot,
		bool	copy,
		bool	ask_if_overwrite )

Handles import (paste/drop) of plugins or plugin descriptors or mixer selections.

Parameters

pl	Passed when passing `sel` to be used for validation.
sel	Plugins to import.
copy	Whether to copy instead of move, when copying plugins.
ask_if_overwrite	Whether to ask for permission if the import overwrites existing plugins.

◆ handle_recording()

void zrythm::gui::Channel::handle_recording	(	long	g_frames_start,
		nframes_t	nframes )

Handles the recording logic inside the process cycle.

The MidiEvents are already dequeued at this point.

Parameters

g_frames_start	Global start frames.
nframes	Number of frames to process.

◆ has_output()

bool zrythm::gui::Channel::has_output ( ) const

inline

Definition at line 370 of file channel.h.

◆ is_in_active_project()

bool zrythm::gui::Channel::is_in_active_project ( ) const

overridevirtual

Implements IPortOwner.

◆ paste_plugins_to_slot()

void zrythm::gui::Channel::paste_plugins_to_slot	(	PluginSpan	plugins,
		PluginSlot	slot )

Paste the selections starting at the slot in the given channel.

This calls gen_full_from_this() internally to generate FullMixerSelections with cloned plugins (calling init_loaded() on each), which are then pasted.

◆ prepare_process()

void zrythm::gui::Channel::prepare_process ( nframes_t nframes )

Prepares the channel for processing.

To be called before the main cycle each time on all channels.

◆ process()

void zrythm::gui::Channel::process ( )

Perform processing of the audio signal.

Normally, the channel will call the process func on each of its plugins in order.

◆ remove_plugin_from_channel()

PluginUuid zrythm::gui::Channel::remove_plugin_from_channel	(	PluginSlot	slot,
		bool	moving_plugin,
		bool	deleting_plugin )

Removes a plugin at the given slot from the channel.

FIXME this is the same as modulator_track_remove_modulator(). TODO refactor into track_remove_plugin().

Parameters

moving_plugin	Whether or not we are moving the plugin.
deleting_plugin	Whether or not we are deleting the plugin.

Returns: The plugin that was removed (in case we want to move it).

◆ set_port_metadata_from_owner()

void zrythm::gui::Channel::set_port_metadata_from_owner	(	dsp::PortIdentifier &	id,
		PortRange &	range ) const

overridevirtual

Function that will be called by the Port to update the identifier's relevant members based on this port owner.

Parameters

id	The identifier to update.

Implements IPortOwner.

◆ set_track_ptr()

void zrythm::gui::Channel::set_track_ptr ( ChannelTrack & track )

Set the track ptr to the channel and all its internals that reference a track (Plugin, Fader, etc.)

Parameters

track The owner track.

This is intended to be used when cloning ChannelTracks where we can't use the constructor.

◆ should_bounce_to_master()

bool zrythm::gui::Channel::should_bounce_to_master ( utils::audio::BounceStep step ) const

overridevirtual

Whether the port should add its data to the master output when bouncing.

When bouncing a track directly to master (e.g., when bouncing the track on its own without parents), the buffer should be added to the master track output.

This is only utilized for stereo output audio ports.

Reimplemented from IPortOwner.

Friends And Related Symbol Documentation

◆ PluginImportData

friend struct PluginImportData

friend

Definition at line 66 of file channel.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const Channel &	c )

friend

Definition at line 399 of file channel.h.

Field Documentation

◆ all_midi_channels_

bool zrythm::gui::Channel::all_midi_channels_ = true

If true, the channel will accept MIDI messages from all MIDI channels.

Definition at line 589 of file channel.h.

◆ all_midi_ins_

bool zrythm::gui::Channel::all_midi_ins_ = true

If true, the channel will connect to all MIDI ins found.

Definition at line 550 of file channel.h.

◆ all_stereo_l_ins_

bool zrythm::gui::Channel::all_stereo_l_ins_ = false

If true, the channel will connect to all stereo L ins found.

Definition at line 564 of file channel.h.

◆ all_stereo_r_ins_

bool zrythm::gui::Channel::all_stereo_r_ins_ = false

If true, the channel will connect to all stereo R ins found.

Definition at line 578 of file channel.h.

◆ ext_midi_ins_

std::vector<std::unique_ptr<ExtPort> > zrythm::gui::Channel::ext_midi_ins_

External MIDI inputs that are currently connected to this channel as official inputs, unless all_midi_ins is enabled.

These should be serialized every time and connected to when the project gets loaded if Channel.all_midi_ins is not enabled.

If all_midi_ins is enabled, these are ignored.

Definition at line 547 of file channel.h.

◆ ext_stereo_l_ins_

std::vector<std::unique_ptr<ExtPort> > zrythm::gui::Channel::ext_stereo_l_ins_

External audio L inputs that are currently connected to this channel as official inputs, unless all_stereo_l_ins is enabled.

These should be serialized every time and if all_stereo_l_ins is not enabled, connected to when the project gets loaded.

If all_stereo_l_ins is enabled, these are ignored.

Definition at line 561 of file channel.h.

◆ ext_stereo_r_ins_

std::vector<std::unique_ptr<ExtPort> > zrythm::gui::Channel::ext_stereo_r_ins_

External audio R inputs that are currently connected to this channel as official inputs, unless all_stereo_r_ins is enabled.

These should be serialized every time and if all_stereo_r_ins is not enabled, connected to when the project gets loaded.

If all_stereo_r_ins is enabled, these are ignored.

Definition at line 575 of file channel.h.

◆ fader_

Fader* zrythm::gui::Channel::fader_ = nullptr

The channel fader.

Definition at line 592 of file channel.h.

◆ inserts_

std::array<std::optional<PluginUuidReference>, STRIP_SIZE> zrythm::gui::Channel::inserts_

The channel insert strip.

Definition at line 524 of file channel.h.

◆ instrument_

std::optional<PluginUuidReference> zrythm::gui::Channel::instrument_

The instrument plugin, if instrument track.

Definition at line 527 of file channel.h.

◆ midi_channels_

std::array<bool, 16> zrythm::gui::Channel::midi_channels_ {}

1 or 0 flags for each channel to enable it or disable it.

If all_midi_channels is enabled, this is ignored.

Definition at line 585 of file channel.h.

◆ midi_fx_

std::array<std::optional<PluginUuidReference>, STRIP_SIZE> zrythm::gui::Channel::midi_fx_

The MIDI effect strip on instrument/MIDI tracks.

This is processed before the instrument/inserts.

Definition at line 521 of file channel.h.

◆ midi_out_id_

std::optional<PortUuidReference> zrythm::gui::Channel::midi_out_id_

MIDI output for sending MIDI signals to other destinations, such as other channels when directly routed (eg MIDI track to ins track).

Definition at line 605 of file channel.h.

◆ output_track_uuid_

std::optional<TrackUuid> zrythm::gui::Channel::output_track_uuid_

Whether or not output_pos corresponds to a Track or not.

If not, the channel is routed to the engine. Output track.

Definition at line 622 of file channel.h.

◆ plugin_registry_

PluginRegistry& zrythm::gui::Channel::plugin_registry_

Definition at line 514 of file channel.h.

◆ port_registry_

PortRegistry& zrythm::gui::Channel::port_registry_

Definition at line 513 of file channel.h.

◆ prefader_

Fader* zrythm::gui::Channel::prefader_ = nullptr

Prefader.

The last plugin should connect to this.

Definition at line 599 of file channel.h.

◆ sends_

std::array<std::unique_ptr<ChannelSend>, STRIP_SIZE> zrythm::gui::Channel::sends_

The sends strip.

The first 6 (slots 0-5) are pre-fader and the rest are post-fader.

Note: See CHANNEL_SEND_POST_FADER_START_SLOT.

Definition at line 536 of file channel.h.

◆ stereo_out_left_id_

std::optional<PortUuidReference> zrythm::gui::Channel::stereo_out_left_id_

Definition at line 611 of file channel.h.

◆ stereo_out_right_id_

std::optional<PortUuidReference> zrythm::gui::Channel::stereo_out_right_id_

Definition at line 612 of file channel.h.

◆ STRIP_SIZE

auto zrythm::gui::Channel::STRIP_SIZE = zrythm::dsp::STRIP_SIZE

staticconstexpr

Definition at line 54 of file channel.h.

◆ track_

ChannelTrack* zrythm::gui::Channel::track_

Owner track.

Definition at line 631 of file channel.h.

◆ track_registry_

TrackRegistry& zrythm::gui::Channel::track_registry_

Definition at line 512 of file channel.h.

◆ track_uuid_

std::optional<TrackUuid> zrythm::gui::Channel::track_uuid_

Track associated with this channel.

Definition at line 625 of file channel.h.

◆ width_

int zrythm::gui::Channel::width_ = 0

Channel widget width - reserved for future use.

Definition at line 628 of file channel.h.

Property Documentation

◆ fader

QML_ELEMENT Fader * zrythm::gui::Channel::fader

read

Definition at line 47 of file channel.h.

◆ leftAudioOut

AudioPort * zrythm::gui::Channel::leftAudioOut

read

Definition at line 49 of file channel.h.

◆ midiOut

MidiPort * zrythm::gui::Channel::midiOut

read

Definition at line 51 of file channel.h.

◆ preFader

Fader * zrythm::gui::Channel::preFader

read

Definition at line 48 of file channel.h.

◆ rightAudioOut

AudioPort * zrythm::gui::Channel::rightAudioOut

read

Definition at line 50 of file channel.h.

The documentation for this class was generated from the following file:

src/gui/backend/channel.h

Public Types

Public Member Functions

Data Fields

Static Public Attributes

Properties

Friends

Detailed Description

Member Typedef Documentation

◆ Plugin

◆ PluginDescriptor

◆ PluginPtrVariant

◆ PluginSlot

◆ PluginSlotType

◆ PluginUuid

◆ PortIdentifier

◆ PortType

◆ TrackUuid

Constructor & Destructor Documentation

◆ Channel() [1/2]

◆ Channel() [2/2]

Member Function Documentation

◆ add_plugin()

◆ connect_channel()

◆ get_full_designation_for_port()

◆ get_instrument()

◆ get_midi_out_port()

◆ get_plugins()

◆ get_post_fader()

◆ get_pre_fader()

◆ get_sends()

◆ get_stereo_out_ports()

◆ get_track()

◆ getFader()

◆ getLeftAudioOut()

◆ getMidiOut()

◆ getPreFader()

◆ getRightAudioOut()

◆ handle_plugin_import()

◆ handle_recording()

◆ has_output()

◆ is_in_active_project()

◆ paste_plugins_to_slot()

◆ prepare_process()

◆ process()

◆ remove_plugin_from_channel()

◆ set_port_metadata_from_owner()

◆ set_track_ptr()

◆ should_bounce_to_master()

Friends And Related Symbol Documentation

◆ PluginImportData

◆ to_json

Field Documentation

◆ all_midi_channels_

◆ all_midi_ins_

◆ all_stereo_l_ins_

◆ all_stereo_r_ins_

◆ ext_midi_ins_

◆ ext_stereo_l_ins_

◆ ext_stereo_r_ins_

◆ fader_

◆ inserts_

◆ instrument_

◆ midi_channels_

◆ midi_fx_

◆ midi_out_id_

◆ output_track_uuid_

◆ plugin_registry_

◆ port_registry_

◆ prefader_

◆ sends_

◆ stereo_out_left_id_

◆ stereo_out_right_id_

◆ STRIP_SIZE

◆ track_

◆ track_registry_

◆ track_uuid_

◆ width_

Property Documentation

◆ fader

◆ leftAudioOut
