A TrackProcessor is a processor that is used as the first entry point when processing a track. More...

#include <src/gui/dsp/track_processor.h>

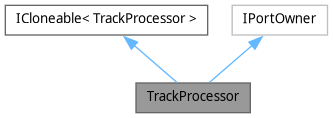

Inheritance diagram for TrackProcessor:

[legend]

Collaboration diagram for TrackProcessor:

[legend]

Public Types
using	SixteenPortUuidArray = std::array<PortUuidReference, 16>

Public Types inherited from IPortOwner
using	TrackUuid = dsp::PortIdentifier::TrackUuid

using	PluginUuid = dsp::PortIdentifier::PluginUuid

using	PortUuid = dsp::PortIdentifier::PortUuid

Public Member Functions
	TrackProcessor (ProcessableTrack &track, PortRegistry &port_registry, bool new_identity)
	Creates a new track processor for the given track.

bool	is_in_active_project () const override

bool	is_audio () const

bool	is_midi () const

void	set_port_metadata_from_owner (dsp::PortIdentifier &id, PortRange &range) const override
	Function that will be called by the Port to update the identifier's relevant members based on this port owner.

void	on_control_change_event (const dsp::PortIdentifier::PortUuid &port_uuid, const dsp::PortIdentifier &id, float value) override
	Will be called when a control port's value changes.

utils::Utf8String	get_full_designation_for_port (const dsp::PortIdentifier &id) const override

bool	should_sum_data_from_backend () const override
	Whether during processing, the port should sum the data from its backend buffers coming in.

bool	should_bounce_to_master (utils::audio::BounceStep step) const override
	Whether the port should add its data to the master output when bouncing.

bool	are_events_on_midi_channel_approved (midi_byte_t channel) const override
	Returns whether MIDI events on this channel on an input port should be processed (not ignored).

void	on_midi_activity (const dsp::PortIdentifier &id) override
	Called during processing if the MIDI port contains new MIDI events.

dsp::PortConnectionsManager *	get_port_connections_manager () const

ProcessableTrack *	get_track () const

void	init_loaded (ProcessableTrack *track, PortRegistry &port_registry)
	Inits a TrackProcessor after a project is loaded.

void	clear_buffers (std::size_t block_length)
	Clears all buffers.

void	disconnect_all ()
	Disconnects all ports connected to the TrackProcessor.

void	process (const EngineProcessTimeInfo &time_nfo)
	Process the TrackProcessor.

void	disconnect_from_prefader ()
	Disconnect the TrackProcessor's stereo out ports from the prefader.

void	connect_to_prefader ()
	Connects the TrackProcessor's stereo out ports to the Channel's prefader in ports.

void	disconnect_from_plugin (gui::old_dsp::plugins::Plugin &pl)
	Disconnect the TrackProcessor's out ports from the Plugin's input ports.

void	connect_to_plugin (gui::old_dsp::plugins::Plugin &pl)
	Connect the TrackProcessor's out ports to the Plugin's input ports.

void	append_ports (std::vector< Port * > &ports)

void	init_after_cloning (const TrackProcessor &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

std::pair< AudioPort &, AudioPort & >	get_stereo_in_ports () const

std::pair< AudioPort &, AudioPort & >	get_stereo_out_ports () const

ControlPort &	get_mono_port () const

ControlPort &	get_input_gain_port () const

ControlPort &	get_output_gain_port () const

ControlPort &	get_monitor_audio_port () const

MidiPort &	get_midi_in_port () const

MidiPort &	get_midi_out_port () const

MidiPort &	get_piano_roll_port () const

ControlPort &	get_midi_cc_port (int channel_index, int cc_index) const

ControlPort &	get_pitch_bend_port (int channel_index) const

ControlPort &	get_poly_key_pressure_port (int channel_index) const

ControlPort &	get_channel_pressure_port (int channel_index) const

Public Member Functions inherited from ICloneable< TrackProcessor >
std::unique_ptr< TrackProcessor >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< TrackProcessor >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

TrackProcessor *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

TrackProcessor *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< TrackProcessor >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Data Fields
PortRegistry &	port_registry_

std::optional< PortUuidReference >	stereo_in_left_id_
	L & R audio input ports, if audio.

std::optional< PortUuidReference >	stereo_in_right_id_

std::optional< PortUuidReference >	mono_id_
	Mono toggle, if audio.

std::optional< PortUuidReference >	input_gain_id_
	Input gain, if audio.

std::optional< PortUuidReference >	output_gain_id_
	Output gain, if audio.

std::optional< PortUuidReference >	stereo_out_left_id_
	L & R audio output ports, if audio.

std::optional< PortUuidReference >	stereo_out_right_id_

std::optional< PortUuidReference >	midi_in_id_
	MIDI in Port.

std::optional< PortUuidReference >	midi_out_id_
	MIDI out port, if MIDI.

std::optional< PortUuidReference >	piano_roll_id_
	MIDI input for receiving MIDI signals from the piano roll (i.e., MIDI notes inside regions) or other sources.

std::optional< PortUuidReference >	monitor_audio_id_
	Whether to monitor the audio output.

std::unique_ptr< MidiMappings >	cc_mappings_
	Mappings to each CC port.

std::unique_ptr< std::array< PortUuidReference, 16_zu *128 > >	midi_cc_ids_
	MIDI CC control ports, 16 channels x 128 controls.

std::unique_ptr< SixteenPortUuidArray >	pitch_bend_ids_
	Pitch bend x 16 channels.

std::unique_ptr< SixteenPortUuidArray >	poly_key_pressure_ids_
	Polyphonic key pressure (aftertouch).

std::unique_ptr< SixteenPortUuidArray >	channel_pressure_ids_
	Channel pressure (aftertouch).

float	l_port_db_ = 0.0f
	Current dBFS after processing each output port.

float	r_port_db_ = 0.0f

ProcessableTrack *	track_ = nullptr
	Pointer to owner track, if any.

bool	pending_midi_panic_ = false
	To be set to true when a panic (all notes off) message should be sent during processing.

std::unique_ptr< MPMCQueue< ControlPort * > >	updated_midi_automatable_ports_
	A queue of MIDI CC ports whose values have been recently updated.

Data Fields inherited from ICloneable< TrackProcessor >
friend	Derived

Friends
void	to_json (nlohmann::json &j, const TrackProcessor &tp)

void	from_json (const nlohmann::json &j, TrackProcessor &tp)

Detailed Description

A TrackProcessor is a processor that is used as the first entry point when processing a track.

Definition at line 33 of file track_processor.h.

Member Typedef Documentation

◆ SixteenPortUuidArray

using TrackProcessor::SixteenPortUuidArray = std::array<PortUuidReference, 16>

Definition at line 396 of file track_processor.h.

Member Function Documentation

◆ are_events_on_midi_channel_approved()

bool TrackProcessor::are_events_on_midi_channel_approved ( midi_byte_t channel ) const

overridevirtual

Returns whether MIDI events on this channel on an input port should be processed (not ignored).

This is used to implement MIDI channel filtering in tracks that have piano rolls based on the enabled MIDI channels.

Reimplemented from IPortOwner.

◆ connect_to_prefader()

void TrackProcessor::connect_to_prefader ( )

Connects the TrackProcessor's stereo out ports to the Channel's prefader in ports.

Used when deleting the only plugin left.

◆ disconnect_from_prefader()

void TrackProcessor::disconnect_from_prefader ( )

Disconnect the TrackProcessor's stereo out ports from the prefader.

Used when there is no plugin in the channel.

◆ get_channel_pressure_port()

ControlPort & TrackProcessor::get_channel_pressure_port ( int channel_index ) const

inline

Definition at line 222 of file track_processor.h.

◆ get_full_designation_for_port()

utils::Utf8String TrackProcessor::get_full_designation_for_port ( const dsp::PortIdentifier & id ) const

overridevirtual

Reimplemented from IPortOwner.

◆ get_input_gain_port()

ControlPort & TrackProcessor::get_input_gain_port ( ) const

inline

Definition at line 179 of file track_processor.h.

◆ get_midi_cc_port()

ControlPort & TrackProcessor::get_midi_cc_port	(	int	channel_index,
		int	cc_index ) const

inline

Definition at line 203 of file track_processor.h.

◆ get_midi_in_port()

MidiPort & TrackProcessor::get_midi_in_port ( ) const

inline

Definition at line 191 of file track_processor.h.

◆ get_midi_out_port()

MidiPort & TrackProcessor::get_midi_out_port ( ) const

inline

Definition at line 195 of file track_processor.h.

◆ get_monitor_audio_port()

ControlPort & TrackProcessor::get_monitor_audio_port ( ) const

inline

Definition at line 187 of file track_processor.h.

◆ get_mono_port()

ControlPort & TrackProcessor::get_mono_port ( ) const

inline

Definition at line 175 of file track_processor.h.

◆ get_output_gain_port()

ControlPort & TrackProcessor::get_output_gain_port ( ) const

inline

Definition at line 183 of file track_processor.h.

◆ get_piano_roll_port()

MidiPort & TrackProcessor::get_piano_roll_port ( ) const

inline

Definition at line 199 of file track_processor.h.

◆ get_pitch_bend_port()

ControlPort & TrackProcessor::get_pitch_bend_port ( int channel_index ) const

inline

Definition at line 210 of file track_processor.h.

◆ get_poly_key_pressure_port()

ControlPort & TrackProcessor::get_poly_key_pressure_port ( int channel_index ) const

inline

Definition at line 215 of file track_processor.h.

◆ get_stereo_in_ports()

std::pair< AudioPort &, AudioPort & > TrackProcessor::get_stereo_in_ports ( ) const

inline

Definition at line 154 of file track_processor.h.

◆ get_stereo_out_ports()

std::pair< AudioPort &, AudioPort & > TrackProcessor::get_stereo_out_ports ( ) const

inline

Definition at line 164 of file track_processor.h.

◆ get_track()

ProcessableTrack * TrackProcessor::get_track ( ) const

inline

Definition at line 75 of file track_processor.h.

◆ init_after_cloning()

void TrackProcessor::init_after_cloning	(	const TrackProcessor &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< TrackProcessor >.

◆ is_in_active_project()

bool TrackProcessor::is_in_active_project ( ) const

overridevirtual

Implements IPortOwner.

◆ on_control_change_event()

void TrackProcessor::on_control_change_event	(	const dsp::PortIdentifier::PortUuid &	port_uuid,
		const dsp::PortIdentifier &	id,
		float	val )

overridevirtual

Will be called when a control port's value changes.

Parameters

val	The real value of the control port.

Attention: This may be called from the audio thread so it must not block.

Reimplemented from IPortOwner.

◆ on_midi_activity()

void TrackProcessor::on_midi_activity ( const dsp::PortIdentifier & id )

overridevirtual

Called during processing if the MIDI port contains new MIDI events.

Reimplemented from IPortOwner.

◆ process()

void TrackProcessor::process ( const EngineProcessTimeInfo & time_nfo )

Process the TrackProcessor.

This function performs the following:

produce output audio/MIDI into stereo out or midi out, based on any audio/MIDI regions, if has piano roll or is audio track
produce additional output MIDI events based on any MIDI CC automation regions, if applicable
change MIDI CC control port values based on any MIDI input, if recording — at this point the output is ready —
handle recording (create events in regions and automation, including MIDI CC automation, based on the MIDI CC control ports)

Parameters

g_start_frames	The global start frames.
local_offset	The local start frames.
nframes	The number of frames to process.

◆ set_port_metadata_from_owner()

void TrackProcessor::set_port_metadata_from_owner	(	dsp::PortIdentifier &	id,
		PortRange &	range ) const

overridevirtual

Function that will be called by the Port to update the identifier's relevant members based on this port owner.

Parameters

id	The identifier to update.

Implements IPortOwner.

◆ should_bounce_to_master()

bool TrackProcessor::should_bounce_to_master ( utils::audio::BounceStep step ) const

overridevirtual

Whether the port should add its data to the master output when bouncing.

When bouncing a track directly to master (e.g., when bouncing the track on its own without parents), the buffer should be added to the master track output.

This is only utilized for stereo output audio ports.

Reimplemented from IPortOwner.

◆ should_sum_data_from_backend()

bool TrackProcessor::should_sum_data_from_backend ( ) const

overridevirtual

Whether during processing, the port should sum the data from its backend buffers coming in.

If this is a TrackProcessor input port for a recordable track, this should only return true when currently armed recording. Otherwise, we always consider incoming external data.

Reimplemented from IPortOwner.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		TrackProcessor &	tp )

friend

Definition at line 266 of file track_processor.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const TrackProcessor &	tp )

friend

Definition at line 246 of file track_processor.h.

Field Documentation

◆ cc_mappings_

std::unique_ptr<MidiMappings> TrackProcessor::cc_mappings_

Mappings to each CC port.

Definition at line 391 of file track_processor.h.

◆ channel_pressure_ids_

std::unique_ptr<SixteenPortUuidArray> TrackProcessor::channel_pressure_ids_

Channel pressure (aftertouch).

This message is different from polyphonic after-touch - sends the single greatest pressure value (of all the current depressed keys).

Definition at line 418 of file track_processor.h.

◆ input_gain_id_

std::optional<PortUuidReference> TrackProcessor::input_gain_id_

Input gain, if audio.

Definition at line 338 of file track_processor.h.

◆ l_port_db_

float TrackProcessor::l_port_db_ = 0.0f

Current dBFS after processing each output port.

Transient variables only used by the GUI.

Definition at line 426 of file track_processor.h.

◆ midi_cc_ids_

std::unique_ptr<std::array<PortUuidReference, 16_zu * 128> > TrackProcessor::midi_cc_ids_

MIDI CC control ports, 16 channels x 128 controls.

Definition at line 394 of file track_processor.h.

◆ midi_in_id_

std::optional<PortUuidReference> TrackProcessor::midi_in_id_

MIDI in Port.

This port is for receiving MIDI signals from an external MIDI source.

This is also where piano roll, midi in and midi manual press will be routed to and this will be the port used to pass midi to the plugins.

Definition at line 361 of file track_processor.h.

◆ midi_out_id_

std::optional<PortUuidReference> TrackProcessor::midi_out_id_

MIDI out port, if MIDI.

Definition at line 366 of file track_processor.h.

◆ monitor_audio_id_

std::optional<PortUuidReference> TrackProcessor::monitor_audio_id_

Whether to monitor the audio output.

This is only used on audio tracks. During recording, if on, the recorded audio will be passed to the output. If off, the recorded audio will not be passed to the output.

When not recording, this will only take effect when paused.

Definition at line 386 of file track_processor.h.

◆ mono_id_

std::optional<PortUuidReference> TrackProcessor::mono_id_

Mono toggle, if audio.

Definition at line 335 of file track_processor.h.

◆ output_gain_id_

std::optional<PortUuidReference> TrackProcessor::output_gain_id_

Output gain, if audio.

This is applied after regions are processed to stereo_out_.

Definition at line 345 of file track_processor.h.

◆ pending_midi_panic_

bool TrackProcessor::pending_midi_panic_ = false

To be set to true when a panic (all notes off) message should be sent during processing.

Only applies to tracks that receive MIDI input.

Definition at line 438 of file track_processor.h.

◆ piano_roll_id_

std::optional<PortUuidReference> TrackProcessor::piano_roll_id_

MIDI input for receiving MIDI signals from the piano roll (i.e., MIDI notes inside regions) or other sources.

This will not be a separately exposed port during processing. It will be processed by the TrackProcessor internally.

Definition at line 375 of file track_processor.h.

◆ pitch_bend_ids_

std::unique_ptr<SixteenPortUuidArray> TrackProcessor::pitch_bend_ids_

Pitch bend x 16 channels.

Definition at line 399 of file track_processor.h.

◆ poly_key_pressure_ids_

std::unique_ptr<SixteenPortUuidArray> TrackProcessor::poly_key_pressure_ids_

Polyphonic key pressure (aftertouch).

This message is most often sent by pressing down on the key after it "bottoms out".

FIXME this is completely wrong. It's supposed to be per-key, so 128 x 16 ports.

Definition at line 410 of file track_processor.h.

◆ port_registry_

PortRegistry& TrackProcessor::port_registry_

Definition at line 326 of file track_processor.h.

◆ r_port_db_

float TrackProcessor::r_port_db_ = 0.0f

Definition at line 427 of file track_processor.h.

◆ stereo_in_left_id_

std::optional<PortUuidReference> TrackProcessor::stereo_in_left_id_

L & R audio input ports, if audio.

Definition at line 331 of file track_processor.h.

◆ stereo_in_right_id_

std::optional<PortUuidReference> TrackProcessor::stereo_in_right_id_

Definition at line 332 of file track_processor.h.

◆ stereo_out_left_id_

std::optional<PortUuidReference> TrackProcessor::stereo_out_left_id_

L & R audio output ports, if audio.

Definition at line 350 of file track_processor.h.

◆ stereo_out_right_id_

std::optional<PortUuidReference> TrackProcessor::stereo_out_right_id_

Definition at line 351 of file track_processor.h.

◆ track_

ProcessableTrack* TrackProcessor::track_ = nullptr

Pointer to owner track, if any.

Definition at line 430 of file track_processor.h.

◆ updated_midi_automatable_ports_

std::unique_ptr<MPMCQueue<ControlPort *> > TrackProcessor::updated_midi_automatable_ports_

A queue of MIDI CC ports whose values have been recently updated.

This is used during processing to avoid checking every single MIDI CC port for changes.

Definition at line 446 of file track_processor.h.

The documentation for this class was generated from the following file:

src/gui/dsp/track_processor.h

Public Types

Public Member Functions

Data Fields

Friends

Detailed Description

Member Typedef Documentation

◆ SixteenPortUuidArray

Member Function Documentation

◆ are_events_on_midi_channel_approved()

◆ connect_to_prefader()

◆ disconnect_from_prefader()

◆ get_channel_pressure_port()

◆ get_full_designation_for_port()

◆ get_input_gain_port()

◆ get_midi_cc_port()

◆ get_midi_in_port()

◆ get_midi_out_port()

◆ get_monitor_audio_port()

◆ get_mono_port()

◆ get_output_gain_port()

◆ get_piano_roll_port()

◆ get_pitch_bend_port()

◆ get_poly_key_pressure_port()

◆ get_stereo_in_ports()

◆ get_stereo_out_ports()

◆ get_track()

◆ init_after_cloning()

◆ is_in_active_project()

◆ on_control_change_event()

◆ on_midi_activity()

◆ process()

◆ set_port_metadata_from_owner()

◆ should_bounce_to_master()

◆ should_sum_data_from_backend()

Friends And Related Symbol Documentation

◆ from_json

◆ to_json

Field Documentation

◆ cc_mappings_

◆ channel_pressure_ids_

◆ input_gain_id_

◆ l_port_db_

◆ midi_cc_ids_

◆ midi_in_id_

◆ midi_out_id_

◆ monitor_audio_id_

◆ mono_id_

◆ output_gain_id_

◆ pending_midi_panic_

◆ piano_roll_id_

◆ pitch_bend_ids_

◆ poly_key_pressure_ids_

◆ port_registry_

◆ r_port_db_

◆ stereo_in_left_id_

◆ stereo_in_right_id_

◆ stereo_out_left_id_

◆ stereo_out_right_id_

◆ track_

◆ updated_midi_automatable_ports_
