Control port specifics. More...

#include <src/gui/dsp/control_port.h>

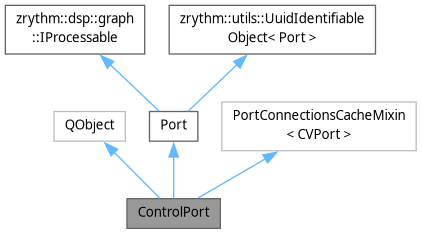

Inheritance diagram for ControlPort:

[legend]

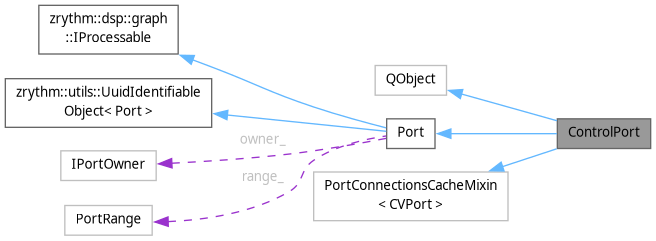

Collaboration diagram for ControlPort:

[legend]

Data Structures
struct	ChangeEvent
	Used for queueing changes to be applied during processing. More...
struct	ScalePoint
	Scale point. More...

Public Types
using	AutomationValueGetter
	Gets the current automation value if available (eg, from an automation track).
Public Types inherited from Port
using	PortIdentifier = dsp::PortIdentifier
using	PortType = dsp::PortType
using	PortFlow = dsp::PortFlow
using	PortConnection = dsp::PortConnection

Public Member Functions
	ControlPort (utils::Utf8String label={})
float	normalized_val_to_real (float normalized_val) const
	Converts normalized value (0.0 to 1.0) to real value (eg.
float	real_val_to_normalized (float real_val) const
	Converts real value (eg.
bool	is_toggled () const
	Returns if the control port is toggled.
int	get_int () const
	Gets the control value for an integer port.
void	set_unit_from_str (const utils::Utf8String &str)
	Set the identifier's port unit from the given string.
float	get_snapped_val () const
	Returns the snapped value (eg, if toggle, returns 0.f or 1.f).
float	get_snapped_val_from_val (float val) const
	Returns the snapped value (eg, if toggle, returns 0.f or 1.f).
float	get_val () const
	Get the current real value of the control.
float	get_normalized_val () const
	Get the current normalized value of the control.
float	get_unsnapped_val () const
	Get the current real unsnapped value of the control.
float	get_default_val () const
	Get the default real value of the control.
void	set_real_val (float val)
	Get the default real value of the control.
void	set_real_val_w_events (float val)
	Set the default real value of the control and sends UI events.
void	set_toggled (bool toggled, bool forward_events)
	Wrapper over port_set_control_value() for toggles.
void	set_val_from_normalized (float val, bool automating)
	Updates the actual value.
void	set_control_value (float val, bool is_normalized, bool forward_event_to_plugin)
	Sets the given control value to the corresponding underlying structure in the Port.
void	set_automation_value_reader (AutomationValueGetter reader)
	Sets the automation value reader.
RtTimePoint	ms_since_last_change () const
float	get_control_value (bool normalize) const
	Gets the given control value from the corresponding underlying structure in the Port.
void	process_block (EngineProcessTimeInfo time_nfo) override
void	clear_buffer (std::size_t block_length) override
	Clears the port buffer.
Public Member Functions inherited from Port
void	init_loaded (IPortOwner &owner)
	This function finds the Ports corresponding to the PortIdentifiers for srcs and dests.
void	set_owner (IPortOwner &owner)
utils::Utf8String	get_label () const
bool	is_control () const
bool	is_audio () const
bool	is_cv () const
bool	is_event () const
bool	is_midi () const
bool	is_input () const
bool	is_output () const
utils::Utf8String	get_node_name () const override
	Returns a human friendly name of the node.
nframes_t	get_single_playback_latency () const override
	Ports have no latency.
virtual bool	has_sound () const
	If MIDI port, returns if there are any events, if audio port, returns if there is sound in the buffer.
utils::Utf8String	get_full_designation () const
	Gets a full designation of the port in the format "Track/Port" or "Track/Plugin/Port".
void	change_track (IPortOwner::TrackUuid new_track_id)
	Updates the owner track identifier.
bool	has_label () const
PortType	get_type () const
PortFlow	get_flow () const
Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual void	prepare_for_processing (sample_rate_t sample_rate, nframes_t max_block_length)
	Called to allocate resources required for processing.
virtual void	release_resources ()
	Called to release resources allocated by prepare_for_processing().
Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< Port >
UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default
auto	get_uuid () const

Static Public Member Functions
static bool	is_val_toggled (float val)
	Checks if the given value is toggled.
static int	get_int_from_val (float val)
	Gets the control value for an integer port.

Data Fields
float	control_ = 0.f
	To be called when a control's value changes so that a message can be sent to the plugin UI.
float	base_value_ = 0.f
	For control ports, when a modulator is attached to the port the previous value will be saved here.
std::vector< ScalePoint >	scale_points_
	Scale points.
midi_byte_t	midi_channel_ = 0
	MIDI channel, starting from 1.
midi_byte_t	midi_cc_no_ = 0
	MIDI CC number, if not pitchbend/poly key/channel pressure.
float	deff_ = 0.f
	Default value.
int	carla_param_id_ = 0
	Index of the control parameter (for Carla plugin ports).
bool	automating_ = false
	Whether this value was set via automation.
float	unsnapped_control_ = 0.f
	Unsnapped value, used by widgets.
bool	value_changed_from_reading_ {}
	Flag that the value of the port changed from reading automation.
bool	received_ui_event_ {}
	Whether the port received a UI event from the plugin UI in this cycle.
Data Fields inherited from Port
std::unique_ptr< PortIdentifier >	id_
	Owned pointer.
IPortOwner *	owner_ {}
PortRange	range_
Data Fields inherited from PortConnectionsCacheMixin< CVPort >
std::vector< ElementType >	port_sources_
	Caches filled when recalculating the graph.

Friends
void	init_from (ControlPort &obj, const ControlPort &other, utils::ObjectCloneType clone_type)
void	to_json (nlohmann::json &j, const ControlPort &p)
void	from_json (const nlohmann::json &j, ControlPort &p)

Additional Inherited Members
Protected Member Functions inherited from Port
	Port (utils::Utf8String label, PortType type={}, PortFlow flow={}, float minf=0.f, float maxf=1.f, float zerof=0.f)

Detailed Description

Control port specifics.

Definition at line 15 of file control_port.h.

Member Typedef Documentation

◆ AutomationValueGetter

using ControlPort::AutomationValueGetter

Initial value:

std::function<std::optional<float> (signed_frame_t global_frame)>

signed_frame_t

int_fast64_t signed_frame_t

Signed type for frame index.

Definition types.h:78

Gets the current automation value if available (eg, from an automation track).

If available, the ControlPort will be overridden to this value during processing.

Parameters

global_frame Frame in global coordinates (timeline).

Returns: Optional normalized automation value (0.0-1.0)

Definition at line 34 of file control_port.h.

Member Function Documentation

◆ clear_buffer()

void ControlPort::clear_buffer ( std::size_t block_length )

inlineoverridevirtual

Clears the port buffer.

Implements Port.

Definition at line 254 of file control_port.h.

◆ get_control_value()

float ControlPort::get_control_value ( bool normalize ) const

Gets the given control value from the corresponding underlying structure in the Port.

Parameters

normalize Whether to get the value normalized or not.

◆ get_default_val()

float ControlPort::get_default_val ( ) const

inline

Get the default real value of the control.

Definition at line 176 of file control_port.h.

◆ get_int()

int ControlPort::get_int ( ) const

inline

Gets the control value for an integer port.

Definition at line 120 of file control_port.h.

◆ get_int_from_val()

int ControlPort::get_int_from_val ( float val )

inlinestatic

Gets the control value for an integer port.

Definition at line 130 of file control_port.h.

◆ get_normalized_val()

float ControlPort::get_normalized_val ( ) const

inline

Get the current normalized value of the control.

Definition at line 162 of file control_port.h.

◆ get_snapped_val()

float ControlPort::get_snapped_val ( ) const

inline

Returns the snapped value (eg, if toggle, returns 0.f or 1.f).

Definition at line 142 of file control_port.h.

◆ get_unsnapped_val()

float ControlPort::get_unsnapped_val ( ) const

inline

Get the current real unsnapped value of the control.

Definition at line 171 of file control_port.h.

◆ get_val()

float ControlPort::get_val ( ) const

inline

Get the current real value of the control.

TODO "normalize" parameter.

Definition at line 157 of file control_port.h.

◆ is_toggled()

bool ControlPort::is_toggled ( ) const

inline

Returns if the control port is toggled.

Definition at line 115 of file control_port.h.

◆ is_val_toggled()

bool ControlPort::is_val_toggled ( float val )

inlinestatic

Checks if the given value is toggled.

Definition at line 110 of file control_port.h.

◆ ms_since_last_change()

RtTimePoint ControlPort::ms_since_last_change ( ) const

inline

Definition at line 239 of file control_port.h.

◆ normalized_val_to_real()

float ControlPort::normalized_val_to_real ( float normalized_val ) const

Converts normalized value (0.0 to 1.0) to real value (eg.

-10.0 to 100.0).

Note: This behaves differently from port_set_control_value() and port_get_control_value() and should be used in widgets.

◆ process_block()

void ControlPort::process_block ( EngineProcessTimeInfo time_nfo )

overridevirtual

Reimplemented from zrythm::dsp::graph::IProcessable.

◆ real_val_to_normalized()

float ControlPort::real_val_to_normalized ( float real_val ) const

Converts real value (eg.

-10.0 to 100.0) to normalized value (0.0 to 1.0).

Note: This behaves differently from port_set_control_value() and port_get_control_value() and should be used in widgets.

◆ set_automation_value_reader()

void ControlPort::set_automation_value_reader ( AutomationValueGetter reader )

inline

Sets the automation value reader.

This should be called any time before processing (the automation value reaer is only used during process_block()).

Definition at line 234 of file control_port.h.

◆ set_control_value()

void ControlPort::set_control_value	(	float	val,
		bool	is_normalized,
		bool	forward_event_to_plugin )

Sets the given control value to the corresponding underlying structure in the Port.

Note: this is only for setting the base values (eg when automating via an automation lane). For CV automations this should not be used.

Parameters

is_normalized	Whether the given value is normalized between 0 and 1.
forward_event_to_plugin	Whether to forward a port control change event to the plugin UI. Only applicable for plugin control ports. If the control is being changed manually or from within Zrythm, this should be true to notify the plugin of the change.

◆ set_real_val()

void ControlPort::set_real_val ( float val )

inline

Get the default real value of the control.

Definition at line 181 of file control_port.h.

◆ set_real_val_w_events()

void ControlPort::set_real_val_w_events ( float val )

inline

Set the default real value of the control and sends UI events.

Definition at line 186 of file control_port.h.

◆ set_toggled()

void ControlPort::set_toggled	(	bool	toggled,
		bool	forward_events )

inline

Wrapper over port_set_control_value() for toggles.

Definition at line 194 of file control_port.h.

◆ set_val_from_normalized()

void ControlPort::set_val_from_normalized	(	float	val,
		bool	automating )

Updates the actual value.

The given value is always a normalized 0.0-1.0 value and must be translated to the actual value before setting it.

Parameters

automating Whether this is from an automation event. This will set Lv2Port's automating field to true, which will cause the plugin to receive a UI event for this change.

◆ from_json

void from_json	(	const nlohmann::json &	j,
		ControlPort &	p )

friend

Definition at line 276 of file control_port.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const ControlPort &	p )

friend

Definition at line 267 of file control_port.h.

Field Documentation

◆ automating_

bool ControlPort::automating_ = false

Whether this value was set via automation.

Definition at line 337 of file control_port.h.

◆ base_value_

float ControlPort::base_value_ = 0.f

For control ports, when a modulator is attached to the port the previous value will be saved here.

Automation in AutomationTrack's will overwrite this value.

Definition at line 309 of file control_port.h.

◆ carla_param_id_

int ControlPort::carla_param_id_ = 0

Index of the control parameter (for Carla plugin ports).

Definition at line 334 of file control_port.h.

◆ control_

float ControlPort::control_ = 0.f

To be called when a control's value changes so that a message can be sent to the plugin UI.

The control value.

FIXME for fader, this should be the fader_val (0.0 to 1.0) and not the amplitude.

This value will be snapped (eg, if integer or toggle).

Definition at line 301 of file control_port.h.

◆ deff_

float ControlPort::deff_ = 0.f

Default value.

Definition at line 331 of file control_port.h.

◆ midi_cc_no_

midi_byte_t ControlPort::midi_cc_no_ = 0

MIDI CC number, if not pitchbend/poly key/channel pressure.

Definition at line 326 of file control_port.h.

◆ midi_channel_

midi_byte_t ControlPort::midi_channel_ = 0

MIDI channel, starting from 1.

Definition at line 323 of file control_port.h.

◆ received_ui_event_

bool ControlPort::received_ui_event_ {}

Whether the port received a UI event from the plugin UI in this cycle.

This is used to avoid re-sending that event to the plugin.

Definition at line 350 of file control_port.h.

◆ scale_points_

std::vector<ScalePoint> ControlPort::scale_points_

Scale points.

Definition at line 312 of file control_port.h.

◆ unsnapped_control_

float ControlPort::unsnapped_control_ = 0.f

Unsnapped value, used by widgets.

Definition at line 340 of file control_port.h.

◆ value_changed_from_reading_

bool ControlPort::value_changed_from_reading_ {}

Flag that the value of the port changed from reading automation.

Definition at line 343 of file control_port.h.

The documentation for this class was generated from the following file:

src/gui/dsp/control_port.h

Data Structures

Public Types

Public Member Functions

Static Public Member Functions

Data Fields

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ AutomationValueGetter

Member Function Documentation

◆ clear_buffer()

◆ get_control_value()

◆ get_default_val()

◆ get_int()

◆ get_int_from_val()

◆ get_normalized_val()

◆ get_snapped_val()

◆ get_unsnapped_val()

◆ get_val()

◆ is_toggled()

◆ is_val_toggled()

◆ ms_since_last_change()

◆ normalized_val_to_real()

◆ process_block()

◆ real_val_to_normalized()

◆ set_automation_value_reader()

◆ set_control_value()

◆ set_real_val()

◆ set_real_val_w_events()

◆ set_toggled()

◆ set_val_from_normalized()

Friends And Related Symbol Documentation

◆ from_json

◆ to_json

Field Documentation

◆ automating_

◆ base_value_

◆ carla_param_id_

◆ control_

◆ deff_

◆ midi_cc_no_

◆ midi_channel_

◆ received_ui_event_

◆ scale_points_

◆ unsnapped_control_

◆ value_changed_from_reading_
