A Fader is a processor that is used for volume controls and pan. More...

#include <src/gui/dsp/fader.h>

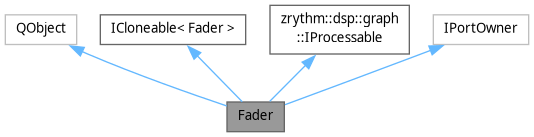

Inheritance diagram for Fader:

[legend]

Collaboration diagram for Fader:

[legend]

Public Types
enum class	Type { None , Monitor , SampleProcessor , AudioChannel , MidiChannel , Generic }
	Fader type. More...

enum class	MidiFaderMode { MIDI_FADER_MODE_VEL_MULTIPLIER , MIDI_FADER_MODE_CC_VOLUME }

using	Channel = zrythm::gui::Channel

Public Types inherited from IPortOwner
using	TrackUuid = dsp::PortIdentifier::TrackUuid

using	PluginUuid = dsp::PortIdentifier::PluginUuid

using	PortUuid = dsp::PortIdentifier::PortUuid

Public Member Functions
	Fader (QObject *parent=nullptr)

	Fader (PortRegistry &port_registry, Type type, bool passthrough, Track track, ControlRoom control_room, SampleProcessor *sample_processor)
	Creates a new fader.

void	init_loaded (PortRegistry &port_registry, Track track, ControlRoom control_room, SampleProcessor *sample_processor)
	Inits fader after a project is loaded.

void	append_ports (std::vector< Port * > &ports) const
	Appends the ports owned by fader to the given array.

utils::Utf8String	get_node_name () const override
	Returns a human friendly name of the node.

void	set_amp (float amp)
	Sets the amplitude of the fader.

void	set_amp_with_action (float amp_from, float amp_to, bool skip_if_equal)
	Sets the amp value with an undoable action.

void	add_amp (float amp)
	Adds (or subtracts if negative) to the amplitude of the fader (clamped at 0.0 to 2.0).

void	set_midi_mode (MidiFaderMode mode, bool with_action, bool fire_events)

void	set_muted (bool mute, bool fire_events)
	Sets track muted and optionally adds the action to the undo stack.

bool	get_muted () const
	Returns if the fader is muted.

bool	get_soloed () const
	Returns if the track is soloed.

bool	get_implied_soloed () const
	Returns whether the fader is not soloed on its own but its direct out (or its direct out's direct out, etc.) or its child (or its children's child, etc.) is soloed.

bool	get_listened () const
	Returns whether the fader is listened.

void	set_listened (bool listen, bool fire_events)
	Sets fader listen and optionally adds the action to the undo stack.

void	set_soloed (bool solo, bool fire_events)
	Sets track soloed and optionally adds the action to the undo stack.

float	get_amp () const
	Gets the fader amplitude (not db)

bool	get_mono_compat_enabled () const
	Gets whether mono compatibility is enabled.

void	set_mono_compat_enabled (bool enabled, bool fire_events)
	Sets whether mono compatibility is enabled.

bool	get_swap_phase () const
	Gets whether mono compatibility is enabled.

void	set_swap_phase (bool enabled, bool fire_events)
	Sets whether mono compatibility is enabled.

float	get_fader_val () const

float	get_default_fader_val () const

std::string	db_string_getter () const

Channel *	get_channel () const

Track *	get_track () const

void	update_volume_and_fader_val ()

void	clear_buffers (std::size_t block_length)
	Clears all buffers.

void	set_fader_val (float fader_val)
	Sets the fader levels from a normalized value 0.0-1.0 (such as in widgets).

void	set_fader_val_with_action_from_db (const std::string &str)

void	disconnect_all ()
	Disconnects all ports connected to the fader.

void	process_block (EngineProcessTimeInfo time_nfo) override
	Process the Fader.

bool	is_in_active_project () const override

void	set_port_metadata_from_owner (dsp::PortIdentifier &id, PortRange &range) const override
	Function that will be called by the Port to update the identifier's relevant members based on this port owner.

utils::Utf8String	get_full_designation_for_port (const dsp::PortIdentifier &id) const override

void	on_control_change_event (const PortUuid &port_uuid, const dsp::PortIdentifier &id, float val) override
	Will be called when a control port's value changes.

bool	should_bounce_to_master (utils::audio::BounceStep step) const override
	Whether the port should add its data to the master output when bouncing.

bool	has_audio_ports () const

bool	has_midi_ports () const

void	init_after_cloning (const Fader &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

ControlPort &	get_amp_port () const

ControlPort &	get_balance_port () const

ControlPort &	get_mute_port () const

ControlPort &	get_solo_port () const

ControlPort &	get_listen_port () const

ControlPort &	get_mono_compat_enabled_port () const

ControlPort &	get_swap_phase_port () const

std::pair< AudioPort &, AudioPort & >	get_stereo_in_ports () const

std::pair< AudioPort &, AudioPort & >	get_stereo_out_ports () const

MidiPort &	get_midi_in_port () const

MidiPort &	get_midi_out_port () const

auto	get_stereo_in_left_id () const

auto	get_stereo_in_right_id () const

auto	get_stereo_out_left_id () const

auto	get_stereo_out_right_id () const

auto	get_midi_in_id () const

auto	get_midi_out_id () const

Public Member Functions inherited from ICloneable< Fader >
std::unique_ptr< Fader >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< Fader >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Fader *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Fader *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< Fader >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual nframes_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies.

virtual void	clear_external_buffer (nframes_t block_length)

virtual bool	needs_external_buffer_clear_on_early_return () const

Public Member Functions inherited from IPortOwner
virtual void	on_midi_activity (const dsp::PortIdentifier &id)
	Called during processing if the MIDI port contains new MIDI events.

virtual bool	should_sum_data_from_backend () const
	Whether during processing, the port should sum the data from its backend buffers coming in.

virtual bool	are_events_on_midi_channel_approved (midi_byte_t channel) const
	Returns whether MIDI events on this channel on an input port should be processed (not ignored).

Static Public Member Functions
static int	fade_frames_for_type (Type type)

Data Fields
float	volume_ = 0.f
	Volume in dBFS.

float	phase_ = 0.f
	Used by the phase knob (0.0 ~ 360.0).

float	fader_val_ = 0.f
	0.0 ~ 1.0 for widgets.

float	last_cc_volume_ = 0.f
	Value of amp during last processing.

float	l_port_db_ = 0.f
	Current dBFS after processing each output port.

float	r_port_db_ = 0.f

Type	type_ = (Type) 0

MidiFaderMode	midi_mode_ = (MidiFaderMode) 0
	MIDI fader mode.

bool	passthrough_ = false
	Whether this is a passthrough fader (like a prefader).

Track *	track_ = nullptr
	Pointer to owner track, if any.

ControlRoom *	control_room_ = nullptr
	Pointer to owner control room, if any.

SampleProcessor *	sample_processor_ = nullptr
	Pointer to owner sample processor, if any.

int	magic_ = FADER_MAGIC

bool	is_project_ = false

bool	implied_soloed_ = false

bool	soloed_ = false

std::atomic< int >	fade_out_samples_ = 0
	Number of samples left to fade out.

std::atomic< int >	fade_in_samples_ = 0
	Number of samples left to fade in.

std::atomic< bool >	fading_out_ = false
	Whether currently fading out.

bool	was_effectively_muted_ = false
	Cache.

OptionalRef< PortRegistry >	port_registry_

Data Fields inherited from ICloneable< Fader >
friend	Derived

Friends
void	to_json (nlohmann::json &j, const Fader &fader)

void	from_json (const nlohmann::json &j, Fader &fader)

Detailed Description

A Fader is a processor that is used for volume controls and pan.

Definition at line 46 of file fader.h.

Member Typedef Documentation

◆ Channel

using Fader::Channel = zrythm::gui::Channel

Definition at line 88 of file fader.h.

Member Enumeration Documentation

◆ MidiFaderMode

enum class Fader::MidiFaderMode

strong

Enumerator
MIDI_FADER_MODE_VEL_MULTIPLIER	Multiply velocity of all MIDI note ons.
MIDI_FADER_MODE_CC_VOLUME	Send CC volume event on change TODO.

Definition at line 79 of file fader.h.

◆ Type

enum class Fader::Type

strong

Fader type.

Enumerator
Monitor	Audio fader for the monitor.
SampleProcessor	Audio fader for the sample processor.
AudioChannel	Audio fader for Channel's.
Generic	For generic uses.

Definition at line 59 of file fader.h.

Constructor & Destructor Documentation

◆ Fader()

Fader::Fader	(	PortRegistry &	port_registry,
		Type	type,
		bool	passthrough,
		Track *	track,
		ControlRoom *	control_room,
		SampleProcessor *	sample_processor )

Creates a new fader.

This assumes that the channel has no plugins.

Parameters

type	The Fader::Type.
ch	Channel, if this is a channel Fader.

Member Function Documentation

◆ get_amp()

float Fader::get_amp ( ) const

inline

Gets the fader amplitude (not db)

Definition at line 193 of file fader.h.

◆ get_amp_port()

ControlPort & Fader::get_amp_port ( ) const

inline

Definition at line 283 of file fader.h.

◆ get_balance_port()

ControlPort & Fader::get_balance_port ( ) const

inline

Definition at line 287 of file fader.h.

◆ get_default_fader_val()

float Fader::get_default_fader_val ( ) const

inline

Definition at line 220 of file fader.h.

◆ get_fader_val()

float Fader::get_fader_val ( ) const

inline

Definition at line 218 of file fader.h.

◆ get_full_designation_for_port()

utils::Utf8String Fader::get_full_designation_for_port ( const dsp::PortIdentifier & id ) const

overridevirtual

Reimplemented from IPortOwner.

◆ get_listen_port()

ControlPort & Fader::get_listen_port ( ) const

inline

Definition at line 299 of file fader.h.

◆ get_listened()

bool Fader::get_listened ( ) const

inline

Returns whether the fader is listened.

Definition at line 176 of file fader.h.

◆ get_midi_in_id()

auto Fader::get_midi_in_id ( ) const

inline

Definition at line 376 of file fader.h.

◆ get_midi_in_port()

MidiPort & Fader::get_midi_in_port ( ) const

inline

Definition at line 331 of file fader.h.

◆ get_midi_out_id()

auto Fader::get_midi_out_id ( ) const

inline

Definition at line 385 of file fader.h.

◆ get_midi_out_port()

MidiPort & Fader::get_midi_out_port ( ) const

inline

Definition at line 335 of file fader.h.

◆ get_mono_compat_enabled()

bool Fader::get_mono_compat_enabled ( ) const

inline

Gets whether mono compatibility is enabled.

Definition at line 198 of file fader.h.

◆ get_mono_compat_enabled_port()

ControlPort & Fader::get_mono_compat_enabled_port ( ) const

inline

Definition at line 303 of file fader.h.

◆ get_mute_port()

ControlPort & Fader::get_mute_port ( ) const

inline

Definition at line 291 of file fader.h.

◆ get_muted()

bool Fader::get_muted ( ) const

inline

Returns if the fader is muted.

Definition at line 155 of file fader.h.

◆ get_node_name()

utils::Utf8String Fader::get_node_name ( ) const

overridevirtual

Returns a human friendly name of the node.

Implements zrythm::dsp::graph::IProcessable.

◆ get_solo_port()

ControlPort & Fader::get_solo_port ( ) const

inline

Definition at line 295 of file fader.h.

◆ get_soloed()

bool Fader::get_soloed ( ) const

inline

Returns if the track is soloed.

Definition at line 160 of file fader.h.

◆ get_stereo_in_left_id()

auto Fader::get_stereo_in_left_id ( ) const

inline

Definition at line 340 of file fader.h.

◆ get_stereo_in_ports()

std::pair< AudioPort &, AudioPort & > Fader::get_stereo_in_ports ( ) const

inline

Definition at line 311 of file fader.h.

◆ get_stereo_in_right_id()

auto Fader::get_stereo_in_right_id ( ) const

inline

Definition at line 349 of file fader.h.

◆ get_stereo_out_left_id()

auto Fader::get_stereo_out_left_id ( ) const

inline

Definition at line 358 of file fader.h.

◆ get_stereo_out_ports()

std::pair< AudioPort &, AudioPort & > Fader::get_stereo_out_ports ( ) const

inline

Definition at line 321 of file fader.h.

◆ get_stereo_out_right_id()

auto Fader::get_stereo_out_right_id ( ) const

inline

Definition at line 367 of file fader.h.

◆ get_swap_phase()

bool Fader::get_swap_phase ( ) const

inline

Gets whether mono compatibility is enabled.

Definition at line 211 of file fader.h.

◆ get_swap_phase_port()

ControlPort & Fader::get_swap_phase_port ( ) const

inline

Definition at line 307 of file fader.h.

◆ has_audio_ports()

bool Fader::has_audio_ports ( ) const

inline

Definition at line 272 of file fader.h.

◆ has_midi_ports()

bool Fader::has_midi_ports ( ) const

inline

Definition at line 278 of file fader.h.

◆ init_after_cloning()

void Fader::init_after_cloning	(	const Fader &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< Fader >.

◆ is_in_active_project()

bool Fader::is_in_active_project ( ) const

overridevirtual

Implements IPortOwner.

◆ on_control_change_event()

void Fader::on_control_change_event	(	const PortUuid &	port_uuid,
		const dsp::PortIdentifier &	id,
		float	val )

overridevirtual

Will be called when a control port's value changes.

Parameters

val	The real value of the control port.

Attention: This may be called from the audio thread so it must not block.

Reimplemented from IPortOwner.

◆ process_block()

void Fader::process_block ( EngineProcessTimeInfo time_nfo )

overridevirtual

Process the Fader.

Reimplemented from zrythm::dsp::graph::IProcessable.

◆ set_amp()

void Fader::set_amp ( float amp )

Sets the amplitude of the fader.

(0.0 to 2.0)

◆ set_amp_with_action()

void Fader::set_amp_with_action	(	float	amp_from,
		float	amp_to,
		bool	skip_if_equal )

Sets the amp value with an undoable action.

Parameters

skip_if_equal Whether to skip the action if the amp hasn't changed.

◆ set_port_metadata_from_owner()

void Fader::set_port_metadata_from_owner	(	dsp::PortIdentifier &	id,
		PortRange &	range ) const

overridevirtual

Function that will be called by the Port to update the identifier's relevant members based on this port owner.

Parameters

id	The identifier to update.

Implements IPortOwner.

◆ should_bounce_to_master()

bool Fader::should_bounce_to_master ( utils::audio::BounceStep step ) const

overridevirtual

Whether the port should add its data to the master output when bouncing.

When bouncing a track directly to master (e.g., when bouncing the track on its own without parents), the buffer should be added to the master track output.

This is only utilized for stereo output audio ports.

Reimplemented from IPortOwner.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		Fader &	fader )

friend

Definition at line 436 of file fader.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const Fader &	fader )

friend

Definition at line 413 of file fader.h.

Field Documentation

◆ control_room_

ControlRoom* Fader::control_room_ = nullptr

Pointer to owner control room, if any.

Definition at line 548 of file fader.h.

◆ fade_in_samples_

std::atomic<int> Fader::fade_in_samples_ = 0

Number of samples left to fade in.

Definition at line 571 of file fader.h.

◆ fade_out_samples_

std::atomic<int> Fader::fade_out_samples_ = 0

Number of samples left to fade out.

This is atomic because it is used during processing (process()) and also checked in the main thread by Engine.wait_for_pause().

Definition at line 568 of file fader.h.

◆ fader_val_

float Fader::fader_val_ = 0.f

0.0 ~ 1.0 for widgets.

Definition at line 468 of file fader.h.

◆ fading_out_

std::atomic<bool> Fader::fading_out_ = false

Whether currently fading out.

When true, if fade_out_samples becomes 0 then the output will be silenced.

Definition at line 578 of file fader.h.

◆ implied_soloed_

bool Fader::implied_soloed_ = false

Definition at line 559 of file fader.h.

◆ is_project_

bool Fader::is_project_ = false

Definition at line 555 of file fader.h.

◆ l_port_db_

float Fader::l_port_db_ = 0.f

Current dBFS after processing each output port.

Transient variables only used by the GUI.

Definition at line 533 of file fader.h.

◆ last_cc_volume_

float Fader::last_cc_volume_ = 0.f

Value of amp during last processing.

Used when processing MIDI faders.

TODO

Definition at line 477 of file fader.h.

◆ magic_

int Fader::magic_ = FADER_MAGIC

Definition at line 553 of file fader.h.

◆ midi_mode_

MidiFaderMode Fader::midi_mode_ = (MidiFaderMode) 0

MIDI fader mode.

Definition at line 539 of file fader.h.

◆ passthrough_

bool Fader::passthrough_ = false

Whether this is a passthrough fader (like a prefader).

Definition at line 542 of file fader.h.

◆ phase_

float Fader::phase_ = 0.f

Used by the phase knob (0.0 ~ 360.0).

Definition at line 465 of file fader.h.

◆ port_registry_

OptionalRef<PortRegistry> Fader::port_registry_

Definition at line 583 of file fader.h.

◆ r_port_db_

float Fader::r_port_db_ = 0.f

Definition at line 534 of file fader.h.

◆ sample_processor_

SampleProcessor* Fader::sample_processor_ = nullptr

Pointer to owner sample processor, if any.

Definition at line 551 of file fader.h.

◆ soloed_

bool Fader::soloed_ = false

Definition at line 560 of file fader.h.

◆ track_

Track* Fader::track_ = nullptr

Pointer to owner track, if any.

Definition at line 545 of file fader.h.

◆ type_

Type Fader::type_ = (Type) 0

Definition at line 536 of file fader.h.

◆ volume_

float Fader::volume_ = 0.f

Volume in dBFS.

(-inf ~ +6)

Definition at line 462 of file fader.h.

◆ was_effectively_muted_

bool Fader::was_effectively_muted_ = false

Cache.

Definition at line 581 of file fader.h.

The documentation for this class was generated from the following file:

src/gui/dsp/fader.h

Public Types

Public Member Functions

Static Public Member Functions

Data Fields

Friends

Detailed Description

Member Typedef Documentation

◆ Channel

Member Enumeration Documentation

◆ MidiFaderMode

◆ Type

Constructor & Destructor Documentation

◆ Fader()

Member Function Documentation

◆ get_amp()

◆ get_amp_port()

◆ get_balance_port()

◆ get_default_fader_val()

◆ get_fader_val()

◆ get_full_designation_for_port()

◆ get_listen_port()

◆ get_listened()

◆ get_midi_in_id()

◆ get_midi_in_port()

◆ get_midi_out_id()

◆ get_midi_out_port()

◆ get_mono_compat_enabled()

◆ get_mono_compat_enabled_port()

◆ get_mute_port()

◆ get_muted()

◆ get_node_name()

◆ get_solo_port()

◆ get_soloed()

◆ get_stereo_in_left_id()

◆ get_stereo_in_ports()

◆ get_stereo_in_right_id()

◆ get_stereo_out_left_id()

◆ get_stereo_out_ports()

◆ get_stereo_out_right_id()

◆ get_swap_phase()

◆ get_swap_phase_port()

◆ has_audio_ports()

◆ has_midi_ports()

◆ init_after_cloning()

◆ is_in_active_project()

◆ on_control_change_event()

◆ process_block()

◆ set_amp()

◆ set_amp_with_action()

◆ set_port_metadata_from_owner()

◆ should_bounce_to_master()

Friends And Related Symbol Documentation

◆ from_json

◆ to_json

Field Documentation

◆ control_room_

◆ fade_in_samples_

◆ fade_out_samples_

◆ fader_val_

◆ fading_out_

◆ implied_soloed_

◆ is_project_

◆ l_port_db_

◆ last_cc_volume_

◆ magic_

◆ midi_mode_

◆ passthrough_

◆ phase_

◆ port_registry_

◆ r_port_db_

◆ sample_processor_

◆ soloed_

◆ track_

◆ type_

◆ volume_

◆ was_effectively_muted_
