AutomationTrack Class Referencefinal

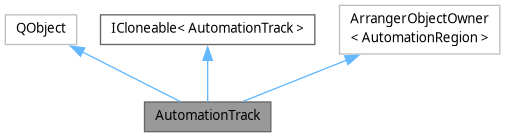

Inheritance diagram for AutomationTrack:

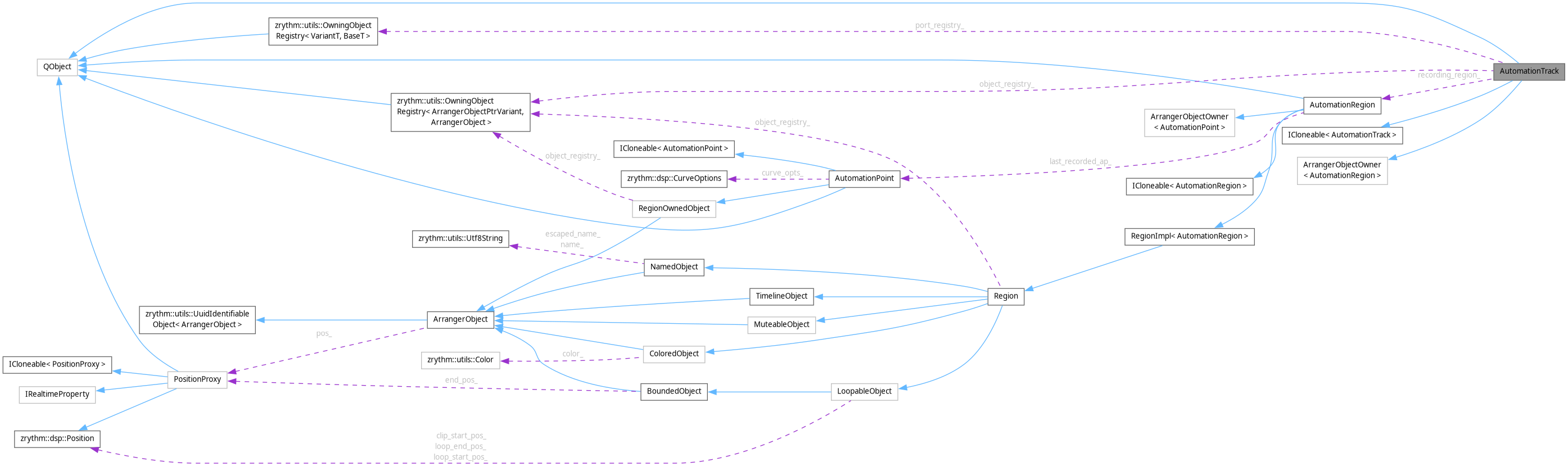

Collaboration diagram for AutomationTrack:
Public Member Functions | |
| AutomationTrack (PortRegistry &port_registry, ArrangerObjectRegistry &obj_registry, TrackGetter track_getter, const ControlPort::Uuid &port_id) | |
| Creates an automation track for the given Port. | |
| QString | getLabel () const |
| Q_SIGNAL void | labelChanged (QString label) |
| double | getHeight () const |
| void | setHeight (double height) |
| Q_SIGNAL void | heightChanged (double height) |
| int | getAutomationMode () const |
| void | setAutomationMode (int automation_mode) |
| Q_SIGNAL void | automationModeChanged (int automation_mode) |
| int | getRecordMode () const |
| void | setRecordMode (int record_mode) |
| Q_SIGNAL void | recordModeChanged (int record_mode) |
| void | init_loaded () |
| bool | validate () const |
| void | set_port_id (const PortUuid &port_id) |
| Clone the given port identifier and take ownership of the clone. | |
| void | set_automation_mode (AutomationMode mode, bool fire_events) |
| void | swap_record_mode () |
| AutomationTracklist * | get_automation_tracklist () const |
| bool | should_read_automation (RtTimePoint cur_time) const |
| Returns whether the automation in the automation track should be read. | |
| bool | should_be_recording (RtTimePoint cur_time, bool record_aps) const |
| Returns if the automation track should currently be recording data. | |
| void | set_index (int index) |
| Sets the index of the AutomationTrack in the AutomationTracklist. | |
| void | init_after_cloning (const AutomationTrack &other, ObjectCloneType clone_type) override |
| Clones the AutomationTrack. | |
| TrackPtrVariant | get_track () const |
| AutomationPoint * | get_ap_before_pos (const Position &pos, bool ends_after, bool use_snapshots) const |
| Returns the automation point before the Position on the timeline. | |
| AutomationRegion * | get_region_before_pos (const Position &pos, bool ends_after, bool use_snapshots) const |
| Returns the Region that starts before given Position, if any. | |
| ControlPort & | get_port () const |
| float | get_val_at_pos (const Position &pos, bool normalized, bool ends_after, bool use_snapshots) const |
| Returns the actual parameter value at the given position. | |
| int | get_y_px_from_normalized_val (float normalized_val) const |
| Returns the y pixels from the value based on the allocation of the automation track. | |
| void | set_caches (CacheType types) |
| bool | contains_automation () const |
| bool | verify () const |
| Location | get_location (const AutomationRegion &) const override |
| std::string | get_field_name_for_serialization (const AutomationRegion *) const override |
 Public Member Functions inherited from ICloneable< AutomationTrack > | |
| std::unique_ptr< AutomationTrack > | clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const |
| std::shared_ptr< AutomationTrack > | clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const |
| AutomationTrack * | clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const |
| AutomationTrack * | clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const |
| QScopedPointer< AutomationTrack > | clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const |
| Public Member Functions inherited from ArrangerObjectOwner< AutomationRegion > | |
| auto & | get_children_vector () |
| auto & | get_children_vector () const |
| auto | get_children_view () const |
| auto & | get_children_snapshots_vector () |
| auto & | get_children_snapshots_vector () const |
| auto | get_children_snapshots_view () const |
| void | add_ticks_to_children (double ticks, dsp::FramesPerTick frames_per_tick) |
| ArrangerObjectListModel * | get_model () const |
| ArrangerObjectUuidReference | remove_object (this SelfT &self, const ArrangerObject::Uuid &id) |
| void | insert_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref, int idx) |
| void | add_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref) |
| void | clear_objects () |
| virtual Location | get_location (const ChildT &) const=0 |
| Returns the current location of this owner. | |
| virtual std::string | get_field_name_for_serialization (const ChildT *) const=0 |
| Get the children field name to be used during serialization/deserialization. | |
| void | copy_members_from (const ArrangerObjectOwner &other, ObjectCloneType clone_type) |
| void | copy_children (const ArrangerObjectOwner &other) |
Static Public Member Functions | |
| static AutomationTrack * | find_from_port_id (const PortUuid &id, bool basic_search) |
| static AutomationTrack * | find_from_port (const ControlPort &port, const AutomatableTrack *track, bool basic_search) |
Finds the AutomationTrack associated with port. | |
| static int | get_y_px_from_height_and_normalized_val (const float height, const float normalized_val) |
Data Fields | |
| PortRegistry & | port_registry_ |
| ArrangerObjectRegistry & | object_registry_ |
| TrackGetter | track_getter_ |
| int | index_ = 0 |
| Index in parent AutomationTracklist. | |
| PortUuid | port_id_ |
| Identifier of the Port this AutomationTrack is for (owned pointer). | |
| bool | created_ = false |
| Whether it has been created by the user yet or not. | |
| bool | visible_ = false |
| Whether visible or not. | |
| int | y_ = 0 |
| Y local to track. | |
| double | height_ = AUTOMATION_TRACK_DEFAULT_HEIGHT |
| Position of multipane handle. | |
| float | last_recorded_value_ = 0.f |
| Last value recorded in this automation track. | |
| AutomationMode | automation_mode_ = AutomationMode::Read |
| Automation mode. | |
| AutomationRecordMode | record_mode_ = (AutomationRecordMode) 0 |
| Automation record mode, when automation_mode_ is set to record. | |
| bool | recording_started_ = false |
| To be set to true when recording starts (when the first change is received) and false when recording ends. | |
| AutomationRegion * | recording_region_ = nullptr |
| Region currently recording to. | |
| bool | recording_start_sent_ = false |
| This is a flag to let the recording manager know that a START signal was already sent for recording. | |
| bool | recording_paused_ = false |
| This must only be set by the RecordingManager when temporarily pausing recording, eg when looping or leaving the punch range. | |
| Data Fields inherited from ICloneable< AutomationTrack > | |
| friend | Derived |
Properties | |
| QML_ELEMENT double | height |
| QString | label |
| int | automationMode |
| int | recordMode |
Friends | |
| void | to_json (nlohmann::json &j, const AutomationTrack &track) |
| void | from_json (const nlohmann::json &j, AutomationTrack &track) |
Additional Inherited Members | |
| Public Types inherited from ArrangerObjectOwner< AutomationRegion > | |
| using | PortUuid |
| using | ArrangerObjectChildType |
| Protected Attributes inherited from ArrangerObjectOwner< AutomationRegion > | |
| bool | clearing_ |
Detailed Description
Definition at line 44 of file automation_track.h.
The documentation for this class was generated from the following file:
- src/gui/dsp/automation_track.h
