Each track has an automation tracklist with automation tracks to be generated at runtime, and filled in with automation points/curves when loading projects. More...

#include <src/gui/dsp/automation_tracklist.h>

Inheritance diagram for AutomationTracklist:

[legend]

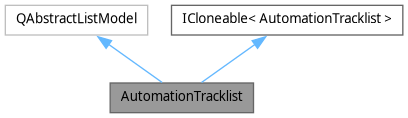

Collaboration diagram for AutomationTracklist:

[legend]

Public Types
enum	Roles { AutomationTrackPtrRole = Qt::UserRole + 1 }

Public Member Functions
	AutomationTracklist (PortRegistry &port_registry, ArrangerObjectRegistry &object_registry, AutomatableTrack &track, QObject *parent=nullptr)

QHash< int, QByteArray >	roleNames () const override

int	rowCount (const QModelIndex &parent=QModelIndex()) const override

QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const override

Q_INVOKABLE void	showNextAvailableAutomationTrack (AutomationTrack *current_automation_track)

Q_INVOKABLE void	hideAutomationTrack (AutomationTrack *current_automation_track)

void	init_after_cloning (const AutomationTracklist &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

void	init_loaded ()
	Inits a loaded AutomationTracklist.

TrackPtrVariant	get_track () const

AutomationTrack *	add_automation_track (AutomationTrack &at)
	Adds the given automation track.

void	print_ats () const
	Prints info about all the automation tracks.

void	update_positions (bool from_ticks, bool bpm_change)
	Updates the frames of each position in each child of the automation tracklist recursively.

AutomationTrack *	get_prev_visible_at (const AutomationTrack &at) const

AutomationTrack *	get_next_visible_at (const AutomationTrack &at) const

void	set_at_visible (AutomationTrack &at, bool visible)

AutomationTrack *	get_automation_track_at (size_t index)

auto &	get_automation_tracks_in_record_mode ()

auto &	get_automation_tracks_in_record_mode () const

AutomationTrack *	get_visible_at_after_delta (const AutomationTrack &at, int delta) const
	Returns the AutomationTrack after delta visible AutomationTrack's.

int	get_visible_at_diff (const AutomationTrack &src, const AutomationTrack &dest) const

AutomationTrack *	remove_at (AutomationTrack &at, bool free, bool fire_events)
	Removes the AutomationTrack from the AutomationTracklist, optionally freeing it.

void	remove_channel_ats (gui::Channel *ch)
	Removes the AutomationTrack's associated with this channel from the AutomationTracklist in the corresponding Track.

AutomationTrack *	get_at_from_port (const ControlPort &port) const
	Returns the AutomationTrack corresponding to the given Port.

AutomationTrack *	get_automation_track_by_port_id (dsp::PortIdentifier::PortUuid id) const
	Returns the AutomationTrack corresponding to the given Port.

void	unselect_all ()
	Unselects all arranger objects.

void	clear_objects ()
	Removes all objects recursively.

void	set_at_index (AutomationTrack &at, int index, bool push_down)
	Sets the index of the AutomationTrack and swaps it with the AutomationTrack at that index or pushes the other AutomationTrack's down.

AutomationTrack *	get_plugin_at (plugins::PluginSlot slot, int port_index, const utils::Utf8String &symbol)
	Gets the automation track matching the given arguments.

AutomationTrack *	get_first_invisible_at () const
	Used when the add button is added and a new automation track is requested to be shown.

void	append_objects (std::vector< ArrangerObject * > objects) const

int	get_num_visible () const
	Returns the number of visible AutomationTrack's.

bool	validate () const
	Verifies the identifiers on a live automation tracklist (in the project, not a clone).

int	get_num_regions () const
	Counts the total number of regions in the automation tracklist.

void	print_regions () const

auto &	get_visible_automation_tracks ()

auto &	get_visible_automation_tracks () const

auto &	get_automation_tracks ()

auto &	get_automation_tracks () const

ControlPort &	get_port (dsp::PortIdentifier::PortUuid id) const

void	set_caches (CacheType types)

Public Member Functions inherited from ICloneable< AutomationTracklist >
std::unique_ptr< AutomationTracklist >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< AutomationTracklist >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

AutomationTracklist *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

AutomationTracklist *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< AutomationTracklist >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Friends
void	to_json (nlohmann::json &j, const AutomationTracklist &ats)

void	from_json (const nlohmann::json &j, AutomationTracklist &ats)

Additional Inherited Members
Data Fields inherited from ICloneable< AutomationTracklist >
friend	Derived

Detailed Description

Each track has an automation tracklist with automation tracks to be generated at runtime, and filled in with automation points/curves when loading projects.

Definition at line 31 of file automation_tracklist.h.

Member Enumeration Documentation

◆ Roles

enum AutomationTracklist::Roles

Definition at line 46 of file automation_tracklist.h.

Member Function Documentation

◆ add_automation_track()

AutomationTrack * AutomationTracklist::add_automation_track ( AutomationTrack & at )

Adds the given automation track.

This takes (QObject) ownership of the AutomationTrack.

◆ get_automation_track_at()

AutomationTrack * AutomationTracklist::get_automation_track_at ( size_t index )

inline

Definition at line 106 of file automation_tracklist.h.

◆ get_automation_tracks() [1/2]

auto & AutomationTracklist::get_automation_tracks ( )

inline

Definition at line 227 of file automation_tracklist.h.

◆ get_automation_tracks() [2/2]

auto & AutomationTracklist::get_automation_tracks ( ) const

inline

Definition at line 228 of file automation_tracklist.h.

◆ get_automation_tracks_in_record_mode() [1/2]

auto & AutomationTracklist::get_automation_tracks_in_record_mode ( )

inline

Definition at line 111 of file automation_tracklist.h.

◆ get_automation_tracks_in_record_mode() [2/2]

auto & AutomationTracklist::get_automation_tracks_in_record_mode ( ) const

inline

Definition at line 112 of file automation_tracklist.h.

◆ get_first_invisible_at()

AutomationTrack * AutomationTracklist::get_first_invisible_at ( ) const

Used when the add button is added and a new automation track is requested to be shown.

Marks the first invisible automation track as visible, or marks an uncreated one as created if all invisible ones are visible, and returns it.

◆ get_plugin_at()

AutomationTrack * AutomationTracklist::get_plugin_at	(	plugins::PluginSlot	slot,
		int	port_index,
		const utils::Utf8String &	symbol )

Gets the automation track matching the given arguments.

Currently only used in mixer selections action.

◆ get_visible_at_after_delta()

AutomationTrack * AutomationTracklist::get_visible_at_after_delta	(	const AutomationTrack &	at,
		int	delta ) const

Returns the AutomationTrack after delta visible AutomationTrack's.

Negative delta searches backwards.

This function searches tracks only in the same Tracklist as the given one (ie, pinned or not).

◆ get_visible_automation_tracks() [1/2]

auto & AutomationTracklist::get_visible_automation_tracks ( )

inline

Definition at line 224 of file automation_tracklist.h.

◆ get_visible_automation_tracks() [2/2]

auto & AutomationTracklist::get_visible_automation_tracks ( ) const

inline

Definition at line 225 of file automation_tracklist.h.

◆ init_after_cloning()

void AutomationTracklist::init_after_cloning	(	const AutomationTracklist &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< AutomationTracklist >.

◆ print_ats()

void AutomationTracklist::print_ats ( ) const

Prints info about all the automation tracks.

Used for debugging.

◆ remove_at()

AutomationTrack * AutomationTracklist::remove_at	(	AutomationTrack &	at,
		bool	free,
		bool	fire_events )

Removes the AutomationTrack from the AutomationTracklist, optionally freeing it.

Returns: The removed automation track (in case we want to move it). Can be ignored to let it get free'd when it goes out of scope.

◆ set_at_index()

void AutomationTracklist::set_at_index	(	AutomationTrack &	at,
		int	index,
		bool	push_down )

Sets the index of the AutomationTrack and swaps it with the AutomationTrack at that index or pushes the other AutomationTrack's down.

A special case is when index == ats_.size(). In this case, the given automation track is set last and all the other automation tracks are pushed upwards.

Parameters

push_down False to swap positions with the current AutomationTrack, or true to push down all the tracks below.

◆ update_positions()

void AutomationTracklist::update_positions	(	bool	from_ticks,
		bool	bpm_change )

Updates the frames of each position in each child of the automation tracklist recursively.

Parameters

from_ticks Whether to update the positions based on ticks (true) or frames (false).

◆ validate()

bool AutomationTracklist::validate ( ) const

Verifies the identifiers on a live automation tracklist (in the project, not a clone).

Returns: True if pass.

Friends And Related Symbol Documentation

◆ to_json

void to_json	(	nlohmann::json &	j,
		const AutomationTracklist &	ats )

friend

Definition at line 236 of file automation_tracklist.h.

The documentation for this class was generated from the following file:

src/gui/dsp/automation_tracklist.h
