Base class for all objects in the arranger. More...

#include <src/gui/dsp/arranger_object.h>

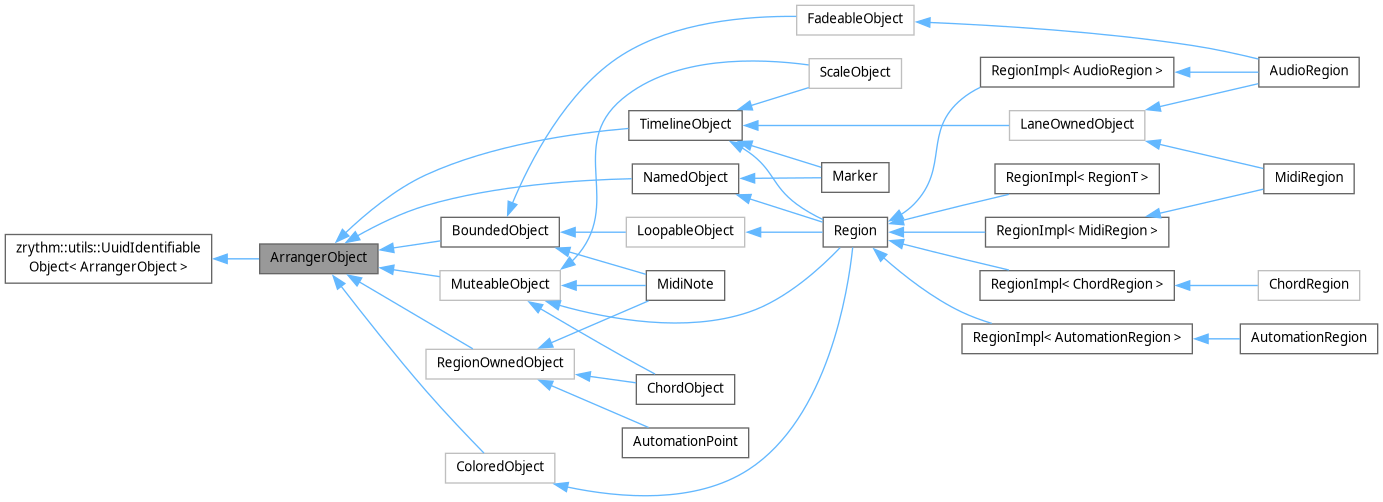

Inheritance diagram for ArrangerObject:

[legend]

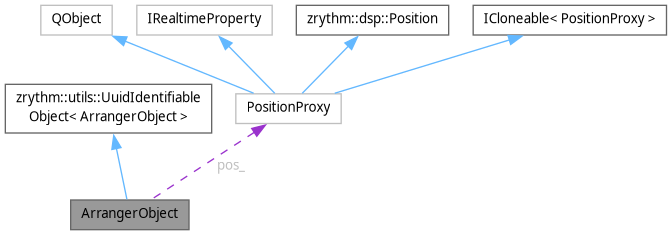

Collaboration diagram for ArrangerObject:

[legend]

Public Types
enum class	ResizeType { Normal , Loop , Fade , Stretch , StretchTempoChange }
	Flag used in some functions. More...

enum class	Type { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint }
	The type of the object. More...

enum class	Flags { NonProject = 1 << 0 }
	Flags. More...

enum class	PositionType { Start , End , ClipStart , LoopStart , LoopEnd , FadeIn , FadeOut }

using	SelectionStatusGetter = std::function<bool (const Uuid &)>

using	Position = zrythm::dsp::Position

using	ArrangerObjectPtr = ArrangerObject *

Public Member Functions
auto	get_type () const

virtual utils::Utf8String	gen_human_friendly_name () const
	Generates a human readable name for the object.

bool	is_start_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_start_hit_by_range (const signed_frame_t global_frames_start, const signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const

void	set_parent_on_base_qproperties (QObject &derived)
	Set the parent on QObject's that are children of this class.

auto	get_position () const
	Getter.

void	position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_position_unvalidated (const dsp::Position &pos)

bool	is_position_valid (const dsp::Position &pos, PositionType pos_type, dsp::TicksPerFrame ticks_per_frame) const
	Returns if the given Position is valid.

bool	set_position (const dsp::Position &pos, PositionType pos_type, bool validate, dsp::TicksPerFrame ticks_per_frame)
	Sets the given position on the object, optionally attempting to validate before.

void	move (double ticks, dsp::FramesPerTick frames_per_tick)
	Moves the object by the given amount of ticks.

void	set_track_id (const TrackUuid &track_id)

void	set_track_id (std::optional< TrackUuid > track_id)

void	unset_track_id ()

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the positions in each child recursively.

auto	get_track () const
	Returns the Track this ArrangerObject is in.

std::optional< TrackUuid >	get_track_id () const

virtual bool	validate (bool is_project, dsp::FramesPerTick frames_per_tick) const =0
	Validates the arranger object.

virtual ArrangerObjectPtrVariant	add_clone_to_project (bool fire_events) const =0
	Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

virtual ArrangerObjectPtrVariant	insert_clone_to_project () const =0
	Inserts the object where it belongs in the project (eg, a Track).

std::optional< ArrangerObjectPtrVariant >	remove_from_project (bool free_obj, bool fire_events=false)
	Removes the object (which can be obtained from find_in_project()) from its parent in the project.

void	set_selection_status_getter (SelectionStatusGetter getter)

void	unset_selection_status_getter ()

virtual bool	is_deletable () const
	Returns whether the given object is deletable or not (eg, start marker).

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

void	copy_members_from (const UuidIdentifiableObject &other)

Data Fields
Flags	flags_ {}
	Track this object belongs to (cache to be set during graph calculation).

Static Public Attributes
static constexpr double	DEFAULT_NUDGE_TICKS = 0.1

Protected Member Functions
	ArrangerObject (Type type, TrackResolver track_resolver) noexcept

void	copy_members_from (const ArrangerObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const
	To be called by validate() implementations.

Protected Attributes
TrackResolver	track_resolver_

PositionProxy *	pos_ = nullptr
	Position (or start Position if the object has length).

std::optional< TrackUuid >	track_id_
	ID of the track this object belongs to.

std::optional< SelectionStatusGetter >	selection_status_getter_
	Whether part of an auditioner track.

Friends
bool	operator== (const ArrangerObject &lhs, const ArrangerObject &rhs)

void	to_json (nlohmann::json &j, const ArrangerObject &arranger_object)

void	from_json (const nlohmann::json &j, ArrangerObject &arranger_object)

Detailed Description

Base class for all objects in the arranger.

The ArrangerObject class is the base class for all objects that can be placed in the arranger, such as regions, MIDI notes, chord objects, etc. It provides common functionality and properties shared by all these objects.

Definition at line 74 of file arranger_object.h.

Member Typedef Documentation

◆ ArrangerObjectPtr

using ArrangerObject::ArrangerObjectPtr = ArrangerObject *

Definition at line 146 of file arranger_object.h.

◆ Position

using ArrangerObject::Position = zrythm::dsp::Position

Definition at line 141 of file arranger_object.h.

◆ SelectionStatusGetter

using ArrangerObject::SelectionStatusGetter = std::function<bool (const Uuid &)>

Definition at line 79 of file arranger_object.h.

Member Enumeration Documentation

◆ Flags

enum class ArrangerObject::Flags

strong

Flags.

Enumerator

NonProject

This object is not a project object, but an object used temporarily eg.

when undoing/ redoing.

Definition at line 120 of file arranger_object.h.

◆ PositionType

enum class ArrangerObject::PositionType

strong

Definition at line 130 of file arranger_object.h.

◆ ResizeType

enum class ArrangerObject::ResizeType

strong

Flag used in some functions.

Enumerator

StretchTempoChange

Used when we want to resize to contents when BPM changes.

Note: Only applies to audio.

Definition at line 86 of file arranger_object.h.

◆ Type

enum class ArrangerObject::Type

strong

The type of the object.

Definition at line 104 of file arranger_object.h.

Member Function Documentation

◆ add_clone_to_project()

virtual ArrangerObjectPtrVariant ArrangerObject::add_clone_to_project ( bool fire_events ) const

pure virtual

Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

Exceptions

ZrythmError on failure.

Returns: A reference to the newly added clone.

Implemented in AutomationPoint, ChordObject, Marker, MidiNote, RegionImpl< RegionT >, RegionImpl< AudioRegion >, RegionImpl< AutomationRegion >, RegionImpl< ChordRegion >, RegionImpl< ChordRegion >, RegionImpl< MidiRegion >, and ScaleObject.

◆ gen_human_friendly_name()

virtual utils::Utf8String ArrangerObject::gen_human_friendly_name ( ) const

inlinevirtual

Generates a human readable name for the object.

If the object has a name, this returns a copy of the name, otherwise generates something appropriate.

Reimplemented in ChordObject, MidiNote, NamedObject, and ScaleObject.

Definition at line 156 of file arranger_object.h.

◆ get_position()

auto ArrangerObject::get_position ( ) const

inline

Getter.

Definition at line 211 of file arranger_object.h.

◆ get_track()

auto ArrangerObject::get_track ( ) const

inline

Returns the Track this ArrangerObject is in.

Definition at line 284 of file arranger_object.h.

◆ get_track_id()

std::optional< TrackUuid > ArrangerObject::get_track_id ( ) const

inline

Definition at line 290 of file arranger_object.h.

◆ get_type()

auto ArrangerObject::get_type ( ) const

inline

Definition at line 148 of file arranger_object.h.

◆ insert_clone_to_project()

virtual ArrangerObjectPtrVariant ArrangerObject::insert_clone_to_project ( ) const

pure virtual

Inserts the object where it belongs in the project (eg, a Track).

This function assumes that the object already knows the index where it should be inserted in its parent.

This is mostly used when undoing.

Exceptions

ZrythmException on failure.

Returns: A reference to the newly inserted clone.

Implemented in AutomationPoint, ChordObject, Marker, MidiNote, RegionImpl< RegionT >, RegionImpl< AudioRegion >, RegionImpl< AutomationRegion >, RegionImpl< ChordRegion >, RegionImpl< ChordRegion >, RegionImpl< MidiRegion >, and ScaleObject.

◆ is_deletable()

virtual bool ArrangerObject::is_deletable ( ) const

inlinevirtual

Returns whether the given object is deletable or not (eg, start marker).

Reimplemented in Marker.

Definition at line 347 of file arranger_object.h.

◆ is_position_valid()

bool ArrangerObject::is_position_valid	(	const dsp::Position &	pos,
		PositionType	pos_type,
		dsp::TicksPerFrame	ticks_per_frame ) const

Returns if the given Position is valid.

Parameters

pos	The position to set to.
pos_type	The type of Position to set in the ArrangerObject.

◆ is_start_hit_by_range() [1/2]

bool ArrangerObject::is_start_hit_by_range	(	const dsp::Position &	start,
		const dsp::Position &	end,
		bool	range_start_inclusive = true,
		bool	range_end_inclusive = false ) const

inline

Returns whether the given object is hit by the given range.

Parameters

start	Start position.
end	End position.
range_start_inclusive	Whether pos_ == `start` is allowed. Can't imagine a case where this would be false, but kept an option just in case.
range_end_inclusive	Whether pos_ == `end` is allowed.

Definition at line 172 of file arranger_object.h.

◆ is_start_hit_by_range() [2/2]

bool ArrangerObject::is_start_hit_by_range	(	const signed_frame_t	global_frames_start,
		const signed_frame_t	global_frames_end,
		bool	range_start_inclusive = true,
		bool	range_end_inclusive = false ) const

inline

See also: is_start_hit_by_range().

Definition at line 185 of file arranger_object.h.

◆ position_setter_validated()

void ArrangerObject::position_setter_validated	(	const dsp::Position &	pos,
		dsp::TicksPerFrame	ticks_per_frame )

The setter is for use in e.g.

the digital meters whereas the set_pos func is used during arranger actions.

Note: This validates the position.

◆ remove_from_project()

std::optional< ArrangerObjectPtrVariant > ArrangerObject::remove_from_project	(	bool	free_obj,
		bool	fire_events = false )

Removes the object (which can be obtained from find_in_project()) from its parent in the project.

Returns: A pointer to the removed object (whose lifetime is now the responsibility of the caller).

◆ set_parent_on_base_qproperties()

void ArrangerObject::set_parent_on_base_qproperties ( QObject & derived )

Set the parent on QObject's that are children of this class.

This is needed because we can only inherit from QObject on final classes, and this is not a final class, so final classes deriving from this are expected to call this method to establish the parent-child relationship.

Parameters

derived The derived class instance.

◆ set_position()

bool ArrangerObject::set_position	(	const dsp::Position &	pos,
		PositionType	pos_type,
		bool	validate,
		dsp::TicksPerFrame	ticks_per_frame )

Sets the given position on the object, optionally attempting to validate before.

Parameters

pos	The position to set to.
pos_type	The type of Position to set in the ArrangerObject.
validate	Validate the Position before setting it.

Returns: Whether the position was set (false if invalid).

◆ set_position_unvalidated()

void ArrangerObject::set_position_unvalidated ( const dsp::Position & pos )

inline

Definition at line 223 of file arranger_object.h.

◆ set_selection_status_getter()

void ArrangerObject::set_selection_status_getter ( SelectionStatusGetter getter )

inline

Definition at line 338 of file arranger_object.h.

◆ set_track_id() [1/2]

void ArrangerObject::set_track_id ( const TrackUuid & track_id )

inline

Definition at line 261 of file arranger_object.h.

◆ set_track_id() [2/2]

void ArrangerObject::set_track_id ( std::optional< TrackUuid > track_id )

inline

Definition at line 262 of file arranger_object.h.

◆ unset_selection_status_getter()

void ArrangerObject::unset_selection_status_getter ( )

inline

Definition at line 342 of file arranger_object.h.

◆ unset_track_id()

void ArrangerObject::unset_track_id ( )

inline

Definition at line 266 of file arranger_object.h.

◆ update_positions()

void ArrangerObject::update_positions	(	bool	from_ticks,
		bool	bpm_change,
		dsp::FramesPerTick	frames_per_tick )

Updates the positions in each child recursively.

Parameters

from_ticks	Whether to update the positions based on ticks (true) or frames (false).
frames_per_tick	This will be used when doing position conversions via dependency injection instead of relying on the current project's transport.

◆ validate()

virtual bool ArrangerObject::validate	(	bool	is_project,
		dsp::FramesPerTick	frames_per_tick ) const

pure virtual

Validates the arranger object.

Parameters

frames_per_tick Frames per tick used when validating audio regions. Passing 0 will use the value from the current engine.

Returns: Whether valid.

Must only be implemented by final objects.

Implemented in AudioRegion, AutomationPoint, AutomationRegion, ChordObject, ChordRegion, Marker, MidiNote, MidiRegion, and ScaleObject.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		ArrangerObject &	arranger_object )

friend

Definition at line 379 of file arranger_object.h.

◆ operator==

bool operator==	(	const ArrangerObject &	lhs,
		const ArrangerObject &	rhs )

friend

Definition at line 349 of file arranger_object.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const ArrangerObject &	arranger_object )

friend

Definition at line 370 of file arranger_object.h.

Field Documentation

◆ DEFAULT_NUDGE_TICKS

double ArrangerObject::DEFAULT_NUDGE_TICKS = 0.1

staticconstexpr

Definition at line 81 of file arranger_object.h.

◆ flags_

Flags ArrangerObject::flags_ {}

Track this object belongs to (cache to be set during graph calculation).

Whether deleted with delete tool.

This is used to simply hide these objects until the action finishes so that they can be cloned for the actions. Flags.

Definition at line 419 of file arranger_object.h.

◆ pos_

PositionProxy* ArrangerObject::pos_ = nullptr

protected

Position (or start Position if the object has length).

Definition at line 393 of file arranger_object.h.

◆ selection_status_getter_

std::optional<SelectionStatusGetter> ArrangerObject::selection_status_getter_

protected

Whether part of an auditioner track.

Definition at line 426 of file arranger_object.h.

◆ track_id_

std::optional<TrackUuid> ArrangerObject::track_id_

protected

ID of the track this object belongs to.

If this is null, then this object is not part of a track.

Definition at line 404 of file arranger_object.h.

◆ track_resolver_

TrackResolver ArrangerObject::track_resolver_

protected

Definition at line 388 of file arranger_object.h.

The documentation for this class was generated from the following file:

src/gui/dsp/arranger_object.h

Public Types

Public Member Functions

Data Fields

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ ArrangerObjectPtr

◆ Position

◆ SelectionStatusGetter

Member Enumeration Documentation

◆ Flags

◆ PositionType

◆ ResizeType

◆ Type

Member Function Documentation

◆ add_clone_to_project()

◆ gen_human_friendly_name()

◆ get_position()

◆ get_track()

◆ get_track_id()

◆ get_type()

◆ insert_clone_to_project()

◆ is_deletable()

◆ is_position_valid()

◆ is_start_hit_by_range() [1/2]

◆ is_start_hit_by_range() [2/2]

◆ position_setter_validated()

◆ remove_from_project()

◆ set_parent_on_base_qproperties()

◆ set_position()

◆ set_position_unvalidated()

◆ set_selection_status_getter()

◆ set_track_id() [1/2]

◆ set_track_id() [2/2]

◆ unset_selection_status_getter()

◆ unset_track_id()

◆ update_positions()

◆ validate()

Friends And Related Symbol Documentation

◆ from_json

◆ operator==

◆ to_json

Field Documentation

◆ DEFAULT_NUDGE_TICKS

◆ flags_

◆ pos_

◆ selection_status_getter_

◆ track_id_

◆ track_resolver_
