A Region containing MIDI events. More...

#include <src/gui/dsp/midi_region.h>

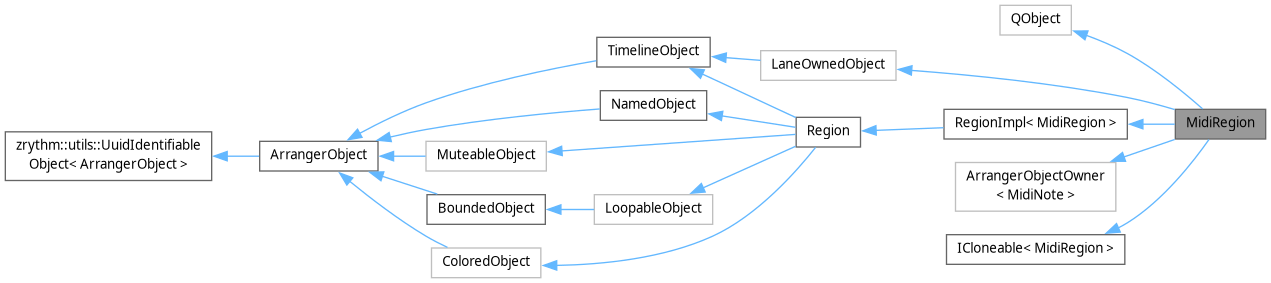

Inheritance diagram for MidiRegion:

[legend]

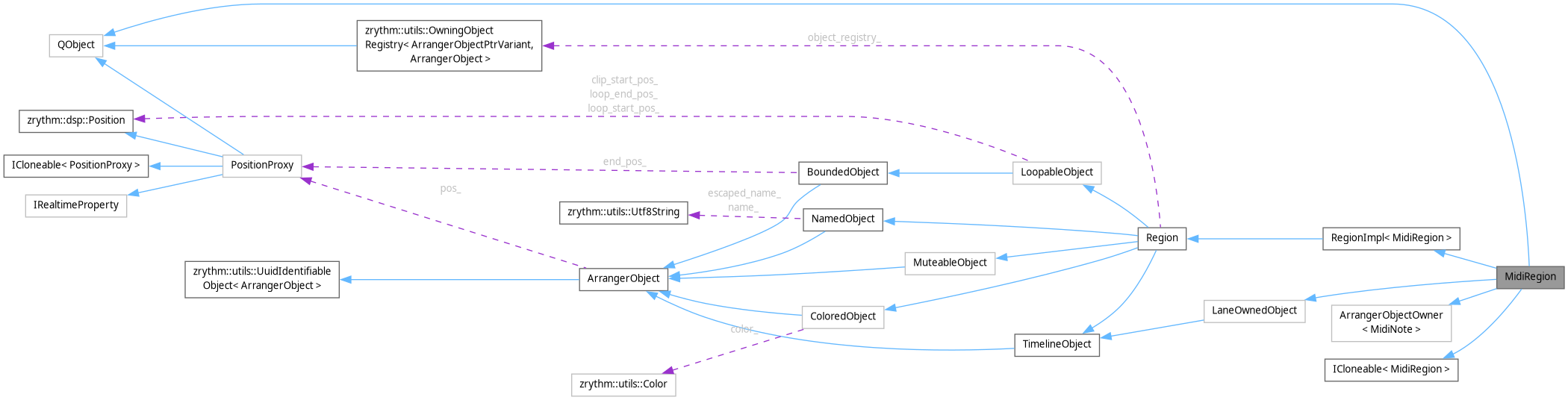

Collaboration diagram for MidiRegion:

[legend]

Public Types
using	ChordDescriptor = zrythm::dsp::ChordDescriptor

Public Types inherited from ArrangerObject
enum class	ResizeType { Normal , Loop , Fade , Stretch , StretchTempoChange }
	Flag used in some functions. More...

enum class	Type { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint }
	The type of the object. More...

enum class	Flags { NonProject = 1 << 0 }
	Flags. More...

enum class	PositionType { Start , End , ClipStart , LoopStart , LoopEnd , FadeIn , FadeOut }

using	SelectionStatusGetter = std::function<bool (const Uuid &)>

using	Position = zrythm::dsp::Position

using	ArrangerObjectPtr = ArrangerObject *

Public Types inherited from RegionImpl< MidiRegion >
using	RegionTPtr

using	ChildT

using	ChildTPtr

Public Types inherited from NamedObject
using	NameValidator = std::function<bool (const utils::Utf8String &)>

Public Types inherited from ColoredObject
using	Color = zrythm::utils::Color

Public Types inherited from ArrangerObjectOwner< MidiNote >
using	PortUuid

using	ArrangerObjectChildType

Public Member Functions
void	start_unended_note (Position start_pos, Position end_pos, int pitch, int vel, bool pub_events)
	Starts an unended note with the given pitch and velocity and adds it to midi_notes_.

MidiNote *	pop_unended_note (int pitch)
	Returns the midi note with the given pitch from the unended notes.

void	print_midi_notes () const
	Prints the MidiNotes in the Region.

MidiNote *	get_first_midi_note ()
	Gets first midi note.

MidiNote *	get_last_midi_note ()
	Gets last midi note.

MidiNote *	get_highest_midi_note ()
	Gets highest midi note.

MidiNote *	get_lowest_midi_note ()
	Gets lowest midi note.

void	write_to_midi_file (MIDI_FILE *mf, bool add_region_start, bool export_full) const
	Exports the Region to an existing MIDI file instance.

void	export_to_midi_file (const std::string &full_path, int midi_version, bool export_full) const
	Exports the Region to a specified MIDI file.

uint8_t	get_midi_ch () const
	Returns the MIDI channel that this region should be played on, starting from 1.

bool	is_note_playable (const MidiNote &midi_note) const
	Returns whether the given note is not muted and starts within any playable part of the region.

void	add_events (dsp::MidiEventVector &events, const Position start, const Position end, bool add_region_start, bool full) const
	Adds the contents of the region converted into events.

void	get_velocities_in_range (const Position start_pos, const Position end_pos, std::vector< Velocity * > &velocities, bool inside)
	Fills in the array with all the velocities in the project that are within or outside the range given.

bool	validate (bool is_project, dsp::FramesPerTick frames_per_tick) const override
	Validates the arranger object.

void	init_after_cloning (const MidiRegion &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

void	get_note_positions_in_export (Position start_pos, Position end_pos, int repeat_index) const
	Set positions to the exact values in the export region as it is played inside Zrythm.

bool	is_note_export_start_pos_in_full_region (Position start_pos) const
	Returns if the given positions are in a given region as it is played inside Zrythm.

Location	get_location (const MidiNote &) const override

std::string	get_field_name_for_serialization (const MidiNote *) const override

Public Member Functions inherited from LaneOwnedObject
	Z_DISABLE_COPY_MOVE (LaneOwnedObject)

bool	is_inserted_in_lane () const

template<typename SelfT> requires std::is_same_v<SelfT, MidiRegion>
MidiLane &	get_lane (this const SelfT &self)

template<typename SelfT> requires std::is_same_v<SelfT, AudioRegion>
AudioLane &	get_lane (this const SelfT &self)

template<typename SelfT>
auto	get_lane_index (this const SelfT &self)

void	set_lane (TrackLanePtrVariant lane)
	Sets the track lane.

void	copy_members_from (const LaneOwnedObject &other, ObjectCloneType clone_type)

Public Member Functions inherited from ArrangerObject
auto	get_type () const

bool	is_start_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_start_hit_by_range (const signed_frame_t global_frames_start, const signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const

void	set_parent_on_base_qproperties (QObject &derived)
	Set the parent on QObject's that are children of this class.

auto	get_position () const
	Getter.

void	position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_position_unvalidated (const dsp::Position &pos)

bool	is_position_valid (const dsp::Position &pos, PositionType pos_type, dsp::TicksPerFrame ticks_per_frame) const
	Returns if the given Position is valid.

bool	set_position (const dsp::Position &pos, PositionType pos_type, bool validate, dsp::TicksPerFrame ticks_per_frame)
	Sets the given position on the object, optionally attempting to validate before.

void	move (double ticks, dsp::FramesPerTick frames_per_tick)
	Moves the object by the given amount of ticks.

void	set_track_id (const TrackUuid &track_id)

void	set_track_id (std::optional< TrackUuid > track_id)

void	unset_track_id ()

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the positions in each child recursively.

auto	get_track () const
	Returns the Track this ArrangerObject is in.

std::optional< TrackUuid >	get_track_id () const

std::optional< ArrangerObjectPtrVariant >	remove_from_project (bool free_obj, bool fire_events=false)
	Removes the object (which can be obtained from find_in_project()) from its parent in the project.

void	set_selection_status_getter (SelectionStatusGetter getter)

void	unset_selection_status_getter ()

virtual bool	is_deletable () const
	Returns whether the given object is deletable or not (eg, start marker).

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

void	copy_members_from (const UuidIdentifiableObject &other)

Public Member Functions inherited from RegionImpl< MidiRegion >
void	append_children (this MidiRegion &self, std::vector< RegionOwnedObject * > &children)
	Fills the given vector with all the children of this region.

void	fill_midi_events (TrackPtrVariant track_var, const EngineProcessTimeInfo &time_nfo, bool note_off_at_end, bool is_note_off_for_loop_or_region_end, dsp::MidiEventVector &midi_events) const
	Fills MIDI event queue from this MIDI or Chord region.

auto	get_object_ptr (const ArrangerObject::Uuid id) const

auto	get_object_ptr (const ArrangerObjectUuidReference &id) const

auto &	get_arranger_object_registry () const

auto &	get_arranger_object_registry ()

void	remove_all_children (this MidiRegion &self)
	Removes all children objects from the region.

bool	get_muted (bool check_parent) const override
	Gets the mute status of the object.

ArrangerObjectPtrVariant	add_clone_to_project (bool fire_events) const final
	Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

ArrangerObjectPtrVariant	insert_clone_to_project () const final
	Inserts the object where it belongs in the project (eg, a Track).

void	set_link_group (int group_idx, bool update_identifier)
	Sets the link group to the region.

void	update_identifier (this MidiRegion &self)
	Disconnects the region and anything using it.

void	unlink ()
	Removes the link group from the region, if any.

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const

void	stretch (double ratio)
	Stretch the region's contents.

void	create_link_group_if_none ()

Public Member Functions inherited from Region
bool	is_midi () const

bool	is_audio () const

bool	is_automation () const

bool	is_chord () const

RegionLinkGroup *	get_link_group ()
	Returns the region's link group.

bool	has_link_group () const

signed_frame_t	timeline_frames_to_local (signed_frame_t timeline_frames, bool normalize) const
	Converts frames on the timeline (global) to local frames (in the clip).

void	get_frames_till_next_loop_or_end (signed_frame_t timeline_frames, signed_frame_t ret_frames, bool is_loop) const
	Returns the number of frames until the next loop end point or the end of the region.

void	update_link_group ()
	Updates all other regions in the region link group, if any.

bool	is_recording ()
	Returns if this region is currently being recorded onto.

Public Member Functions inherited from NamedObject
	NamedObject (NameValidator validator=[](const utils::Utf8String &) { return true;})

utils::Utf8String	get_name () const
	Returns the name of the object.

void	gen_escaped_name ()
	Generates the escaped name for the object.

void	set_name (this auto &&self, const utils::Utf8String &name)
	Sets the name of the object.

void	generate_name_from_automation_track (this auto &self, const auto &track, const auto &at)

void	generate_name_from_track (this auto &self, const auto &track)

void	generate_name (this auto &self, std::optional< utils::Utf8String > base_name, const auto at, const auto track)

void	set_name_with_action (const utils::Utf8String &name)
	Changes the name and adds an action to the undo stack.

utils::Utf8String	gen_human_friendly_name () const final
	Generates a human readable name for the object.

Public Member Functions inherited from MuteableObject
void	set_muted (bool muted, bool fire_events)
	Sets the mute status of the object.

Public Member Functions inherited from LoopableObject
int	get_num_loops (bool count_incomplete) const
	Returns the number of loops in the ArrangerObject, optionally including incomplete ones.

const auto &	get_clip_start_pos () const
	Getter.

const auto &	get_loop_start_pos () const
	Getter.

const auto &	get_loop_end_pos () const
	Getter.

void	clip_start_position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	loop_start_position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	loop_end_position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_loop_start_position_unvalidated (const dsp::Position &pos)

void	set_loop_end_position_unvalidated (const dsp::Position &pos)

void	set_clip_start_position_unvalidated (const dsp::Position &pos)

double	get_loop_length_in_ticks () const
	Returns the length of the loop in ticks.

auto	get_loop_length_in_frames () const
	Returns the length of the loop in frames.

bool	is_looped () const

Public Member Functions inherited from BoundedObject
auto	get_end_position () const
	Getter.

void	parent_base_qproperties (QObject &derived)

void	end_position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_end_position_unvalidated (const dsp::Position &pos)

auto	get_length_in_ticks () const
	Returns the length in ticks.

auto	get_length_in_frames () const
	Returns the length in frames.

void	resize (bool left, ResizeType type, double ticks, bool during_ui_action)
	Resizes the object on the left side or right side by given amount of ticks, for objects that do not have loops (currently none?

template<typename SelfT> requires (FinalArrangerObjectSubclass<SelfT>)
void	set_start_pos_full_size (this SelfT &self, const Position &pos, dsp::FramesPerTick frames_per_tick)
	Sets the end position of the ArrangerObject and also sets the loop end and fade out (if object supports those) so that they are at the end.

template<typename SelfT> requires (FinalArrangerObjectSubclass<SelfT>)
void	set_end_pos_full_size (this SelfT &self, const dsp::Position &pos, dsp::FramesPerTick frames_per_tick)
	Sets the end position of the ArrangerObject and also sets the loop end and fade out (if object supports those) to that position.

bool	is_hit (const dsp::Position &pos, bool object_end_pos_inclusive=false) const
	Returns whether the object is hit by the given position (local position if non-timeline object).

bool	is_hit (const signed_frame_t frames, bool object_end_pos_inclusive=false) const

bool	is_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false, bool object_end_pos_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_hit_by_range (signed_frame_t global_frames_start, signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false, bool object_end_pos_inclusive=false) const

virtual bool	is_inside_range (const dsp::Position &start, const dsp::Position &end) const
	Checks if any part of the object is hit by the given range.

Public Member Functions inherited from ColoredObject
QColor	get_effective_color () const
	Returns the color of the object if set, otherwise the owner track's color.

Public Member Functions inherited from ArrangerObjectOwner< MidiNote >
auto &	get_children_vector ()

auto &	get_children_vector () const

auto	get_children_view () const

auto &	get_children_snapshots_vector ()

auto &	get_children_snapshots_vector () const

auto	get_children_snapshots_view () const

void	add_ticks_to_children (double ticks, dsp::FramesPerTick frames_per_tick)

ArrangerObjectListModel *	get_model () const

ArrangerObjectUuidReference	remove_object (this SelfT &self, const ArrangerObject::Uuid &id)

void	insert_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref, int idx)

void	add_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref)

void	clear_objects ()

virtual Location	get_location (const ChildT &) const=0
	Returns the current location of this owner.

virtual std::string	get_field_name_for_serialization (const ChildT *) const=0
	Get the children field name to be used during serialization/deserialization.

void	copy_members_from (const ArrangerObjectOwner &other, ObjectCloneType clone_type)

void	copy_children (const ArrangerObjectOwner &other)

Public Member Functions inherited from ICloneable< MidiRegion >
std::unique_ptr< MidiRegion >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< MidiRegion >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

MidiRegion *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

MidiRegion *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< MidiRegion >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Data Fields
std::vector< MidiNote * >	unended_notes_
	Unended notes started in recording with MIDI NOTE ON signal but haven't received a NOTE OFF yet.

Data Fields inherited from LaneOwnedObject
std::optional< int >	index_in_prev_lane_
	Object's index in the previous lane (before being moved to a new lane/track).

Data Fields inherited from ArrangerObject
Flags	flags_ {}
	Track this object belongs to (cache to be set during graph calculation).

Data Fields inherited from Region
ArrangerObjectRegistry &	object_registry_

std::optional< int >	link_group_

int	bounce_ = 0
	Set to ON during bouncing if this region should be included.

bool	stretching_ = false
	Whether currently running the stretching algorithm.

double	stretch_ratio_ = 1.0
	Used during arranger UI overlay actions.

double	before_length_ = 0.0
	The length before stretching, in ticks.

Data Fields inherited from MuteableObject
bool	muted_ = false
	Whether muted or not.

Data Fields inherited from LoopableObject
dsp::Position	clip_start_pos_
	Start position of the clip loop, relative to the object's start.

dsp::Position	loop_start_pos_
	Loop start Position relative to the object's start.

dsp::Position	loop_end_pos_
	End position of the clip loop, relative to the object's start.

Data Fields inherited from BoundedObject
PositionProxy *	end_pos_ = nullptr
	End Position, if the object has one.

Data Fields inherited from ColoredObject
Color	color_
	Color independent of owner (Track/Region etc.).

bool	use_color_ = false
	Whether to use the custom color.

Data Fields inherited from ICloneable< MidiRegion >
friend	Derived

Friends
class	RegionImpl< MidiRegion >

class	ArrangerObjectFactory

void	to_json (nlohmann::json &j, const MidiRegion &region)

void	from_json (const nlohmann::json &j, MidiRegion &region)

Additional Inherited Members
Static Public Member Functions inherited from RegionImpl< MidiRegion >
static constexpr bool	is_midi ()

static constexpr bool	is_audio ()

static constexpr bool	is_automation ()

static constexpr bool	is_chord ()

static constexpr bool	is_laned ()

static constexpr bool	has_children ()

static MidiRegion *	at_position (const Track track, const AutomationTrack at, dsp::Position pos)
	Returns the region at the given position in the given Track.

Static Public Member Functions inherited from Region
static std::optional< ArrangerObjectPtrVariant >	get_at_pos (dsp::Position pos, Track track, AutomationTrack at, bool include_region_end=false)
	Returns the region at the given position, if any.

Static Public Attributes inherited from ArrangerObject
static constexpr double	DEFAULT_NUDGE_TICKS = 0.1

Protected Member Functions inherited from TimelineObject
void	copy_members_from (const TimelineObject &other, ObjectCloneType clone_type)

Protected Member Functions inherited from ArrangerObject
	ArrangerObject (Type type, TrackResolver track_resolver) noexcept

void	copy_members_from (const ArrangerObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const
	To be called by validate() implementations.

Protected Member Functions inherited from Region
	Region (ArrangerObjectRegistry &object_registry)

void	copy_members_from (const Region &other, ObjectCloneType clone_type)

Protected Member Functions inherited from NamedObject
void	copy_members_from (const NamedObject &other, ObjectCloneType clone_type)

Protected Member Functions inherited from MuteableObject
void	copy_members_from (const MuteableObject &other, ObjectCloneType clone_type)

Protected Member Functions inherited from LoopableObject
void	copy_members_from (const LoopableObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const

Protected Member Functions inherited from BoundedObject
void	copy_members_from (const BoundedObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const

Protected Member Functions inherited from ColoredObject
void	copy_members_from (const ColoredObject &other, ObjectCloneType clone_type)

template<typename Derived>
void	init_colored_object (this Derived &self)

Protected Attributes inherited from ArrangerObject
TrackResolver	track_resolver_

PositionProxy *	pos_ = nullptr
	Position (or start Position if the object has length).

std::optional< TrackUuid >	track_id_
	ID of the track this object belongs to.

std::optional< SelectionStatusGetter >	selection_status_getter_
	Whether part of an auditioner track.

Protected Attributes inherited from NamedObject
utils::Utf8String	name_
	Name to be shown on the widget.

utils::Utf8String	escaped_name_
	Escaped name for drawing.

NameValidator	name_validator_

Protected Attributes inherited from ArrangerObjectOwner< MidiNote >
bool	clearing_

Detailed Description

A Region containing MIDI events.

MidiRegion represents a region in the timeline that holds MIDI note and controller data. It is specific to instrument/MIDI tracks and can be constructed from a MIDI file or a chord descriptor.

Definition at line 37 of file midi_region.h.

Member Typedef Documentation

◆ ChordDescriptor

using MidiRegion::ChordDescriptor = zrythm::dsp::ChordDescriptor

Definition at line 54 of file midi_region.h.

Member Function Documentation

◆ add_events()

void MidiRegion::add_events	(	dsp::MidiEventVector &	events,
		const Position *	start,
		const Position *	end,
		bool	add_region_start,
		bool	full ) const

Adds the contents of the region converted into events.

Parameters

add_region_start	Add the region start offset to the positions.
export_full	Traverse loops and export the MIDI file as it would be played inside Zrythm. If this is 0, only the original region (from true start to true end) is exported.
start	Events before this (global) position will be skipped.
end	Events after this (global) position will be skipped.

◆ export_to_midi_file()

void MidiRegion::export_to_midi_file	(	const std::string &	full_path,
		int	midi_version,
		bool	export_full ) const

Exports the Region to a specified MIDI file.

Parameters

full_path	Absolute path to the MIDI file.
export_full	Traverse loops and export the MIDI file as it would be played inside Zrythm. If this is 0, only the original region (from true start to true end) is exported.

◆ get_field_name_for_serialization()

std::string MidiRegion::get_field_name_for_serialization ( const MidiNote * ) const

inlineoverride

Definition at line 220 of file midi_region.h.

◆ get_location()

Location MidiRegion::get_location ( const MidiNote & ) const

inlineoverride

Definition at line 215 of file midi_region.h.

◆ get_note_positions_in_export()

void MidiRegion::get_note_positions_in_export	(	Position *	start_pos,
		Position *	end_pos,
		int	repeat_index ) const

Set positions to the exact values in the export region as it is played inside Zrythm.

Parameters

[in,out]	start_pos	start position of the event
[in,out]	end_pos	end position of the event
	repeat_index	repetition counter for loop offset

◆ get_velocities_in_range()

void MidiRegion::get_velocities_in_range	(	const Position *	start_pos,
		const Position *	end_pos,
		std::vector< Velocity * > &	velocities,
		bool	inside )

Fills in the array with all the velocities in the project that are within or outside the range given.

Parameters

inside Whether to find velocities inside the range (true) or outside (false).

◆ init_after_cloning()

void MidiRegion::init_after_cloning	(	const MidiRegion &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< MidiRegion >.

◆ is_note_export_start_pos_in_full_region()

bool MidiRegion::is_note_export_start_pos_in_full_region ( Position start_pos ) const

Returns if the given positions are in a given region as it is played inside Zrythm.

Parameters

offset_in_ticks Offset value if note is repeated inside a loop

◆ pop_unended_note()

MidiNote * MidiRegion::pop_unended_note ( int pitch )

Returns the midi note with the given pitch from the unended notes.

Used when recording.

Parameters

pitch The pitch. If -1, it returns any unended note. This is useful when the loop point is met and we want to end them all.

◆ print_midi_notes()

void MidiRegion::print_midi_notes ( ) const

Prints the MidiNotes in the Region.

Used for debugging.

◆ start_unended_note()

void MidiRegion::start_unended_note	(	Position *	start_pos,
		Position *	end_pos,
		int	pitch,
		int	vel,
		bool	pub_events )

Starts an unended note with the given pitch and velocity and adds it to midi_notes_.

Parameters

end_pos If this is nullptr, it will be set to 1 tick after the start_pos.

◆ validate()

bool MidiRegion::validate	(	bool	is_project,
		dsp::FramesPerTick	frames_per_tick ) const

overridevirtual

Validates the arranger object.

Parameters

frames_per_tick Frames per tick used when validating audio regions. Passing 0 will use the value from the current engine.

Returns: Whether valid.

Must only be implemented by final objects.

Implements ArrangerObject.

◆ write_to_midi_file()

void MidiRegion::write_to_midi_file	(	MIDI_FILE *	mf,
		bool	add_region_start,
		bool	export_full ) const

Exports the Region to an existing MIDI file instance.

This must only be called when exporting single regions.

Parameters

add_region_start	Add the region start offset to the positions.
export_full	Traverse loops and export the MIDI file as it would be played inside Zrythm. If this is 0, only the original region (from true start to true end) is exported.
lanes_as_tracks	Export lanes as separate tracks (only possible with MIDI type 1). This will calculate a unique MIDI track number for the region's lane.
use_track_or_lane_pos	Whether to use the track/lane position in the MIDI data. The MIDI track will be set to 1 if false.

Friends And Related Symbol Documentation

◆ ArrangerObjectFactory

friend class ArrangerObjectFactory

friend

Definition at line 51 of file midi_region.h.

◆ from_json

void from_json	(	const nlohmann::json &	j,
		MidiRegion &	region )

friend

Definition at line 237 of file midi_region.h.

◆ RegionImpl< MidiRegion >

friend class RegionImpl< MidiRegion >

friend

Definition at line 45 of file midi_region.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const MidiRegion &	region )

friend

Definition at line 226 of file midi_region.h.

Field Documentation

◆ unended_notes_

std::vector<MidiNote *> MidiRegion::unended_notes_

Unended notes started in recording with MIDI NOTE ON signal but haven't received a NOTE OFF yet.

This is also used temporarily when reading from MIDI files.

Note: These are present in midi_notes_ and must not be deleted separately.

Definition at line 259 of file midi_region.h.

The documentation for this class was generated from the following file:

src/gui/dsp/midi_region.h

Public Types

Public Member Functions

Data Fields

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ChordDescriptor

Member Function Documentation

◆ add_events()

◆ export_to_midi_file()

◆ get_field_name_for_serialization()

◆ get_location()

◆ get_note_positions_in_export()

◆ get_velocities_in_range()

◆ init_after_cloning()

◆ is_note_export_start_pos_in_full_region()

◆ pop_unended_note()

◆ print_midi_notes()

◆ start_unended_note()

◆ validate()

◆ write_to_midi_file()

Friends And Related Symbol Documentation

◆ ArrangerObjectFactory

◆ from_json

◆ RegionImpl< MidiRegion >

◆ to_json

Field Documentation

◆ unended_notes_
