TimelineObject Class Reference
Represents an object on the timeline. More...
#include <src/gui/dsp/timeline_object.h>

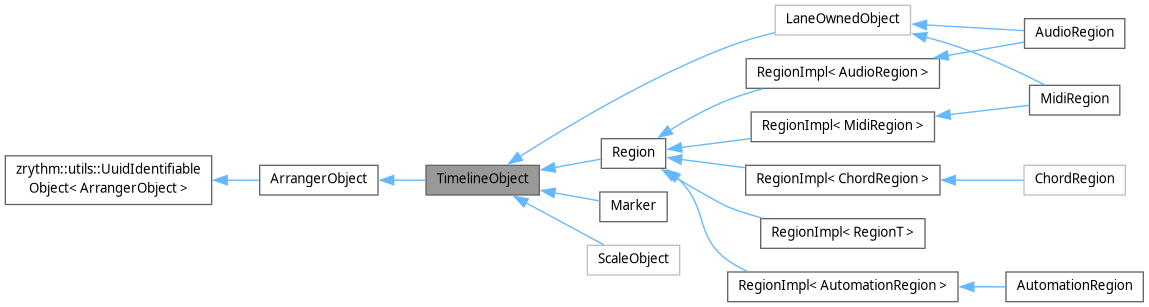

Inheritance diagram for TimelineObject:

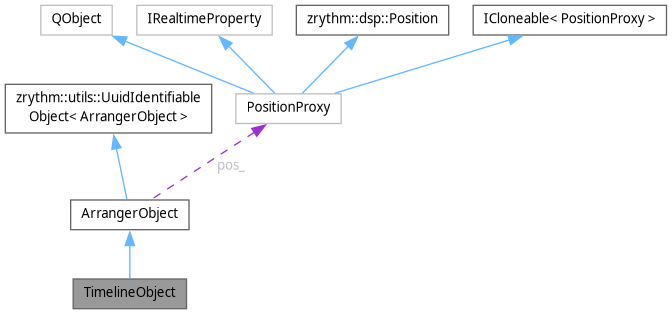

Collaboration diagram for TimelineObject:
Protected Member Functions | |
| void | copy_members_from (const TimelineObject &other, ObjectCloneType clone_type) |
 Protected Member Functions inherited from ArrangerObject | |
| ArrangerObject (Type type, TrackResolver track_resolver) noexcept | |
| void | copy_members_from (const ArrangerObject &other, ObjectCloneType clone_type) |
| bool | are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const |
| To be called by validate() implementations. | |
Additional Inherited Members | |
| Public Types inherited from ArrangerObject | |
| enum class | ResizeType { Normal , Loop , Fade , Stretch , StretchTempoChange } |
| Flag used in some functions. More... | |
| enum class | Type { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint } |
| The type of the object. More... | |
| enum class | Flags { NonProject = 1 << 0 } |
| Flags. More... | |
| enum class | PositionType { Start , End , ClipStart , LoopStart , LoopEnd , FadeIn , FadeOut } |
| using | SelectionStatusGetter = std::function<bool (const Uuid &)> |
| using | Position = zrythm::dsp::Position |
| using | ArrangerObjectPtr = ArrangerObject * |
| Public Member Functions inherited from ArrangerObject | |
| auto | get_type () const |
| virtual utils::Utf8String | gen_human_friendly_name () const |
| Generates a human readable name for the object. | |
| bool | is_start_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false) const |
| Returns whether the given object is hit by the given range. | |
| bool | is_start_hit_by_range (const signed_frame_t global_frames_start, const signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const |
| void | set_parent_on_base_qproperties (QObject &derived) |
| Set the parent on QObject's that are children of this class. | |
| auto | get_position () const |
| Getter. | |
| void | position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame) |
| The setter is for use in e.g. | |
| void | set_position_unvalidated (const dsp::Position &pos) |
| bool | is_position_valid (const dsp::Position &pos, PositionType pos_type, dsp::TicksPerFrame ticks_per_frame) const |
| Returns if the given Position is valid. | |
| bool | set_position (const dsp::Position &pos, PositionType pos_type, bool validate, dsp::TicksPerFrame ticks_per_frame) |
| Sets the given position on the object, optionally attempting to validate before. | |
| void | move (double ticks, dsp::FramesPerTick frames_per_tick) |
| Moves the object by the given amount of ticks. | |
| void | set_track_id (const TrackUuid &track_id) |
| void | set_track_id (std::optional< TrackUuid > track_id) |
| void | unset_track_id () |
| void | update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick) |
| Updates the positions in each child recursively. | |
| auto | get_track () const |
| Returns the Track this ArrangerObject is in. | |
| std::optional< TrackUuid > | get_track_id () const |
| virtual bool | validate (bool is_project, dsp::FramesPerTick frames_per_tick) const =0 |
| Validates the arranger object. | |
| virtual ArrangerObjectPtrVariant | add_clone_to_project (bool fire_events) const =0 |
| Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing). | |
| virtual ArrangerObjectPtrVariant | insert_clone_to_project () const =0 |
| Inserts the object where it belongs in the project (eg, a Track). | |
| std::optional< ArrangerObjectPtrVariant > | remove_from_project (bool free_obj, bool fire_events=false) |
| Removes the object (which can be obtained from find_in_project()) from its parent in the project. | |
| void | set_selection_status_getter (SelectionStatusGetter getter) |
| void | unset_selection_status_getter () |
| virtual bool | is_deletable () const |
| Returns whether the given object is deletable or not (eg, start marker). | |
| Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject > | |
| UuidIdentifiableObject (const Uuid &id) | |
| UuidIdentifiableObject (const UuidIdentifiableObject &other)=default | |
| UuidIdentifiableObject (UuidIdentifiableObject &&other)=default | |
| UuidIdentifiableObject & | operator= (const UuidIdentifiableObject &other)=default |
| UuidIdentifiableObject & | operator= (UuidIdentifiableObject &&other)=default |
| auto | get_uuid () const |
| void | copy_members_from (const UuidIdentifiableObject &other) |
| Data Fields inherited from ArrangerObject | |
| Flags | flags_ {} |
| Track this object belongs to (cache to be set during graph calculation). | |
| Static Public Attributes inherited from ArrangerObject | |
| static constexpr double | DEFAULT_NUDGE_TICKS = 0.1 |
| Protected Attributes inherited from ArrangerObject | |
| TrackResolver | track_resolver_ |
| PositionProxy * | pos_ = nullptr |
| Position (or start Position if the object has length). | |
| std::optional< TrackUuid > | track_id_ |
| ID of the track this object belongs to. | |
| std::optional< SelectionStatusGetter > | selection_status_getter_ |
| Whether part of an auditioner track. | |
Detailed Description
Represents an object on the timeline.
The TimelineObject class represents an object that can be placed on the timeline, such as an audio clip or MIDI event. It inherits from the ArrangerObject class, which provides common functionality for objects in the arranger.
Definition at line 17 of file timeline_object.h.
Constructor & Destructor Documentation
◆ TimelineObject()
|
inlineprotectednoexcept |
Definition at line 20 of file timeline_object.h.
The documentation for this class was generated from the following file:
- src/gui/dsp/timeline_object.h
