QML-friendly position representation with real-time safety. More...

#include <src/gui/backend/position_proxy.h>

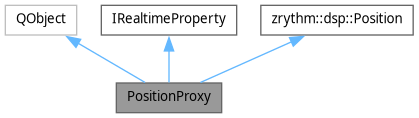

Inheritance diagram for PositionProxy:

[legend]

Collaboration diagram for PositionProxy:

[legend]

Public Member Functions
	PositionProxy (QObject parent=nullptr, const Position pos=nullptr, bool realtime_updateable=false)

signed_frame_t	getFrames () const

void	setFrames (signed_frame_t frames)

Q_SIGNAL void	framesChanged ()

double	getTicks () const

void	setTicks (double ticks)

Q_SIGNAL void	ticksChanged ()

Position	get_position () const

Q_INVOKABLE void	addTicks (double ticks)

Q_INVOKABLE QString	getStringDisplay (const zrythm::engine::session::Transport transport, const zrythm::dsp::TempoMapWrapper tempo_map) const

void	set_frames_rtsafe (signed_frame_t frames, dsp::TicksPerFrame ticks_per_frame)

void	set_ticks_rtsafe (double ticks, dsp::FramesPerTick frames_per_tick)

void	update_from_ticks_rtsafe (dsp::FramesPerTick frames_per_tick)

void	update_from_frames_rtsafe (dsp::TicksPerFrame ticks_per_frame)

void	set_position_rtsafe (const Position &pos)

void	add_frames_rtsafe (signed_frame_t frames, dsp::TicksPerFrame ticks_per_frame)

bool	processUpdates () override
	Process pending updates from real-time thread.

Public Member Functions inherited from zrythm::dsp::Position
	Position (const char *str, int beats_per_bar, int sixteenths_per_beat, FramesPerTick frames_per_tick)
	Parses a position from the given string.

	Position (double ticks, dsp::FramesPerTick frames_per_tick)
	Construct from total number of ticks.

	Position (signed_frame_t frames, TicksPerFrame ticks_per_frame)
	Construct from total number of frames.

void	zero ()

signed_frame_t	get_total_frames () const
	Getter.

double	get_total_ticks () const
	Getter.

bool	ticks_equal (const Position &other) const

bool	is_positive () const

bool	is_between_frames_excluding_2nd (signed_frame_t f1, signed_frame_t f2) const
	Whether the position starts on or after `f1` and before `f2` (ie, the position is between `f1` and `f2`, exclusive of f2).

bool	is_between_excl_2nd (const Position &start, const Position &end) const
	Returns if the position is after or equal to `start` and before `end`.

bool	is_between_incl_2nd (const Position &start, const Position &end) const
	Returns if the position is after or equal to `start` and before or equal to `end` (ie, inclusive of `end`).

bool	is_between_excl_both (const Position &start, const Position &end) const

bool	is_between_excl_1st_incl_2nd (const Position &start, const Position &end) const

void	set_to_bar (int bar, int ticks_per_bar, dsp::FramesPerTick frames_per_tick)
	Sets position to given bar.

void	add_frames (signed_frame_t frames, TicksPerFrame ticks_per_frame)
	Adds the frames to the position and updates the rest of the fields, and makes sure the frames are still accurate.

void	from_seconds (double secs, sample_rate_t sample_rate, TicksPerFrame ticks_per_frame)
	Converts seconds to position and puts the result in the given Position.

void	from_frames (const signed_frame_t frames, TicksPerFrame ticks_per_frame)

void	from_ticks (double ticks, dsp::FramesPerTick frames_per_tick)
	Sets position to the given total tick count.

void	from_ms (const double ms, sample_rate_t sample_rate, TicksPerFrame ticks_per_frame)

void	from_bars (int bars, int ticks_per_bar, dsp::FramesPerTick frames_per_tick)

void	add_bars (int bars, int ticks_per_bar, dsp::FramesPerTick frames_per_tick)

void	add_beats (int beats, int ticks_per_beat, dsp::FramesPerTick frames_per_tick)

void	add_sixteenths (int sixteenths, dsp::FramesPerTick frames_per_tick)

void	add_ticks (double ticks, dsp::FramesPerTick frames_per_tick)

signed_ms_t	to_ms (sample_rate_t sample_rate) const
	Returns the Position in milliseconds.

void	add_ms (double ms, sample_rate_t sample_rate, TicksPerFrame ticks_per_frame)

void	add_minutes (int mins, sample_rate_t sample_rate, TicksPerFrame ticks_per_frame)

void	add_seconds (signed_sec_t seconds, sample_rate_t sample_rate, TicksPerFrame ticks_per_frame)

void	update_ticks_from_frames (TicksPerFrame ticks_per_frame)
	Updates ticks.

void	update_frames_from_ticks (FramesPerTick frames_per_tick)
	Updates frames.

void	set_to_midway_pos (const Position &start_pos, const Position &end_pos, FramesPerTick frames_per_tick)
	Sets the position to the midway point between the two given positions.

std::string	to_string (int beats_per_bar, int sixteenths_per_beat, FramesPerTick frames_per_tick, int decimal_places=4) const
	Creates a string in the form of "0.0.0.0" from the given position.

void	to_string (int beats_per_bar, int sixteenths_per_beat, FramesPerTick frames_per_tick, char *buf, int decimal_places=4) const

void	print (int beats_per_bar, int sixteenths_per_beat, FramesPerTick frames_per_tick) const
	Prints the Position in the "0.0.0.0" form.

int	get_total_bars (bool include_current, int ticks_per_bar, FramesPerTick frames_per_tick) const
	Returns the total number of beats.

int	get_total_beats (bool include_current, int beats_per_bar, int ticks_per_beat, FramesPerTick frames_per_tick) const
	Returns the total number of beats.

int	get_total_sixteenths (bool include_current, dsp::FramesPerTick frames_per_tick) const
	Returns the total number of sixteenths not including the current one.

void	change_sign ()
	Changes the sign of the position.

int	get_bars (bool start_at_one, int ticks_per_bar) const
	Gets the bars of the position.

int	get_beats (bool start_at_one, int beats_per_bar, int ticks_per_beat) const
	Gets the beats of the position.

int	get_sixteenths (bool start_at_one, int beats_per_bar, int sixteenths_per_beat, FramesPerTick frames_per_tick) const
	Gets the sixteenths of the position.

double	get_ticks_part (FramesPerTick frames_per_tick) const
	Gets the ticks of the position.

void	set_to_position (const Position &pos)

Position &	get_closest_position (Position &p1, Position &p2) const
	Returns the closest position.

Static Public Member Functions
static double	getTicksPerSixteenthNote ()

Static Public Member Functions inherited from zrythm::dsp::Position
static signed_frame_t	compare_frames (const Position &p1, const Position &p2)
	Compares 2 positions based on their frames.

static const Position &	get_min (const Position &p1, const Position &p2)
	Returns minimum of p1 and p2.

static const Position &	get_max (const Position &p1, const Position &p2)
	Returns maximum of p1 and p2.

static signed_frame_t	ms_to_frames (double ms, sample_rate_t sample_rate)

static double	ms_to_ticks (double ms, sample_rate_t sample_rate, TicksPerFrame ticks_per_frame)

static signed_frame_t	get_frames_from_ticks (double ticks, dsp::FramesPerTick frames_per_tick)
	Converts ticks to frames.

static void	print_range (int beats_per_bar, int sixteenths_per_beat, FramesPerTick frames_per_tick, const Position &p1, const Position &p2)

Properties
QML_ELEMENT double	ticks

signed_frame_t	frames

double	ticksPerSixteenthNote

Friends
void	init_from (PositionProxy &obj, const PositionProxy &other, utils::ObjectCloneType clone_type)

auto	operator<=> (const PositionProxy &lhs, const PositionProxy &rhs)

bool	operator== (const PositionProxy &lhs, const PositionProxy &rhs)

Additional Inherited Members
Data Fields inherited from zrythm::dsp::Position
double	ticks_ = 0.0
	Precise total number of ticks.

signed_frame_t	frames_ = 0
	Position in frames (samples).

Static Public Attributes inherited from zrythm::dsp::Position
static constexpr int	TICKS_PER_QUARTER_NOTE = 960

static constexpr int	TICKS_PER_SIXTEENTH_NOTE = 240

static constexpr double	TICKS_PER_QUARTER_NOTE_DBL = 960.0

static constexpr double	TICKS_PER_SIXTEENTH_NOTE_DBL = 240.0

static constexpr double	TICKS_PER_NINETYSIXTH_NOTE_DBL = 40.0

static constexpr int	POSITION_MAX_BAR = 160000

Detailed Description

QML-friendly position representation with real-time safety.

Exposes Position functionality as Q_PROPERTYs with change notifications. Supports atomic updates from real-time threads when realtime_updateable=true.

Definition at line 32 of file position_proxy.h.

Member Function Documentation

◆ add_frames_rtsafe()

void PositionProxy::add_frames_rtsafe	(	signed_frame_t	frames,
		dsp::TicksPerFrame	ticks_per_frame )

inline

Definition at line 115 of file position_proxy.h.

◆ addTicks()

Q_INVOKABLE void PositionProxy::addTicks ( double ticks )

inline

Definition at line 71 of file position_proxy.h.

◆ get_position()

Position PositionProxy::get_position ( ) const

inline

Definition at line 66 of file position_proxy.h.

◆ getFrames()

signed_frame_t PositionProxy::getFrames ( ) const

inline

Definition at line 54 of file position_proxy.h.

◆ getTicks()

double PositionProxy::getTicks ( ) const

inline

Definition at line 58 of file position_proxy.h.

◆ getTicksPerSixteenthNote()

static double PositionProxy::getTicksPerSixteenthNote ( )

inlinestatic

Definition at line 62 of file position_proxy.h.

◆ processUpdates()

bool PositionProxy::processUpdates ( )

overridevirtual

Process pending updates from real-time thread.

Returns: true if updates were processed

Implements IRealtimeProperty.

◆ set_frames_rtsafe()

void PositionProxy::set_frames_rtsafe	(	signed_frame_t	frames,
		dsp::TicksPerFrame	ticks_per_frame )

inline

Definition at line 81 of file position_proxy.h.

◆ set_position_rtsafe()

void PositionProxy::set_position_rtsafe ( const Position & pos )

inline

Definition at line 104 of file position_proxy.h.

◆ set_ticks_rtsafe()

void PositionProxy::set_ticks_rtsafe	(	double	ticks,
		dsp::FramesPerTick	frames_per_tick )

inline

Definition at line 86 of file position_proxy.h.

◆ update_from_frames_rtsafe()

void PositionProxy::update_from_frames_rtsafe ( dsp::TicksPerFrame ticks_per_frame )

inline

Definition at line 98 of file position_proxy.h.

◆ update_from_ticks_rtsafe()

void PositionProxy::update_from_ticks_rtsafe ( dsp::FramesPerTick frames_per_tick )

inline

Definition at line 92 of file position_proxy.h.

Friends And Related Symbol Documentation

◆ operator<=>

auto operator<=>	(	const PositionProxy &	lhs,
		const PositionProxy &	rhs )

friend

Definition at line 131 of file position_proxy.h.

◆ operator==

bool operator==	(	const PositionProxy &	lhs,
		const PositionProxy &	rhs )

friend

Definition at line 137 of file position_proxy.h.

Property Documentation

◆ frames

signed_frame_t PositionProxy::frames

readwrite

Definition at line 41 of file position_proxy.h.

◆ ticks

QML_ELEMENT double PositionProxy::ticks

readwrite

Definition at line 40 of file position_proxy.h.

◆ ticksPerSixteenthNote

double PositionProxy::ticksPerSixteenthNote

read

Definition at line 43 of file position_proxy.h.

The documentation for this class was generated from the following file:

src/gui/backend/position_proxy.h
