Base class for all objects in the arranger that have a length. More...

#include <src/gui/dsp/bounded_object.h>

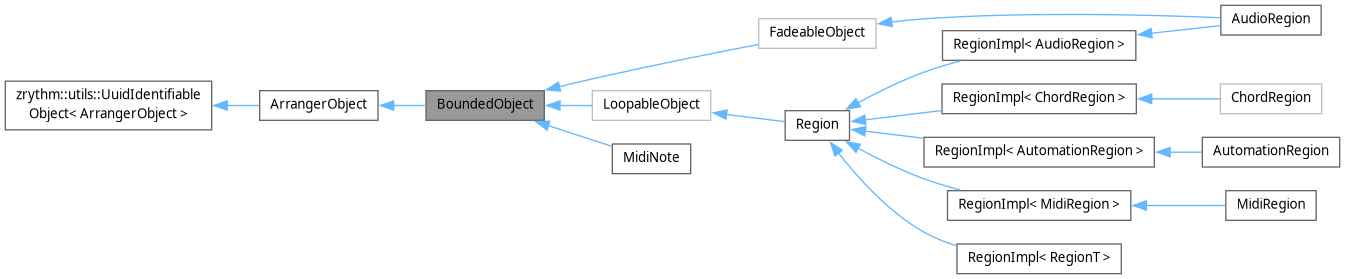

Inheritance diagram for BoundedObject:

[legend]

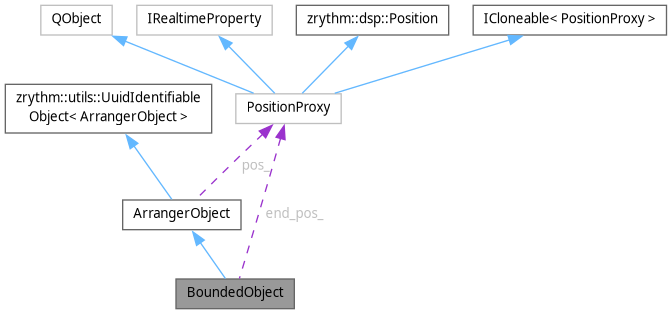

Collaboration diagram for BoundedObject:

[legend]

Public Member Functions
auto	get_end_position () const
	Getter.

void	parent_base_qproperties (QObject &derived)

void	end_position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_end_position_unvalidated (const dsp::Position &pos)

auto	get_length_in_ticks () const
	Returns the length in ticks.

auto	get_length_in_frames () const
	Returns the length in frames.

void	resize (bool left, ResizeType type, double ticks, bool during_ui_action)
	Resizes the object on the left side or right side by given amount of ticks, for objects that do not have loops (currently none?

template<typename SelfT> requires (FinalArrangerObjectSubclass<SelfT>)
void	set_start_pos_full_size (this SelfT &self, const Position &pos, dsp::FramesPerTick frames_per_tick)
	Sets the end position of the ArrangerObject and also sets the loop end and fade out (if object supports those) so that they are at the end.

template<typename SelfT> requires (FinalArrangerObjectSubclass<SelfT>)
void	set_end_pos_full_size (this SelfT &self, const dsp::Position &pos, dsp::FramesPerTick frames_per_tick)
	Sets the end position of the ArrangerObject and also sets the loop end and fade out (if object supports those) to that position.

bool	is_hit (const dsp::Position &pos, bool object_end_pos_inclusive=false) const
	Returns whether the object is hit by the given position (local position if non-timeline object).

bool	is_hit (const signed_frame_t frames, bool object_end_pos_inclusive=false) const

bool	is_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false, bool object_end_pos_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_hit_by_range (signed_frame_t global_frames_start, signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false, bool object_end_pos_inclusive=false) const

virtual bool	is_inside_range (const dsp::Position &start, const dsp::Position &end) const
	Checks if any part of the object is hit by the given range.

Public Member Functions inherited from ArrangerObject
auto	get_type () const

virtual utils::Utf8String	gen_human_friendly_name () const
	Generates a human readable name for the object.

bool	is_start_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_start_hit_by_range (const signed_frame_t global_frames_start, const signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const

void	set_parent_on_base_qproperties (QObject &derived)
	Set the parent on QObject's that are children of this class.

auto	get_position () const
	Getter.

void	position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_position_unvalidated (const dsp::Position &pos)

bool	is_position_valid (const dsp::Position &pos, PositionType pos_type, dsp::TicksPerFrame ticks_per_frame) const
	Returns if the given Position is valid.

bool	set_position (const dsp::Position &pos, PositionType pos_type, bool validate, dsp::TicksPerFrame ticks_per_frame)
	Sets the given position on the object, optionally attempting to validate before.

void	move (double ticks, dsp::FramesPerTick frames_per_tick)
	Moves the object by the given amount of ticks.

void	set_track_id (const TrackUuid &track_id)

void	set_track_id (std::optional< TrackUuid > track_id)

void	unset_track_id ()

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the positions in each child recursively.

auto	get_track () const
	Returns the Track this ArrangerObject is in.

std::optional< TrackUuid >	get_track_id () const

virtual bool	validate (bool is_project, dsp::FramesPerTick frames_per_tick) const =0
	Validates the arranger object.

virtual ArrangerObjectPtrVariant	add_clone_to_project (bool fire_events) const =0
	Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

virtual ArrangerObjectPtrVariant	insert_clone_to_project () const =0
	Inserts the object where it belongs in the project (eg, a Track).

std::optional< ArrangerObjectPtrVariant >	remove_from_project (bool free_obj, bool fire_events=false)
	Removes the object (which can be obtained from find_in_project()) from its parent in the project.

void	set_selection_status_getter (SelectionStatusGetter getter)

void	unset_selection_status_getter ()

virtual bool	is_deletable () const
	Returns whether the given object is deletable or not (eg, start marker).

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

void	copy_members_from (const UuidIdentifiableObject &other)

Data Fields
PositionProxy *	end_pos_ = nullptr
	End Position, if the object has one.

Data Fields inherited from ArrangerObject
Flags	flags_ {}
	Track this object belongs to (cache to be set during graph calculation).

Protected Member Functions
void	copy_members_from (const BoundedObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const

Protected Member Functions inherited from ArrangerObject
	ArrangerObject (Type type, TrackResolver track_resolver) noexcept

void	copy_members_from (const ArrangerObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const
	To be called by validate() implementations.

Friends
auto	to_json (nlohmann::json &j, const BoundedObject &object)

auto	from_json (const nlohmann::json &j, BoundedObject &object)

Additional Inherited Members
Public Types inherited from ArrangerObject
enum class	ResizeType { Normal , Loop , Fade , Stretch , StretchTempoChange }
	Flag used in some functions. More...

enum class	Type { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint }
	The type of the object. More...

enum class	Flags { NonProject = 1 << 0 }
	Flags. More...

enum class	PositionType { Start , End , ClipStart , LoopStart , LoopEnd , FadeIn , FadeOut }

using	SelectionStatusGetter = std::function<bool (const Uuid &)>

using	Position = zrythm::dsp::Position

using	ArrangerObjectPtr = ArrangerObject *

Static Public Attributes inherited from ArrangerObject
static constexpr double	DEFAULT_NUDGE_TICKS = 0.1

Protected Attributes inherited from ArrangerObject
TrackResolver	track_resolver_

PositionProxy *	pos_ = nullptr
	Position (or start Position if the object has length).

std::optional< TrackUuid >	track_id_
	ID of the track this object belongs to.

std::optional< SelectionStatusGetter >	selection_status_getter_
	Whether part of an auditioner track.

Detailed Description

Base class for all objects in the arranger that have a length.

The BoundedObject class is the base class for all objects that have a length, such as regions, MIDI notes, etc. It provides common functionality and properties shared by all these objects, such as start and end positions, and methods to resize and check if the object is hit by a position or range.

BoundedObject inherits from ArrangerObject and extends it with length-related functionality.

Definition at line 34 of file bounded_object.h.

Member Function Documentation

◆ end_position_setter_validated()

void BoundedObject::end_position_setter_validated	(	const dsp::Position &	pos,
		dsp::TicksPerFrame	ticks_per_frame )

inline

The setter is for use in e.g.

the digital meters whereas the set_pos func is used during arranger actions.

Definition at line 55 of file bounded_object.h.

◆ get_end_position()

auto BoundedObject::get_end_position ( ) const

inline

Getter.

Definition at line 44 of file bounded_object.h.

◆ get_length_in_frames()

auto BoundedObject::get_length_in_frames ( ) const

inline

Returns the length in frames.

(End Position - start Position).

Definition at line 83 of file bounded_object.h.

◆ get_length_in_ticks()

auto BoundedObject::get_length_in_ticks ( ) const

inline

Returns the length in ticks.

(End Position - start Position).

Definition at line 73 of file bounded_object.h.

◆ is_hit() [1/2]

bool BoundedObject::is_hit	(	const dsp::Position &	pos,
		bool	object_end_pos_inclusive = false ) const

inline

Returns whether the object is hit by the given position (local position if non-timeline object).

Parameters

pos	Position to check.
obj_end_pos_inclusive	Whether end_pos_ is considered as part of the object. This is probably always false.

Definition at line 144 of file bounded_object.h.

◆ is_hit() [2/2]

bool BoundedObject::is_hit	(	const signed_frame_t	frames,
		bool	object_end_pos_inclusive = false ) const

inline

Parameters

frames	Local position if non-timeline object.
object_end_pos_inclusive

Definition at line 156 of file bounded_object.h.

◆ is_hit_by_range() [1/2]

bool BoundedObject::is_hit_by_range	(	const dsp::Position &	start,
		const dsp::Position &	end,
		bool	range_start_inclusive = true,
		bool	range_end_inclusive = false,
		bool	object_end_pos_inclusive = false ) const

inline

Returns whether the given object is hit by the given range.

Parameters

start	Start position.
end	End position.
range_start_inclusive	Whether pos_ == `start` is allowed. Can't imagine a case where this would be false, but kept an option just in case.
range_end_inclusive	Whether pos_ == `end` is allowed.
obj_end_pos_inclusive	Whether end_pos_ is considered as part of the object. This is probably always false.

Definition at line 177 of file bounded_object.h.

◆ is_hit_by_range() [2/2]

bool BoundedObject::is_hit_by_range	(	signed_frame_t	global_frames_start,
		signed_frame_t	global_frames_end,
		bool	range_start_inclusive = true,
		bool	range_end_inclusive = false,
		bool	object_end_pos_inclusive = false ) const

inline

Definition at line 187 of file bounded_object.h.

◆ is_inside_range()

virtual bool BoundedObject::is_inside_range	(	const dsp::Position &	start,
		const dsp::Position &	end ) const

inlinevirtual

Checks if any part of the object is hit by the given range.

Definition at line 242 of file bounded_object.h.

◆ resize()

void BoundedObject::resize	(	bool	left,
		ResizeType	type,
		double	ticks,
		bool	during_ui_action )

Resizes the object on the left side or right side by given amount of ticks, for objects that do not have loops (currently none?

keep it as reference).

Parameters

left	1 to resize left side, 0 to resize right side.
ticks	Number of ticks to resize.
during_ui_action	Whether this is called during a UI action (not at the end).

Exceptions

ZrythmException on failure.

◆ set_end_pos_full_size()

template<typename SelfT>
requires (FinalArrangerObjectSubclass<SelfT>)

void BoundedObject::set_end_pos_full_size	(	this SelfT &	self,
		const dsp::Position &	pos,
		dsp::FramesPerTick	frames_per_tick )

inline

Sets the end position of the ArrangerObject and also sets the loop end and fade out (if object supports those) to that position.

Definition at line 123 of file bounded_object.h.

◆ set_end_position_unvalidated()

void BoundedObject::set_end_position_unvalidated ( const dsp::Position & pos )

inline

Definition at line 62 of file bounded_object.h.

◆ set_start_pos_full_size()

template<typename SelfT>
requires (FinalArrangerObjectSubclass<SelfT>)

void BoundedObject::set_start_pos_full_size	(	this SelfT &	self,
		const Position &	pos,
		dsp::FramesPerTick	frames_per_tick )

inline

Sets the end position of the ArrangerObject and also sets the loop end and fade out (if object supports those) so that they are at the end.

Definition at line 106 of file bounded_object.h.

Friends And Related Symbol Documentation

◆ from_json

auto from_json	(	const nlohmann::json &	j,
		BoundedObject &	object )

friend

Definition at line 284 of file bounded_object.h.

◆ to_json

auto to_json	(	nlohmann::json &	j,
		const BoundedObject &	object )

friend

Definition at line 280 of file bounded_object.h.

Field Documentation

◆ end_pos_

PositionProxy* BoundedObject::end_pos_ = nullptr

End Position, if the object has one.

This is exclusive of the material, i.e., the data at this position is not counted (for audio regions at least, TODO check for others).

Definition at line 296 of file bounded_object.h.

The documentation for this class was generated from the following file:

src/gui/dsp/bounded_object.h

Public Member Functions

Data Fields

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ end_position_setter_validated()

◆ get_end_position()

◆ get_length_in_frames()

◆ get_length_in_ticks()

◆ is_hit() [1/2]

◆ is_hit() [2/2]

◆ is_hit_by_range() [1/2]

◆ is_hit_by_range() [2/2]

◆ is_inside_range()

◆ resize()

◆ set_end_pos_full_size()

◆ set_end_position_unvalidated()

◆ set_start_pos_full_size()

Friends And Related Symbol Documentation

◆ from_json

◆ to_json

Field Documentation

◆ end_pos_
