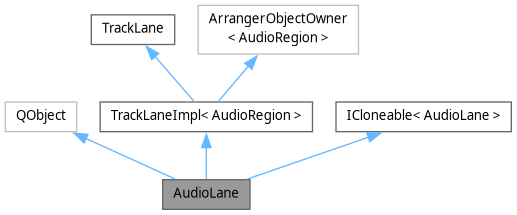

Inheritance diagram for AudioLane:

[legend]

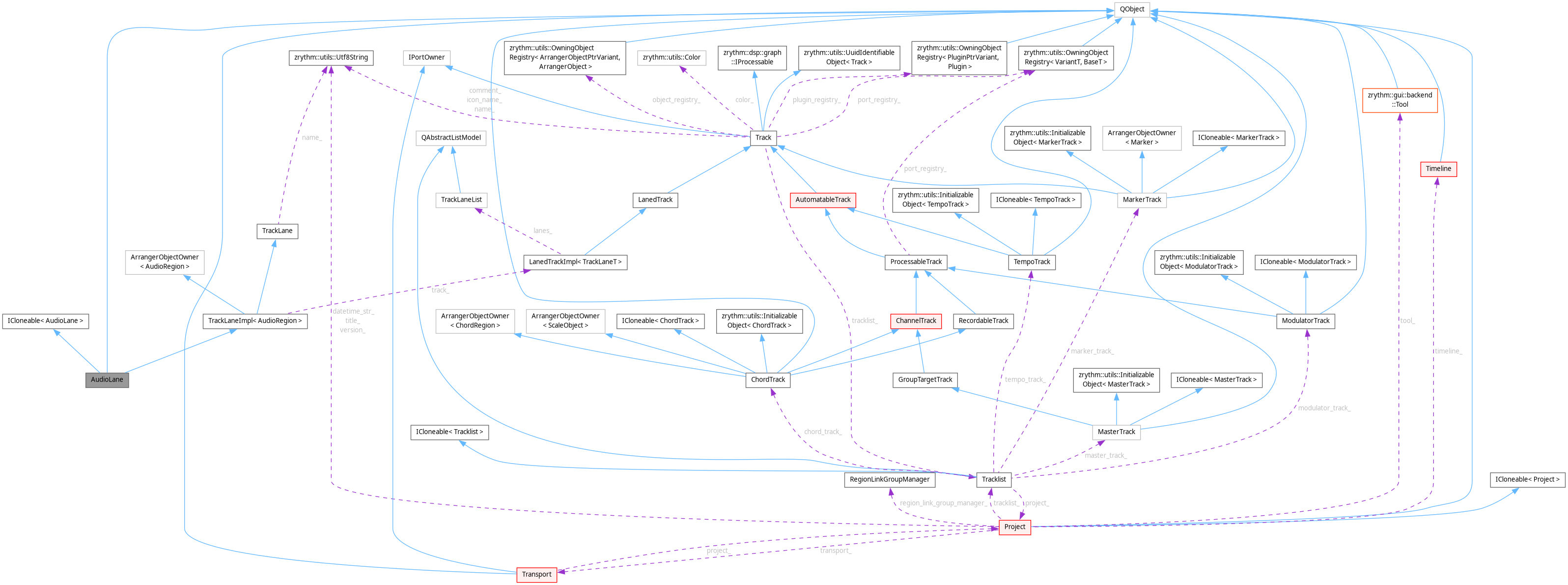

Collaboration diagram for AudioLane:

[legend]

Public Types
using	RegionT = AudioRegion

Public Types inherited from TrackLaneImpl< AudioRegion >
using	TrackLaneT

using	LanedTrackT

using	Position

Public Types inherited from ArrangerObjectOwner< AudioRegion >
using	PortUuid

using	ArrangerObjectChildType

Public Member Functions
	AudioLane (LanedTrackImpl< AudioLane > *track)

void	init_after_cloning (const AudioLane &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

Public Member Functions inherited from TrackLaneImpl< AudioRegion >
TrackLaneT &	get_derived_lane ()

const TrackLaneT &	get_derived_lane () const

	TrackLaneImpl (LanedTrackT *track)
	Creates a new TrackLane at the given pos in the given Track.

bool	is_in_active_project () const

bool	is_auditioner () const

void	set_soloed (bool solo, bool trigger_undo, bool fire_events)
	Sets track lane soloed, updates UI and optionally adds the action to the undo stack.

void	set_muted (bool mute, bool trigger_undo, bool fire_events)
	Sets track lane muted, updates UI and optionally adds the action to the undo stack.

bool	is_effectively_muted () const
	Returns if the lane is effectively muted (explicitly or implicitly muted).

void	rename (const utils::Utf8String &new_name, bool with_action)
	Rename the lane.

void	rename_with_action (const utils::Utf8String &new_name)
	Wrapper over track_lane_rename().

void	unselect_all ()
	Unselects all arranger objects.

void	write_to_midi_file (MIDI_FILE mf, dsp::MidiEventVector events, const Position start, const Position end, bool lanes_as_tracks, bool use_track_or_lane_pos)
	Writes the lane to the given MIDI file.

Tracklist *	get_tracklist () const

LanedTrackT *	get_track () const

int	get_index_in_track (this const auto &self)

int	calculate_lane_idx_for_midi_serialization () const
	Calculates a unique index for this lane.

std::unique_ptr< TrackLaneT >	gen_snapshot () const
	Generate a snapshot for playback.

ArrangerObjectOwner< AudioRegion >::Location	get_location (const AudioRegion &) const override

std::string	get_field_name_for_serialization (const AudioRegion *) const override

Public Member Functions inherited from TrackLane
auto	get_name () const

void	generate_name (int pos)

bool	get_soloed () const

bool	get_muted () const
	Returns if the lane is explicitly marked as muted.

Public Member Functions inherited from ArrangerObjectOwner< AudioRegion >
auto &	get_children_vector ()

auto &	get_children_vector () const

auto	get_children_view () const

auto &	get_children_snapshots_vector ()

auto &	get_children_snapshots_vector () const

auto	get_children_snapshots_view () const

void	add_ticks_to_children (double ticks, dsp::FramesPerTick frames_per_tick)

ArrangerObjectListModel *	get_model () const

ArrangerObjectUuidReference	remove_object (this SelfT &self, const ArrangerObject::Uuid &id)

void	insert_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref, int idx)

void	add_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref)

void	clear_objects ()

virtual Location	get_location (const ChildT &) const=0
	Returns the current location of this owner.

virtual std::string	get_field_name_for_serialization (const ChildT *) const=0
	Get the children field name to be used during serialization/deserialization.

void	copy_members_from (const ArrangerObjectOwner &other, ObjectCloneType clone_type)

void	copy_children (const ArrangerObjectOwner &other)

Public Member Functions inherited from ICloneable< AudioLane >
std::unique_ptr< AudioLane >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< AudioLane >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

AudioLane *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

AudioLane *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< AudioLane >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Friends
void	to_json (nlohmann::json &j, const AudioLane &lane)

void	from_json (const nlohmann::json &j, AudioLane &lane)

Additional Inherited Members
Data Fields inherited from TrackLaneImpl< AudioRegion >
LanedTrackT *	track_
	Owner track.

Data Fields inherited from TrackLane
utils::Utf8String	name_
	Position in the Track.

double	height_ { DEF_HEIGHT }
	Position of handle.

bool	mute_ {}
	Muted or not.

bool	solo_ {}
	Soloed or not.

uint8_t	midi_ch_ = 0
	MIDI channel, if MIDI lane, starting at 1.

Data Fields inherited from ICloneable< AudioLane >
friend	Derived

Static Public Attributes inherited from TrackLane
static constexpr double	DEF_HEIGHT = 48

Protected Member Functions inherited from TrackLaneImpl< AudioRegion >
void	copy_members_from (const TrackLaneImpl &other, ObjectCloneType clone_type)

Protected Attributes inherited from ArrangerObjectOwner< AudioRegion >
bool	clearing_

Detailed Description

Definition at line 11 of file audio_lane.h.

Member Typedef Documentation

◆ RegionT

using AudioLane::RegionT = AudioRegion

Definition at line 21 of file audio_lane.h.

Constructor & Destructor Documentation

◆ AudioLane()

AudioLane::AudioLane ( LanedTrackImpl< AudioLane > * track )

See also: TrackLaneImpl::TrackLaneImpl

Member Function Documentation

◆ init_after_cloning()

void AudioLane::init_after_cloning	(	const AudioLane &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< AudioLane >.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		AudioLane &	lane )

friend

Definition at line 37 of file audio_lane.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const AudioLane &	lane )

friend

Definition at line 33 of file audio_lane.h.

The documentation for this class was generated from the following file:

src/gui/dsp/audio_lane.h
