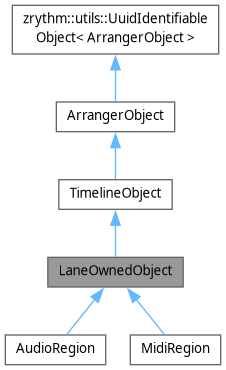

Inheritance diagram for LaneOwnedObject:

[legend]

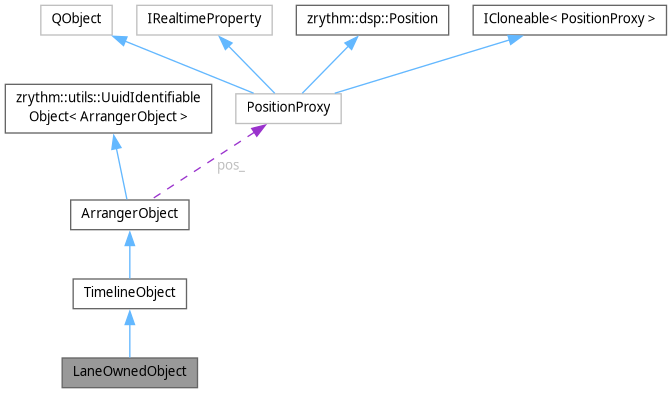

Collaboration diagram for LaneOwnedObject:

[legend]

Public Member Functions
	Z_DISABLE_COPY_MOVE (LaneOwnedObject)

bool	is_inserted_in_lane () const

template<typename SelfT> requires std::is_same_v<SelfT, MidiRegion>
MidiLane &	get_lane (this const SelfT &self)

template<typename SelfT> requires std::is_same_v<SelfT, AudioRegion>
AudioLane &	get_lane (this const SelfT &self)

template<typename SelfT>
auto	get_lane_index (this const SelfT &self)

void	set_lane (TrackLanePtrVariant lane)
	Sets the track lane.

void	copy_members_from (const LaneOwnedObject &other, ObjectCloneType clone_type)

Public Member Functions inherited from ArrangerObject
auto	get_type () const

virtual utils::Utf8String	gen_human_friendly_name () const
	Generates a human readable name for the object.

bool	is_start_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_start_hit_by_range (const signed_frame_t global_frames_start, const signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const

void	set_parent_on_base_qproperties (QObject &derived)
	Set the parent on QObject's that are children of this class.

auto	get_position () const
	Getter.

void	position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_position_unvalidated (const dsp::Position &pos)

bool	is_position_valid (const dsp::Position &pos, PositionType pos_type, dsp::TicksPerFrame ticks_per_frame) const
	Returns if the given Position is valid.

bool	set_position (const dsp::Position &pos, PositionType pos_type, bool validate, dsp::TicksPerFrame ticks_per_frame)
	Sets the given position on the object, optionally attempting to validate before.

void	move (double ticks, dsp::FramesPerTick frames_per_tick)
	Moves the object by the given amount of ticks.

void	set_track_id (const TrackUuid &track_id)

void	set_track_id (std::optional< TrackUuid > track_id)

void	unset_track_id ()

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the positions in each child recursively.

auto	get_track () const
	Returns the Track this ArrangerObject is in.

std::optional< TrackUuid >	get_track_id () const

virtual bool	validate (bool is_project, dsp::FramesPerTick frames_per_tick) const =0
	Validates the arranger object.

virtual ArrangerObjectPtrVariant	add_clone_to_project (bool fire_events) const =0
	Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

virtual ArrangerObjectPtrVariant	insert_clone_to_project () const =0
	Inserts the object where it belongs in the project (eg, a Track).

std::optional< ArrangerObjectPtrVariant >	remove_from_project (bool free_obj, bool fire_events=false)
	Removes the object (which can be obtained from find_in_project()) from its parent in the project.

void	set_selection_status_getter (SelectionStatusGetter getter)

void	unset_selection_status_getter ()

virtual bool	is_deletable () const
	Returns whether the given object is deletable or not (eg, start marker).

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

void	copy_members_from (const UuidIdentifiableObject &other)

Data Fields
std::optional< int >	index_in_prev_lane_
	Object's index in the previous lane (before being moved to a new lane/track).

Data Fields inherited from ArrangerObject
Flags	flags_ {}
	Track this object belongs to (cache to be set during graph calculation).

Additional Inherited Members
Public Types inherited from ArrangerObject
enum class	ResizeType { Normal , Loop , Fade , Stretch , StretchTempoChange }
	Flag used in some functions. More...

enum class	Type { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint }
	The type of the object. More...

enum class	Flags { NonProject = 1 << 0 }
	Flags. More...

enum class	PositionType { Start , End , ClipStart , LoopStart , LoopEnd , FadeIn , FadeOut }

using	SelectionStatusGetter = std::function<bool (const Uuid &)>

using	Position = zrythm::dsp::Position

using	ArrangerObjectPtr = ArrangerObject *

Static Public Attributes inherited from ArrangerObject
static constexpr double	DEFAULT_NUDGE_TICKS = 0.1

Protected Member Functions inherited from TimelineObject
void	copy_members_from (const TimelineObject &other, ObjectCloneType clone_type)

Protected Member Functions inherited from ArrangerObject
	ArrangerObject (Type type, TrackResolver track_resolver) noexcept

void	copy_members_from (const ArrangerObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const
	To be called by validate() implementations.

Protected Attributes inherited from ArrangerObject
TrackResolver	track_resolver_

PositionProxy *	pos_ = nullptr
	Position (or start Position if the object has length).

std::optional< TrackUuid >	track_id_
	ID of the track this object belongs to.

std::optional< SelectionStatusGetter >	selection_status_getter_
	Whether part of an auditioner track.

Detailed Description

Definition at line 14 of file lane_owned_object.h.

Constructor & Destructor Documentation

◆ LaneOwnedObject()

LaneOwnedObject::LaneOwnedObject ( )

inlinenoexcept

Definition at line 20 of file lane_owned_object.h.

Member Function Documentation

◆ copy_members_from()

void LaneOwnedObject::copy_members_from	(	const LaneOwnedObject &	other,
		ObjectCloneType	clone_type )

inline

Definition at line 51 of file lane_owned_object.h.

◆ get_lane() [1/2]

template<typename SelfT>
requires std::is_same_v<SelfT, MidiRegion>

MidiLane & LaneOwnedObject::get_lane ( this const SelfT & self )

inline

Definition at line 27 of file lane_owned_object.h.

◆ get_lane() [2/2]

template<typename SelfT>
requires std::is_same_v<SelfT, AudioRegion>

AudioLane & LaneOwnedObject::get_lane ( this const SelfT & self )

inline

Definition at line 34 of file lane_owned_object.h.

◆ get_lane_index()

template<typename SelfT>

auto LaneOwnedObject::get_lane_index ( this const SelfT & self )

inline

Definition at line 40 of file lane_owned_object.h.

◆ is_inserted_in_lane()

bool LaneOwnedObject::is_inserted_in_lane ( ) const

inline

Definition at line 24 of file lane_owned_object.h.

◆ set_lane()

void LaneOwnedObject::set_lane ( TrackLanePtrVariant lane )

inline

Sets the track lane.

Definition at line 48 of file lane_owned_object.h.

Field Documentation

◆ index_in_prev_lane_

std::optional<int> LaneOwnedObject::index_in_prev_lane_

Object's index in the previous lane (before being moved to a new lane/track).

Used at runtime when duplicating objects in new lanes/tracks so we can put the object back to its place before creating new copies.

See also: arranger_selections_action_do().

Definition at line 70 of file lane_owned_object.h.

The documentation for this class was generated from the following file:

src/gui/dsp/lane_owned_object.h
