A MIDI note inside a Region shown in the piano roll. More...

#include <src/gui/dsp/midi_note.h>

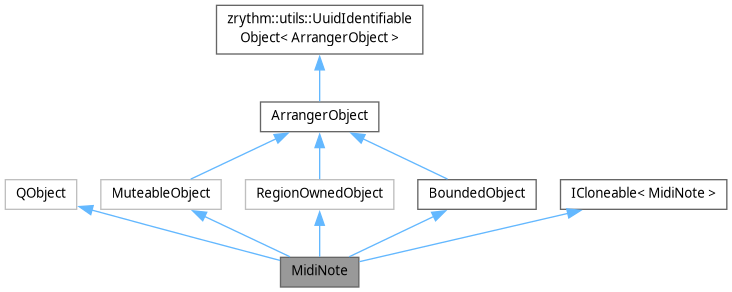

Inheritance diagram for MidiNote:

[legend]

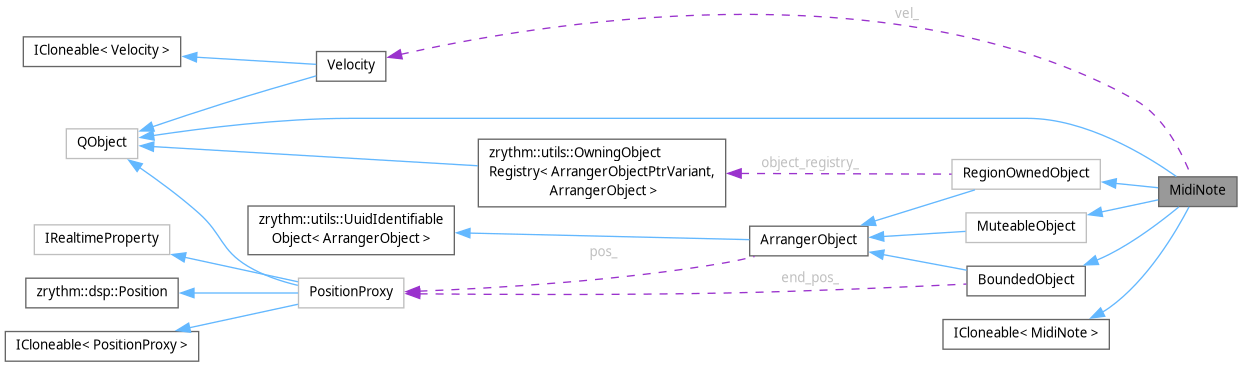

Collaboration diagram for MidiNote:

[legend]

Public Types
enum class	Notation { Musical , Pitch }

using	RegionT = MidiRegion

Public Types inherited from ArrangerObject
enum class	ResizeType { Normal , Loop , Fade , Stretch , StretchTempoChange }
	Flag used in some functions. More...

enum class	Type { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint }
	The type of the object. More...

enum class	Flags { NonProject = 1 << 0 }
	Flags. More...

enum class	PositionType { Start , End , ClipStart , LoopStart , LoopEnd , FadeIn , FadeOut }

using	SelectionStatusGetter = std::function<bool (const Uuid &)>

using	Position = zrythm::dsp::Position

using	ArrangerObjectPtr = ArrangerObject *

Public Member Functions
int	getPitch () const

void	setPitch (int ipitch)

Q_SIGNAL void	pitchChanged ()

void	set_cache_val (const uint8_t val)

utils::Utf8String	get_val_as_string (Notation notation, bool use_markup) const
	Gets the MIDI note's value as a string (eg "C#4").

void	listen (bool listen)
	Listen to the given MidiNote.

void	shift_pitch (int delta)
	Shifts MidiNote's position and/or value.

void	set_velocity (int vel)

void	set_pitch (uint8_t val)
	Sends a note off if currently playing and sets the pitch of the MidiNote.

ArrangerObjectPtrVariant	add_clone_to_project (bool fire_events) const override
	Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

ArrangerObjectPtrVariant	insert_clone_to_project () const override
	Inserts the object where it belongs in the project (eg, a Track).

utils::Utf8String	gen_human_friendly_name () const override
	Generates a human readable name for the object.

bool	validate (bool is_project, dsp::FramesPerTick frames_per_tick) const override
	Validates the arranger object.

void	init_after_cloning (const MidiNote &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

Public Member Functions inherited from MuteableObject
virtual bool	get_muted (bool check_parent) const
	Gets the mute status of the object.

void	set_muted (bool muted, bool fire_events)
	Sets the mute status of the object.

Public Member Functions inherited from ArrangerObject
auto	get_type () const

bool	is_start_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_start_hit_by_range (const signed_frame_t global_frames_start, const signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const

void	set_parent_on_base_qproperties (QObject &derived)
	Set the parent on QObject's that are children of this class.

auto	get_position () const
	Getter.

void	position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_position_unvalidated (const dsp::Position &pos)

bool	is_position_valid (const dsp::Position &pos, PositionType pos_type, dsp::TicksPerFrame ticks_per_frame) const
	Returns if the given Position is valid.

bool	set_position (const dsp::Position &pos, PositionType pos_type, bool validate, dsp::TicksPerFrame ticks_per_frame)
	Sets the given position on the object, optionally attempting to validate before.

void	move (double ticks, dsp::FramesPerTick frames_per_tick)
	Moves the object by the given amount of ticks.

void	set_track_id (const TrackUuid &track_id)

void	set_track_id (std::optional< TrackUuid > track_id)

void	unset_track_id ()

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the positions in each child recursively.

auto	get_track () const
	Returns the Track this ArrangerObject is in.

std::optional< TrackUuid >	get_track_id () const

std::optional< ArrangerObjectPtrVariant >	remove_from_project (bool free_obj, bool fire_events=false)
	Removes the object (which can be obtained from find_in_project()) from its parent in the project.

void	set_selection_status_getter (SelectionStatusGetter getter)

void	unset_selection_status_getter ()

virtual bool	is_deletable () const
	Returns whether the given object is deletable or not (eg, start marker).

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

void	copy_members_from (const UuidIdentifiableObject &other)

Public Member Functions inherited from RegionOwnedObject
	RegionOwnedObject (ArrangerObjectRegistry &obj_registry) noexcept

void	set_region_and_index (const Region &region)
	Sets the region the object belongs to and the related index inside it.

template<typename SelfT>
void	get_global_start_pos (this const SelfT &self, dsp::Position &pos, dsp::FramesPerTick frames_per_tick)
	Gets the global (timeline-based) start Position of the object.

template<typename SelfT>
auto	get_region (this const SelfT &self)
	If the object is part of a Region, returns it, otherwise returns NULL.

Public Member Functions inherited from BoundedObject
auto	get_end_position () const
	Getter.

void	parent_base_qproperties (QObject &derived)

void	end_position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_end_position_unvalidated (const dsp::Position &pos)

auto	get_length_in_ticks () const
	Returns the length in ticks.

auto	get_length_in_frames () const
	Returns the length in frames.

void	resize (bool left, ResizeType type, double ticks, bool during_ui_action)
	Resizes the object on the left side or right side by given amount of ticks, for objects that do not have loops (currently none?

template<typename SelfT> requires (FinalArrangerObjectSubclass<SelfT>)
void	set_start_pos_full_size (this SelfT &self, const Position &pos, dsp::FramesPerTick frames_per_tick)
	Sets the end position of the ArrangerObject and also sets the loop end and fade out (if object supports those) so that they are at the end.

template<typename SelfT> requires (FinalArrangerObjectSubclass<SelfT>)
void	set_end_pos_full_size (this SelfT &self, const dsp::Position &pos, dsp::FramesPerTick frames_per_tick)
	Sets the end position of the ArrangerObject and also sets the loop end and fade out (if object supports those) to that position.

bool	is_hit (const dsp::Position &pos, bool object_end_pos_inclusive=false) const
	Returns whether the object is hit by the given position (local position if non-timeline object).

bool	is_hit (const signed_frame_t frames, bool object_end_pos_inclusive=false) const

bool	is_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false, bool object_end_pos_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_hit_by_range (signed_frame_t global_frames_start, signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false, bool object_end_pos_inclusive=false) const

virtual bool	is_inside_range (const dsp::Position &start, const dsp::Position &end) const
	Checks if any part of the object is hit by the given range.

Public Member Functions inherited from ICloneable< MidiNote >
std::unique_ptr< MidiNote >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< MidiNote >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

MidiNote *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

MidiNote *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< MidiNote >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Data Fields
Velocity *	vel_ {}
	Velocity.

uint8_t	pitch_ {}
	The note/pitch, (0-127).

uint8_t	cache_pitch_ {}
	Cached note, for live operations.

bool	currently_listened_ {}
	Whether or not this note is currently listened to.

uint8_t	last_listened_pitch_ {}
	The note/pitch that is currently playing, if currently_listened_ is true.

Data Fields inherited from MuteableObject
bool	muted_ = false
	Whether muted or not.

Data Fields inherited from ArrangerObject
Flags	flags_ {}
	Track this object belongs to (cache to be set during graph calculation).

Data Fields inherited from RegionOwnedObject
ArrangerObjectRegistry &	object_registry_

std::optional< ArrangerObject::Uuid >	region_id_
	Parent region identifier for objects that are part of a region.

Data Fields inherited from BoundedObject
PositionProxy *	end_pos_ = nullptr
	End Position, if the object has one.

Data Fields inherited from ICloneable< MidiNote >
friend	Derived

Properties
QML_ELEMENT int	pitch

Friends
void	to_json (nlohmann::json &j, const MidiNote &note)

void	from_json (const nlohmann::json &j, MidiNote &note)

Additional Inherited Members
Static Public Attributes inherited from ArrangerObject
static constexpr double	DEFAULT_NUDGE_TICKS = 0.1

Protected Member Functions inherited from MuteableObject
void	copy_members_from (const MuteableObject &other, ObjectCloneType clone_type)

Protected Member Functions inherited from ArrangerObject
	ArrangerObject (Type type, TrackResolver track_resolver) noexcept

void	copy_members_from (const ArrangerObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const
	To be called by validate() implementations.

Protected Member Functions inherited from RegionOwnedObject
void	copy_members_from (const RegionOwnedObject &other, ObjectCloneType clone_type)

Protected Member Functions inherited from BoundedObject
void	copy_members_from (const BoundedObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const

Protected Attributes inherited from ArrangerObject
TrackResolver	track_resolver_

PositionProxy *	pos_ = nullptr
	Position (or start Position if the object has length).

std::optional< TrackUuid >	track_id_
	ID of the track this object belongs to.

std::optional< SelectionStatusGetter >	selection_status_getter_
	Whether part of an auditioner track.

Detailed Description

A MIDI note inside a Region shown in the piano roll.

Definition at line 25 of file midi_note.h.

Member Typedef Documentation

◆ RegionT

using MidiNote::RegionT = MidiRegion

Definition at line 39 of file midi_note.h.

Member Enumeration Documentation

◆ Notation

enum class MidiNote::Notation

strong

Definition at line 46 of file midi_note.h.

Member Function Documentation

◆ add_clone_to_project()

ArrangerObjectPtrVariant MidiNote::add_clone_to_project ( bool fire_events ) const

overridevirtual

Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

Exceptions

ZrythmError on failure.

Returns: A reference to the newly added clone.

Implements ArrangerObject.

◆ gen_human_friendly_name()

utils::Utf8String MidiNote::gen_human_friendly_name ( ) const

overridevirtual

Generates a human readable name for the object.

If the object has a name, this returns a copy of the name, otherwise generates something appropriate.

Reimplemented from ArrangerObject.

◆ get_val_as_string()

utils::Utf8String MidiNote::get_val_as_string	(	Notation	notation,
		bool	use_markup ) const

Gets the MIDI note's value as a string (eg "C#4").

Parameters

use_markup Use markup to show the octave as a superscript.

◆ getPitch()

int MidiNote::getPitch ( ) const

inline

Definition at line 56 of file midi_note.h.

◆ init_after_cloning()

void MidiNote::init_after_cloning	(	const MidiNote &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< MidiNote >.

◆ insert_clone_to_project()

ArrangerObjectPtrVariant MidiNote::insert_clone_to_project ( ) const

overridevirtual

Inserts the object where it belongs in the project (eg, a Track).

This function assumes that the object already knows the index where it should be inserted in its parent.

This is mostly used when undoing.

Exceptions

ZrythmException on failure.

Returns: A reference to the newly inserted clone.

Implements ArrangerObject.

◆ listen()

void MidiNote::listen ( bool listen )

Listen to the given MidiNote.

Parameters

listen Turn note on if 1, or turn it off if 0.

◆ set_cache_val()

void MidiNote::set_cache_val ( const uint8_t val )

inline

Definition at line 71 of file midi_note.h.

◆ set_pitch()

void MidiNote::set_pitch ( uint8_t val )

Sends a note off if currently playing and sets the pitch of the MidiNote.

FIXME: this should not be the responsibility of the MidiNote.

◆ set_velocity()

void MidiNote::set_velocity ( int vel )

inline

Definition at line 96 of file midi_note.h.

◆ setPitch()

void MidiNote::setPitch ( int ipitch )

inline

Definition at line 58 of file midi_note.h.

◆ shift_pitch()

void MidiNote::shift_pitch ( int delta )

Shifts MidiNote's position and/or value.

Parameters

delta Y (0-127)

◆ validate()

bool MidiNote::validate	(	bool	is_project,
		dsp::FramesPerTick	frames_per_tick ) const

overridevirtual

Validates the arranger object.

Parameters

frames_per_tick Frames per tick used when validating audio regions. Passing 0 will use the value from the current engine.

Returns: Whether valid.

Must only be implemented by final objects.

Implements ArrangerObject.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		MidiNote &	note )

friend

Definition at line 132 of file midi_note.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const MidiNote &	note )

friend

Definition at line 123 of file midi_note.h.

Field Documentation

◆ cache_pitch_

uint8_t MidiNote::cache_pitch_ {}

Cached note, for live operations.

Definition at line 150 of file midi_note.h.

◆ currently_listened_

bool MidiNote::currently_listened_ {}

Whether or not this note is currently listened to.

Definition at line 153 of file midi_note.h.

◆ last_listened_pitch_

uint8_t MidiNote::last_listened_pitch_ {}

The note/pitch that is currently playing, if currently_listened_ is true.

Definition at line 157 of file midi_note.h.

◆ pitch_

uint8_t MidiNote::pitch_ {}

The note/pitch, (0-127).

Definition at line 147 of file midi_note.h.

◆ vel_

Velocity* MidiNote::vel_ {}

Velocity.

Definition at line 144 of file midi_note.h.

Property Documentation

◆ pitch

QML_ELEMENT int MidiNote::pitch

readwrite

Definition at line 36 of file midi_note.h.

The documentation for this class was generated from the following file:

src/gui/dsp/midi_note.h

Public Types

Public Member Functions

Data Fields

Properties

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ RegionT

Member Enumeration Documentation

◆ Notation

Member Function Documentation

◆ add_clone_to_project()

◆ gen_human_friendly_name()

◆ get_val_as_string()

◆ getPitch()

◆ init_after_cloning()

◆ insert_clone_to_project()

◆ listen()

◆ set_cache_val()

◆ set_pitch()

◆ set_velocity()

◆ setPitch()

◆ shift_pitch()

◆ validate()

Friends And Related Symbol Documentation

◆ from_json

◆ to_json

Field Documentation

◆ cache_pitch_

◆ currently_listened_

◆ last_listened_pitch_

◆ pitch_

◆ vel_

Property Documentation

◆ pitch
