#include <src/gui/dsp/marker.h>

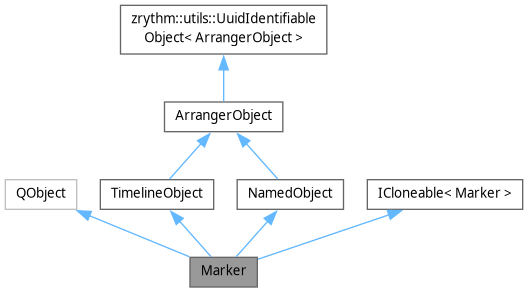

Inheritance diagram for Marker:

[legend]

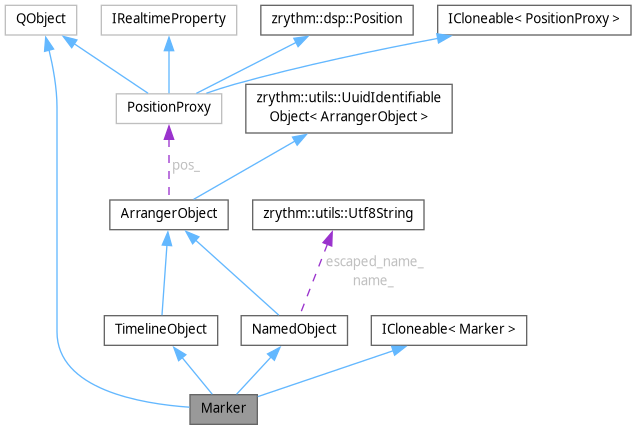

Collaboration diagram for Marker:

[legend]

Public Types
enum class	Type { Start , End , Custom }
	Marker type. More...

Public Types inherited from ArrangerObject
enum class	ResizeType { Normal , Loop , Fade , Stretch , StretchTempoChange }
	Flag used in some functions. More...

enum class	Type { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint }
	The type of the object. More...

enum class	Flags { NonProject = 1 << 0 }
	Flags. More...

enum class	PositionType { Start , End , ClipStart , LoopStart , LoopEnd , FadeIn , FadeOut }

using	SelectionStatusGetter = std::function<bool (const Uuid &)>

using	Position = zrythm::dsp::Position

using	ArrangerObjectPtr = ArrangerObject *

Public Types inherited from NamedObject
using	NameValidator = std::function<bool (const utils::Utf8String &)>

Public Member Functions
	Marker (ArrangerObjectRegistry &obj_registry, TrackResolver track_resolver, NameValidator name_validator, QObject *parent=nullptr)

bool	is_start () const

bool	is_end () const

bool	is_deletable () const override
	Returns whether the given object is deletable or not (eg, start marker).

void	init_after_cloning (const Marker &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

ArrangerObjectPtrVariant	add_clone_to_project (bool fire_events) const override
	Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

ArrangerObjectPtrVariant	insert_clone_to_project () const override
	Inserts the object where it belongs in the project (eg, a Track).

bool	validate (bool is_project, dsp::FramesPerTick frames_per_tick) const override
	Validates the arranger object.

Public Member Functions inherited from ArrangerObject
auto	get_type () const

bool	is_start_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_start_hit_by_range (const signed_frame_t global_frames_start, const signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const

void	set_parent_on_base_qproperties (QObject &derived)
	Set the parent on QObject's that are children of this class.

auto	get_position () const
	Getter.

void	position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_position_unvalidated (const dsp::Position &pos)

bool	is_position_valid (const dsp::Position &pos, PositionType pos_type, dsp::TicksPerFrame ticks_per_frame) const
	Returns if the given Position is valid.

bool	set_position (const dsp::Position &pos, PositionType pos_type, bool validate, dsp::TicksPerFrame ticks_per_frame)
	Sets the given position on the object, optionally attempting to validate before.

void	move (double ticks, dsp::FramesPerTick frames_per_tick)
	Moves the object by the given amount of ticks.

void	set_track_id (const TrackUuid &track_id)

void	set_track_id (std::optional< TrackUuid > track_id)

void	unset_track_id ()

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the positions in each child recursively.

auto	get_track () const
	Returns the Track this ArrangerObject is in.

std::optional< TrackUuid >	get_track_id () const

std::optional< ArrangerObjectPtrVariant >	remove_from_project (bool free_obj, bool fire_events=false)
	Removes the object (which can be obtained from find_in_project()) from its parent in the project.

void	set_selection_status_getter (SelectionStatusGetter getter)

void	unset_selection_status_getter ()

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

void	copy_members_from (const UuidIdentifiableObject &other)

Public Member Functions inherited from NamedObject
	NamedObject (NameValidator validator=[](const utils::Utf8String &) { return true;})

utils::Utf8String	get_name () const
	Returns the name of the object.

void	gen_escaped_name ()
	Generates the escaped name for the object.

void	set_name (this auto &&self, const utils::Utf8String &name)
	Sets the name of the object.

void	generate_name_from_automation_track (this auto &self, const auto &track, const auto &at)

void	generate_name_from_track (this auto &self, const auto &track)

void	generate_name (this auto &self, std::optional< utils::Utf8String > base_name, const auto at, const auto track)

void	set_name_with_action (const utils::Utf8String &name)
	Changes the name and adds an action to the undo stack.

utils::Utf8String	gen_human_friendly_name () const final
	Generates a human readable name for the object.

Public Member Functions inherited from ICloneable< Marker >
std::unique_ptr< Marker >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< Marker >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Marker *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Marker *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< Marker >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Data Fields
Type	marker_type_ = Type::Custom
	Marker type.

Data Fields inherited from ArrangerObject
Flags	flags_ {}
	Track this object belongs to (cache to be set during graph calculation).

Data Fields inherited from ICloneable< Marker >
friend	Derived

Friends
void	to_json (nlohmann::json &j, const Marker &m)

void	from_json (const nlohmann::json &j, Marker &m)

Additional Inherited Members
Static Public Attributes inherited from ArrangerObject
static constexpr double	DEFAULT_NUDGE_TICKS = 0.1

Protected Member Functions inherited from TimelineObject
void	copy_members_from (const TimelineObject &other, ObjectCloneType clone_type)

Protected Member Functions inherited from ArrangerObject
	ArrangerObject (Type type, TrackResolver track_resolver) noexcept

void	copy_members_from (const ArrangerObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const
	To be called by validate() implementations.

Protected Member Functions inherited from NamedObject
void	copy_members_from (const NamedObject &other, ObjectCloneType clone_type)

Protected Attributes inherited from ArrangerObject
TrackResolver	track_resolver_

PositionProxy *	pos_ = nullptr
	Position (or start Position if the object has length).

std::optional< TrackUuid >	track_id_
	ID of the track this object belongs to.

std::optional< SelectionStatusGetter >	selection_status_getter_
	Whether part of an auditioner track.

Protected Attributes inherited from NamedObject
utils::Utf8String	name_
	Name to be shown on the widget.

utils::Utf8String	escaped_name_
	Escaped name for drawing.

NameValidator	name_validator_

Detailed Description

Marker for the MarkerTrack.

Definition at line 21 of file marker.h.

Member Enumeration Documentation

◆ Type

enum class Marker::Type

strong

Marker type.

Enumerator
Start	Song start Marker that cannot be deleted.
End	Song end Marker that cannot be deleted.
Custom	Custom Marker.

Definition at line 36 of file marker.h.

Member Function Documentation

◆ add_clone_to_project()

ArrangerObjectPtrVariant Marker::add_clone_to_project ( bool fire_events ) const

overridevirtual

Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

Exceptions

ZrythmError on failure.

Returns: A reference to the newly added clone.

Implements ArrangerObject.

◆ init_after_cloning()

void Marker::init_after_cloning	(	const Marker &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< Marker >.

◆ insert_clone_to_project()

ArrangerObjectPtrVariant Marker::insert_clone_to_project ( ) const

overridevirtual

Inserts the object where it belongs in the project (eg, a Track).

This function assumes that the object already knows the index where it should be inserted in its parent.

This is mostly used when undoing.

Exceptions

ZrythmException on failure.

Returns: A reference to the newly inserted clone.

Implements ArrangerObject.

◆ is_deletable()

bool Marker::is_deletable ( ) const

inlineoverridevirtual

Returns whether the given object is deletable or not (eg, start marker).

Reimplemented from ArrangerObject.

Definition at line 55 of file marker.h.

◆ is_end()

bool Marker::is_end ( ) const

inline

Definition at line 53 of file marker.h.

◆ is_start()

bool Marker::is_start ( ) const

inline

Definition at line 52 of file marker.h.

◆ validate()

bool Marker::validate	(	bool	is_project,
		dsp::FramesPerTick	frames_per_tick ) const

overridevirtual

Validates the arranger object.

Parameters

frames_per_tick Frames per tick used when validating audio regions. Passing 0 will use the value from the current engine.

Returns: Whether valid.

Must only be implemented by final objects.

Implements ArrangerObject.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		Marker &	m )

friend

Definition at line 79 of file marker.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const Marker &	m )

friend

Definition at line 73 of file marker.h.

Field Documentation

◆ marker_type_

Type Marker::marker_type_ = Type::Custom

Marker type.

Definition at line 88 of file marker.h.

The documentation for this class was generated from the following file:

src/gui/dsp/marker.h
