An automation point inside an AutomationTrack. More...

#include <src/gui/dsp/automation_point.h>

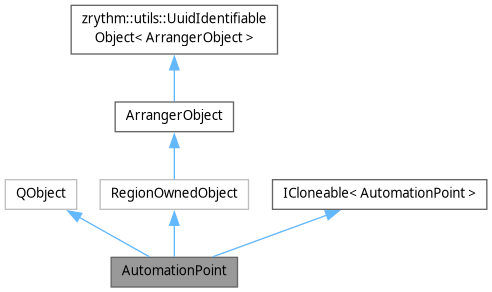

Inheritance diagram for AutomationPoint:

[legend]

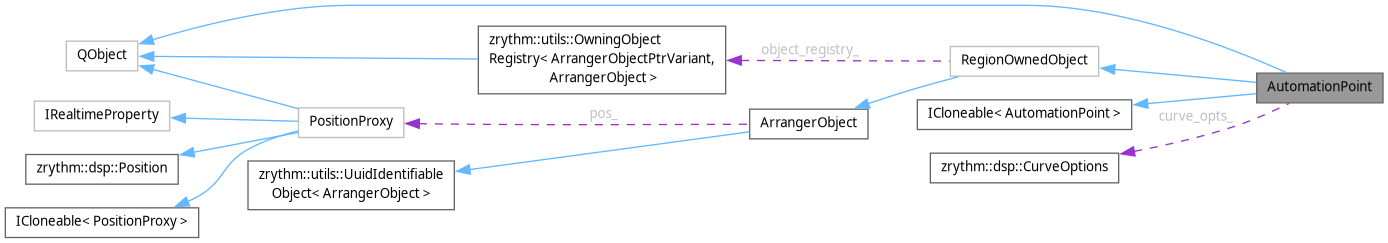

Collaboration diagram for AutomationPoint:

[legend]

Public Types
using	RegionT = AutomationRegion

Public Types inherited from ArrangerObject
enum class	ResizeType { Normal , Loop , Fade , Stretch , StretchTempoChange }
	Flag used in some functions. More...

enum class	Type { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint }
	The type of the object. More...

enum class	Flags { NonProject = 1 << 0 }
	Flags. More...

enum class	PositionType { Start , End , ClipStart , LoopStart , LoopEnd , FadeIn , FadeOut }

using	SelectionStatusGetter = std::function<bool (const Uuid &)>

using	Position = zrythm::dsp::Position

using	ArrangerObjectPtr = ArrangerObject *

Public Member Functions
double	getValue () const

void	setValue (double dval)

Q_SIGNAL void	valueChanged (double)

void	set_fvalue (float real_val, bool is_normalized)
	Sets the value from given real or normalized value and notifies interested parties.

std::string	get_fvalue_as_string () const
	String getter for the value.

void	set_fvalue_with_action (const std::string &fval_str)
	String setter.

double	get_normalized_value_in_curve (AutomationRegion *region, double x) const
	The function to return a point on the curve.

void	set_curviness (curviness_t curviness)
	Sets the curviness of the AutomationPoint.

ControlPort *	get_port () const
	Convenience function to return the control port that this AutomationPoint is for.

AutomationTrack *	get_automation_track () const
	Convenience function to return the AutomationTrack that this AutomationPoint is in.

bool	curves_up () const
	Returns if the curve of the AutomationPoint curves upwards as you move right on the x axis.

void	init_after_cloning (const AutomationPoint &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

ArrangerObjectPtrVariant	add_clone_to_project (bool fire_events) const override
	Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

ArrangerObjectPtrVariant	insert_clone_to_project () const override
	Inserts the object where it belongs in the project (eg, a Track).

bool	validate (bool is_project, dsp::FramesPerTick frames_per_tick) const override
	Validates the arranger object.

Public Member Functions inherited from RegionOwnedObject
	RegionOwnedObject (ArrangerObjectRegistry &obj_registry) noexcept

void	set_region_and_index (const Region &region)
	Sets the region the object belongs to and the related index inside it.

template<typename SelfT>
void	get_global_start_pos (this const SelfT &self, dsp::Position &pos, dsp::FramesPerTick frames_per_tick)
	Gets the global (timeline-based) start Position of the object.

template<typename SelfT>
auto	get_region (this const SelfT &self)
	If the object is part of a Region, returns it, otherwise returns NULL.

Public Member Functions inherited from ArrangerObject
auto	get_type () const

virtual utils::Utf8String	gen_human_friendly_name () const
	Generates a human readable name for the object.

bool	is_start_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_start_hit_by_range (const signed_frame_t global_frames_start, const signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const

void	set_parent_on_base_qproperties (QObject &derived)
	Set the parent on QObject's that are children of this class.

auto	get_position () const
	Getter.

void	position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_position_unvalidated (const dsp::Position &pos)

bool	is_position_valid (const dsp::Position &pos, PositionType pos_type, dsp::TicksPerFrame ticks_per_frame) const
	Returns if the given Position is valid.

bool	set_position (const dsp::Position &pos, PositionType pos_type, bool validate, dsp::TicksPerFrame ticks_per_frame)
	Sets the given position on the object, optionally attempting to validate before.

void	move (double ticks, dsp::FramesPerTick frames_per_tick)
	Moves the object by the given amount of ticks.

void	set_track_id (const TrackUuid &track_id)

void	set_track_id (std::optional< TrackUuid > track_id)

void	unset_track_id ()

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the positions in each child recursively.

auto	get_track () const
	Returns the Track this ArrangerObject is in.

std::optional< TrackUuid >	get_track_id () const

std::optional< ArrangerObjectPtrVariant >	remove_from_project (bool free_obj, bool fire_events=false)
	Removes the object (which can be obtained from find_in_project()) from its parent in the project.

void	set_selection_status_getter (SelectionStatusGetter getter)

void	unset_selection_status_getter ()

virtual bool	is_deletable () const
	Returns whether the given object is deletable or not (eg, start marker).

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

void	copy_members_from (const UuidIdentifiableObject &other)

Public Member Functions inherited from ICloneable< AutomationPoint >
std::unique_ptr< AutomationPoint >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< AutomationPoint >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

AutomationPoint *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

AutomationPoint *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< AutomationPoint >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Data Fields
float	fvalue_ = 0.f
	Float value (real).

float	normalized_val_ = 0.f
	Normalized value (0 to 1) used as a cache.

dsp::CurveOptions	curve_opts_ {}

Data Fields inherited from RegionOwnedObject
ArrangerObjectRegistry &	object_registry_

std::optional< ArrangerObject::Uuid >	region_id_
	Parent region identifier for objects that are part of a region.

Data Fields inherited from ArrangerObject
Flags	flags_ {}
	Track this object belongs to (cache to be set during graph calculation).

Data Fields inherited from ICloneable< AutomationPoint >
friend	Derived

Properties
QML_ELEMENT double	value

Friends
bool	operator< (const AutomationPoint &a, const AutomationPoint &b)

bool	operator== (const AutomationPoint &a, const AutomationPoint &b)

void	to_json (nlohmann::json &j, const AutomationPoint &point)

void	from_json (const nlohmann::json &j, AutomationPoint &point)

Additional Inherited Members
Static Public Attributes inherited from ArrangerObject
static constexpr double	DEFAULT_NUDGE_TICKS = 0.1

Protected Member Functions inherited from RegionOwnedObject
void	copy_members_from (const RegionOwnedObject &other, ObjectCloneType clone_type)

Protected Member Functions inherited from ArrangerObject
	ArrangerObject (Type type, TrackResolver track_resolver) noexcept

void	copy_members_from (const ArrangerObject &other, ObjectCloneType clone_type)

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const
	To be called by validate() implementations.

Protected Attributes inherited from ArrangerObject
TrackResolver	track_resolver_

PositionProxy *	pos_ = nullptr
	Position (or start Position if the object has length).

std::optional< TrackUuid >	track_id_
	ID of the track this object belongs to.

std::optional< SelectionStatusGetter >	selection_status_getter_
	Whether part of an auditioner track.

Detailed Description

An automation point inside an AutomationTrack.

Definition at line 31 of file automation_point.h.

Member Typedef Documentation

◆ RegionT

using AutomationPoint::RegionT = AutomationRegion

Definition at line 41 of file automation_point.h.

Member Function Documentation

◆ add_clone_to_project()

ArrangerObjectPtrVariant AutomationPoint::add_clone_to_project ( bool fire_events ) const

overridevirtual

Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

Exceptions

ZrythmError on failure.

Returns: A reference to the newly added clone.

Implements ArrangerObject.

◆ get_normalized_value_in_curve()

double AutomationPoint::get_normalized_value_in_curve	(	AutomationRegion *	region,
		double	x ) const

The function to return a point on the curve.

See https://stackoverflow.com/questions/17623152/how-map-tween-a-number-based-on-a-dynamic-curve

Parameters

region	region The automation region (if known), otherwise the non-cached region will be used.
x	Normalized x.

◆ getValue()

double AutomationPoint::getValue ( ) const

inline

Definition at line 51 of file automation_point.h.

◆ init_after_cloning()

void AutomationPoint::init_after_cloning	(	const AutomationPoint &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< AutomationPoint >.

◆ insert_clone_to_project()

ArrangerObjectPtrVariant AutomationPoint::insert_clone_to_project ( ) const

overridevirtual

Inserts the object where it belongs in the project (eg, a Track).

This function assumes that the object already knows the index where it should be inserted in its parent.

This is mostly used when undoing.

Exceptions

ZrythmException on failure.

Returns: A reference to the newly inserted clone.

Implements ArrangerObject.

◆ set_fvalue()

void AutomationPoint::set_fvalue	(	float	real_val,
		bool	is_normalized )

Sets the value from given real or normalized value and notifies interested parties.

Parameters

is_normalized Whether the given value is normalized.

◆ setValue()

void AutomationPoint::setValue ( double dval )

inline

Definition at line 53 of file automation_point.h.

◆ validate()

bool AutomationPoint::validate	(	bool	is_project,
		dsp::FramesPerTick	frames_per_tick ) const

overridevirtual

Validates the arranger object.

Parameters

frames_per_tick Frames per tick used when validating audio regions. Passing 0 will use the value from the current engine.

Returns: Whether valid.

Must only be implemented by final objects.

Implements ArrangerObject.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		AutomationPoint &	point )

friend

Definition at line 161 of file automation_point.h.

◆ operator<

bool operator<	(	const AutomationPoint &	a,
		const AutomationPoint &	b )

friend

Definition at line 128 of file automation_point.h.

◆ operator==

bool operator==	(	const AutomationPoint &	a,
		const AutomationPoint &	b )

friend

Definition at line 140 of file automation_point.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const AutomationPoint &	point )

friend

Definition at line 153 of file automation_point.h.

Field Documentation

◆ curve_opts_

dsp::CurveOptions AutomationPoint::curve_opts_ {}

Definition at line 177 of file automation_point.h.

◆ fvalue_

float AutomationPoint::fvalue_ = 0.f

Float value (real).

Definition at line 172 of file automation_point.h.

◆ normalized_val_

float AutomationPoint::normalized_val_ = 0.f

Normalized value (0 to 1) used as a cache.

Definition at line 175 of file automation_point.h.

Property Documentation

◆ value

QML_ELEMENT double AutomationPoint::value

readwrite

Definition at line 39 of file automation_point.h.

The documentation for this class was generated from the following file:

src/gui/dsp/automation_point.h

Public Types

Public Member Functions

Data Fields

Properties

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ RegionT

Member Function Documentation

◆ add_clone_to_project()

◆ get_normalized_value_in_curve()

◆ getValue()

◆ init_after_cloning()

◆ insert_clone_to_project()

◆ set_fvalue()

◆ setValue()

◆ validate()

Friends And Related Symbol Documentation

◆ from_json

◆ operator<

◆ operator==

◆ to_json

Field Documentation

◆ curve_opts_

◆ fvalue_

◆ normalized_val_

Property Documentation

◆ value
