The Transport class represents the transport controls and state for an audio engine. More...

#include <src/gui/dsp/transport.h>

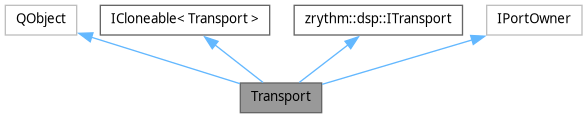

Inheritance diagram for Transport:

[legend]

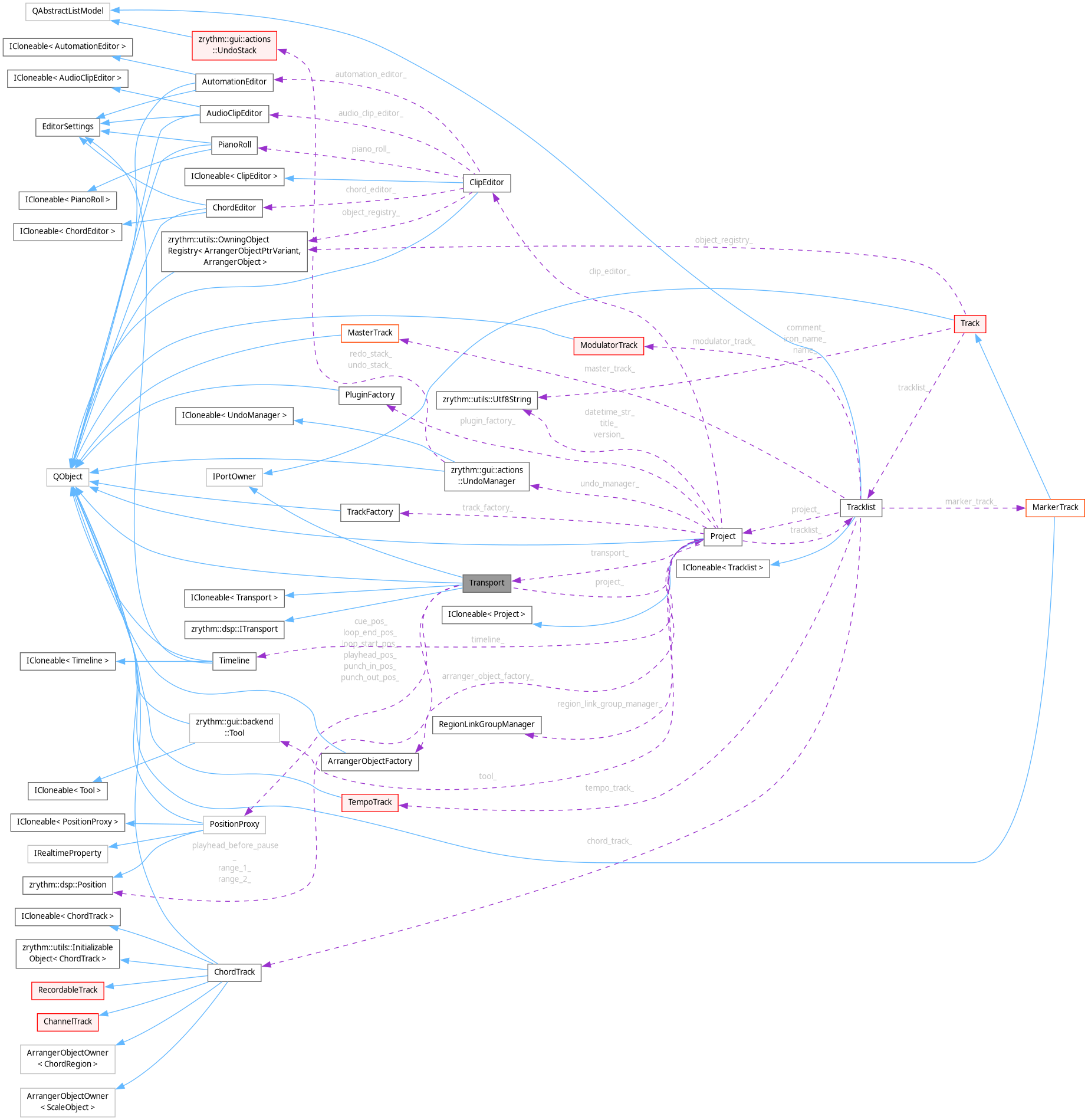

Collaboration diagram for Transport:

[legend]

Public Types
enum class	Display { BBT , Time }
	Corrseponts to "transport-display" in the gsettings. More...

enum class	RecordingMode { OverwriteEvents , MergeEvents , Takes , TakesMuted }
	Recording mode for MIDI and audio. More...

using	Position = zrythm::dsp::Position

using	PortIdentifier = zrythm::dsp::PortIdentifier

using	PortFlow = zrythm::dsp::PortFlow

Public Types inherited from zrythm::dsp::ITransport
enum class	PlayState { RollRequested , Rolling , PauseRequested , Paused }

Public Types inherited from IPortOwner
using	TrackUuid = dsp::PortIdentifier::TrackUuid

using	PluginUuid = dsp::PortIdentifier::PluginUuid

using	PortUuid = dsp::PortIdentifier::PortUuid

Public Member Functions
	Transport (Project *parent=nullptr)

void	setLoopEnabled (bool enabled)

Q_SIGNAL void	loopEnabledChanged (bool enabled)

void	setRecordEnabled (bool enabled)

Q_SIGNAL void	recordEnabledChanged (bool enabled)

PlayState	getPlayState () const

void	setPlayState (PlayState state)

Q_SIGNAL void	playStateChanged (PlayState state)

PositionProxy *	getPlayheadPosition () const

PositionProxy *	getCuePosition () const

PositionProxy *	getLoopStartPosition () const

PositionProxy *	getLoopEndPosition () const

PositionProxy *	getPunchInPosition () const

PositionProxy *	getPunchOutPosition () const

Q_INVOKABLE void	moveBackward ()

Q_INVOKABLE void	moveForward ()

bool	is_in_active_project () const override

void	set_port_metadata_from_owner (dsp::PortIdentifier &id, PortRange &range) const override
	Function that will be called by the Port to update the identifier's relevant members based on this port owner.

utils::Utf8String	get_full_designation_for_port (const dsp::PortIdentifier &id) const override

Q_INVOKABLE bool	isRolling () const

Q_INVOKABLE bool	isPaused () const

bool	is_looping () const

bool	is_recording () const

void	init_loaded (Project project, const TempoTrack tempo_track)
	Initialize loaded transport.

void	prepare_audio_regions_for_stretch (std::optional< ArrangerObjectSpan > sel_var)
	Prepares audio regions for stretching (sets the Region.before_length).

void	stretch_regions (std::optional< ArrangerObjectSpan > sel_var, bool with_fixed_ratio, double time_ratio, bool force)
	Stretches regions.

void	set_punch_mode_enabled (bool enabled)

void	set_start_playback_on_midi_input (bool enabled)

void	set_recording_mode (RecordingMode mode)

void	set_metronome_enabled (bool enabled)
	Sets whether metronome is enabled or not.

void	add_to_playhead (signed_frame_t nframes)
	Moves the playhead by the time corresponding to given samples, taking into account the loop end point.

Q_INVOKABLE void	requestPause (bool with_wait)
	Request pause.

Q_INVOKABLE void	requestRoll (bool with_wait)
	Request playback.

void	set_playhead_pos_rt_safe (Position pos)
	Setter for playhead Position.

void	set_playhead_to_bar (int bar)

void	set_play_state_rt_safe (PlayState state)

void	get_playhead_pos (Position *pos)
	Getter for playhead Position.

Position	get_playhead_position () const override

nframes_t	is_loop_point_met (const signed_frame_t g_start_frames, const nframes_t nframes) const override
	Returns the number of processable frames until and excluding the loop end point as a positive number (>= 1) if the loop point was met between g_start_frames and (g_start_frames + nframes), otherwise returns 0;.

void	move_backward (bool with_wait)
	Move to the previous snap point on the timeline.

void	move_forward (bool with_wait)
	Move to the next snap point on the timeline.

bool	can_user_move_playhead () const
	Returns whether the user can currently move the playhead (eg, via the UI or via scripts).

void	move_playhead (const Position &target, bool panic, bool set_cue_point, bool fire_events)
	Moves playhead to given pos.

void	set_loop (bool enabled, bool with_wait)
	Enables or disables loop.

void	goto_start_marker ()
	Moves the playhead to the start Marker.

void	goto_end_marker ()
	Moves the playhead to the end Marker.

void	goto_prev_marker ()
	Moves the playhead to the prev Marker.

void	goto_next_marker ()
	Moves the playhead to the next Marker.

void	update_positions (bool update_from_ticks)
	Updates the frames in all transport positions.

void	position_add_frames (Position &pos, signed_frame_t frames) const override
	Adds frames to the given position similar to Position::add_frames, except that it adjusts the new Position if the loop end point was crossed.

double	get_ppqn () const
	Returns the PPQN (Parts/Ticks Per Quarter Note).

std::pair< Position, Position >	get_range_positions () const
	Returns the selected range positions.

std::pair< Position, Position >	get_loop_range_positions () const override
	Returns the loop range positions.

PlayState	get_play_state () const override

void	set_has_range (bool has_range)
	Sets if the project has range and updates UI.

void	set_range (bool range1, const Position start_pos, const Position pos, bool snap)
	Set the range1 or range2 position.

void	set_loop_range (bool start, const Position start_pos, const Position pos, bool snap)
	Set the loop range.

bool	position_is_inside_punch_range (Position pos)

bool	get_loop_enabled () const override

void	recalculate_total_bars (std::optional< ArrangerObjectSpan > objects=std::nullopt)
	Recalculates the total bars based on the last object's position.

void	update_total_bars (int total_bars, bool fire_events)
	Updates the total bars.

void	update_caches (int beats_per_bar, int beat_unit)

void	set_recording (bool record, bool with_wait)
	Sets recording on/off.

void	init_after_cloning (const Transport &other, ObjectCloneType clone_type) override
	Initializes the cloned object.

Q_INVOKABLE QString	getPlayheadPositionString (const TempoTrack *tempo_track) const

Public Member Functions inherited from ICloneable< Transport >
std::unique_ptr< Transport >	clone_unique (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

std::shared_ptr< Transport >	clone_shared (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Transport *	clone_raw_ptr (ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Transport *	clone_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

QScopedPointer< Transport >	clone_unique_qobject (QObject *parent, ObjectCloneType clone_type=ObjectCloneType::Snapshot, Args &&... args) const

Public Member Functions inherited from IPortOwner
virtual void	on_control_change_event (const PortUuid &port_uuid, const dsp::PortIdentifier &id, float val)
	Will be called when a control port's value changes.

virtual void	on_midi_activity (const dsp::PortIdentifier &id)
	Called during processing if the MIDI port contains new MIDI events.

virtual bool	should_sum_data_from_backend () const
	Whether during processing, the port should sum the data from its backend buffers coming in.

virtual bool	should_bounce_to_master (utils::audio::BounceStep step) const
	Whether the port should add its data to the master output when bouncing.

virtual bool	are_events_on_midi_channel_approved (midi_byte_t channel) const
	Returns whether MIDI events on this channel on an input port should be processed (not ignored).

Static Public Member Functions
static const char *	preroll_count_to_str (PrerollCountBars bars)

static int	preroll_count_bars_enum_to_int (PrerollCountBars bars)

static void	get_playhead_pos_static (Transport self, Position pos)

Data Fields
int	total_bars_ = 0
	Total bars in the song.

PositionProxy *	playhead_pos_ = nullptr
	Playhead position.

PositionProxy *	cue_pos_ = nullptr
	Cue point position.

PositionProxy *	loop_start_pos_ = nullptr
	Loop start position.

PositionProxy *	loop_end_pos_ = nullptr
	Loop end position.

PositionProxy *	punch_in_pos_ = nullptr
	Punch in position.

PositionProxy *	punch_out_pos_ = nullptr
	Punch out position.

Position	range_1_
	Selected range.

Position	range_2_

bool	has_range_ = false
	Whether range should be displayed or not.

int	ticks_per_beat_ = 0

int	ticks_per_bar_ = 0

int	sixteenths_per_beat_ = 0

int	sixteenths_per_bar_ = 0

nframes_t	position_ = 0
	Transport position in frames.

bool	loop_ = false
	Looping or not.

bool	punch_mode_ = false
	Whether punch in/out mode is enabled.

bool	recording_ = false
	Whether MIDI/audio recording is enabled (recording toggle in transport bar).

bool	metronome_enabled_ = false
	Metronome enabled or not.

signed_frame_t	preroll_frames_remaining_ = 0
	Recording preroll frames remaining.

signed_frame_t	countin_frames_remaining_ = 0
	Metronome countin frames remaining.

bool	start_playback_on_midi_input_ = false
	Whether to start playback on MIDI input.

RecordingMode	recording_mode_ = (RecordingMode) 0

Position	playhead_before_pause_
	Position of the playhead before pausing.

std::unique_ptr< MidiPort >	roll_
	Roll/play MIDI port.

std::unique_ptr< MidiPort >	stop_
	Stop MIDI port.

std::unique_ptr< MidiPort >	backward_
	Backward MIDI port.

std::unique_ptr< MidiPort >	forward_
	Forward MIDI port.

std::unique_ptr< MidiPort >	loop_toggle_
	Loop toggle MIDI port.

std::unique_ptr< MidiPort >	rec_toggle_
	Rec toggle MIDI port.

PlayState	play_state_ = {}
	Play state.

RtTimePoint	last_manual_playhead_change_ = 0
	Last timestamp the playhead position was changed manually.

Project *	project_ = nullptr
	Pointer to owner, if any.

Data Fields inherited from ICloneable< Transport >
friend	Derived

Properties
QML_ELEMENT bool	loopEnabled

bool	recordEnabled

PlayState	playState

PositionProxy *	playheadPosition

PositionProxy *	cuePosition

PositionProxy *	loopStartPosition

PositionProxy *	loopEndPosition

PositionProxy *	punchInPosition

PositionProxy *	punchOutPosition

Friends
void	to_json (nlohmann::json &j, const Transport &transport)

void	from_json (const nlohmann::json &j, Transport &transport)

Detailed Description

The Transport class represents the transport controls and state for an audio engine.

It manages playback, recording, and other transport-related functionality.

Definition at line 49 of file transport.h.

Member Typedef Documentation

◆ PortFlow

using Transport::PortFlow = zrythm::dsp::PortFlow

Definition at line 133 of file transport.h.

◆ PortIdentifier

using Transport::PortIdentifier = zrythm::dsp::PortIdentifier

Definition at line 132 of file transport.h.

◆ Position

using Transport::Position = zrythm::dsp::Position

Definition at line 131 of file transport.h.

Member Enumeration Documentation

◆ Display

enum class Transport::Display

strong

Corrseponts to "transport-display" in the gsettings.

Definition at line 81 of file transport.h.

◆ RecordingMode

enum class Transport::RecordingMode

strong

Recording mode for MIDI and audio.

In all cases, only objects created during the current recording cycle can be changed. Previous objects shall not be touched.

Enumerator
OverwriteEvents	Overwrite events in first recorded region. In the case of MIDI, this will remove existing MIDI notes during recording. In the case of audio, this will act exactly the same as RECORDING_MODE_TAKES_MUTED.
MergeEvents	Merge events in existing region. In the case of MIDI, this will append MIDI notes. In the case of audio, this will act exactly the same as RECORDING_MODE_TAKES.
Takes	Events get put in new lanes each time recording starts/resumes (eg, when looping or entering/leaving the punch range).
TakesMuted	Same as RECORDING_MODE_TAKES, except previous takes (since recording started) are muted.

Definition at line 94 of file transport.h.

Member Function Documentation

◆ get_full_designation_for_port()

utils::Utf8String Transport::get_full_designation_for_port ( const dsp::PortIdentifier & id ) const

overridevirtual

Reimplemented from IPortOwner.

◆ get_loop_enabled()

bool Transport::get_loop_enabled ( ) const

inlineoverridevirtual

Implements zrythm::dsp::ITransport.

Definition at line 457 of file transport.h.

◆ get_loop_range_positions()

std::pair< Position, Position > Transport::get_loop_range_positions ( ) const

overridevirtual

Returns the loop range positions.

Implements zrythm::dsp::ITransport.

◆ get_play_state()

PlayState Transport::get_play_state ( ) const

inlineoverridevirtual

Implements zrythm::dsp::ITransport.

Definition at line 426 of file transport.h.

◆ get_playhead_pos_static()

static void Transport::get_playhead_pos_static	(	Transport *	self,
		Position *	pos )

inlinestatic

Definition at line 304 of file transport.h.

◆ get_playhead_position()

Position Transport::get_playhead_position ( ) const

inlineoverridevirtual

Implements zrythm::dsp::ITransport.

Definition at line 309 of file transport.h.

◆ init_after_cloning()

void Transport::init_after_cloning	(	const Transport &	other,
		ObjectCloneType	clone_type )

overridevirtual

Initializes the cloned object.

Note: Only final classes should implement this.

Exceptions

ZrythmException If the object could not be cloned.

Implements ICloneable< Transport >.

◆ init_loaded()

void Transport::init_loaded	(	Project *	project,
		const TempoTrack *	tempo_track )

Initialize loaded transport.

Parameters

engine	Owner engine, if any.
tempo_track	Tempo track, used to initialize the caches. Only needed on the active project transport.

◆ is_in_active_project()

bool Transport::is_in_active_project ( ) const

overridevirtual

Implements IPortOwner.

◆ is_loop_point_met()

nframes_t Transport::is_loop_point_met	(	const signed_frame_t	g_start_frames,
		const nframes_t	nframes ) const

inlineoverridevirtual

Returns the number of processable frames until and excluding the loop end point as a positive number (>= 1) if the loop point was met between g_start_frames and (g_start_frames + nframes), otherwise returns 0;.

Implements zrythm::dsp::ITransport.

Definition at line 314 of file transport.h.

◆ is_looping()

bool Transport::is_looping ( ) const

inline

Definition at line 208 of file transport.h.

◆ is_recording()

bool Transport::is_recording ( ) const

inline

Definition at line 210 of file transport.h.

◆ isPaused()

Q_INVOKABLE bool Transport::isPaused ( ) const

inline

Definition at line 203 of file transport.h.

◆ isRolling()

Q_INVOKABLE bool Transport::isRolling ( ) const

inline

Definition at line 198 of file transport.h.

◆ move_playhead()

void Transport::move_playhead	(	const Position &	target,
		bool	panic,
		bool	set_cue_point,
		bool	fire_events )

Moves playhead to given pos.

This is only for moves other than while playing and for looping while playing.

Should not be used during exporting.

Parameters

target	Position to set to.
panic	Send MIDI panic or not FIXME unused.
set_cue_point	Also set the cue point at this position.

◆ position_add_frames()

void Transport::position_add_frames	(	Position &	pos,
		signed_frame_t	frames ) const

overridevirtual

Adds frames to the given position similar to Position::add_frames, except that it adjusts the new Position if the loop end point was crossed.

Implements zrythm::dsp::ITransport.

◆ prepare_audio_regions_for_stretch()

void Transport::prepare_audio_regions_for_stretch ( std::optional< ArrangerObjectSpan > sel_var )

Prepares audio regions for stretching (sets the Region.before_length).

Parameters

selections If nullptr, all audio regions are used. If non-nullptr, only the regions in the selections are used.

◆ preroll_count_bars_enum_to_int()

static int Transport::preroll_count_bars_enum_to_int ( PrerollCountBars bars )

inlinestatic

Definition at line 174 of file transport.h.

◆ preroll_count_to_str()

static const char * Transport::preroll_count_to_str ( PrerollCountBars bars )

inlinestatic

Definition at line 169 of file transport.h.

◆ recalculate_total_bars()

void Transport::recalculate_total_bars ( std::optional< ArrangerObjectSpan > objects = std::nullopt )

Recalculates the total bars based on the last object's position.

Parameters

sel	If given, only these objects will be checked, otherwise every object in the project will be checked.

FIXME: use signals to update the total bars.

◆ requestPause()

Q_INVOKABLE void Transport::requestPause ( bool with_wait )

Request pause.

Must only be called in-between engine processing calls.

Parameters

with_wait Wait for lock before requesting.

◆ requestRoll()

Q_INVOKABLE void Transport::requestRoll ( bool with_wait )

Request playback.

Must only be called in-between engine processing calls.

Parameters

with_wait Wait for lock before requesting.

◆ set_loop_range()

void Transport::set_loop_range	(	bool	start,
		const Position *	start_pos,
		const Position *	pos,
		bool	snap )

Set the loop range.

Parameters

start True to set start pos, false to set end pos.

◆ set_port_metadata_from_owner()

void Transport::set_port_metadata_from_owner	(	dsp::PortIdentifier &	id,
		PortRange &	range ) const

overridevirtual

Function that will be called by the Port to update the identifier's relevant members based on this port owner.

Parameters

id	The identifier to update.

Implements IPortOwner.

◆ set_range()

void Transport::set_range	(	bool	range1,
		const Position *	start_pos,
		const Position *	pos,
		bool	snap )

Set the range1 or range2 position.

Parameters

range1 True to set range1, false to set range2.

◆ stretch_regions()

void Transport::stretch_regions	(	std::optional< ArrangerObjectSpan >	sel_var,
		bool	with_fixed_ratio,
		double	time_ratio,
		bool	force )

Stretches regions.

Parameters

selections	If nullptr, all regions are used. If non-nullptr, only the regions in the selections are used.
with_fixed_ratio	Stretch all regions with a fixed ratio. If this is off, the current region length and Region.before_length will be used to calculate the ratio.
force	Force stretching, regardless of musical mode.

Exceptions

ZrythmException if stretching fails.

◆ update_positions()

void Transport::update_positions ( bool update_from_ticks )

Updates the frames in all transport positions.

Parameters

update_from_ticks Whether to update the positions based on ticks (true) or frames (false).

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		Transport &	transport )

friend

Definition at line 528 of file transport.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const Transport &	transport )

friend

Definition at line 506 of file transport.h.

Field Documentation

◆ backward_

std::unique_ptr<MidiPort> Transport::backward_

Backward MIDI port.

Definition at line 657 of file transport.h.

◆ countin_frames_remaining_

signed_frame_t Transport::countin_frames_remaining_ = 0

Metronome countin frames remaining.

Definition at line 628 of file transport.h.

◆ cue_pos_

PositionProxy* Transport::cue_pos_ = nullptr

Cue point position.

Definition at line 569 of file transport.h.

◆ forward_

std::unique_ptr<MidiPort> Transport::forward_

Forward MIDI port.

Definition at line 660 of file transport.h.

◆ has_range_

bool Transport::has_range_ = false

Whether range should be displayed or not.

Definition at line 595 of file transport.h.

◆ last_manual_playhead_change_

RtTimePoint Transport::last_manual_playhead_change_ = 0

Last timestamp the playhead position was changed manually.

Definition at line 672 of file transport.h.

◆ loop_

bool Transport::loop_ = false

Looping or not.

Definition at line 612 of file transport.h.

◆ loop_end_pos_

PositionProxy* Transport::loop_end_pos_ = nullptr

Loop end position.

Definition at line 575 of file transport.h.

◆ loop_start_pos_

PositionProxy* Transport::loop_start_pos_ = nullptr

Loop start position.

Definition at line 572 of file transport.h.

◆ loop_toggle_

std::unique_ptr<MidiPort> Transport::loop_toggle_

Loop toggle MIDI port.

Definition at line 663 of file transport.h.

◆ metronome_enabled_

bool Transport::metronome_enabled_ = false

Metronome enabled or not.

Definition at line 622 of file transport.h.

◆ play_state_

PlayState Transport::play_state_ = {}

Play state.

Definition at line 669 of file transport.h.

◆ playhead_before_pause_

Position Transport::playhead_before_pause_

Position of the playhead before pausing.

Used by UndoableAction.

Definition at line 640 of file transport.h.

◆ playhead_pos_

PositionProxy* Transport::playhead_pos_ = nullptr

Playhead position.

Definition at line 566 of file transport.h.

◆ position_

nframes_t Transport::position_ = 0

Transport position in frames.

FIXME is this used?

Definition at line 609 of file transport.h.

◆ preroll_frames_remaining_

signed_frame_t Transport::preroll_frames_remaining_ = 0

Recording preroll frames remaining.

Definition at line 625 of file transport.h.

◆ project_

Project* Transport::project_ = nullptr

Pointer to owner, if any.

Definition at line 675 of file transport.h.

◆ punch_in_pos_

PositionProxy* Transport::punch_in_pos_ = nullptr

Punch in position.

Definition at line 578 of file transport.h.

◆ punch_mode_

bool Transport::punch_mode_ = false

Whether punch in/out mode is enabled.

Definition at line 615 of file transport.h.

◆ punch_out_pos_

PositionProxy* Transport::punch_out_pos_ = nullptr

Punch out position.

Definition at line 581 of file transport.h.

◆ range_1_

Position Transport::range_1_

Selected range.

This is 2 points instead of start/end because the 2nd point can be dragged past the 1st point so the order gets swapped.

Should be compared each time to see which one is first.

Definition at line 591 of file transport.h.

◆ range_2_

Position Transport::range_2_

Definition at line 592 of file transport.h.

◆ rec_toggle_

std::unique_ptr<MidiPort> Transport::rec_toggle_

Rec toggle MIDI port.

Definition at line 666 of file transport.h.

◆ recording_

bool Transport::recording_ = false

Whether MIDI/audio recording is enabled (recording toggle in transport bar).

Definition at line 619 of file transport.h.

◆ recording_mode_

RecordingMode Transport::recording_mode_ = (RecordingMode) 0

Definition at line 633 of file transport.h.

◆ roll_

std::unique_ptr<MidiPort> Transport::roll_

Roll/play MIDI port.

Any event received on this port will request a roll.

Definition at line 647 of file transport.h.

◆ sixteenths_per_bar_

int Transport::sixteenths_per_bar_ = 0

Definition at line 603 of file transport.h.

◆ sixteenths_per_beat_

int Transport::sixteenths_per_beat_ = 0

Definition at line 602 of file transport.h.

◆ start_playback_on_midi_input_

bool Transport::start_playback_on_midi_input_ = false

Whether to start playback on MIDI input.

Definition at line 631 of file transport.h.

◆ stop_

std::unique_ptr<MidiPort> Transport::stop_

Stop MIDI port.

Any event received on this port will request a stop/pause.

Definition at line 654 of file transport.h.

◆ ticks_per_bar_

int Transport::ticks_per_bar_ = 0

Definition at line 601 of file transport.h.

◆ ticks_per_beat_

int Transport::ticks_per_beat_ = 0

Definition at line 600 of file transport.h.

◆ total_bars_

int Transport::total_bars_ = 0

Total bars in the song.

Definition at line 563 of file transport.h.

Property Documentation

◆ cuePosition

PositionProxy * Transport::cuePosition

read

Definition at line 67 of file transport.h.

◆ loopEnabled

QML_ELEMENT bool Transport::loopEnabled

readwrite

Definition at line 57 of file transport.h.

◆ loopEndPosition

PositionProxy * Transport::loopEndPosition

read

Definition at line 70 of file transport.h.

◆ loopStartPosition

PositionProxy * Transport::loopStartPosition

read

Definition at line 68 of file transport.h.

◆ playheadPosition

PositionProxy * Transport::playheadPosition

read

Definition at line 66 of file transport.h.

◆ playState

PlayState Transport::playState

readwrite

Definition at line 63 of file transport.h.

◆ punchInPosition

PositionProxy * Transport::punchInPosition

read

Definition at line 71 of file transport.h.

◆ punchOutPosition

PositionProxy * Transport::punchOutPosition

read

Definition at line 72 of file transport.h.

◆ recordEnabled

bool Transport::recordEnabled

readwrite

Definition at line 60 of file transport.h.

The documentation for this class was generated from the following file:

src/gui/dsp/transport.h

Public Types

Public Member Functions

Static Public Member Functions

Data Fields

Properties

Friends

Detailed Description

Member Typedef Documentation

◆ PortFlow

◆ PortIdentifier

◆ Position

Member Enumeration Documentation

◆ Display

◆ RecordingMode

Member Function Documentation

◆ get_full_designation_for_port()

◆ get_loop_enabled()

◆ get_loop_range_positions()

◆ get_play_state()

◆ get_playhead_pos_static()

◆ get_playhead_position()

◆ init_after_cloning()

◆ init_loaded()

◆ is_in_active_project()

◆ is_loop_point_met()

◆ is_looping()

◆ is_recording()

◆ isPaused()

◆ isRolling()

◆ move_playhead()

◆ position_add_frames()

◆ prepare_audio_regions_for_stretch()

◆ preroll_count_bars_enum_to_int()

◆ preroll_count_to_str()

◆ recalculate_total_bars()

◆ requestPause()

◆ requestRoll()

◆ set_loop_range()

◆ set_port_metadata_from_owner()

◆ set_range()

◆ stretch_regions()

◆ update_positions()

Friends And Related Symbol Documentation

◆ from_json

◆ to_json

Field Documentation

◆ backward_

◆ countin_frames_remaining_

◆ cue_pos_

◆ forward_

◆ has_range_

◆ last_manual_playhead_change_

◆ loop_

◆ loop_end_pos_

◆ loop_start_pos_

◆ loop_toggle_

◆ metronome_enabled_

◆ play_state_

◆ playhead_before_pause_

◆ playhead_pos_

◆ position_

◆ preroll_frames_remaining_

◆ project_

◆ punch_in_pos_

◆ punch_mode_

◆ punch_out_pos_

◆ range_1_

◆ range_2_

◆ rec_toggle_

◆ recording_

◆ recording_mode_

◆ roll_

◆ sixteenths_per_bar_

◆ sixteenths_per_beat_

◆ start_playback_on_midi_input_

◆ stop_

◆ ticks_per_bar_

◆ ticks_per_beat_

◆ total_bars_

Property Documentation
