Represents a track that controls the tempo of the audio. More...

#include <src/structure/tracks/tempo_track.h>

Inheritance diagram for zrythm::structure::tracks::TempoTrack:

[legend]

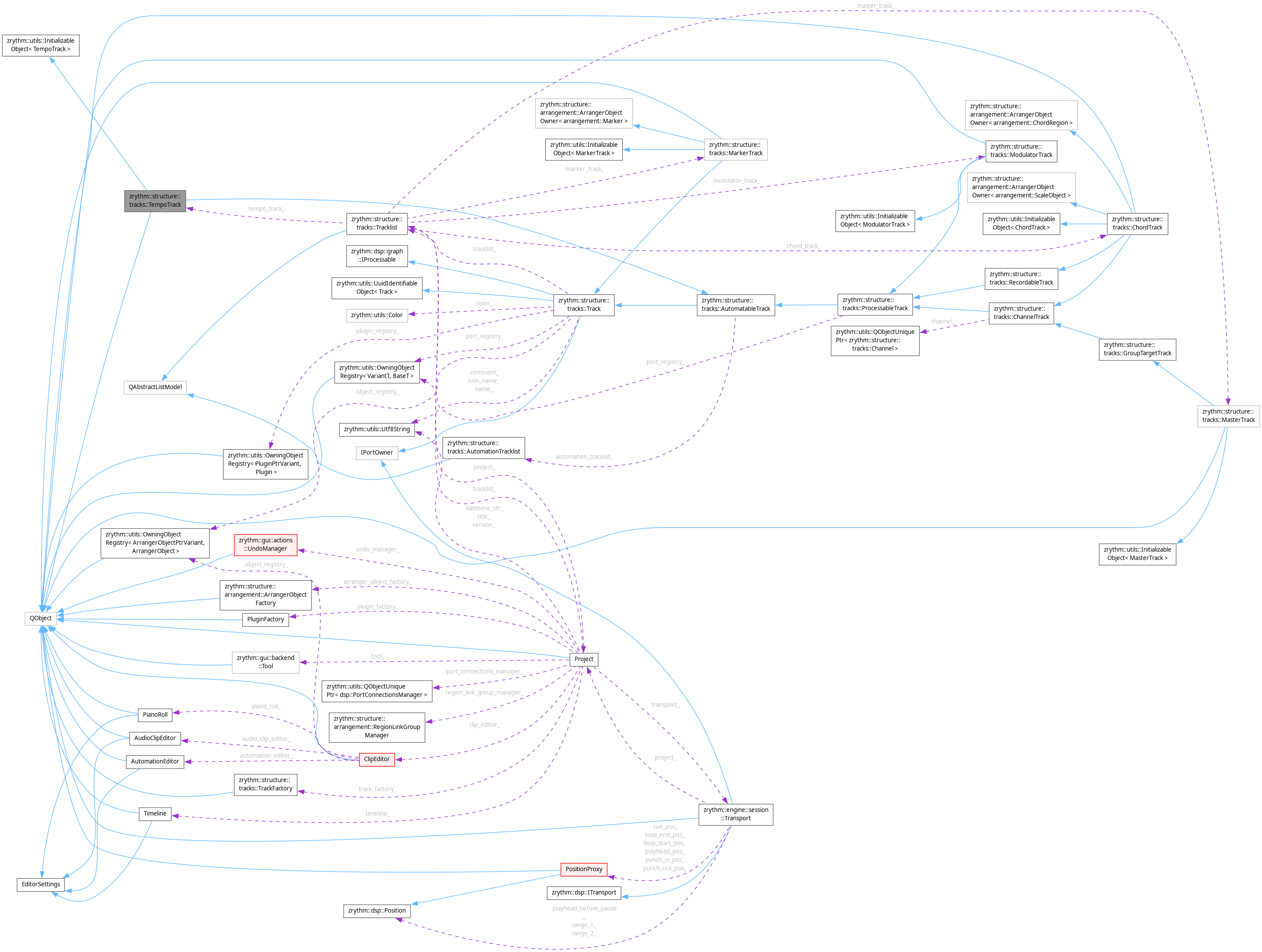

Collaboration diagram for zrythm::structure::tracks::TempoTrack:

[legend]

Public Member Functions
double	getBpm () const

void	setBpm (double bpm)

Q_SIGNAL void	bpmChanged (double bpm)

Q_INVOKABLE int	getBeatUnit () const

Q_INVOKABLE int	getBeatsPerBar () const

void	clear_objects () override
	Removes all objects from the tempo track.

void	init_loaded (PluginRegistry &plugin_registry, PortRegistry &port_registry) override
	Adds additional metadata to track members after deserialization.

bpm_t	get_bpm_at_pos (Position pos)
	Returns the BPM at the given pos.

bpm_t	get_current_bpm () const
	Returns the current BPM.

std::string	get_current_bpm_as_str () const

void	set_bpm_from_str (const std::string &str)

void	set_bpm (bpm_t bpm, bpm_t start_bpm, bool temporary, bool fire_events)
	Sets the BPM.

void	set_beat_unit_from_enum (BeatUnit ebeat_unit)

BeatUnit	get_beat_unit_enum () const

void	set_beat_unit (int beat_unit)

void	set_beats_per_bar (int beats_per_bar)
	Updates beat unit and anything depending on it.

int	get_beats_per_bar () const

int	get_beat_unit () const

void	on_control_change_event (const PortUuid &port_uuid, const dsp::PortIdentifier &id, float value) override
	Will be called when a control port's value changes.

void	append_ports (std::vector< Port * > &ports, bool include_plugins) const final
	Appends all channel ports and optionally plugin ports to the array.

ControlPort &	get_bpm_port () const

ControlPort &	get_beats_per_bar_port () const

ControlPort &	get_beat_unit_port () const

Public Member Functions inherited from zrythm::structure::tracks::AutomatableTrack
	AutomatableTrack (PortRegistry &port_registry, bool new_identity)

AutomationTracklist &	get_automation_tracklist () const

void	set_automation_visible (bool visible)
	Set automation visible and fire events.

void	generate_automation_tracks ()
	Generates automatables for the track.

void	get_regions_in_range (std::vector< Region * > &regions, const Position p1, const Position p2) override
	Returns all the regions inside the given range, or all the regions if both p1 and p2 are NULL.

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, AutomatableTrack> && FinalClass<base_type<DerivedT>>
std::optional< PluginPtrVariant >	get_plugin_at_slot (this DerivedT &&self, PluginSlot slot)
	Returns the plugin at the given slot, if any.

void	generate_automation_tracks_for_plugin (const Plugin::Uuid &plugin_id)
	Generates automatables for the plugin.

Public Member Functions inherited from zrythm::structure::tracks::Track
Tracklist *	get_tracklist () const

dsp::PortConnectionsManager *	get_port_connections_manager () const

bool	has_piano_roll () const

bool	should_be_visible () const
	Returns whether the track should be visible.

bool	is_tempo () const

bool	is_folder () const

bool	is_audio_group () const

bool	is_midi_group () const

bool	is_audio_bus () const

bool	is_midi_bus () const

bool	is_modulator () const

bool	is_chord () const

bool	is_marker () const

bool	is_audio () const

bool	is_instrument () const

bool	is_midi () const

bool	is_master () const

bool	is_deletable () const

bool	is_copyable () const

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
double	get_full_visible_height (this DerivedT &&self)
	Returns the full visible height (main height + height of all visible automation tracks + height of all visible lanes).

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
bool	multiply_heights (this DerivedT &&self, double multiplier, bool visible_only, bool check_only)

bool	is_auditioner () const
	Whether this track is part of the SampleProcessor auditioner tracklist.

bool	can_be_group_target () const

bool	is_frozen () const

template<arrangement::FinalRegionSubclass RegionT, FinalClass SelfT>
void	insert_region (this SelfT &self, arrangement::ArrangerObjectUuidReference region_ref, AutomationTrack *at, std::optional< int > lane_pos, std::optional< int > idx, bool gen_name)
	Inserts a Region to the given lane or AutomationTrack of the track, at the given index.

void	write_audio_clip_to_pool_after_adding_audio_region (AudioClip &clip) const

template<arrangement::FinalRegionSubclass RegionT>
void	add_region (this auto &self, auto region_ref, AutomationTrack *at, std::optional< int > lane_pos, bool gen_name)
	Appends a Region to the given lane or AutomationTrack of the track.

void	append_objects (std::vector< ArrangerObjectPtrVariant > &objects) const
	Appends all the objects in the track to `objects`.

void	unselect_all ()
	Unselects all arranger objects in the track.

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
bool	contains_uninstantiated_plugin (this DerivedT &&self)

utils::Utf8String	get_node_name () const override
	Returns a human friendly name of the node.

void	add_folder_parents (std::vector< FoldableTrack * > &parents, bool prepend) const
	Adds the track's folder parents to the given vector.

FoldableTrack *	get_direct_folder_parent () const
	Returns the closest foldable parent or NULL.

void	remove_from_folder_parents ()
	Remove the track from all folders.

utils::Utf8String	get_name () const
	Getter for the track name.

bool	set_name_with_action_full (const utils::Utf8String &name)
	Internally called by set_name_with_action().

void	set_name_with_action (const utils::Utf8String &name)
	Setter to be used by the UI to create an undoable action.

void	set_name (const Tracklist &tracklist, const utils::Utf8String &name, bool pub_events)
	Setter for the track name.

utils::Utf8String	get_unique_name (const Tracklist &tracklist, const utils::Utf8String &name)
	Returns a unique name for a new track based on the given name.

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the frames/ticks of each position in each child of the track recursively.

int	get_index () const

void	set_index (int index)

auto	get_input_signal_type () const

auto	get_output_signal_type () const

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
void	get_plugins (this DerivedT &&self, std::vector< zrythm::gui::old_dsp::plugins::Plugin * > &arr)
	Fills in the given array with all plugins in the track.

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
void	activate_all_plugins (this DerivedT &&self, bool activate)
	Activate or deactivate all plugins.

utils::Utf8String	get_comment () const

void	set_comment (const utils::Utf8String &comment, bool undoable)

void	set_comment_with_action (const utils::Utf8String &comment)

void	set_color (const Color &color, bool undoable, bool fire_events)
	Sets the track color.

void	set_icon (const utils::Utf8String &icon_name, bool undoable, bool fire_events)
	Sets the track icon.

void	track_freeze (bool freeze)
	Freezes or unfreezes the track.

template<typename DerivedT> requires std::derived_from<base_type<DerivedT>, Track> && FinalClass<base_type<DerivedT>>
PluginPtrVariant	insert_plugin (this DerivedT &&self, PluginUuid plugin_id, plugins::PluginSlot slot, bool instantiate_plugin, bool replacing_plugin, bool moving_plugin, bool confirm, bool gen_automatables, bool recalc_graph, bool fire_events)
	Wrapper over Channel.add_plugin() and ModulatorTrack.insert_modulator().

template<typename SelfT> requires ( std::derived_from<SelfT, ChannelTrack> \|\| std::is_same_v<SelfT, ModulatorTrack>)
void	remove_plugin (this SelfT &self, plugins::PluginSlot slot, bool moving_plugin=false, bool deleting_plugin=true)
	Removes a plugin at the given slot from the track.

template<typename SelfT> requires ( std::derived_from<SelfT, ChannelTrack> \|\| std::is_same_v<SelfT, ModulatorTrack>)
plugins::PluginSlot	get_plugin_slot (this const SelfT &self, const PluginUuid &plugin_id)

bool	is_enabled () const

bool	get_enabled () const

bool	get_disabled () const

void	set_enabled (bool enabled)

void	set_enabled (bool enabled, bool trigger_undo, bool auto_select, bool fire_events)

int	get_total_bars (const engine::session::Transport &transport, int total_bars) const

void	set_caches (CacheType types)
	Set various caches (snapshots, track name hash, plugin input/output ports, etc).

void	set_port_metadata_from_owner (dsp::PortIdentifier &id, PortRange &range) const override
	Function that will be called by the Port to update the identifier's relevant members based on this port owner.

utils::Utf8String	get_full_designation_for_port (const dsp::PortIdentifier &id) const override

virtual bool	get_muted () const

virtual bool	get_listened () const

virtual bool	get_implied_soloed () const
	Returns whether the track is not soloed on its own but its direct out (or its direct out's direct out, etc.) is soloed.

virtual bool	get_soloed () const

void	set_selection_status_getter (TrackSelectionStatusGetter getter)

void	unset_selection_status_getter ()

auto &	get_plugin_registry () const

auto &	get_plugin_registry ()

auto &	get_port_registry () const

auto &	get_port_registry ()

auto &	get_object_registry () const

auto &	get_object_registry ()

auto	get_type () const

auto	get_icon_name () const

Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual nframes_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies.

virtual void	prepare_for_processing (sample_rate_t sample_rate, nframes_t max_block_length)
	Called to allocate resources required for processing.

virtual void	process_block (EngineProcessTimeInfo time_nfo)

virtual void	release_resources ()
	Called to release resources allocated by prepare_for_processing().

Public Member Functions inherited from IPortOwner
virtual void	on_midi_activity (const dsp::PortIdentifier &id)
	Called during processing if the MIDI port contains new MIDI events.

virtual bool	should_sum_data_from_backend () const
	Whether during processing, the port should sum the data from its backend buffers coming in.

virtual bool	should_bounce_to_master (utils::audio::BounceStep step) const
	Whether the port should add its data to the master output when bouncing.

virtual bool	are_events_on_midi_channel_approved (midi_byte_t channel) const
	Returns whether MIDI events on this channel on an input port should be processed (not ignored).

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< Track >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

Public Member Functions inherited from zrythm::utils::InitializableObject< TempoTrack >
	Z_DISABLE_COPY_MOVE (InitializableObject)

Static Public Member Functions
static constexpr int	beat_unit_enum_to_int (BeatUnit ebeat_unit)

static BeatUnit	beat_unit_to_enum (int beat_unit)

Static Public Member Functions inherited from zrythm::structure::tracks::Track
static Fader::Type	type_get_prefader_type (const Type type)
	Returns the prefader type.

static constexpr bool	type_can_have_direct_out (Type type)

static bool	type_can_have_region_type (Type type, ArrangerObject::Type region_type)

static constexpr bool	type_is_copyable (Type type)

static constexpr bool	type_is_deletable (Type type)
	Returns whether a track of the given type should be deletable by the user.

static Type	type_get_from_plugin_descriptor (const zrythm::plugins::PluginDescriptor &descr)

static consteval bool	type_has_mono_compat_switch (const Type tt)

static constexpr bool	type_is_compatible_for_moving (const Type type1, const Type type2)
	Returns if regions in tracks from `type1` can be moved to `type2`.

static constexpr bool	type_has_piano_roll (const Type type)
	Returns if the Track should have a piano roll.

static constexpr bool	type_has_inputs (const Type type)
	Returns if the Track should have an inputs selector.

static bool	type_can_be_group_target (const Type type)
	Returns if the Track can be a direct route target.

template<typename T>
static consteval Type	get_type_for_class ()

static Track *	from_variant (const TrackPtrVariant &variant)

static bool	is_plugin_descriptor_valid_for_slot_type (const plugins::PluginDescriptor &descr, zrythm::plugins::PluginSlotType slot_type, Track::Type track_type)
	Returns if `descr` can be dropped at `slot_type` in a track of type `track_type`.

static void	create_with_action (Type type, const zrythm::plugins::PluginConfiguration pl_setting, const FileDescriptor file_descr, const dsp::Position *pos, int index, int num_tracks, int disable_track_idx, TracksReadyCallback ready_cb)
	Creates a new track with the given parameters.

static Track *	create_empty_at_idx_with_action (Type type, int index)
	Creates a new empty track at the given index.

static Track *	create_for_plugin_at_idx_w_action (Type type, const zrythm::plugins::PluginConfiguration *pl_setting, int index)
	Creates a new track for the given plugin at the given index.

template<typename T = Track>
static T *	create_for_plugin_at_idx_w_action (const zrythm::plugins::PluginConfiguration *pl_setting, int index)

static Track *	create_empty_with_action (Type type)
	Creates a new empty track at the end of the tracklist.

template<typename T = Track>
static T *	create_empty_with_action ()

static TrackUniquePtrVariant	create_track (Type type, const utils::Utf8String &name, int pos)
	Create a track of the given type with the given name and position.

Static Public Member Functions inherited from zrythm::utils::InitializableObject< TempoTrack >
static std::shared_ptr< TempoTrack >	create_shared (Args &&... args)
	Creates a shared pointer to initialized object.

static std::unique_ptr< TempoTrack >	create_unique (Args &&... args)
	Creates a unique pointer to initialized object.

Properties
QML_ELEMENT double	bpm

Friends
class	InitializableObject

void	init_from (TempoTrack &obj, const TempoTrack &other, utils::ObjectCloneType clone_type)

void	to_json (nlohmann::json &j, const TempoTrack &track)

void	from_json (const nlohmann::json &j, TempoTrack &track)

Additional Inherited Members
Public Types inherited from zrythm::structure::tracks::AutomatableTrack
using	Plugin = gui::old_dsp::plugins::Plugin

using	PluginRegistry = gui::old_dsp::plugins::PluginRegistry

Public Types inherited from zrythm::structure::tracks::Track
enum class	Type { Instrument , Audio , Master , Chord , Marker , Tempo , Modulator , AudioBus , AudioGroup , Midi , MidiBus , MidiGroup , Folder }
	The Track's type. More...

using	PortType = dsp::PortType

using	PluginRegistry = gui::old_dsp::plugins::PluginRegistry

using	PluginPtrVariant = PluginRegistry::VariantType

using	PluginSlot = plugins::PluginSlot

using	ArrangerObject = structure::arrangement::ArrangerObject

using	ArrangerObjectPtrVariant

using	ArrangerObjectRegistry = structure::arrangement::ArrangerObjectRegistry

using	Region = structure::arrangement::Region

using	TrackSelectionStatusGetter = std::function<bool (const TrackUuid &)>

using	Color = zrythm::utils::Color

using	Position = zrythm::dsp::Position

Public Types inherited from IPortOwner
using	TrackUuid = dsp::PortIdentifier::TrackUuid

using	PluginUuid = dsp::PortIdentifier::PluginUuid

using	PortUuid = dsp::PortIdentifier::PortUuid

Data Fields inherited from zrythm::structure::tracks::AutomatableTrack
AutomationTracklist *	automation_tracklist_ = nullptr

bool	automation_visible_ = false
	Flag to set automations visible or not.

Data Fields inherited from zrythm::structure::tracks::Track
bool	bounce_ {}
	Set to ON during bouncing if this track should be included.

bool	bounce_to_master_ = false
	Whether to temporarily route the output to master (e.g., when bouncing the track on its own without its parents).

bool	disconnecting_ = false
	Whether currently disconnecting.

bool	trigger_midi_activity_ = false
	Flag to tell the UI that this channel had MIDI activity.

std::optional< AudioClip::Uuid >	frozen_clip_id_
	Pool ID of the clip if track is frozen (unset if not frozen).

Tracklist *	tracklist_ = nullptr
	Pointer to owner tracklist, if any.

std::optional< TrackSelectionStatusGetter >	track_selection_status_getter_
	Track selection status getter.

Static Public Attributes inherited from zrythm::structure::tracks::Track
static constexpr int	MIN_HEIGHT = 26

static constexpr int	DEF_HEIGHT = 52

Protected Member Functions inherited from zrythm::structure::tracks::AutomatableTrack
void	set_playback_caches () override
	Set the playback caches for a track.

Protected Member Functions inherited from zrythm::structure::tracks::Track
	Track (Type type, PortType in_signal_type, PortType out_signal_type, PluginRegistry &plugin_registry, PortRegistry &port_registry, ArrangerObjectRegistry &obj_registry)
	Constructor to be used by subclasses.

void	add_region_if_in_range (const dsp::Position p1, const dsp::Position p2, std::vector< Region * > &regions, Region *region)

Protected Member Functions inherited from zrythm::utils::InitializableObject< TempoTrack >
	InitializableObject ()=default
	Protected constructor to prevent instantiation.

Protected Attributes inherited from zrythm::structure::tracks::Track
PluginRegistry &	plugin_registry_

PortRegistry &	port_registry_

arrangement::ArrangerObjectRegistry &	object_registry_

int	pos_ = 0
	Position in the Tracklist.

Type	type_ = {}
	The type of track this is.

utils::Utf8String	name_
	Track name, used in channel too.

utils::Utf8String	icon_name_
	Icon name of the track.

bool	visible_ = true
	Track Widget created dynamically.

bool	filtered_ = false
	Track will be hidden if true (temporary and not serializable).

double	main_height_ { DEF_HEIGHT }
	Height of the main part (without lanes).

bool	enabled_ = true
	Active (enabled) or not.

Color	color_
	Track color.

PortType	in_signal_type_ = {}
	The input signal type (eg audio bus tracks have audio input signals).

PortType	out_signal_type_ = {}
	The output signal type (eg midi tracks have MIDI output signals).

utils::Utf8String	comment_
	User comments.

Detailed Description

Represents a track that controls the tempo of the audio.

The TempoTrack class is responsible for managing the tempo of the audio in a project. It provides methods to set the BPM (beats per minute), beats per bar, and beat unit. The tempo can be automated using the provided ports.

Definition at line 30 of file tempo_track.h.

Member Function Documentation

◆ append_ports()

void zrythm::structure::tracks::TempoTrack::append_ports	(	std::vector< Port * > &	ports,
		bool	include_plugins ) const

finalvirtual

Appends all channel ports and optionally plugin ports to the array.

Implements zrythm::structure::tracks::Track.

◆ beat_unit_enum_to_int()

static constexpr int zrythm::structure::tracks::TempoTrack::beat_unit_enum_to_int ( BeatUnit ebeat_unit )

inlinestaticconstexpr

Definition at line 100 of file tempo_track.h.

◆ clear_objects()

void zrythm::structure::tracks::TempoTrack::clear_objects ( )

overridevirtual

Removes all objects from the tempo track.

Mainly used in testing.

Reimplemented from zrythm::structure::tracks::AutomatableTrack.

◆ get_beat_unit_enum()

BeatUnit zrythm::structure::tracks::TempoTrack::get_beat_unit_enum ( ) const

inline

Definition at line 119 of file tempo_track.h.

◆ get_beat_unit_port()

ControlPort & zrythm::structure::tracks::TempoTrack::get_beat_unit_port ( ) const

inline

Definition at line 153 of file tempo_track.h.

◆ get_beats_per_bar_port()

ControlPort & zrythm::structure::tracks::TempoTrack::get_beats_per_bar_port ( ) const

inline

Definition at line 149 of file tempo_track.h.

◆ get_bpm_port()

ControlPort & zrythm::structure::tracks::TempoTrack::get_bpm_port ( ) const

inline

Definition at line 145 of file tempo_track.h.

◆ init_loaded()

void zrythm::structure::tracks::TempoTrack::init_loaded	(	PluginRegistry &	plugin_registry,
		PortRegistry &	port_registry )

overridevirtual

Adds additional metadata to track members after deserialization.

Note: Each implementor must chain up to its direct superclass.

Reimplemented from zrythm::structure::tracks::AutomatableTrack.

◆ on_control_change_event()

void zrythm::structure::tracks::TempoTrack::on_control_change_event	(	const PortUuid &	port_uuid,
		const dsp::PortIdentifier &	id,
		float	val )

overridevirtual

Will be called when a control port's value changes.

Parameters

val	The real value of the control port.

Attention: This may be called from the audio thread so it must not block.

Reimplemented from IPortOwner.

◆ set_bpm()

void zrythm::structure::tracks::TempoTrack::set_bpm	(	bpm_t	bpm,
		bpm_t	start_bpm,
		bool	temporary,
		bool	fire_events )

Sets the BPM.

Parameters

update_snap_points	Whether to update the snap points.
stretch_audio_region	Whether to stretch audio regions. This should only be true when the BPM change is final.
start_bpm	The BPM at the start of the action, if not temporary.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		TempoTrack &	track )

friend

Definition at line 170 of file tempo_track.h.

◆ InitializableObject

friend class InitializableObject

friend

Definition at line 41 of file tempo_track.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const TempoTrack &	track )

friend

Definition at line 162 of file tempo_track.h.

Property Documentation

◆ bpm

QML_ELEMENT double zrythm::structure::tracks::TempoTrack::bpm

readwrite

Definition at line 39 of file tempo_track.h.

The documentation for this class was generated from the following file:

src/structure/tracks/tempo_track.h

Public Member Functions

Static Public Member Functions

Properties

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ append_ports()

◆ beat_unit_enum_to_int()

◆ clear_objects()

◆ get_beat_unit_enum()

◆ get_beat_unit_port()

◆ get_beats_per_bar_port()

◆ get_bpm_port()

◆ init_loaded()

◆ on_control_change_event()

◆ set_bpm()

Friends And Related Symbol Documentation

◆ from_json

◆ InitializableObject

◆ to_json

Property Documentation

◆ bpm
