zrythm::plugins::CarlaNativePlugin Class Reference

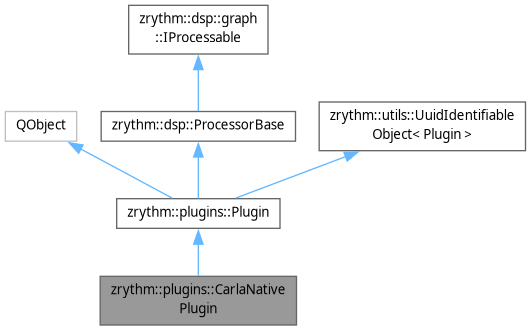

Inheritance diagram for zrythm::plugins::CarlaNativePlugin:

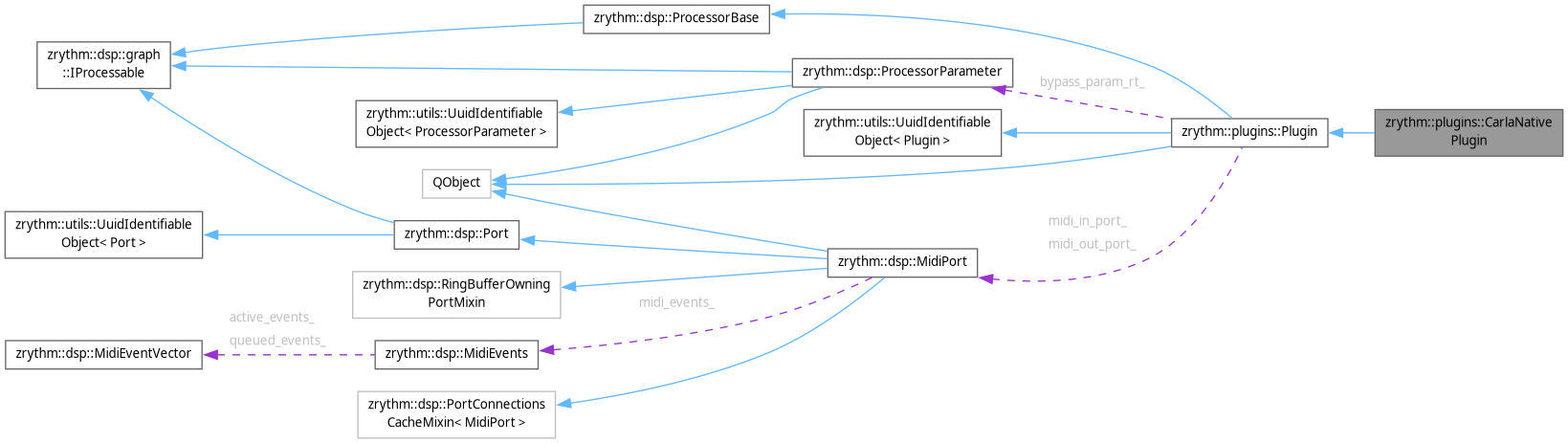

Collaboration diagram for zrythm::plugins::CarlaNativePlugin:

Public Member Functions
	CarlaNativePlugin (ProcessorBaseDependencies dependencies)
	Creates/initializes a plugin using the given setting.
	~CarlaNativePlugin () override
	Deactivates, cleanups and frees the instance.
void	save_state (bool is_backup, std::optional< fs::path > abs_state_dir) override
void	load_state (std::optional< fs::path > abs_path)
	Loads the state from the given file or from its state file.
void	update_buffer_size_and_sample_rate ()
void	open_custom_ui (bool show) override
	Shows or hides the UI.
dsp::ProcessorParameter *	get_param_from_param_id (uint32_t id)
	Returns the plugin Port corresponding to the given parameter.
dsp::MidiPort *	get_midi_out_port ()
	Returns the MIDI out port.
float	get_param_value (uint32_t id)
void	set_param_value (uint32_t id, float val)
	Called from port_set_control_value() to send the value to carla.
void	close () override
nframes_t	get_single_playback_latency () const override
	Returns the latency in samples.
bool	add_internal_plugin_from_descr (const PluginDescriptor &descr)
	Adds the internal plugin from the given descriptor.
Public Member Functions inherited from zrythm::plugins::Plugin
int	programIndex () const
	Returns the current program index, or -1 if no program exists.
void	setProgramIndex (int index)
Q_SIGNAL void	programIndexChanged (int index)
	Implementations should attach to this and set the program.
PluginConfiguration *	configuration () const
Q_SIGNAL void	configurationChanged (PluginConfiguration *configuration)
	Emitted when the configuration is set on the plugin.
dsp::ProcessorParameter *	bypassParameter () const
dsp::ProcessorParameter *	gainParameter () const
bool	uiVisible () const
void	setUiVisible (bool visible)
Q_SIGNAL void	uiVisibleChanged (bool visible)
	Implementations should listen to this and show/hide the plugin UI accordingly.
InstantiationStatus	instantiationStatus () const
Q_SIGNAL void	instantiationStatusChanged (InstantiationStatus status)
Q_SIGNAL void	instantiationFinished (bool successful, const QString &error)
	To be emitted by implementations when instantiation finished.
PluginDescriptor &	get_descriptor () const
utils::Utf8String	get_name () const
Protocol::ProtocolType	get_protocol () const
void	set_configuration (const PluginConfiguration &setting)
	Sets the plugin setting to use.
void	custom_prepare_for_processing (const dsp::graph::GraphNode *node, units::sample_rate_t sample_rate, nframes_t max_block_length) final
void	custom_process_block (EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport) noexcept final
	Custom processor logic after processing all owned parameters.
void	custom_release_resources () final
fs::path	get_state_directory () const
bool	currently_enabled () const
	Returns whether the plugin is enabled (not bypassed).
bool	currently_enabled_rt () const noexcept
virtual void	save_state (std::optional< fs::path > abs_state_dir)=0
	Saves the state inside the standard state directory.
Public Member Functions inherited from zrythm::dsp::ProcessorBase
	ProcessorBase (ProcessorBaseDependencies dependencies, utils::Utf8String name={ u8"ProcessorBase" })
void	set_name (const utils::Utf8String &name)
	Set a custom name to be used in the DSP graph.
void	add_input_port (const dsp::PortUuidReference &uuid)
void	add_output_port (const dsp::PortUuidReference &uuid)
void	add_parameter (const dsp::ProcessorParameterUuidReference &uuid)
auto &	get_input_ports () const
auto &	get_output_ports () const
auto &	get_parameters () const
utils::Utf8String	get_node_name () const final
	Returns a human friendly name of the node.
void	process_block (EngineProcessTimeInfo time_nfo, const dsp::ITransport &transport) noexcept final
	Calls custom_process_block() internally after processing all the parameters.
void	prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, nframes_t max_block_length) final
	Called to allocate resources required for processing.
void	release_resources () final
	Called to release resources allocated by prepare_for_processing().
Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< Plugin >
UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default
auto	get_uuid () const

Static Public Member Functions
static bool	has_custom_ui (const PluginDescriptor &descr)

Data Fields
unsigned int	carla_plugin_id_ = 0
	Plugin ID inside carla engine.
bool	ports_created_ = false
	Whether ports are already created or not.
bool	loading_state_ = false
	Flag.
unsigned int	audio_input_port_id_ = 0
	Port ID of first audio input (for connecting inside patchbay).
unsigned int	audio_output_port_id_ = 0
	Port ID of first audio output (for connecting inside patchbay).
unsigned int	cv_input_port_id_ = 0
	Port ID of first cv input (for connecting inside patchbay).
unsigned int	cv_output_port_id_ = 0
	Port ID of first cv output (for connecting inside patchbay).
unsigned int	midi_input_port_id_ = 0
	Port ID of first midi input (for connecting inside patchbay).
unsigned int	midi_output_port_id_ = 0
	Port ID of first midi output (for connecting inside patchbay).
std::vector< CarlaPatchbayPortInfo >	patchbay_port_info_
	Used when connecting Carla's internal plugin to patchbay ports.
std::vector< std::vector< float > >	zero_inbufs_
	Idle callback for the plugin UI.
std::vector< std::vector< float > >	zero_outbufs_
std::vector< const float * >	inbufs_
std::vector< float * >	outbufs_
unsigned int	max_variant_audio_ins_ = 0
unsigned int	max_variant_audio_outs_ = 0
unsigned int	max_variant_cv_ins_ = 0
unsigned int	max_variant_cv_outs_ = 0
unsigned int	max_variant_midi_ins_ = 0
unsigned int	max_variant_midi_outs_ = 0

Friends
void	init_from (CarlaNativePlugin &obj, const CarlaNativePlugin &other, utils::ObjectCloneType clone_type)
void	to_json (nlohmann::json &j, const CarlaNativePlugin &plugin)
void	from_json (const nlohmann::json &j, CarlaNativePlugin &plugin)

Additional Inherited Members
Public Types inherited from zrythm::plugins::Plugin
enum class	InstantiationStatus : std::uint8_t { Pending , Successful , Failed }
using	StateDirectoryParentPathProvider = std::function<fs::path ()>
	Returns the parent path where the plugin should save its state directory in (or load it).
Protected Member Functions inherited from zrythm::plugins::Plugin
	Plugin (ProcessorBaseDependencies dependencies, StateDirectoryParentPathProvider state_path_provider, QObject *parent)
	Creates/initializes a plugin and its internal plugin (LV2, etc.) using the given setting.
dsp::ProcessorParameterUuidReference	generate_default_bypass_param () const
	To be called by implementations to generate the default bypass parameter if the plugin does not provide its own.
dsp::ProcessorParameterUuidReference	generate_default_gain_param () const
	To be called by implementations to generate the default gain parameter if the plugin does not provide its own.
Protected Member Functions inherited from zrythm::dsp::ProcessorBase
auto	dependencies () const
Protected Attributes inherited from zrythm::plugins::Plugin
bool	instantiation_failed_ = false
	Set to true if instantiation failed and the plugin will be treated as disabled.
StateDirectoryParentPathProvider	state_dir_parent_path_provider_
	Plugins should create a state directory with their UUID as the directory name under the path provided by this.
std::optional< dsp::ProcessorParameter::Uuid >	bypass_id_
	Bypass toggle parameter,.
std::optional< dsp::ProcessorParameter::Uuid >	gain_id_
	Zrythm-provided plugin gain parameter.
std::vector< dsp::AudioPort * >	audio_in_ports_
std::vector< dsp::AudioPort * >	audio_out_ports_
std::vector< dsp::CVPort * >	cv_in_ports_
dsp::MidiPort *	midi_in_port_ {}
dsp::MidiPort *	midi_out_port_ {}
dsp::ProcessorParameter *	bypass_param_rt_ {}
Properties inherited from zrythm::plugins::Plugin
int	programIndex
zrythm::plugins::PluginConfiguration *	configuration
zrythm::dsp::ProcessorParameter *	bypassParameter
zrythm::dsp::ProcessorParameter *	gainParameter
bool	uiVisible
InstantiationStatus	instantiationStatus

Detailed Description

Definition at line 63 of file carla_native_plugin.h.

---

The documentation for this class was generated from the following file:

• src/plugins/carla_native_plugin.h
