Base class for objects that have a name. More...

#include <src/structure/arrangement/named_object.h>

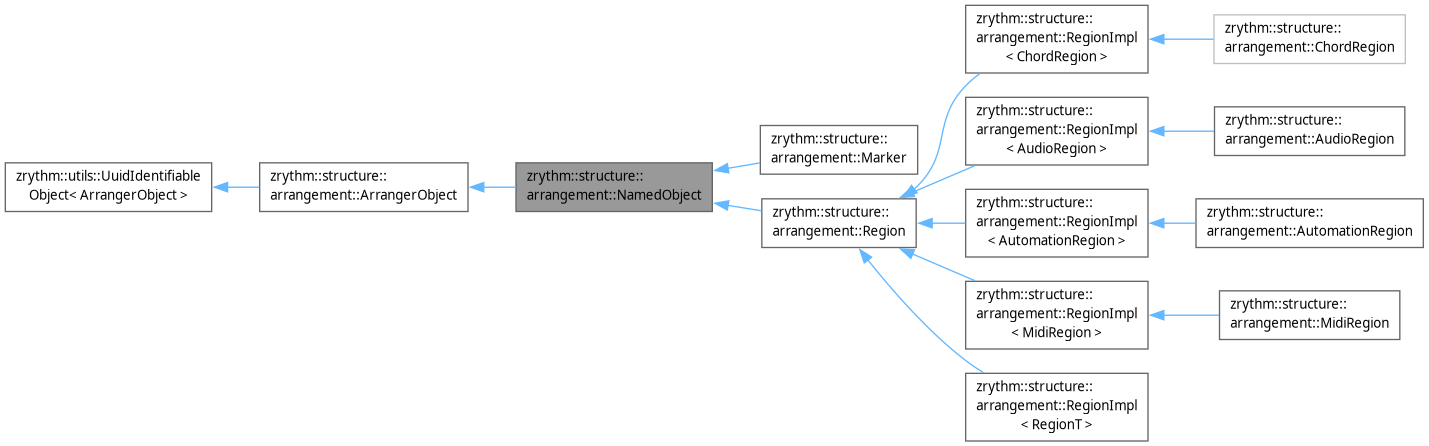

Inheritance diagram for zrythm::structure::arrangement::NamedObject:

[legend]

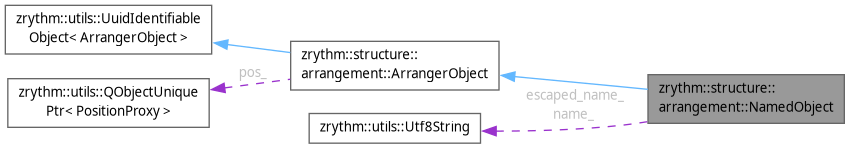

Collaboration diagram for zrythm::structure::arrangement::NamedObject:

[legend]

Public Types
using	NameValidator = std::function<bool (const utils::Utf8String &)>

Public Types inherited from zrythm::structure::arrangement::ArrangerObject
enum class	ResizeType : basic_enum_base_type_t { Normal , Loop , Fade , Stretch , StretchTempoChange }
	Flag used in some functions. More...

enum class	Type : basic_enum_base_type_t { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint }
	The type of the object. More...

enum class	Flags : basic_enum_base_type_t { NonProject = 1 << 0 }
	Flags. More...

enum class	PositionType : basic_enum_base_type_t { Start , End , ClipStart , LoopStart , LoopEnd , FadeIn , FadeOut }

using	SelectionStatusGetter = std::function<bool (const Uuid &)>

using	TrackUuid = structure::tracks::TrackUuid

using	Track = structure::tracks::Track

using	TrackResolver = structure::tracks::TrackResolver

using	TrackPtrVariant = structure::tracks::TrackPtrVariant

using	Position = zrythm::dsp::Position

using	ArrangerObjectPtr = ArrangerObject *

Public Member Functions
	NamedObject (NameValidator validator=[](const utils::Utf8String &) { return true;})

utils::Utf8String	get_name () const
	Returns the name of the object.

void	gen_escaped_name ()
	Generates the escaped name for the object.

void	set_name (this auto &&self, const utils::Utf8String &name)
	Sets the name of the object.

void	generate_name_from_automation_track (this auto &self, const auto &track, const auto &at)

void	generate_name_from_track (this auto &self, const auto &track)

void	generate_name (this auto &self, std::optional< utils::Utf8String > base_name, const auto at, const auto track)

void	set_name_with_action (const utils::Utf8String &name)
	Changes the name and adds an action to the undo stack.

utils::Utf8String	gen_human_friendly_name () const final
	Generates a human readable name for the object.

Public Member Functions inherited from zrythm::structure::arrangement::ArrangerObject
auto	get_type () const

bool	is_start_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_start_hit_by_range (const signed_frame_t global_frames_start, const signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const

void	set_parent_on_base_qproperties (QObject &derived)
	Set the parent on QObject's that are children of this class.

auto	get_position () const
	Getter.

void	position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_position_unvalidated (const dsp::Position &pos)

bool	is_position_valid (const dsp::Position &pos, PositionType pos_type, dsp::TicksPerFrame ticks_per_frame) const
	Returns if the given Position is valid.

bool	set_position (const dsp::Position &pos, PositionType pos_type, bool validate, dsp::TicksPerFrame ticks_per_frame)
	Sets the given position on the object, optionally attempting to validate before.

void	move (double ticks, dsp::FramesPerTick frames_per_tick)
	Moves the object by the given amount of ticks.

void	set_track_id (const TrackUuid &track_id)

void	set_track_id (std::optional< TrackUuid > track_id)

void	unset_track_id ()

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the positions in each child recursively.

auto	get_track () const
	Returns the Track this ArrangerObject is in.

std::optional< TrackUuid >	get_track_id () const

virtual bool	validate (bool is_project, dsp::FramesPerTick frames_per_tick) const =0
	Validates the arranger object.

virtual ArrangerObjectPtrVariant	add_clone_to_project (bool fire_events) const =0
	Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

virtual ArrangerObjectPtrVariant	insert_clone_to_project () const =0
	Inserts the object where it belongs in the project (eg, a Track).

std::optional< ArrangerObjectPtrVariant >	remove_from_project (bool free_obj, bool fire_events=false)
	Removes the object (which can be obtained from find_in_project()) from its parent in the project.

void	set_selection_status_getter (SelectionStatusGetter getter)

void	unset_selection_status_getter ()

virtual bool	is_deletable () const
	Returns whether the given object is deletable or not (eg, start marker).

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

Protected Attributes
utils::Utf8String	name_
	Name to be shown on the widget.

utils::Utf8String	escaped_name_
	Escaped name for drawing.

NameValidator	name_validator_

Protected Attributes inherited from zrythm::structure::arrangement::ArrangerObject
TrackResolver	track_resolver_

utils::QObjectUniquePtr< PositionProxy >	pos_
	Position (or start Position if the object has length).

std::optional< TrackUuid >	track_id_
	ID of the track this object belongs to.

std::optional< SelectionStatusGetter >	selection_status_getter_

Friends
void	init_from (NamedObject &obj, const NamedObject &other, utils::ObjectCloneType clone_type)

void	to_json (nlohmann::json &j, const NamedObject &named_object)

void	from_json (const nlohmann::json &j, NamedObject &named_object)

Additional Inherited Members
Data Fields inherited from zrythm::structure::arrangement::ArrangerObject
Flags	flags_ {}
	Flags.

Static Public Attributes inherited from zrythm::structure::arrangement::ArrangerObject
static constexpr double	DEFAULT_NUDGE_TICKS = 0.1

Protected Member Functions inherited from zrythm::structure::arrangement::ArrangerObject
	ArrangerObject (Type type, TrackResolver track_resolver) noexcept

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const
	To be called by validate() implementations.

Detailed Description

Base class for objects that have a name.

This class provides a common interface for objects that have a name. It includes methods for getting, setting, and validating the name, as well as generating an escaped version of the name for drawing purposes.

Derived classes that require name validation must pass a validator callable to the constructor.

Definition at line 42 of file named_object.h.

Member Typedef Documentation

◆ NameValidator

using zrythm::structure::arrangement::NamedObject::NameValidator = std::function<bool (const utils::Utf8String &)>

Definition at line 45 of file named_object.h.

Constructor & Destructor Documentation

◆ NamedObject()

zrythm::structure::arrangement::NamedObject::NamedObject ( NameValidator validator = [] (const utils::Utf8String &) { return true; } )

inline

Definition at line 47 of file named_object.h.

Member Function Documentation

◆ gen_human_friendly_name()

utils::Utf8String zrythm::structure::arrangement::NamedObject::gen_human_friendly_name ( ) const

inlinefinalvirtual

Generates a human readable name for the object.

If the object has a name, this returns a copy of the name, otherwise generates something appropriate.

Reimplemented from zrythm::structure::arrangement::ArrangerObject.

Definition at line 121 of file named_object.h.

◆ generate_name()

void zrythm::structure::arrangement::NamedObject::generate_name	(	this auto &	self,
		std::optional< utils::Utf8String >	base_name,
		const auto *	at,
		const auto *	track )

inline

Definition at line 93 of file named_object.h.

◆ generate_name_from_automation_track()

void zrythm::structure::arrangement::NamedObject::generate_name_from_automation_track	(	this auto &	self,
		const auto &	track,
		const auto &	at )

inline

Definition at line 79 of file named_object.h.

◆ generate_name_from_track()

void zrythm::structure::arrangement::NamedObject::generate_name_from_track	(	this auto &	self,
		const auto &	track )

inline

Definition at line 88 of file named_object.h.

◆ get_name()

utils::Utf8String zrythm::structure::arrangement::NamedObject::get_name ( ) const

inline

Returns the name of the object.

Definition at line 59 of file named_object.h.

◆ set_name()

void zrythm::structure::arrangement::NamedObject::set_name	(	this auto &&	self,
		const utils::Utf8String &	name )

inline

Sets the name of the object.

Parameters

name	The new name for the object.
fire_events	Whether to fire events when the name is changed.

Definition at line 72 of file named_object.h.

◆ set_name_with_action()

void zrythm::structure::arrangement::NamedObject::set_name_with_action ( const utils::Utf8String & name )

Changes the name and adds an action to the undo stack.

Calls set_name() internally.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		NamedObject &	named_object )

friend

Definition at line 139 of file named_object.h.

◆ init_from

void init_from	(	NamedObject &	obj,
		const NamedObject &	other,
		utils::ObjectCloneType	clone_type )

friend

Definition at line 124 of file named_object.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const NamedObject &	named_object )

friend

Definition at line 135 of file named_object.h.

Field Documentation

◆ escaped_name_

utils::Utf8String zrythm::structure::arrangement::NamedObject::escaped_name_

protected

Escaped name for drawing.

Definition at line 150 of file named_object.h.

◆ name_

utils::Utf8String zrythm::structure::arrangement::NamedObject::name_

protected

Name to be shown on the widget.

Definition at line 147 of file named_object.h.

◆ name_validator_

NameValidator zrythm::structure::arrangement::NamedObject::name_validator_

protected

Definition at line 152 of file named_object.h.

The documentation for this class was generated from the following file:

src/structure/arrangement/named_object.h
