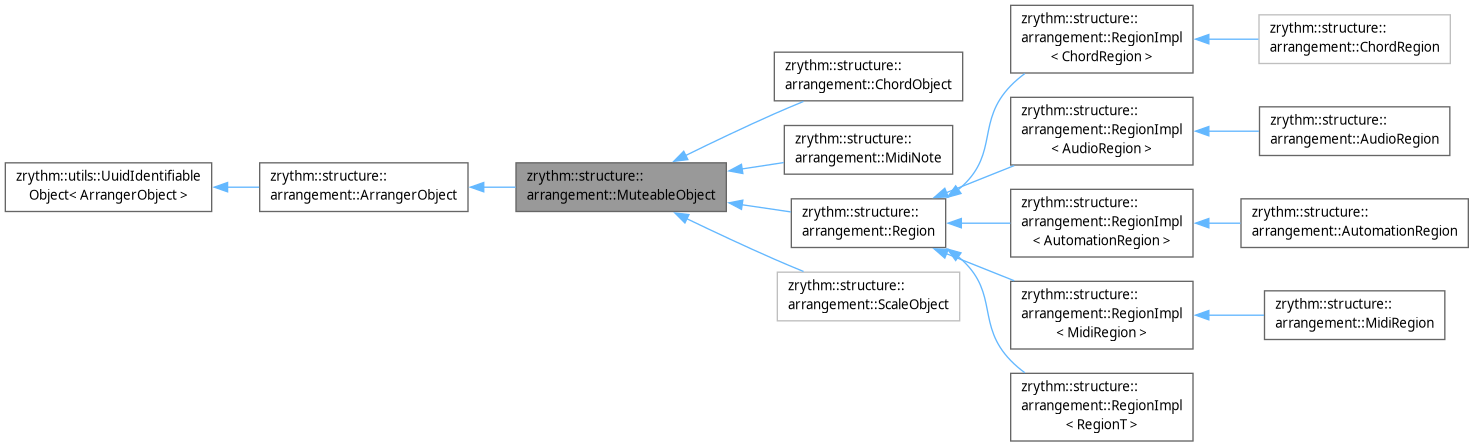

Inheritance diagram for zrythm::structure::arrangement::MuteableObject:

[legend]

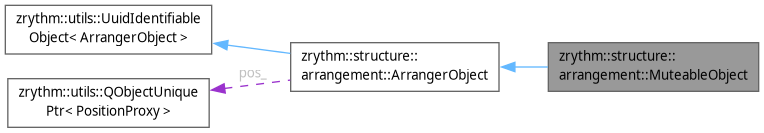

Collaboration diagram for zrythm::structure::arrangement::MuteableObject:

[legend]

Public Member Functions
virtual bool	get_muted (bool check_parent) const
	Gets the mute status of the object.

void	set_muted (bool muted, bool fire_events)
	Sets the mute status of the object.

Public Member Functions inherited from zrythm::structure::arrangement::ArrangerObject
auto	get_type () const

virtual utils::Utf8String	gen_human_friendly_name () const
	Generates a human readable name for the object.

bool	is_start_hit_by_range (const dsp::Position &start, const dsp::Position &end, bool range_start_inclusive=true, bool range_end_inclusive=false) const
	Returns whether the given object is hit by the given range.

bool	is_start_hit_by_range (const signed_frame_t global_frames_start, const signed_frame_t global_frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const

void	set_parent_on_base_qproperties (QObject &derived)
	Set the parent on QObject's that are children of this class.

auto	get_position () const
	Getter.

void	position_setter_validated (const dsp::Position &pos, dsp::TicksPerFrame ticks_per_frame)
	The setter is for use in e.g.

void	set_position_unvalidated (const dsp::Position &pos)

bool	is_position_valid (const dsp::Position &pos, PositionType pos_type, dsp::TicksPerFrame ticks_per_frame) const
	Returns if the given Position is valid.

bool	set_position (const dsp::Position &pos, PositionType pos_type, bool validate, dsp::TicksPerFrame ticks_per_frame)
	Sets the given position on the object, optionally attempting to validate before.

void	move (double ticks, dsp::FramesPerTick frames_per_tick)
	Moves the object by the given amount of ticks.

void	set_track_id (const TrackUuid &track_id)

void	set_track_id (std::optional< TrackUuid > track_id)

void	unset_track_id ()

void	update_positions (bool from_ticks, bool bpm_change, dsp::FramesPerTick frames_per_tick)
	Updates the positions in each child recursively.

auto	get_track () const
	Returns the Track this ArrangerObject is in.

std::optional< TrackUuid >	get_track_id () const

virtual bool	validate (bool is_project, dsp::FramesPerTick frames_per_tick) const =0
	Validates the arranger object.

virtual ArrangerObjectPtrVariant	add_clone_to_project (bool fire_events) const =0
	Appends the ArrangerObject to where it belongs in the project (eg, a Track), without taking into account its previous index (eg, before deletion if undoing).

virtual ArrangerObjectPtrVariant	insert_clone_to_project () const =0
	Inserts the object where it belongs in the project (eg, a Track).

std::optional< ArrangerObjectPtrVariant >	remove_from_project (bool free_obj, bool fire_events=false)
	Removes the object (which can be obtained from find_in_project()) from its parent in the project.

void	set_selection_status_getter (SelectionStatusGetter getter)

void	unset_selection_status_getter ()

virtual bool	is_deletable () const
	Returns whether the given object is deletable or not (eg, start marker).

Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (const Uuid &id)

	UuidIdentifiableObject (const UuidIdentifiableObject &other)=default

	UuidIdentifiableObject (UuidIdentifiableObject &&other)=default

UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default

UuidIdentifiableObject &	operator= (UuidIdentifiableObject &&other)=default

auto	get_uuid () const

Data Fields
bool	muted_ = false
	Whether muted or not.

Data Fields inherited from zrythm::structure::arrangement::ArrangerObject
Flags	flags_ {}
	Flags.

Friends
void	init_from (MuteableObject &obj, const MuteableObject &other, utils::ObjectCloneType clone_type)

void	to_json (nlohmann::json &j, const MuteableObject &object)

void	from_json (const nlohmann::json &j, MuteableObject &object)

Additional Inherited Members
Public Types inherited from zrythm::structure::arrangement::ArrangerObject
enum class	ResizeType : basic_enum_base_type_t { Normal , Loop , Fade , Stretch , StretchTempoChange }
	Flag used in some functions. More...

enum class	Type : basic_enum_base_type_t { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint }
	The type of the object. More...

enum class	Flags : basic_enum_base_type_t { NonProject = 1 << 0 }
	Flags. More...

enum class	PositionType : basic_enum_base_type_t { Start , End , ClipStart , LoopStart , LoopEnd , FadeIn , FadeOut }

using	SelectionStatusGetter = std::function<bool (const Uuid &)>

using	TrackUuid = structure::tracks::TrackUuid

using	Track = structure::tracks::Track

using	TrackResolver = structure::tracks::TrackResolver

using	TrackPtrVariant = structure::tracks::TrackPtrVariant

using	Position = zrythm::dsp::Position

using	ArrangerObjectPtr = ArrangerObject *

Static Public Attributes inherited from zrythm::structure::arrangement::ArrangerObject
static constexpr double	DEFAULT_NUDGE_TICKS = 0.1

Protected Member Functions inherited from zrythm::structure::arrangement::ArrangerObject
	ArrangerObject (Type type, TrackResolver track_resolver) noexcept

bool	are_members_valid (bool is_project, dsp::FramesPerTick frames_per_tick) const
	To be called by validate() implementations.

Protected Attributes inherited from zrythm::structure::arrangement::ArrangerObject
TrackResolver	track_resolver_

utils::QObjectUniquePtr< PositionProxy >	pos_
	Position (or start Position if the object has length).

std::optional< TrackUuid >	track_id_
	ID of the track this object belongs to.

std::optional< SelectionStatusGetter >	selection_status_getter_

Detailed Description

Definition at line 11 of file muteable_object.h.

Constructor & Destructor Documentation

◆ MuteableObject()

zrythm::structure::arrangement::MuteableObject::MuteableObject ( )

inlinenoexcept

Definition at line 15 of file muteable_object.h.

Member Function Documentation

◆ get_muted()

virtual bool zrythm::structure::arrangement::MuteableObject::get_muted ( bool check_parent ) const

inlinevirtual

Gets the mute status of the object.

Parameters

check_parent Whether to check parent (parent region or parent track lane if region), otherwise only whether this object itself is muted is returned. This will take the solo status of other lanes if true and if this is a region that can have lanes.

Reimplemented in zrythm::structure::arrangement::AudioRegion, zrythm::structure::arrangement::AutomationRegion, zrythm::structure::arrangement::RegionImpl< RegionT >, zrythm::structure::arrangement::RegionImpl< AudioRegion >, zrythm::structure::arrangement::RegionImpl< AutomationRegion >, zrythm::structure::arrangement::RegionImpl< ChordRegion >, zrythm::structure::arrangement::RegionImpl< ChordRegion >, and zrythm::structure::arrangement::RegionImpl< MidiRegion >.

Definition at line 27 of file muteable_object.h.

Friends And Related Symbol Documentation

◆ from_json

void from_json	(	const nlohmann::json &	j,
		MuteableObject &	object )

friend

Definition at line 46 of file muteable_object.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const MuteableObject &	object )

friend

Definition at line 42 of file muteable_object.h.

Field Documentation

◆ muted_

bool zrythm::structure::arrangement::MuteableObject::muted_ = false

Whether muted or not.

Definition at line 53 of file muteable_object.h.

The documentation for this class was generated from the following file:

src/structure/arrangement/muteable_object.h
