Base class to be inherited by implementing undoable actions. More...

#include <src/gui/backend/backend/legacy_actions/undoable_action.h>

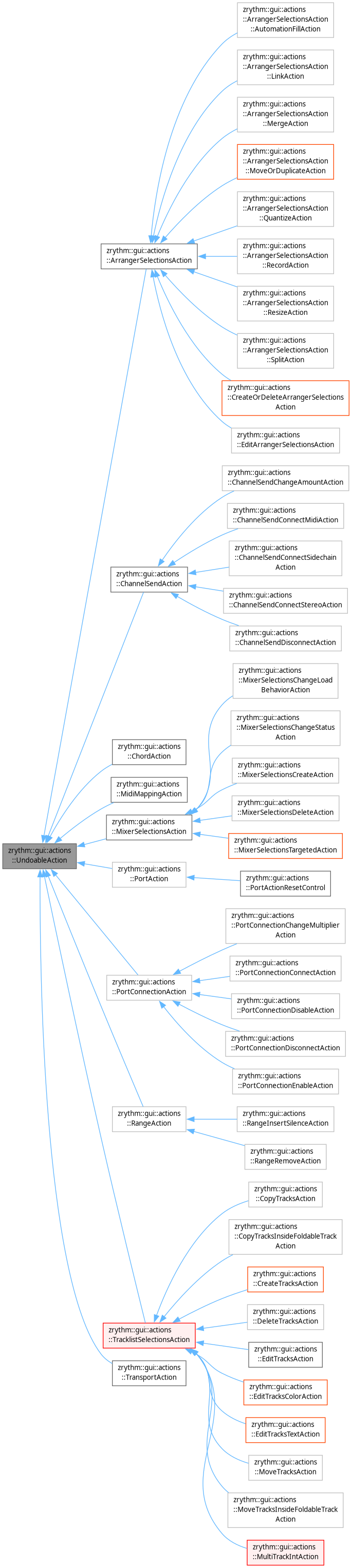

Inheritance diagram for zrythm::gui::actions::UndoableAction:

[legend]

Public Types
enum class	Type { TracklistSelections , ChannelSend , MixerSelections , ArrangerSelections , MidiMapping , PortConnection , Port , Range , Transport , Chord }
	Type of UndoableAction. More...
using	PortConnectionsManager = dsp::PortConnectionsManager

Public Member Functions
	UndoableAction (Type type)
	UndoableAction (Type type, dsp::FramesPerTick frames_per_tick, units::sample_rate_t sample_rate)
void	init_loaded (sample_rate_t engine_sample_rate)
	Non virtual function following the NVI pattern.
virtual bool	needs_pause () const
	Returns whether the action requires pausing the engine.
virtual bool	needs_transport_total_bar_update (bool perform) const
	Returns whether the total transport bars need to be recalculated.
virtual bool	affects_audio_region_internal_positions () const
	Whether audio region loop/fade/etc.
virtual void	get_plugins (std::vector< plugins::Plugin * > &plugins)
	Get the plugins referenced in this action.
auto	get_frames_per_tick () const
auto	get_ticks_per_frame () const
void	set_num_actions (int num_actions)
	Sets the number of actions for this action.
void	save_or_load_port_connections (bool performing)
	To be used by actions that save/load port connections.
void	perform ()
	Performs the action.
void	undo ()
	Undoes the action.
virtual QString	to_string () const =0
	Stringizes the action to be used in Undo/Redo buttons.

Data Fields
Type	undoable_action_type_ {}
	Undoable action type.
dsp::FramesPerTick	frames_per_tick_
	A snapshot of AudioEngine.frames_per_tick when the action is executed.
units::sample_rate_t	sample_rate_ = 0
	Sample rate of this action.
int	num_actions_ = 1
	Number of actions to perform.
std::unique_ptr< dsp::PortConnectionsManager >	port_connections_before_
	An (optional) clone of the port connections at the start of the action, used for reverting port connections when undoing.
std::unique_ptr< dsp::PortConnectionsManager >	port_connections_after_

Friends
void	init_from (UndoableAction &obj, const UndoableAction &other, utils::ObjectCloneType clone_type)

Detailed Description

Base class to be inherited by implementing undoable actions.

Definition at line 26 of file undoable_action.h.

Member Typedef Documentation

◆ PortConnectionsManager

using zrythm::gui::actions::UndoableAction::PortConnectionsManager = dsp::PortConnectionsManager

Definition at line 29 of file undoable_action.h.

Member Enumeration Documentation

◆ Type

enum class zrythm::gui::actions::UndoableAction::Type

strong

Type of UndoableAction.

Definition at line 34 of file undoable_action.h.

Member Function Documentation

◆ affects_audio_region_internal_positions()

virtual bool zrythm::gui::actions::UndoableAction::affects_audio_region_internal_positions ( ) const

inlinevirtual

Whether audio region loop/fade/etc.

positions are affected by this undoable action.

Used to correct off-by-one errors when changing BPM or resampling or something that causes position conversions.

Definition at line 103 of file undoable_action.h.

◆ get_frames_per_tick()

auto zrythm::gui::actions::UndoableAction::get_frames_per_tick ( ) const

inline

Definition at line 112 of file undoable_action.h.

◆ get_plugins()

virtual void zrythm::gui::actions::UndoableAction::get_plugins ( std::vector< plugins::Plugin * > & plugins )

inlinevirtual

Get the plugins referenced in this action.

Parameters

plugins

Definition at line 110 of file undoable_action.h.

◆ get_ticks_per_frame()

auto zrythm::gui::actions::UndoableAction::get_ticks_per_frame ( ) const

inline

Definition at line 113 of file undoable_action.h.

◆ init_loaded()

void zrythm::gui::actions::UndoableAction::init_loaded ( sample_rate_t engine_sample_rate )

Non virtual function following the NVI pattern.

See also: init_loaded_impl().

◆ needs_pause()

virtual bool zrythm::gui::actions::UndoableAction::needs_pause ( ) const

inlinevirtual

Returns whether the action requires pausing the engine.

Reimplemented in zrythm::gui::actions::ArrangerSelectionsAction, and zrythm::gui::actions::TracklistSelectionsAction.

Definition at line 83 of file undoable_action.h.

◆ needs_transport_total_bar_update()

virtual bool zrythm::gui::actions::UndoableAction::needs_transport_total_bar_update ( bool perform ) const

inlinevirtual

Returns whether the total transport bars need to be recalculated.

Note: Some actions already handle this logic so return false here to avoid unnecessary calculations.

Reimplemented in zrythm::gui::actions::ArrangerSelectionsAction, and zrythm::gui::actions::TracklistSelectionsAction.

Definition at line 91 of file undoable_action.h.

◆ perform()

void zrythm::gui::actions::UndoableAction::perform ( )

Performs the action.

Note: Only to be called by undo manager.

Exceptions

ZrythmException on error.

◆ save_or_load_port_connections()

void zrythm::gui::actions::UndoableAction::save_or_load_port_connections ( bool performing )

To be used by actions that save/load port connections.

Parameters

performing True if doing/performing, false if undoing.

◆ set_num_actions()

void zrythm::gui::actions::UndoableAction::set_num_actions ( int num_actions )

Sets the number of actions for this action.

This should be set on the last action to be performed.

◆ to_string()

virtual QString zrythm::gui::actions::UndoableAction::to_string ( ) const

pure virtual

Stringizes the action to be used in Undo/Redo buttons.

Implemented in zrythm::gui::actions::ArrangerSelectionsAction, zrythm::gui::actions::ChannelSendAction, zrythm::gui::actions::ChordAction, zrythm::gui::actions::MidiMappingAction, zrythm::gui::actions::MixerSelectionsAction, zrythm::gui::actions::PortAction, zrythm::gui::actions::PortConnectionAction, zrythm::gui::actions::RangeAction, zrythm::gui::actions::TracklistSelectionsAction, and zrythm::gui::actions::TransportAction.

◆ undo()

void zrythm::gui::actions::UndoableAction::undo ( )

Undoes the action.

Exceptions

ZrythmException on error.

Field Documentation

◆ frames_per_tick_

dsp::FramesPerTick zrythm::gui::actions::UndoableAction::frames_per_tick_

A snapshot of AudioEngine.frames_per_tick when the action is executed.

Definition at line 173 of file undoable_action.h.

◆ num_actions_

int zrythm::gui::actions::UndoableAction::num_actions_ = 1

Number of actions to perform.

This is used to group multiple actions into one logical action (eg, create a group track and route multiple tracks to it).

To be set on the last action being performed.

Definition at line 191 of file undoable_action.h.

◆ port_connections_after_

std::unique_ptr<dsp::PortConnectionsManager> zrythm::gui::actions::UndoableAction::port_connections_after_

See also: port_connections_before_.

Definition at line 200 of file undoable_action.h.

◆ port_connections_before_

std::unique_ptr<dsp::PortConnectionsManager> zrythm::gui::actions::UndoableAction::port_connections_before_

An (optional) clone of the port connections at the start of the action, used for reverting port connections when undoing.

Definition at line 197 of file undoable_action.h.

◆ sample_rate_

units::sample_rate_t zrythm::gui::actions::UndoableAction::sample_rate_ = 0

Sample rate of this action.

Used to recalculate UndoableAction.frames_per_tick when the project is loaded under a new samplerate.

Definition at line 181 of file undoable_action.h.

◆ undoable_action_type_

Type zrythm::gui::actions::UndoableAction::undoable_action_type_ {}

Undoable action type.

Definition at line 170 of file undoable_action.h.

The documentation for this class was generated from the following file:

src/gui/backend/backend/legacy_actions/undoable_action.h
