zrythm::gui::actions::ChordAction Class Reference

Action for chord pad changes. More...

#include <src/gui/backend/backend/legacy_actions/chord_action.h>

Inheritance diagram for zrythm::gui::actions::ChordAction:

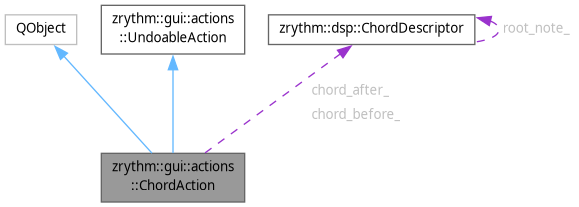

Collaboration diagram for zrythm::gui::actions::ChordAction:

Public Types
enum class	Type { Single , All }
	Type of chord action. More...
using	ChordDescriptor = dsp::ChordDescriptor
Public Types inherited from zrythm::gui::actions::UndoableAction
enum class	Type {   TracklistSelections , ChannelSend , MixerSelections , ArrangerSelections ,   MidiMapping , PortConnection , Port , Range ,   Transport , Chord }
	Type of UndoableAction. More...
using	PortConnectionsManager = dsp::PortConnectionsManager

Public Member Functions
	ChordAction (QObject *parent=nullptr)
	ChordAction (const std::vector< ChordDescriptor > &chords_before, const std::vector< ChordDescriptor > &chords_after, QObject *parent=nullptr)
	Creates a new action for changing all chords.
	ChordAction (const ChordDescriptor &chord, int chord_idx, QObject *parent=nullptr)
	Creates a new action for changing a single chord.
QString	to_string () const override
	Stringizes the action to be used in Undo/Redo buttons.
Public Member Functions inherited from zrythm::gui::actions::UndoableAction
	UndoableAction (Type type)
	UndoableAction (Type type, dsp::FramesPerTick frames_per_tick, sample_rate_t sample_rate)
void	init_loaded (sample_rate_t engine_sample_rate)
	Non virtual function following the NVI pattern.
virtual bool	needs_pause () const
	Returns whether the action requires pausing the engine.
virtual bool	needs_transport_total_bar_update (bool perform) const
	Returns whether the total transport bars need to be recalculated.
virtual bool	affects_audio_region_internal_positions () const
	Whether audio region loop/fade/etc.
virtual void	get_plugins (std::vector< plugins::Plugin * > &plugins)
	Get the plugins referenced in this action.
auto	get_frames_per_tick () const
auto	get_ticks_per_frame () const
void	set_num_actions (int num_actions)
	Sets the number of actions for this action.
void	save_or_load_port_connections (bool performing)
	To be used by actions that save/load port connections.
void	perform ()
	Performs the action.
void	undo ()
	Undoes the action.

Data Fields
Type	type_ = (Type) 0
ChordDescriptor	chord_before_
ChordDescriptor	chord_after_
int	chord_idx_ = 0
std::vector< ChordDescriptor >	chords_before_
	Chords before the change.
std::vector< ChordDescriptor >	chords_after_
	Chords after the change.
Data Fields inherited from zrythm::gui::actions::UndoableAction
Type	undoable_action_type_ {}
	Undoable action type.
dsp::FramesPerTick	frames_per_tick_
	A snapshot of AudioEngine.frames_per_tick when the action is executed.
sample_rate_t	sample_rate_ = 0
	Sample rate of this action.
int	num_actions_ = 1
	Number of actions to perform.
std::unique_ptr< dsp::PortConnectionsManager >	port_connections_before_
	An (optional) clone of the port connections at the start of the action, used for reverting port connections when undoing.
std::unique_ptr< dsp::PortConnectionsManager >	port_connections_after_

Friends
void	init_from (ChordAction &obj, const ChordAction &other, utils::ObjectCloneType clone_type)

Detailed Description

Action for chord pad changes.

Definition at line 15 of file chord_action.h.

Member Typedef Documentation

ChordDescriptor

using zrythm::gui::actions::ChordAction::ChordDescriptor = dsp::ChordDescriptor

Definition at line 22 of file chord_action.h.

Member Enumeration Documentation

Type

enum class zrythm::gui::actions::ChordAction::Type

strong

Type of chord action.

Enumerator
Single	Change single chord.
All	Change all chords.

Definition at line 27 of file chord_action.h.

Constructor & Destructor Documentation

ChordAction() [1/2]

zrythm::gui::actions::ChordAction::ChordAction	(	const std::vector< ChordDescriptor > &	chords_before,
		const std::vector< ChordDescriptor > &	chords_after,
		QObject *	parent = nullptr )

Creates a new action for changing all chords.

Parameters

chords_before	Chords before the action.
chords_after	Chords after the action.

ChordAction() [2/2]

zrythm::gui::actions::ChordAction::ChordAction	(	const ChordDescriptor &	chord,
		int	chord_idx,
		QObject *	parent = nullptr )

Creates a new action for changing a single chord.

Parameters

chord	Chord after the change.
chord_idx	Index of the chord to change.

Member Function Documentation

to_string()

QString zrythm::gui::actions::ChordAction::to_string ( ) const

overridevirtual

Stringizes the action to be used in Undo/Redo buttons.

Implements zrythm::gui::actions::UndoableAction.

Field Documentation

chord_after_

ChordDescriptor zrythm::gui::actions::ChordAction::chord_after_

Definition at line 80 of file chord_action.h.

chord_before_

ChordDescriptor zrythm::gui::actions::ChordAction::chord_before_

Definition at line 79 of file chord_action.h.

chord_idx_

int zrythm::gui::actions::ChordAction::chord_idx_ = 0

Definition at line 81 of file chord_action.h.

chords_after_

std::vector<ChordDescriptor> zrythm::gui::actions::ChordAction::chords_after_

Chords after the change.

Definition at line 87 of file chord_action.h.

chords_before_

std::vector<ChordDescriptor> zrythm::gui::actions::ChordAction::chords_before_

Chords before the change.

Definition at line 84 of file chord_action.h.

type_

Type zrythm::gui::actions::ChordAction::type_ = (Type) 0

Definition at line 77 of file chord_action.h.

---

The documentation for this class was generated from the following file:

• src/gui/backend/backend/legacy_actions/chord_action.h
