An action that performs changes to the arranger selections. More...

#include <src/gui/backend/backend/legacy_actions/arranger_selections_action.h>

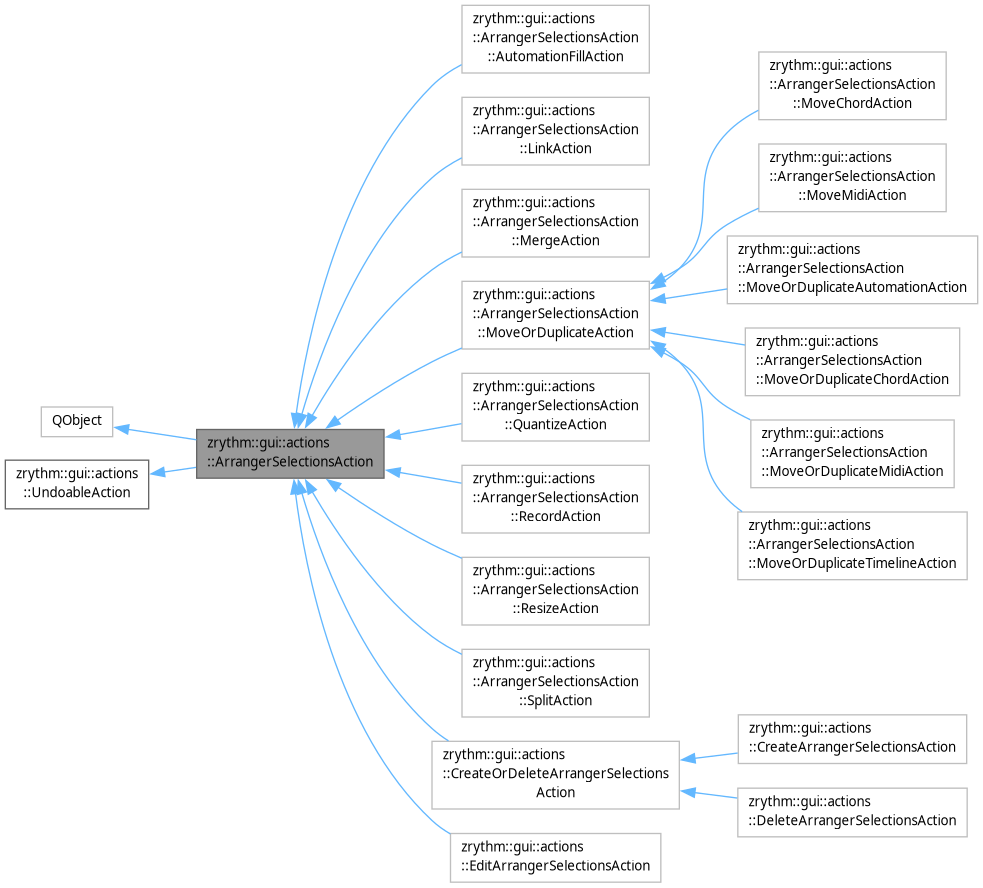

Inheritance diagram for zrythm::gui::actions::ArrangerSelectionsAction:

[legend]

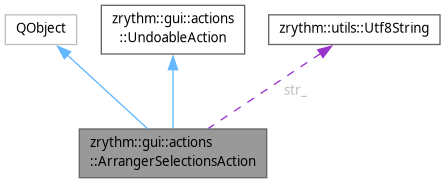

Collaboration diagram for zrythm::gui::actions::ArrangerSelectionsAction:

[legend]

Data Structures
class	RecordAction
class	MoveOrDuplicateAction
class	MoveOrDuplicateTimelineAction
class	MoveOrDuplicateMidiAction
class	MoveOrDuplicateChordAction
class	MoveOrDuplicateAutomationAction
class	MoveMidiAction
class	MoveChordAction
class	LinkAction
class	AutomationFillAction
class	SplitAction
class	MergeAction
class	ResizeAction
class	QuantizeAction

Public Types
enum class	Type { AutomationFill , Create , Delete , Duplicate , Edit , Link , Merge , Move , Quantize , Record , Resize , Split }
enum class	ResizeType { L , R , LLoop , RLoop , LFade , RFade , LStretch , RStretch }
	Type used when the action is a RESIZE action. More...
enum class	EditType { Name , Position , Primitive , Scale , Fades , Mute , EditorFunction }
	Type used when the action is an EDIT action. More...
using	Position = zrythm::dsp::Position
Public Types inherited from zrythm::gui::actions::UndoableAction
enum class	Type { TracklistSelections , ChannelSend , MixerSelections , ArrangerSelections , MidiMapping , PortConnection , Port , Range , Transport , Chord }
	Type of UndoableAction. More...
using	PortConnectionsManager = dsp::PortConnectionsManager

Public Member Functions
ArrangerObjectRegistry &	get_arranger_object_registry () const
bool	needs_transport_total_bar_update (bool perform) const override
	Returns whether the total transport bars need to be recalculated.
bool	needs_pause () const override
	Returns whether the action requires pausing the engine.
QString	to_string () const final
	Stringizes the action to be used in Undo/Redo buttons.
Public Member Functions inherited from zrythm::gui::actions::UndoableAction
	UndoableAction (Type type)
	UndoableAction (Type type, dsp::FramesPerTick frames_per_tick, sample_rate_t sample_rate)
void	init_loaded (sample_rate_t engine_sample_rate)
	Non virtual function following the NVI pattern.
virtual bool	affects_audio_region_internal_positions () const
	Whether audio region loop/fade/etc.
virtual void	get_plugins (std::vector< plugins::Plugin * > &plugins)
	Get the plugins referenced in this action.
auto	get_frames_per_tick () const
auto	get_ticks_per_frame () const
void	set_num_actions (int num_actions)
	Sets the number of actions for this action.
void	save_or_load_port_connections (bool performing)
	To be used by actions that save/load port connections.
void	perform ()
	Performs the action.
void	undo ()
	Undoes the action.

Data Fields
Type	type_ {}
	Action type.
std::optional< std::vector< ArrangerObjectPtrVariant > >	sel_
	A clone of the ArrangerSelections before the change.
std::optional< std::vector< ArrangerObjectPtrVariant > >	sel_after_
	A clone of the ArrangerSelections after the change (used in the EDIT action and quantize).
EditType	edit_type_ {}
	Type of edit action, if an Edit action.
double	ticks_ {}
	Ticks diff.
int	delta_tracks_ {}
	Tracks moved.
int	delta_lanes_ {}
	Lanes moved.
int	delta_chords_ = 0
	Chords moved (up/down in the Chord editor).
int	delta_pitch_ = 0
	Delta of MidiNote pitch.
int	delta_vel_ = 0
	Delta of MidiNote velocity.
double	delta_normalized_amount_ = 0.0
	Difference in a normalized amount, such as automation point normalized value.
std::optional< std::pair< Position, Position > >	selected_positions_in_audio_editor_
std::optional< ArrangerObject::Uuid >	clip_editor_region_id_
	Clip editor region ID (for non-timeline actions).
std::optional< dsp::PortUuid >	target_port_
	Target port (used to find corresponding automation track when moving/copying automation regions to another automation track/another track).
utils::Utf8String	str_
	String, when changing a string.
Position	pos_
	Position, when changing a Position.
std::vector< ArrangerObject::Uuid >	r1_
	Used when splitting - these are the split BoundedObject's.
std::vector< ArrangerObject::Uuid >	r2_
bool	first_run_ = false
	Number of split objects.
std::unique_ptr< gui::old_dsp::QuantizeOptions >	opts_ {}
	QuantizeOptions clone, if quantizing.
std::optional< ArrangerObjectPtrVariant >	region_before_
	Used for automation autofill action.
std::optional< ArrangerObjectPtrVariant >	region_after_
ResizeType	resize_type_ = (ResizeType) 0
	Used by the resize action.
Data Fields inherited from zrythm::gui::actions::UndoableAction
Type	undoable_action_type_ {}
	Undoable action type.
dsp::FramesPerTick	frames_per_tick_
	A snapshot of AudioEngine.frames_per_tick when the action is executed.
sample_rate_t	sample_rate_ = 0
	Sample rate of this action.
int	num_actions_ = 1
	Number of actions to perform.
std::unique_ptr< dsp::PortConnectionsManager >	port_connections_before_
	An (optional) clone of the port connections at the start of the action, used for reverting port connections when undoing.
std::unique_ptr< dsp::PortConnectionsManager >	port_connections_after_

Protected Member Functions
	ArrangerSelectionsAction (ArrangerObjectSpan before_sel, Type type)
	Generic constructor to be used by others.
void	set_before_selections (ArrangerObjectSpan src_var)
	Sets sel_ to a clone of `src`.
void	set_after_selections (ArrangerObjectSpan src_var)
	Sets sel_after_ to a clone of `src`.

Friends
void	init_from (ArrangerSelectionsAction &obj, const ArrangerSelectionsAction &other, utils::ObjectCloneType clone_type)

Detailed Description

An action that performs changes to the arranger selections.

This class represents an undoable action that can be performed on the arranger selections, such as creating, deleting, moving, or resizing selected objects.

The action has a Type enum that specifies the type of action being performed, such as Create, Delete, Move, or Resize. For Resize actions, there is a ResizeType enum that specifies the type of resize operation. For Edit actions, there is an EditType enum that specifies the type of edit operation, such as changing the name or position of the selected objects.

Definition at line 29 of file arranger_selections_action.h.

Member Typedef Documentation

◆ Position

using zrythm::gui::actions::ArrangerSelectionsAction::Position = zrythm::dsp::Position

Definition at line 115 of file arranger_selections_action.h.

Member Enumeration Documentation

◆ EditType

enum class zrythm::gui::actions::ArrangerSelectionsAction::EditType

strong

Type used when the action is an EDIT action.

Enumerator
Name	Edit the name of objects in the selection.
Position	Edit a Position of objects in the selection. This will just set all of the positions on the object.
Primitive	Edit a primitive (int, etc) member of objects in the selection. This will simply set all relevant primitive values in an ArrangerObject when doing/undoing.
Scale	For editing the MusicalScale inside ScaleObjects.
Fades	Editing fade positions or curve options.
Mute	Change mute status.
EditorFunction	For ramping MidiNote velocities or AutomationPoint values. (this is handled by EDIT_PRIMITIVE) MIDI function.

Definition at line 78 of file arranger_selections_action.h.

◆ ResizeType

enum class zrythm::gui::actions::ArrangerSelectionsAction::ResizeType

strong

Type used when the action is a RESIZE action.

Definition at line 63 of file arranger_selections_action.h.

◆ Type

enum class zrythm::gui::actions::ArrangerSelectionsAction::Type

strong

Definition at line 44 of file arranger_selections_action.h.

Constructor & Destructor Documentation

◆ ArrangerSelectionsAction()

zrythm::gui::actions::ArrangerSelectionsAction::ArrangerSelectionsAction	(	ArrangerObjectSpan	before_sel,
		Type	type )

inlineprotected

Generic constructor to be used by others.

Internally calls set_before_selections().

Parameters

before_sel Selections before the change.

Definition at line 162 of file arranger_selections_action.h.

Member Function Documentation

◆ needs_pause()

bool zrythm::gui::actions::ArrangerSelectionsAction::needs_pause ( ) const

inlineoverridevirtual

Returns whether the action requires pausing the engine.

Reimplemented from zrythm::gui::actions::UndoableAction.

Definition at line 146 of file arranger_selections_action.h.

◆ needs_transport_total_bar_update()

bool zrythm::gui::actions::ArrangerSelectionsAction::needs_transport_total_bar_update ( bool perform ) const

overridevirtual

Returns whether the total transport bars need to be recalculated.

Note: Some actions already handle this logic so return false here to avoid unnecessary calculations.

Reimplemented from zrythm::gui::actions::UndoableAction.

◆ set_after_selections()

void zrythm::gui::actions::ArrangerSelectionsAction::set_after_selections ( ArrangerObjectSpan src_var )

protected

Sets sel_after_ to a clone of src.

Parameters

src

◆ set_before_selections()

void zrythm::gui::actions::ArrangerSelectionsAction::set_before_selections ( ArrangerObjectSpan src_var )

protected

Sets sel_ to a clone of src.

Parameters

src

◆ to_string()

QString zrythm::gui::actions::ArrangerSelectionsAction::to_string ( ) const

nodiscardfinalvirtual

Stringizes the action to be used in Undo/Redo buttons.

Implements zrythm::gui::actions::UndoableAction.

Field Documentation

◆ clip_editor_region_id_

std::optional<ArrangerObject::Uuid> zrythm::gui::actions::ArrangerSelectionsAction::clip_editor_region_id_

Clip editor region ID (for non-timeline actions).

Definition at line 264 of file arranger_selections_action.h.

◆ delta_chords_

int zrythm::gui::actions::ArrangerSelectionsAction::delta_chords_ = 0

Chords moved (up/down in the Chord editor).

Definition at line 249 of file arranger_selections_action.h.

◆ delta_lanes_

int zrythm::gui::actions::ArrangerSelectionsAction::delta_lanes_ {}

Lanes moved.

Definition at line 247 of file arranger_selections_action.h.

◆ delta_normalized_amount_

double zrythm::gui::actions::ArrangerSelectionsAction::delta_normalized_amount_ = 0.0

Difference in a normalized amount, such as automation point normalized value.

Definition at line 258 of file arranger_selections_action.h.

◆ delta_pitch_

int zrythm::gui::actions::ArrangerSelectionsAction::delta_pitch_ = 0

Delta of MidiNote pitch.

Definition at line 251 of file arranger_selections_action.h.

◆ delta_tracks_

int zrythm::gui::actions::ArrangerSelectionsAction::delta_tracks_ {}

Tracks moved.

Definition at line 245 of file arranger_selections_action.h.

◆ delta_vel_

int zrythm::gui::actions::ArrangerSelectionsAction::delta_vel_ = 0

Delta of MidiNote velocity.

Definition at line 253 of file arranger_selections_action.h.

◆ edit_type_

EditType zrythm::gui::actions::ArrangerSelectionsAction::edit_type_ {}

Type of edit action, if an Edit action.

Definition at line 240 of file arranger_selections_action.h.

◆ first_run_

bool zrythm::gui::actions::ArrangerSelectionsAction::first_run_ = false

Number of split objects.

If this is true, the first "do" call does nothing in some cases.

Can be ignored depending on the action.

Definition at line 289 of file arranger_selections_action.h.

◆ opts_

std::unique_ptr<gui::old_dsp::QuantizeOptions> zrythm::gui::actions::ArrangerSelectionsAction::opts_ {}

QuantizeOptions clone, if quantizing.

Definition at line 292 of file arranger_selections_action.h.

◆ pos_

Position zrythm::gui::actions::ArrangerSelectionsAction::pos_

Position, when changing a Position.

Definition at line 275 of file arranger_selections_action.h.

◆ r1_

std::vector<ArrangerObject::Uuid> zrythm::gui::actions::ArrangerSelectionsAction::r1_

Used when splitting - these are the split BoundedObject's.

Definition at line 278 of file arranger_selections_action.h.

◆ r2_

std::vector<ArrangerObject::Uuid> zrythm::gui::actions::ArrangerSelectionsAction::r2_

Definition at line 279 of file arranger_selections_action.h.

◆ region_after_

std::optional<ArrangerObjectPtrVariant> zrythm::gui::actions::ArrangerSelectionsAction::region_after_

Definition at line 298 of file arranger_selections_action.h.

◆ region_before_

std::optional<ArrangerObjectPtrVariant> zrythm::gui::actions::ArrangerSelectionsAction::region_before_

Used for automation autofill action.

These are assumed to be inherited from Region.

Definition at line 297 of file arranger_selections_action.h.

◆ resize_type_

ResizeType zrythm::gui::actions::ArrangerSelectionsAction::resize_type_ = (ResizeType) 0

Used by the resize action.

Definition at line 301 of file arranger_selections_action.h.

◆ sel_

std::optional<std::vector<ArrangerObjectPtrVariant> > zrythm::gui::actions::ArrangerSelectionsAction::sel_

A clone of the ArrangerSelections before the change.

Definition at line 231 of file arranger_selections_action.h.

◆ sel_after_

std::optional<std::vector<ArrangerObjectPtrVariant> > zrythm::gui::actions::ArrangerSelectionsAction::sel_after_

A clone of the ArrangerSelections after the change (used in the EDIT action and quantize).

Definition at line 237 of file arranger_selections_action.h.

◆ selected_positions_in_audio_editor_

std::optional<std::pair<Position, Position> > zrythm::gui::actions::ArrangerSelectionsAction::selected_positions_in_audio_editor_

Definition at line 261 of file arranger_selections_action.h.

◆ str_

utils::Utf8String zrythm::gui::actions::ArrangerSelectionsAction::str_

String, when changing a string.

Definition at line 272 of file arranger_selections_action.h.

◆ target_port_

std::optional<dsp::PortUuid> zrythm::gui::actions::ArrangerSelectionsAction::target_port_

Target port (used to find corresponding automation track when moving/copying automation regions to another automation track/another track).

Definition at line 269 of file arranger_selections_action.h.

◆ ticks_

double zrythm::gui::actions::ArrangerSelectionsAction::ticks_ {}

Ticks diff.

Definition at line 243 of file arranger_selections_action.h.

◆ type_

Type zrythm::gui::actions::ArrangerSelectionsAction::type_ {}

Action type.

Definition at line 228 of file arranger_selections_action.h.

The documentation for this class was generated from the following file:

src/gui/backend/backend/legacy_actions/arranger_selections_action.h

Data Structures

Public Types

Public Member Functions

Data Fields

Protected Member Functions

Friends

Detailed Description

Member Typedef Documentation

◆ Position

Member Enumeration Documentation

◆ EditType

◆ ResizeType

◆ Type

Constructor & Destructor Documentation

◆ ArrangerSelectionsAction()

Member Function Documentation

◆ needs_pause()

◆ needs_transport_total_bar_update()

◆ set_after_selections()

◆ set_before_selections()

◆ to_string()

Field Documentation

◆ clip_editor_region_id_

◆ delta_chords_

◆ delta_lanes_

◆ delta_normalized_amount_

◆ delta_pitch_

◆ delta_tracks_

◆ delta_vel_

◆ edit_type_

◆ first_run_

◆ opts_

◆ pos_

◆ r1_

◆ r2_

◆ region_after_

◆ region_before_

◆ resize_type_

◆ sel_

◆ sel_after_

◆ selected_positions_in_audio_editor_

◆ str_

◆ target_port_

◆ ticks_

◆ type_
