Handles the recording logic for the application. More...

#include <src/engine/session/recording_manager.h>

Inheritance diagram for zrythm::engine::session::RecordingManager:

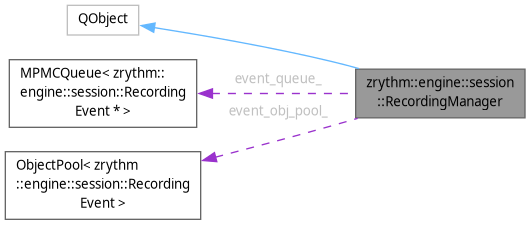

Collaboration diagram for zrythm::engine::session::RecordingManager:

[legend]

Public Types
using	AutomationTrack = structure::tracks::AutomationTrack
using	AutomationRegion = structure::arrangement::AutomationRegion
using	AutomationPoint = structure::arrangement::AutomationPoint

Public Member Functions
	RecordingManager (QObject *parent=nullptr)
	Creates the event queue and starts the event loop.
void	handle_recording (structure::tracks::TrackPtrVariant track_var, const EngineProcessTimeInfo &time_nfo, const dsp::MidiEventVector *midi_events, std::optional< structure::tracks::TrackProcessor::ConstStereoPortPair > stereo_ports)
	Handles the recording logic inside the process cycle.
Q_SLOT void	process_events ()
void	start_unended_note (structure::arrangement::MidiRegion &mr, double start_pos, std::optional< double > end_pos, int pitch, int vel)
	Starts an unended note with the given pitch and velocity and adds it to midi_notes_.
structure::arrangement::MidiNote *	pop_unended_note (structure::arrangement::MidiRegion &mr, int pitch)
	Returns the midi note with the given pitch from the unended notes.
void	get_aps_since_last_recorded (const structure::arrangement::AutomationRegion &ar, signed_frame_t pos, std::vector< AutomationPoint * > &aps) const
	Returns the automation points since the last recorded automation point (if the last recorded automation point was before the current pos).

Data Fields
int	num_active_recordings_ = 0
	Number of recordings currently in progress.
MPMCQueue< RecordingEvent * >	event_queue_
	Event queue.
ObjectPool< RecordingEvent >	event_obj_pool_
	Memory pool of event structs to avoid real time allocation.
std::vector< structure::arrangement::ArrangerObjectPtrVariant >	objects_before_start_
	Cloned objects before starting recording.
std::vector< structure::arrangement::ArrangerObject::Uuid >	recorded_ids_
	Recorded region identifiers, to be used for creating the undoable actions.
std::unordered_map< structure::arrangement::ArrangerObjectUuid, std::vector< QPointer< structure::arrangement::MidiNote > > >	unended_notes_per_region_
	Unended notes started in recording with MIDI NOTE ON signal but haven't received a NOTE OFF yet.
std::unordered_map< structure::tracks::Track::Uuid, std::vector< QPointer< AutomationTrack > > >	ats_in_record_mode_
	Cache of automation tracks in record mode, used to avoid looping over all automation tracks.
std::unordered_map< structure::arrangement::ArrangerObjectUuid, QPointer< AutomationPoint > >	last_recorded_aps_per_region_
	Last recorded automation points.
std::unordered_map< structure::tracks::Track::Uuid, structure::arrangement::ArrangerObject::Uuid >	recording_region_per_track_
	Region currently recording on.
std::unordered_set< structure::tracks::Track::Uuid >	tracks_recording_stop_was_sent_to_
	Tracks that recording stop event was sent.
std::unordered_set< structure::tracks::Track::Uuid >	tracks_recording_start_was_sent_to_
std::unordered_set< structure::tracks::Track::Uuid >	tracks_recording_was_paused_
	This must only be set by the RecordingManager when temporarily pausing recording, eg when looping or leaving the punch range.
std::vector< structure::arrangement::AutomationPoint * >	pending_aps_
	Pending recorded automation points.
bool	currently_processing_ = false
std::binary_semaphore	processing_sem_ { 1 }
bool	freeing_ = false

Detailed Description

Handles the recording logic for the application.

This class is responsible for managing the recording process, including handling recording events, creating new regions, and managing automation points. It uses a queue to process recording events in a separate thread, and provides methods for starting, pausing, and stopping recording.

The class is designed to be thread-safe, with a binary semaphore to ensure that only one thread can access the recording logic at a time.

Definition at line 39 of file recording_manager.h.

Member Typedef Documentation

◆ AutomationPoint

using zrythm::engine::session::RecordingManager::AutomationPoint = structure::arrangement::AutomationPoint

Definition at line 44 of file recording_manager.h.

◆ AutomationRegion

using zrythm::engine::session::RecordingManager::AutomationRegion = structure::arrangement::AutomationRegion

Definition at line 43 of file recording_manager.h.

◆ AutomationTrack

using zrythm::engine::session::RecordingManager::AutomationTrack = structure::tracks::AutomationTrack

Definition at line 42 of file recording_manager.h.

Constructor & Destructor Documentation

◆ RecordingManager()

zrythm::engine::session::RecordingManager::RecordingManager ( QObject * parent = nullptr )

Creates the event queue and starts the event loop.

Must be called from a GTK thread.

Member Function Documentation

◆ handle_recording()

void zrythm::engine::session::RecordingManager::handle_recording	(	structure::tracks::TrackPtrVariant	track_var,
		const EngineProcessTimeInfo &	time_nfo,
		const dsp::MidiEventVector *	midi_events,
		std::optional< structure::tracks::TrackProcessor::ConstStereoPortPair >	stereo_ports )

Handles the recording logic inside the process cycle.

The MidiEvents are already dequeued at this point.

Parameters

g_frames_start	Global start frames.
nframes	Number of frames to process. If this is zero, a pause will be added. See RECORDING_EVENT_TYPE_PAUSE_TRACK_RECORDING and RECORDING_EVENT_TYPE_PAUSE_AUTOMATION_RECORDING.

◆ pop_unended_note()

structure::arrangement::MidiNote * zrythm::engine::session::RecordingManager::pop_unended_note	(	structure::arrangement::MidiRegion &	mr,
		int	pitch )

Returns the midi note with the given pitch from the unended notes.

Used when recording.

Parameters

pitch The pitch. If -1, it returns any unended note. This is useful when the loop point is met and we want to end them all.

◆ start_unended_note()

void zrythm::engine::session::RecordingManager::start_unended_note	(	structure::arrangement::MidiRegion &	mr,
		double	start_pos,
		std::optional< double >	end_pos,
		int	pitch,
		int	vel )

Starts an unended note with the given pitch and velocity and adds it to midi_notes_.

Parameters

start_pos	Position in ticks.
end_pos	If this is nullopt, it will be set to 1 tick after the start_pos.

Field Documentation

◆ ats_in_record_mode_

std::unordered_map< structure::tracks::Track::Uuid, std::vector<QPointer<AutomationTrack> > > zrythm::engine::session::RecordingManager::ats_in_record_mode_

Cache of automation tracks in record mode, used to avoid looping over all automation tracks.

Definition at line 236 of file recording_manager.h.

◆ currently_processing_

bool zrythm::engine::session::RecordingManager::currently_processing_ = false

Definition at line 281 of file recording_manager.h.

◆ event_obj_pool_

ObjectPool<RecordingEvent> zrythm::engine::session::RecordingManager::event_obj_pool_

Memory pool of event structs to avoid real time allocation.

FIXME: just use another filled MPMCQueue and delete this hacky ObjectPool implementation.

Definition at line 209 of file recording_manager.h.

◆ event_queue_

MPMCQueue<RecordingEvent *> zrythm::engine::session::RecordingManager::event_queue_

Event queue.

Definition at line 201 of file recording_manager.h.

◆ freeing_

bool zrythm::engine::session::RecordingManager::freeing_ = false

Definition at line 284 of file recording_manager.h.

◆ last_recorded_aps_per_region_

std::unordered_map< structure::arrangement::ArrangerObjectUuid, QPointer<AutomationPoint> > zrythm::engine::session::RecordingManager::last_recorded_aps_per_region_

Last recorded automation points.

Definition at line 242 of file recording_manager.h.

◆ num_active_recordings_

int zrythm::engine::session::RecordingManager::num_active_recordings_ = 0

Number of recordings currently in progress.

Definition at line 198 of file recording_manager.h.

◆ objects_before_start_

std::vector<structure::arrangement::ArrangerObjectPtrVariant> zrythm::engine::session::RecordingManager::objects_before_start_

Cloned objects before starting recording.

Definition at line 213 of file recording_manager.h.

◆ pending_aps_

std::vector<structure::arrangement::AutomationPoint *> zrythm::engine::session::RecordingManager::pending_aps_

Pending recorded automation points.

Definition at line 279 of file recording_manager.h.

◆ processing_sem_

std::binary_semaphore zrythm::engine::session::RecordingManager::processing_sem_ { 1 }

Definition at line 282 of file recording_manager.h.

◆ recorded_ids_

std::vector<structure::arrangement::ArrangerObject::Uuid> zrythm::engine::session::RecordingManager::recorded_ids_

Recorded region identifiers, to be used for creating the undoable actions.

Definition at line 218 of file recording_manager.h.

◆ recording_region_per_track_

std::unordered_map< structure::tracks::Track::Uuid, structure::arrangement::ArrangerObject::Uuid> zrythm::engine::session::RecordingManager::recording_region_per_track_

Region currently recording on.

This must only be set when processing an event.

Definition at line 252 of file recording_manager.h.

◆ tracks_recording_start_was_sent_to_

std::unordered_set<structure::tracks::Track::Uuid> zrythm::engine::session::RecordingManager::tracks_recording_start_was_sent_to_

Definition at line 268 of file recording_manager.h.

◆ tracks_recording_stop_was_sent_to_

std::unordered_set<structure::tracks::Track::Uuid> zrythm::engine::session::RecordingManager::tracks_recording_stop_was_sent_to_

Tracks that recording stop event was sent.

Ported from RecordableTrack. Below are old docs:

This is a flag to let the recording manager know that a STOP signal was already sent for recording.i

This is because recording_region_ takes a cycle or 2 to become NULL.

Definition at line 265 of file recording_manager.h.

◆ tracks_recording_was_paused_

std::unordered_set<structure::tracks::Track::Uuid> zrythm::engine::session::RecordingManager::tracks_recording_was_paused_

This must only be set by the RecordingManager when temporarily pausing recording, eg when looping or leaving the punch range.

See RECORDING_EVENT_TYPE_PAUSE_TRACK_RECORDING.

Definition at line 276 of file recording_manager.h.

◆ unended_notes_per_region_

std::unordered_map< structure::arrangement::ArrangerObjectUuid, std::vector<QPointer<structure::arrangement::MidiNote> > > zrythm::engine::session::RecordingManager::unended_notes_per_region_

Unended notes started in recording with MIDI NOTE ON signal but haven't received a NOTE OFF yet.

Definition at line 227 of file recording_manager.h.

The documentation for this class was generated from the following file:

src/engine/session/recording_manager.h
