zrythm::structure::arrangement::AutomationPoint Class Reference

An automation point inside an AutomationTrack. More...

#include <src/structure/arrangement/automation_point.h>

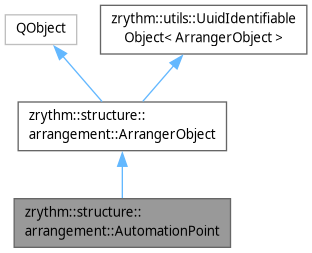

Inheritance diagram for zrythm::structure::arrangement::AutomationPoint:

Collaboration diagram for zrythm::structure::arrangement::AutomationPoint:

Public Member Functions
	AutomationPoint (const dsp::TempoMapWrapper &tempo_map_wrapper, QObject *parent=nullptr)
dsp::ContentPosition *	position () const override
float	value () const
void	setValue (float dval)
Q_SIGNAL void	valueChanged (float)
dsp::CurveOptionsQmlAdapter *	curveOpts () const
Public Member Functions inherited from zrythm::structure::arrangement::ArrangerObject
auto	type () const
dsp::ContentPosition *	length () const
ArrangerObjectName *	name () const
ArrangerObjectColor *	color () const
ArrangerObjectMuteFunctionality *	mute () const
Q_SIGNAL void	propertiesChanged ()
	Emitted when any of the properties of the object changed.
ArrangerObject *	parentObject () const
void	setParentObject (ArrangerObject *object)
Q_SIGNAL void	parentObjectChanged (QObject *parentObject)
const dsp::TempoMap &	get_tempo_map () const
const dsp::TempoMapWrapper &	get_tempo_map_wrapper () const
virtual std::vector< ArrangerObjectListModel * >	get_child_list_models () const
Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (QObject *parent=nullptr)
auto	get_uuid () const
Public Member Functions inherited from zrythm::utils::UuidIdentifiableBase
	UuidIdentifiableBase (QObject *parent=nullptr)
	UuidIdentifiableBase (const QUuid &id, QObject *parent=nullptr)
QUuid	raw_uuid () const

Properties
float	value
dsp::CurveOptionsQmlAdapter *	curveOpts
Properties inherited from zrythm::structure::arrangement::ArrangerObject
QML_ELEMENT zrythm::structure::arrangement::ArrangerObject *	parentObject
zrythm::structure::arrangement::ArrangerObject::Type	type
zrythm::dsp::Position *	position
zrythm::dsp::ContentPosition *	length
zrythm::structure::arrangement::ArrangerObjectName *	name
zrythm::structure::arrangement::ArrangerObjectColor *	color
zrythm::structure::arrangement::ArrangerObjectMuteFunctionality *	mute

Friends
void	init_from (AutomationPoint &obj, const AutomationPoint &other, utils::ObjectCloneType clone_type)
void	to_json (nlohmann::json &j, const AutomationPoint &point)
void	from_json (const nlohmann::json &j, AutomationPoint &point)

Additional Inherited Members
Public Types inherited from zrythm::structure::arrangement::ArrangerObject
enum class	Type : std::uint8_t {   MidiClip , AudioClip , ChordClip , AutomationClip ,   MidiControlEvent , MidiNote , ChordObject , ScaleObject ,   Marker , AutomationPoint , AudioSourceObject , TempoObject ,   TimeSignatureObject }
	The type of the object. More...
Public Types inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
using	uuid_base_type
	Exposes the CRTP parameter for concept checking.
Protected Types inherited from zrythm::structure::arrangement::ArrangerObject
enum class	ArrangerObjectFeatures : std::uint8_t {   Bounds = 1 << 0 , Name = 1 << 1 , Color = 1 << 2 , Mute = 1 << 3 ,   ClipOwned = 1 << 4 }
Protected Member Functions inherited from zrythm::structure::arrangement::ArrangerObject
	ArrangerObject (Type type, const dsp::TempoMapWrapper &tempo_map_wrapper, ArrangerObjectFeatures features, QObject *parent=nullptr) noexcept
	Construct a new ArrangerObject.
Protected Member Functions inherited from zrythm::utils::UuidIdentifiableBase
void	set_raw_uuid (const QUuid &id)

Detailed Description

An automation point inside an AutomationTrack.

Definition at line 15 of file automation_point.h.

Member Function Documentation

curveOpts()

dsp::CurveOptionsQmlAdapter * zrythm::structure::arrangement::AutomationPoint::curveOpts ( ) const

inline

Definition at line 51 of file automation_point.h.

position()

dsp::ContentPosition * zrythm::structure::arrangement::AutomationPoint::position ( ) const

inlineoverridevirtual

Reimplemented from zrythm::structure::arrangement::ArrangerObject.

Definition at line 30 of file automation_point.h.

setValue()

void zrythm::structure::arrangement::AutomationPoint::setValue ( float dval )

inline

Definition at line 40 of file automation_point.h.

value()

float zrythm::structure::arrangement::AutomationPoint::value ( ) const

inline

Definition at line 39 of file automation_point.h.

Property Documentation

curveOpts

dsp::CurveOptionsQmlAdapter * zrythm::structure::arrangement::AutomationPoint::curveOpts

read

Definition at line 19 of file automation_point.h.

value

float zrythm::structure::arrangement::AutomationPoint::value

readwrite

Definition at line 18 of file automation_point.h.

---

The documentation for this class was generated from the following file:

• src/structure/arrangement/automation_point.h
