zrythm::structure::tracks::MidiBusTrack Class Reference
A track that processes MIDI data. More...
#include <src/structure/tracks/midi_bus_track.h>

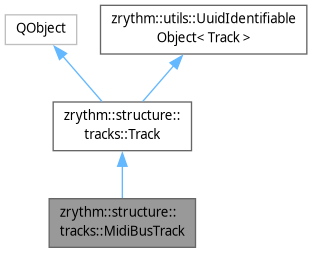

Inheritance diagram for zrythm::structure::tracks::MidiBusTrack:
Collaboration diagram for zrythm::structure::tracks::MidiBusTrack:
Public Member Functions | |
| MidiBusTrack (FinalTrackDependencies dependencies) | |
| Public Member Functions inherited from zrythm::structure::tracks::Track | |
| bool | has_piano_roll () const |
| bool | is_folder () const |
| bool | is_audio_group () const |
| bool | is_midi_group () const |
| bool | is_audio_bus () const |
| bool | is_midi_bus () const |
| bool | is_modulator () const |
| bool | is_chord () const |
| bool | is_marker () const |
| bool | is_audio () const |
| bool | is_instrument () const |
| bool | is_midi () const |
| bool | is_master () const |
| Type | type () const |
| AutomationTracklist * | automationTracklist () const |
| QString | name () const |
| void | setName (const QString &name) |
| Q_SIGNAL void | nameChanged (const QString &name) |
| QColor | color () const |
| void | setColor (const QColor &color) |
| Q_SIGNAL void | colorChanged (const QColor &color) |
| QString | comment () const |
| void | setComment (const QString &comment) |
| Q_SIGNAL void | commentChanged (const QString &comment) |
| bool | visible () const |
| void | setVisible (bool visible) |
| Q_SIGNAL void | visibleChanged (bool visible) |
| bool | enabled () const |
| void | setEnabled (bool enabled) |
| Q_SIGNAL void | enabledChanged (bool enabled) |
| double | height () const |
| void | setHeight (double height) |
| Q_SIGNAL void | heightChanged (double height) |
| double | fullVisibleHeight () const |
| Q_SIGNAL void | fullVisibleHeightChanged () |
| QString | icon () const |
| void | setIcon (const QString &icon) |
| Q_SIGNAL void | iconChanged (const QString &icon) |
| Channel * | channel () const |
| plugins::PluginGroup * | modulators () const |
| TrackLaneList * | lanes () const |
| RecordableTrackMixin * | recordableTrackMixin () const |
| PianoRollTrackMixin * | pianoRollTrackMixin () const |
| bool | clipLauncherMode () const |
| void | setClipLauncherMode (bool mode) |
| Q_SIGNAL void | clipLauncherModeChanged (bool mode) |
| Q_INVOKABLE void | regeneratePlaybackCaches (utils::ExpandableTickRange affectedRange) |
| To be connected to to notify of any changes to the playable content, like MIDI or audio events. | |
| bool | is_deletable () const |
| bool | is_copyable () const |
| bool | has_automation () const |
| double | get_full_visible_height () const |
| Returns the full visible height (main height + height of all visible automation tracks + height of all visible lanes). | |
| bool | multiply_heights (double multiplier, bool visible_only, bool check_only) |
| bool | can_be_group_target () const |
| template<arrangement::RegionObject RegionT> | |
| auto | generate_name_for_region (const RegionT ®ion, AutomationTrack *automation_track=nullptr) |
| void | collect_timeline_objects (std::vector< ArrangerObjectPtrVariant > &objects) const |
Appends all the timeine objects in the track to objects. | |
| bool | contains_uninstantiated_plugin () const |
| utils::Utf8String | get_name () const |
| Getter for the track name. | |
| auto | get_input_signal_type () const |
| auto | get_output_signal_type () const |
| uint8_t | get_midi_ch (const arrangement::MidiRegion &midi_region) const |
| Returns the MIDI channel that this region should be played on, starting from 1. | |
| void | collect_plugins (std::vector< plugins::PluginPtrVariant > &plugins) const |
| Fills in the given array with all plugins in the track. | |
| void | set_caches (CacheType types) |
| Set various caches (snapshots, track name hash, plugin input/output ports, etc). | |
| utils::Utf8String | get_full_designation_for_port (const dsp::Port &port) const |
| void | generate_basic_automation_tracks () |
| Adds basic automation tracks. | |
| auto & | get_plugin_registry () const |
| auto & | get_plugin_registry () |
| auto & | get_port_registry () const |
| auto & | get_port_registry () |
| auto & | get_param_registry () const |
| auto & | get_param_registry () |
| auto & | get_object_registry () const |
| auto & | get_object_registry () |
| TrackProcessor * | get_track_processor () const |
| auto | get_icon_name () const |
| Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< Track > | |
| UuidIdentifiableObject & | operator= (const UuidIdentifiableObject &other)=default |
| auto | get_uuid () const |
Friends | |
| void | init_from (MidiBusTrack &obj, const MidiBusTrack &other, utils::ObjectCloneType clone_type) |
| void | to_json (nlohmann::json &j, const MidiBusTrack &track) |
| void | from_json (const nlohmann::json &j, MidiBusTrack &track) |
Additional Inherited Members | |
| Public Types inherited from zrythm::structure::tracks::Track | |
| enum class | Type : basic_enum_base_type_t { Instrument , Audio , Master , Chord , Marker , Modulator , AudioBus , AudioGroup , Midi , MidiBus , MidiGroup , Folder } |
| using | Plugin = plugins::Plugin |
| using | PluginUuid = Plugin::Uuid |
| using | PortType = dsp::PortType |
| using | PluginRegistry = plugins::PluginRegistry |
| using | PluginPtrVariant = PluginRegistry::VariantType |
| using | PluginSlot = plugins::PluginSlot |
| using | ArrangerObject = structure::arrangement::ArrangerObject |
| using | ArrangerObjectPtrVariant |
| using | ArrangerObjectRegistry = structure::arrangement::ArrangerObjectRegistry |
| using | Color = utils::Color |
| Static Public Member Functions inherited from zrythm::structure::tracks::Track | |
| static bool | type_can_have_region_type (Type type, ArrangerObject::Type region_type) |
| static constexpr bool | type_is_foldable (Type type) |
| static constexpr bool | type_is_copyable (Type type) |
| static constexpr bool | type_is_deletable (Type type) |
| Returns whether a track of the given type should be deletable by the user. | |
| static Type | type_get_from_plugin_descriptor (const zrythm::plugins::PluginDescriptor &descr) |
| static consteval bool | type_has_mono_compat_switch (const Type tt) |
| static constexpr bool | type_is_compatible_for_moving (const Type type1, const Type type2) |
Returns if regions in tracks from type1 can be moved to type2. | |
| static constexpr bool | type_has_piano_roll (const Type type) |
| Returns if the Track should have a piano roll. | |
| static constexpr bool | type_has_inputs (const Type type) |
| Returns if the Track should have an inputs selector. | |
| static constexpr bool | type_can_be_group_target (const Type type) |
| Returns if the Track can be a direct route target. | |
| static constexpr bool | type_can_have_automation (const Type type) |
| static constexpr bool | type_can_have_lanes (const Type type) |
| template<typename T> | |
| static consteval Type | get_type_for_class () |
| static bool | is_plugin_descriptor_valid_for_slot_type (const plugins::PluginDescriptor &descr, zrythm::plugins::PluginSlotType slot_type, Track::Type track_type) |
Returns if descr can be dropped at slot_type in a track of type track_type. | |
| Static Public Attributes inherited from zrythm::structure::tracks::Track | |
| static constexpr int | MIN_HEIGHT = 26 |
| static constexpr int | DEF_HEIGHT = 52 |
| Protected Types inherited from zrythm::structure::tracks::Track | |
| enum class | TrackFeatures : std::uint8_t { Modulators = 1 << 0 , Automation = 1 << 1 , Lanes = 1 << 2 , Recording = 1 << 3 , PianoRoll = 1 << 4 } |
| Protected Member Functions inherited from zrythm::structure::tracks::Track | |
| Track (Type type, PortType in_signal_type, PortType out_signal_type, TrackFeatures enabled_features, BaseTrackDependencies dependencies) | |
| Constructor to be used by subclasses. | |
| virtual void | set_playback_caches () |
| Set the playback caches for a track. | |
| void | generate_automation_tracks_for_processor (std::vector< utils::QObjectUniquePtr< AutomationTrack > > &ats, const dsp::ProcessorBase &processor) |
| utils::QObjectUniquePtr< TrackProcessor > | make_track_processor (std::optional< TrackProcessor::FillEventsCallback > fill_events_cb=std::nullopt, std::optional< TrackProcessor::TransformMidiInputsFunc > transform_midi_inputs_func=std::nullopt, std::optional< TrackProcessor::AppendMidiInputsToOutputsFunc > append_midi_inputs_to_outputs_func=std::nullopt) |
| Implementations with a processor must call this in their constructor. | |
| virtual void | collect_additional_timeline_objects (std::vector< ArrangerObjectPtrVariant > &objects) const |
| Called by collect_timeline_objects to collect any additional objects not handled by this class (such as markers and scales). | |
| Protected Attributes inherited from zrythm::structure::tracks::Track | |
| BaseTrackDependencies | base_dependencies_ |
| Type | type_ {} |
| The type of track this is. | |
| TrackFeatures | features_ {} |
| utils::Utf8String | name_ |
| Track name, used in channel too. | |
| utils::Utf8String | icon_name_ |
| Icon name of the track. | |
| bool | visible_ = true |
| Whole Track is visible or not. | |
| double | main_height_ { DEF_HEIGHT } |
| Height of the main part (without lanes). | |
| bool | enabled_ = true |
| Active (enabled) or not. | |
| Color | color_ |
| Track color. | |
| PortType | in_signal_type_ = {} |
| The input signal type (eg audio bus tracks have audio input signals). | |
| PortType | out_signal_type_ = {} |
| The output signal type (eg midi tracks have MIDI output signals). | |
| utils::Utf8String | comment_ |
| User comments. | |
| std::optional< dsp::FileAudioSourceUuidReference > | frozen_clip_id_ |
| Pool ID of the clip if track is frozen (unset if not frozen). | |
| utils::QObjectUniquePtr< AutomationTracklist > | automation_tracklist_ |
| Automation tracks, if track is automatable. | |
| utils::QObjectUniquePtr< TrackProcessor > | processor_ |
| The TrackProcessor, used for processing. | |
| utils::QObjectUniquePtr< Channel > | channel_ |
| Channel for this track, if any. | |
| utils::QObjectUniquePtr< plugins::PluginGroup > | modulators_ |
| Modulators. | |
| std::vector< utils::QObjectUniquePtr< dsp::ModulatorMacroProcessor > > | modulator_macro_processors_ |
| Modulator macros. | |
| utils::QObjectUniquePtr< TrackLaneList > | lanes_ |
| utils::QObjectUniquePtr< RecordableTrackMixin > | recordable_track_mixin_ |
| utils::QObjectUniquePtr< PianoRollTrackMixin > | piano_roll_track_mixin_ |
| utils::QObjectUniquePtr< utils::PlaybackCacheScheduler > | playable_content_cache_request_debouncer_ |
| Debouncer/scheduler of audio/MIDI cache requests. | |
| bool | clip_launcher_mode_ {} |
| Properties inherited from zrythm::structure::tracks::Track | |
| Type | type |
| zrythm::structure::tracks::AutomationTracklist * | automationTracklist |
| QString | name |
| QColor | color |
| QString | comment |
| QString | icon |
| bool | visible |
| bool | enabled |
| double | height |
| double | fullVisibleHeight |
| zrythm::structure::tracks::Channel * | channel |
| zrythm::plugins::PluginGroup * | modulators |
| zrythm::structure::tracks::TrackLaneList * | lanes |
| zrythm::structure::tracks::RecordableTrackMixin * | recordableTrackMixin |
| zrythm::structure::tracks::PianoRollTrackMixin * | pianoRollTrackMixin |
| bool | clipLauncherMode |
Detailed Description
A track that processes MIDI data.
Definition at line 13 of file midi_bus_track.h.
Friends And Related Symbol Documentation
◆ from_json
|
friend |
Definition at line 32 of file midi_bus_track.h.
◆ to_json
|
friend |
Definition at line 28 of file midi_bus_track.h.
The documentation for this class was generated from the following file:
- src/structure/tracks/midi_bus_track.h
