zrythm::plugins::InternalPluginBase Class Reference

A base class for internal plugins. More...

#include <src/plugins/internal_plugin_base.h>

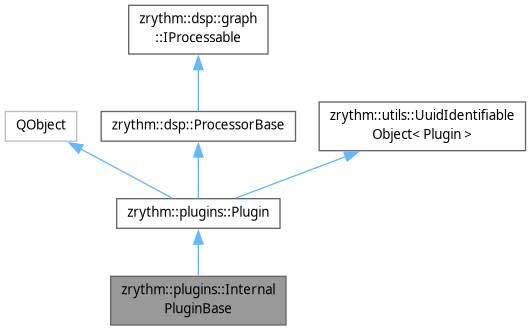

Inheritance diagram for zrythm::plugins::InternalPluginBase:

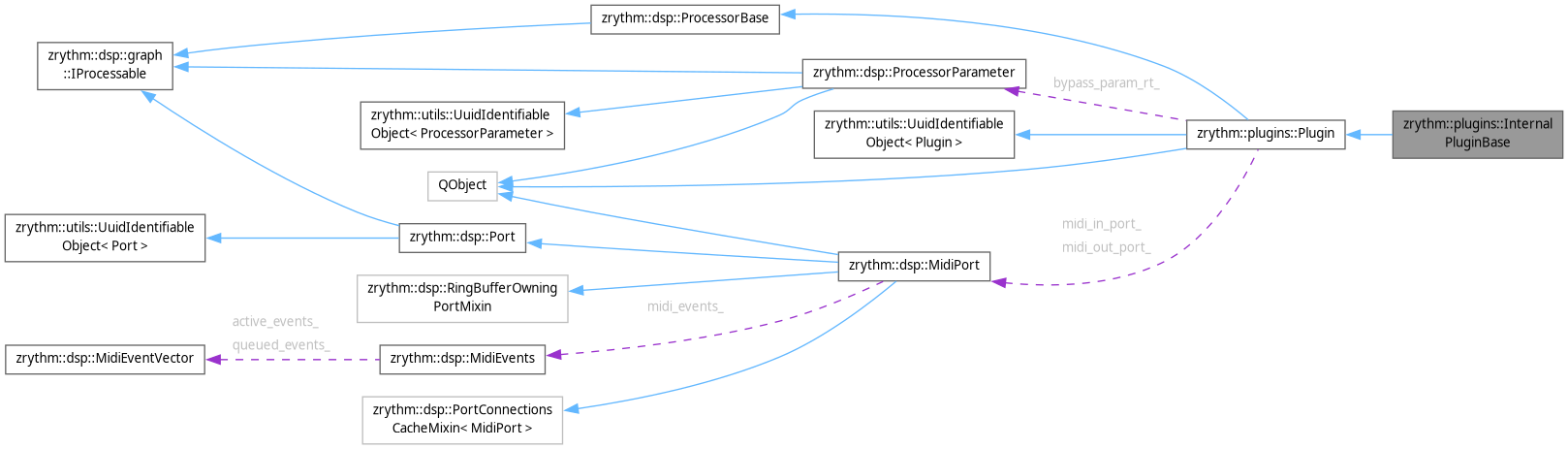

Collaboration diagram for zrythm::plugins::InternalPluginBase:

Public Member Functions
	InternalPluginBase (utils::IObjectRegistry &registry, QObject *parent=nullptr)
	Constructor for InternalPluginBase.
Public Member Functions inherited from zrythm::plugins::Plugin
int	programIndex () const
	Returns the current program index, or -1 if no program exists.
void	setProgramIndex (int index)
Q_SIGNAL void	programIndexChanged (int index)
	Implementations should attach to this and set the program.
PluginConfiguration *	configuration () const
Q_SIGNAL void	configurationChanged (PluginConfiguration *configuration, bool generateNewPluginPortsAndParams)
	Emitted when the configuration is set on the plugin.
dsp::ProcessorParameter *	bypassParameter () const
dsp::ProcessorParameter *	gainParameter () const
bool	uiVisible () const
void	setUiVisible (bool visible)
Q_SIGNAL void	uiVisibleChanged (bool visible)
	Implementations should listen to this and show/hide the plugin UI accordingly.
InstantiationStatus	instantiationStatus () const
Q_SIGNAL void	instantiationStatusChanged (InstantiationStatus status)
Q_SIGNAL void	instantiationFinished (bool successful, const QString &error)
	To be emitted by implementations when instantiation finished.
PluginDescriptor &	get_descriptor () const
utils::Utf8String	get_name () const
Protocol::ProtocolType	get_protocol () const
void	set_configuration (const PluginConfiguration &setting)
	Sets the plugin configuration to use.
void	custom_prepare_for_processing (const dsp::graph::GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length) final
void	custom_process_block (dsp::graph::ProcessBlockInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept final
	Custom processor logic after processing all owned parameters.
void	custom_release_resources () final
bool	currently_enabled () const
	Returns whether the plugin is enabled (not bypassed).
bool	currently_enabled_rt () const noexcept
std::string	save_state () const
	Serializes the plugin's internal state to a base64-encoded string.
void	load_state (const std::string &base64_state)
	Queues a previously saved state to be applied to the plugin.
void	flush_plugin_values ()
	Flushes plugin-reported parameter values to Zrythm params.
Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< Plugin >
	UuidIdentifiableObject (QObject *parent=nullptr)
auto	get_uuid () const
Public Member Functions inherited from zrythm::utils::UuidIdentifiableBase
	UuidIdentifiableBase (QObject *parent=nullptr)
	UuidIdentifiableBase (const QUuid &id, QObject *parent=nullptr)
QUuid	raw_uuid () const
Public Member Functions inherited from zrythm::dsp::ProcessorBase
	ProcessorBase (utils::IObjectRegistry &registry, utils::Utf8String name={ u8"ProcessorBase" })
void	set_name (const utils::Utf8String &name)
	Set a custom name to be used in the DSP graph.
void	add_input_port (const dsp::PortUuidReference &uuid)
void	add_output_port (const dsp::PortUuidReference &uuid)
void	add_parameter (const dsp::ProcessorParameterUuidReference &uuid)
auto &	get_input_ports () const
auto &	get_output_ports () const
auto &	get_parameters () const
const ParameterChangeTracker &	change_tracker () const noexcept
	Returns the change tracker.
utils::Utf8String	get_node_name () const final
	Returns a human friendly name of the node.
void	process_block (dsp::graph::ProcessBlockInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept final
	Calls custom_process_block() internally after processing all the parameters.
void	prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length) final
	Called to allocate resources required for processing.
void	release_resources () final
	Called to release resources allocated by prepare_for_processing().
Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual units::sample_u32_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies (zero latency by default).

Protected Member Functions
void	prepare_for_processing_impl (units::sample_rate_t sample_rate, units::sample_u32_t max_block_length) override
void	process_impl (dsp::graph::ProcessBlockInfo time_info) noexcept override
std::string	save_state_impl () const override
void	load_state_impl (const std::string &) override
Protected Member Functions inherited from zrythm::plugins::Plugin
	Plugin (utils::IObjectRegistry &registry, QObject *parent)
	Creates/initializes a plugin and its internal plugin (LV2, etc.) using the given setting.
dsp::ProcessorParameterUuidReference	generate_default_bypass_param () const
	To be called by implementations to generate the default bypass parameter if the plugin does not provide its own.
dsp::ProcessorParameterUuidReference	generate_default_gain_param () const
	To be called by implementations to generate the default gain parameter if the plugin does not provide its own.
Protected Member Functions inherited from zrythm::utils::UuidIdentifiableBase
void	set_raw_uuid (const QUuid &id)
Protected Member Functions inherited from zrythm::dsp::ProcessorBase
auto	registry () const -> utils::IObjectRegistry &

Additional Inherited Members
Public Types inherited from zrythm::plugins::Plugin
enum class	InstantiationStatus : std::uint8_t { Pending , Successful , Failed }
Public Types inherited from zrythm::utils::UuidIdentifiableObject< Plugin >
using	uuid_base_type
	Exposes the CRTP parameter for concept checking.
Protected Attributes inherited from zrythm::plugins::Plugin
bool	instantiation_failed_ = false
	Set to true if instantiation failed and the plugin will be treated as disabled.
std::optional< dsp::ProcessorParameter::Uuid >	bypass_id_
	Bypass toggle parameter,.
std::optional< dsp::ProcessorParameter::Uuid >	gain_id_
	Zrythm-provided plugin gain parameter.
std::vector< dsp::AudioPort * >	audio_in_ports_
std::vector< dsp::AudioPort * >	audio_out_ports_
std::vector< dsp::CVPort * >	cv_in_ports_
dsp::MidiPort *	midi_in_port_ {}
dsp::MidiPort *	midi_out_port_ {}
dsp::ProcessorParameter *	bypass_param_rt_ {}
ParamSync	param_sync_
Properties inherited from zrythm::plugins::Plugin
int	programIndex
zrythm::plugins::PluginConfiguration *	configuration
zrythm::dsp::ProcessorParameter *	bypassParameter
zrythm::dsp::ProcessorParameter *	gainParameter
bool	uiVisible
InstantiationStatus	instantiationStatus

Detailed Description

A base class for internal plugins.

This plugin on its own simply passes audio through without any processing.

Definition at line 16 of file internal_plugin_base.h.

Constructor & Destructor Documentation

InternalPluginBase()

zrythm::plugins::InternalPluginBase::InternalPluginBase	(	utils::IObjectRegistry &	registry,
		QObject *	parent = nullptr )

Constructor for InternalPluginBase.

Parameters

dependencies	Processor dependencies
parent	Parent QObject

Member Function Documentation

load_state_impl()

void zrythm::plugins::InternalPluginBase::load_state_impl ( const std::string & )

inlineoverrideprotectedvirtual

Implements zrythm::plugins::Plugin.

Definition at line 43 of file internal_plugin_base.h.

prepare_for_processing_impl()

void zrythm::plugins::InternalPluginBase::prepare_for_processing_impl ( units::sample_rate_t sample_rate, units::sample_u32_t max_block_length )

overrideprotectedvirtual

Reimplemented from zrythm::plugins::Plugin.

process_impl()

void zrythm::plugins::InternalPluginBase::process_impl ( dsp::graph::ProcessBlockInfo time_info )

overrideprotectedvirtualnoexcept

Implements zrythm::plugins::Plugin.

save_state_impl()

std::string zrythm::plugins::InternalPluginBase::save_state_impl ( ) const

inlineoverrideprotectedvirtual

Implements zrythm::plugins::Plugin.

Definition at line 42 of file internal_plugin_base.h.

---

The documentation for this class was generated from the following file:

• src/plugins/internal_plugin_base.h
