A TrackLane belongs to a Track (can have many TrackLanes in a Track) and contains Regions. More...

#include <src/structure/tracks/track_lane.h>

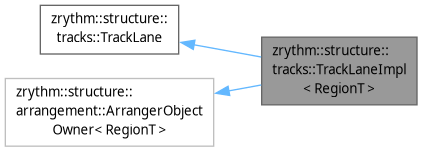

Inheritance diagram for zrythm::structure::tracks::TrackLaneImpl< RegionT >:

[legend]

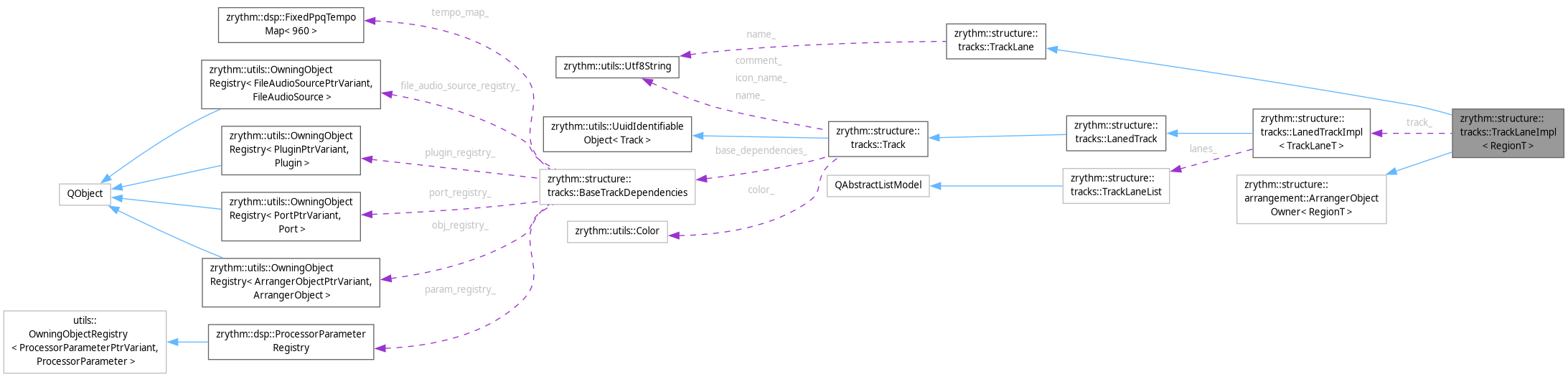

Collaboration diagram for zrythm::structure::tracks::TrackLaneImpl< RegionT >:

[legend]

Public Types
using	MidiRegion = arrangement::MidiRegion
using	AudioRegion = arrangement::AudioRegion
using	TrackLaneT
using	LanedTrackT = LanedTrackImpl<TrackLaneT>
using	Position = dsp::Position
Public Types inherited from zrythm::structure::arrangement::ArrangerObjectOwner< RegionT >
using	ArrangerObjectChildType
using	ArrangerObjectListModel

Public Member Functions
TrackLaneT &	get_derived_lane ()
const TrackLaneT &	get_derived_lane () const
	TrackLaneImpl (structure::arrangement::ArrangerObjectRegistry &registry, dsp::FileAudioSourceRegistry &file_audio_source_registry, LanedTrackT *track, QObject &derived)
	Creates a new TrackLane at the given pos in the given Track.
void	set_soloed (bool solo, bool trigger_undo, bool fire_events)
	Sets track lane soloed, updates UI and optionally adds the action to the undo stack.
void	set_muted (bool mute, bool trigger_undo, bool fire_events)
	Sets track lane muted, updates UI and optionally adds the action to the undo stack.
bool	is_effectively_muted () const
	Returns if the lane is effectively muted (explicitly or implicitly muted).
void	rename (const utils::Utf8String &new_name, bool with_action)
	Rename the lane.
void	rename_with_action (const utils::Utf8String &new_name)
	Wrapper over track_lane_rename().
void	unselect_all ()
	Unselects all arranger objects.
void	write_to_midi_file (MIDI_FILE mf, dsp::MidiEventVector events, const Position start, const Position end, bool lanes_as_tracks, bool use_track_or_lane_pos)
	Writes the lane to the given MIDI file.
LanedTrackT *	get_track () const
int	get_index_in_track (this const auto &self)
int	calculate_lane_idx_for_midi_serialization () const
	Calculates a unique index for this lane.
std::unique_ptr< TrackLaneT >	gen_snapshot () const
	Generate a snapshot for playback.
std::string	get_field_name_for_serialization (const RegionT *) const override
Public Member Functions inherited from zrythm::structure::tracks::TrackLane
auto	get_name () const
void	generate_name (int pos)
bool	get_soloed () const
bool	get_muted () const
	Returns if the lane is explicitly marked as muted.
Public Member Functions inherited from zrythm::structure::arrangement::ArrangerObjectOwner< RegionT >
	ArrangerObjectOwner (ArrangerObjectRegistry &registry, dsp::FileAudioSourceRegistry &file_audio_source_registry, QObject &derived)
auto &	get_children_vector ()
auto	get_children_view () const
void	add_ticks_to_children (double ticks)
ArrangerObjectListModel *	get_model () const
ArrangerObjectUuidReference	remove_object (this SelfT &self, const ArrangerObject::Uuid &id)
void	insert_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref, int idx)
void	add_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref)
void	clear_objects ()
virtual std::string	get_field_name_for_serialization (const ChildT *) const=0
	Get the children field name to be used during serialization/deserialization.

Data Fields
LanedTrackT *	track_ = nullptr
	Owner track.
Data Fields inherited from zrythm::structure::tracks::TrackLane
utils::Utf8String	name_
	Position in the Track.
double	height_ { DEF_HEIGHT }
	Position of handle.
bool	mute_ {}
	Muted or not.
bool	solo_ {}
	Soloed or not.
uint8_t	midi_ch_ = 0
	MIDI channel, if MIDI lane, starting at 1.

Friends
void	init_from (TrackLaneImpl &obj, const TrackLaneImpl &other, utils::ObjectCloneType clone_type)
void	to_json (nlohmann::json &j, const TrackLaneImpl &lane)
void	from_json (const nlohmann::json &j, TrackLaneImpl &lane)

Additional Inherited Members
Static Public Attributes inherited from zrythm::structure::tracks::TrackLane
static constexpr double	DEF_HEIGHT = 48

Detailed Description

template<arrangement::RegionObject RegionT>
class zrythm::structure::tracks::TrackLaneImpl< RegionT >

A TrackLane belongs to a Track (can have many TrackLanes in a Track) and contains Regions.

Only Tracks that have Regions can have TrackLanes, such as InstrumentTrack and AudioTrack.

Definition at line 126 of file track_lane.h.

Member Typedef Documentation

◆ AudioRegion

template<arrangement::RegionObject RegionT>

using zrythm::structure::tracks::TrackLaneImpl< RegionT >::AudioRegion = arrangement::AudioRegion

Definition at line 132 of file track_lane.h.

◆ LanedTrackT

template<arrangement::RegionObject RegionT>

using zrythm::structure::tracks::TrackLaneImpl< RegionT >::LanedTrackT = LanedTrackImpl<TrackLaneT>

Definition at line 135 of file track_lane.h.

◆ MidiRegion

template<arrangement::RegionObject RegionT>

using zrythm::structure::tracks::TrackLaneImpl< RegionT >::MidiRegion = arrangement::MidiRegion

Definition at line 131 of file track_lane.h.

◆ Position

template<arrangement::RegionObject RegionT>

using zrythm::structure::tracks::TrackLaneImpl< RegionT >::Position = dsp::Position

Definition at line 136 of file track_lane.h.

◆ TrackLaneT

template<arrangement::RegionObject RegionT>

using zrythm::structure::tracks::TrackLaneImpl< RegionT >::TrackLaneT

Initial value:

std::conditional_t<std::is_same_v<RegionT, MidiRegion>, MidiLane, AudioLane>

zrythm::structure::tracks::AudioLane

Definition audio_lane.h:16

zrythm::structure::tracks::MidiLane

Definition midi_lane.h:14

Definition at line 133 of file track_lane.h.

Constructor & Destructor Documentation

◆ TrackLaneImpl()

template<arrangement::RegionObject RegionT>

zrythm::structure::tracks::TrackLaneImpl< RegionT >::TrackLaneImpl	(	structure::arrangement::ArrangerObjectRegistry &	registry,
		dsp::FileAudioSourceRegistry &	file_audio_source_registry,
		LanedTrackT *	track,
		QObject &	derived )

inline

Creates a new TrackLane at the given pos in the given Track.

Parameters

track The Track to create the TrackLane for.

Definition at line 154 of file track_lane.h.

Member Function Documentation

◆ get_derived_lane() [1/2]

template<arrangement::RegionObject RegionT>

TrackLaneT & zrythm::structure::tracks::TrackLaneImpl< RegionT >::get_derived_lane ( )

inline

Definition at line 143 of file track_lane.h.

◆ get_derived_lane() [2/2]

template<arrangement::RegionObject RegionT>

const TrackLaneT & zrythm::structure::tracks::TrackLaneImpl< RegionT >::get_derived_lane ( ) const

inline

Definition at line 144 of file track_lane.h.

◆ get_field_name_for_serialization()

template<arrangement::RegionObject RegionT>

std::string zrythm::structure::tracks::TrackLaneImpl< RegionT >::get_field_name_for_serialization ( const RegionT * ) const

inlineoverride

Definition at line 251 of file track_lane.h.

◆ get_index_in_track()

template<arrangement::RegionObject RegionT>

int zrythm::structure::tracks::TrackLaneImpl< RegionT >::get_index_in_track ( this const auto & self )

inline

Definition at line 235 of file track_lane.h.

◆ get_track()

template<arrangement::RegionObject RegionT>

LanedTrackT * zrythm::structure::tracks::TrackLaneImpl< RegionT >::get_track ( ) const

inline

Definition at line 229 of file track_lane.h.

◆ rename()

template<arrangement::RegionObject RegionT>

void zrythm::structure::tracks::TrackLaneImpl< RegionT >::rename	(	const utils::Utf8String &	new_name,
		bool	with_action )

Rename the lane.

Parameters

with_action Whether to make this an undoable action.

◆ set_muted()

template<arrangement::RegionObject RegionT>

void zrythm::structure::tracks::TrackLaneImpl< RegionT >::set_muted	(	bool	mute,
		bool	trigger_undo,
		bool	fire_events )

Sets track lane muted, updates UI and optionally adds the action to the undo stack.

Parameters

trigger_undo	Create and perform an undoable action.
fire_events	Fire UI events.

◆ set_soloed()

template<arrangement::RegionObject RegionT>

void zrythm::structure::tracks::TrackLaneImpl< RegionT >::set_soloed	(	bool	solo,
		bool	trigger_undo,
		bool	fire_events )

Sets track lane soloed, updates UI and optionally adds the action to the undo stack.

Parameters

trigger_undo	Create and perform an undoable action.
fire_events	Fire UI events.

◆ write_to_midi_file()

template<arrangement::RegionObject RegionT>

void zrythm::structure::tracks::TrackLaneImpl< RegionT >::write_to_midi_file	(	MIDI_FILE *	mf,
		dsp::MidiEventVector *	events,
		const Position *	start,
		const Position *	end,
		bool	lanes_as_tracks,
		bool	use_track_or_lane_pos )

Writes the lane to the given MIDI file.

Parameters

lanes_as_tracks	Export lanes as separate MIDI tracks.
use_track_or_lane_pos	Whether to use the track position (or lane position if lanes_as_tracks is true) in the MIDI data. The MIDI track will be set to 1 if false.
events	Track events, if not using lanes as tracks.
start	Events before this position will be skipped.
end	Events after this position will be skipped.

◆ from_json

template<arrangement::RegionObject RegionT>

void from_json	(	const nlohmann::json &	j,
		TrackLaneImpl< RegionT > &	lane )

friend

Definition at line 285 of file track_lane.h.

◆ init_from

template<arrangement::RegionObject RegionT>

void init_from	(	TrackLaneImpl< RegionT > &	obj,
		const TrackLaneImpl< RegionT > &	other,
		utils::ObjectCloneType	clone_type )

friend

Definition at line 257 of file track_lane.h.

◆ to_json

template<arrangement::RegionObject RegionT>

void to_json	(	nlohmann::json &	j,
		const TrackLaneImpl< RegionT > &	lane )

friend

Definition at line 275 of file track_lane.h.

Field Documentation

◆ track_

template<arrangement::RegionObject RegionT>

LanedTrackT* zrythm::structure::tracks::TrackLaneImpl< RegionT >::track_ = nullptr

Owner track.

Definition at line 302 of file track_lane.h.

The documentation for this class was generated from the following file:

src/structure/tracks/track_lane.h
