A container of MIDI or Audio regions. More...

#include <src/structure/tracks/track_lane.h>

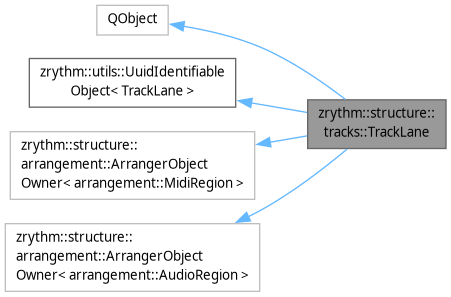

Inheritance diagram for zrythm::structure::tracks::TrackLane:

[legend]

Collaboration diagram for zrythm::structure::tracks::TrackLane:

[legend]

Data Structures
struct	TrackLaneDependencies

Public Types
using	SoloedLanesExistFunc = GenericBoolGetter
	Function to check if other soloed lanes exist in the owner.
Public Types inherited from zrythm::structure::arrangement::ArrangerObjectOwner< arrangement::MidiRegion >
using	ArrangerObjectChildType
using	ArrangerObjectListModel
Public Types inherited from zrythm::structure::arrangement::ArrangerObjectOwner< arrangement::AudioRegion >
using	ArrangerObjectChildType
using	ArrangerObjectListModel

Public Member Functions
	TrackLane (TrackLaneDependencies dependencies, QObject *parent=nullptr)
QString	name () const
void	setName (const QString &name)
Q_SIGNAL void	nameChanged (const QString &name)
double	height () const
void	setHeight (const double height)
Q_SIGNAL void	heightChanged (double height)
bool	soloed () const
void	setSoloed (bool solo)
Q_SIGNAL void	soloChanged (bool solo)
bool	muted () const
void	setMuted (bool mute)
Q_SIGNAL void	muteChanged (bool mute)
Q_INVOKABLE bool	effectivelyMuted () const
	Returns if the lane is effectively muted (explicitly or implicitly muted).
std::uint8_t	midiChannel () const
void	setMidiChannel (std::uint8_t midi_ch)
Q_SIGNAL void	midiChannelChanged (std::uint8_t midi_ch)
void	generate_name (size_t index)
	Generates a default name for the lane at the given index.
std::string	get_field_name_for_serialization (const arrangement::MidiRegion *_) const override
	Generate a snapshot for playback.
std::string	get_field_name_for_serialization (const arrangement::AudioRegion *_) const override
Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< TrackLane >
UuidIdentifiableObject &	operator= (const UuidIdentifiableObject &other)=default
auto	get_uuid () const
Public Member Functions inherited from zrythm::structure::arrangement::ArrangerObjectOwner< arrangement::MidiRegion >
	ArrangerObjectOwner (ArrangerObjectRegistry &registry, dsp::FileAudioSourceRegistry &file_audio_source_registry, T &derived)
auto &	get_children_vector () const
auto	get_children_view () const
auto	get_sorted_children_view () const
void	add_ticks_to_children (double ticks)
bool	contains_object (const ArrangerObject::Uuid &id) const
	O(1) lookup if an object with the given ID exists.
ArrangerObjectListModel *	get_model () const
ArrangerObjectUuidReference	remove_object (this SelfT &self, const ArrangerObject::Uuid &id)
void	insert_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref, int idx)
void	add_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref)
void	clear_objects ()
virtual std::string	get_field_name_for_serialization (const ChildT *) const=0
	Get the children field name to be used during serialization/deserialization.
Public Member Functions inherited from zrythm::structure::arrangement::ArrangerObjectOwner< arrangement::AudioRegion >
	ArrangerObjectOwner (ArrangerObjectRegistry &registry, dsp::FileAudioSourceRegistry &file_audio_source_registry, T &derived)
auto &	get_children_vector () const
auto	get_children_view () const
auto	get_sorted_children_view () const
void	add_ticks_to_children (double ticks)
bool	contains_object (const ArrangerObject::Uuid &id) const
	O(1) lookup if an object with the given ID exists.
ArrangerObjectListModel *	get_model () const
ArrangerObjectUuidReference	remove_object (this SelfT &self, const ArrangerObject::Uuid &id)
void	insert_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref, int idx)
void	add_object (this SelfT &self, const ArrangerObjectUuidReference &obj_ref)
void	clear_objects ()
virtual std::string	get_field_name_for_serialization (const ChildT *) const=0
	Get the children field name to be used during serialization/deserialization.

Static Public Attributes
static constexpr auto	default_format_str = QT_TR_NOOP_UTF8 ("Lane {}")

Properties
zrythm::structure::arrangement::AudioRegion QString	name
double	height
bool	muted
bool	soloed
std::uint8_t	midiChannel

Friends
void	to_json (nlohmann::json &j, const TrackLane &lane)
void	from_json (const nlohmann::json &j, TrackLane &lane)
void	init_from (TrackLane &obj, const TrackLane &other, utils::ObjectCloneType clone_type)

Detailed Description

A container of MIDI or Audio regions.

Intended to be used as part of a TrackLaneList in a LanedTrackMixin as part of a Track. In practice, only Instrument, Audio and MIDI tracks have lanes.

For convenience, this handles all cases by including both MidiRegion and AudioRegion objects. In practice, only one list will be used.

Definition at line 23 of file track_lane.h.

Member Typedef Documentation

◆ SoloedLanesExistFunc

using zrythm::structure::tracks::TrackLane::SoloedLanesExistFunc = GenericBoolGetter

Function to check if other soloed lanes exist in the owner.

Definition at line 52 of file track_lane.h.

Constructor & Destructor Documentation

◆ TrackLane()

zrythm::structure::tracks::TrackLane::TrackLane	(	TrackLaneDependencies	dependencies,
		QObject *	parent = nullptr )

inline

Definition at line 63 of file track_lane.h.

Member Function Documentation

◆ effectivelyMuted()

Q_INVOKABLE bool zrythm::structure::tracks::TrackLane::effectivelyMuted ( ) const

inline

Returns if the lane is effectively muted (explicitly or implicitly muted).

Definition at line 133 of file track_lane.h.

◆ generate_name()

void zrythm::structure::tracks::TrackLane::generate_name ( size_t index )

Generates a default name for the lane at the given index.

Parameters

index

◆ get_field_name_for_serialization() [1/2]

std::string zrythm::structure::tracks::TrackLane::get_field_name_for_serialization ( const arrangement::AudioRegion * _ ) const

inlineoverride

Definition at line 178 of file track_lane.h.

◆ get_field_name_for_serialization() [2/2]

std::string zrythm::structure::tracks::TrackLane::get_field_name_for_serialization ( const arrangement::MidiRegion * _ ) const

inlineoverride

Generate a snapshot for playback.

TODO

Definition at line 173 of file track_lane.h.

◆ height()

double zrythm::structure::tracks::TrackLane::height ( ) const

inline

Definition at line 96 of file track_lane.h.

◆ midiChannel()

std::uint8_t zrythm::structure::tracks::TrackLane::midiChannel ( ) const

inline

Definition at line 146 of file track_lane.h.

◆ muted()

bool zrythm::structure::tracks::TrackLane::muted ( ) const

inline

Definition at line 118 of file track_lane.h.

◆ name()

QString zrythm::structure::tracks::TrackLane::name ( ) const

inline

Definition at line 84 of file track_lane.h.

◆ setHeight()

void zrythm::structure::tracks::TrackLane::setHeight ( const double height )

inline

Definition at line 97 of file track_lane.h.

◆ setMidiChannel()

void zrythm::structure::tracks::TrackLane::setMidiChannel ( std::uint8_t midi_ch )

inline

Definition at line 147 of file track_lane.h.

◆ setMuted()

void zrythm::structure::tracks::TrackLane::setMuted ( bool mute )

inline

Definition at line 119 of file track_lane.h.

◆ setName()

void zrythm::structure::tracks::TrackLane::setName ( const QString & name )

inline

Definition at line 85 of file track_lane.h.

◆ setSoloed()

void zrythm::structure::tracks::TrackLane::setSoloed ( bool solo )

inline

Definition at line 108 of file track_lane.h.

◆ soloed()

bool zrythm::structure::tracks::TrackLane::soloed ( ) const

inline

Definition at line 107 of file track_lane.h.

◆ from_json

void from_json	(	const nlohmann::json &	j,
		TrackLane &	lane )

friend

Definition at line 207 of file track_lane.h.

◆ init_from

void init_from	(	TrackLane &	obj,
		const TrackLane &	other,
		utils::ObjectCloneType	clone_type )

friend

Definition at line 225 of file track_lane.h.

◆ to_json

void to_json	(	nlohmann::json &	j,
		const TrackLane &	lane )

friend

Definition at line 190 of file track_lane.h.

Field Documentation

◆ default_format_str

auto zrythm::structure::tracks::TrackLane::default_format_str = QT_TR_NOOP_UTF8 ("Lane {}")

staticconstexpr

Definition at line 54 of file track_lane.h.

Property Documentation

◆ height

double zrythm::structure::tracks::TrackLane::height

readwrite

Definition at line 39 of file track_lane.h.

◆ midiChannel

std::uint8_t zrythm::structure::tracks::TrackLane::midiChannel

readwrite

Definition at line 42 of file track_lane.h.

◆ muted

bool zrythm::structure::tracks::TrackLane::muted

readwrite

Definition at line 40 of file track_lane.h.

◆ name

zrythm::structure::arrangement::AudioRegion QString zrythm::structure::tracks::TrackLane::name

readwrite

Definition at line 38 of file track_lane.h.

◆ soloed

bool zrythm::structure::tracks::TrackLane::soloed

readwrite

Definition at line 41 of file track_lane.h.

The documentation for this class was generated from the following file:

src/structure/tracks/track_lane.h
