zrythm::structure::tracks::ChannelMidiPassthroughProcessor Class Reference

Inheritance diagram for zrythm::structure::tracks::ChannelMidiPassthroughProcessor:

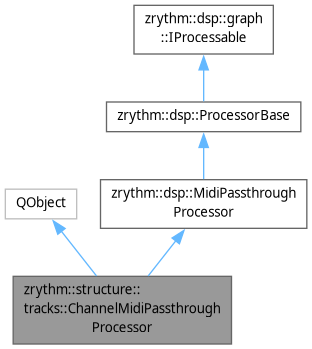

Collaboration diagram for zrythm::structure::tracks::ChannelMidiPassthroughProcessor:

Public Member Functions
	ChannelMidiPassthroughProcessor (utils::IObjectRegistry &registry, QObject *parent=nullptr)
Public Member Functions inherited from zrythm::dsp::MidiPassthroughProcessor
	MidiPassthroughProcessor (utils::IObjectRegistry &registry, size_t num_ports=1)
auto	get_midi_in_port (size_t index) -> dsp::MidiPort &
auto	get_midi_out_port (size_t index) -> dsp::MidiPort &
Public Member Functions inherited from zrythm::dsp::ProcessorBase
	ProcessorBase (utils::IObjectRegistry &registry, utils::Utf8String name={ u8"ProcessorBase" })
void	set_name (const utils::Utf8String &name)
	Set a custom name to be used in the DSP graph.
void	add_input_port (const dsp::PortUuidReference &uuid)
void	add_output_port (const dsp::PortUuidReference &uuid)
void	add_parameter (const dsp::ProcessorParameterUuidReference &uuid)
auto &	get_input_ports () const
auto &	get_output_ports () const
auto &	get_parameters () const
const ParameterChangeTracker &	change_tracker () const noexcept
	Returns the change tracker.
utils::Utf8String	get_node_name () const final
	Returns a human friendly name of the node.
void	process_block (dsp::graph::ProcessBlockInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept final
	Calls custom_process_block() internally after processing all the parameters.
void	prepare_for_processing_impl (const graph::GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length) final
void	release_resources () final
	Called to release resources allocated by prepare_for_processing().
Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual units::sample_u32_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies (zero latency by default).
void	prepare_for_processing (const GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length)
	Called to allocate resources required for processing.

Additional Inherited Members
Protected Member Functions inherited from zrythm::dsp::ProcessorBase
virtual void	custom_process_block (dsp::graph::ProcessBlockInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept
	Custom processor logic after processing all owned parameters.
virtual void	custom_prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length)
virtual void	custom_release_resources ()
auto	registry () const -> utils::IObjectRegistry &

Detailed Description

Definition at line 16 of file channel.h.

---

The documentation for this class was generated from the following file:

• src/structure/tracks/channel.h
