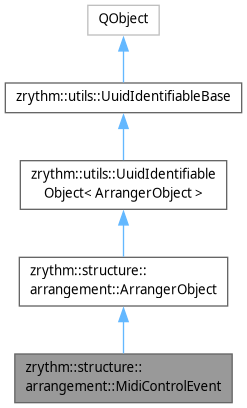

Inheritance diagram for zrythm::structure::arrangement::MidiControlEvent:

[legend]

Collaboration diagram for zrythm::structure::arrangement::MidiControlEvent:

[legend]

Public Types
enum class	EventType : std::uint8_t { ControlChange , PitchBend , ChannelPressure , PolyKeyPressure , ProgramChange }
Public Types inherited from zrythm::structure::arrangement::ArrangerObject
enum class	Type : std::uint8_t { MidiRegion , AudioRegion , ChordRegion , AutomationRegion , MidiControlEvent , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint , AudioSourceObject , TempoObject , TimeSignatureObject }
	The type of the object. More...
Public Types inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
using	uuid_base_type
	Exposes the CRTP parameter for concept checking.

Public Member Functions
	MidiControlEvent (const dsp::TempoMap &tempo_map, QObject *parent=nullptr)
EventType	controlType () const
void	setControlType (EventType type)
Q_SIGNAL void	controlTypeChanged (EventType)
int	channel () const
void	setChannel (int ch)
Q_SIGNAL void	channelChanged (int)
int	controller () const
void	setController (int ctrl)
Q_SIGNAL void	controllerChanged (int)
int	value () const
void	setValue (int val)
Q_SIGNAL void	valueChanged (int)
EventType	controlEventType () const
std::uint8_t	midiChannel () const
std::uint8_t	midiController () const
std::uint16_t	midiValue () const
Public Member Functions inherited from zrythm::structure::arrangement::ArrangerObject
bool	is_start_hit_by_range (const units::sample_t frames_start, const units::sample_t frames_end, bool range_start_inclusive=true, bool range_end_inclusive=false) const
auto	type () const
dsp::AtomicPositionQmlAdapter *	position () const
ArrangerObjectBounds *	bounds () const
ArrangerObjectLoopRange *	loopRange () const
ArrangerObjectName *	name () const
ArrangerObjectColor *	color () const
ArrangerObjectMuteFunctionality *	mute () const
ArrangerObjectFadeRange *	fadeRange () const
Q_SIGNAL void	propertiesChanged ()
	Emitted when any of the properties of the object changed.
ArrangerObject *	parentObject () const
void	setParentObject (ArrangerObject *object)
Q_SIGNAL void	parentObjectChanged (QObject *parentObject)
auto &	get_tempo_map () const
virtual std::vector< ArrangerObjectListModel * >	get_child_list_models () const
Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (QObject *parent=nullptr)
auto	get_uuid () const
Public Member Functions inherited from zrythm::utils::UuidIdentifiableBase
	UuidIdentifiableBase (QObject *parent=nullptr)
	UuidIdentifiableBase (const QUuid &id, QObject *parent=nullptr)
QUuid	raw_uuid () const

Static Public Attributes
static constexpr int	kMaxChannel = 15
static constexpr int	kMaxController = 127
static constexpr int	kMaxValue7Bit = 127
static constexpr int	kMaxValuePitchBend = 16383

Friends
void	init_from (MidiControlEvent &obj, const MidiControlEvent &other, utils::ObjectCloneType clone_type)
void	to_json (nlohmann::json &j, const MidiControlEvent &ev)
void	from_json (const nlohmann::json &j, MidiControlEvent &ev)

Additional Inherited Members
Protected Types inherited from zrythm::structure::arrangement::ArrangerObject
enum class	ArrangerObjectFeatures : std::uint8_t { Bounds = 1 << 0 , LoopingBit = 1 << 1 , Name = 1 << 2 , Color = 1 << 3 , Mute = 1 << 4 , Fading = 1 << 5 , Looping = LoopingBit \| Bounds , Region = Looping \| Name \| Color \| Mute }
Protected Member Functions inherited from zrythm::structure::arrangement::ArrangerObject
	ArrangerObject (Type type, const dsp::TempoMap &tempo_map, ArrangerObjectFeatures features, QObject *parent=nullptr) noexcept
	Construct a new ArrangerObject.
Protected Member Functions inherited from zrythm::utils::UuidIdentifiableBase
void	set_raw_uuid (const QUuid &id)

Detailed Description

Definition at line 15 of file midi_control_event.h.

Member Enumeration Documentation

◆ EventType

enum class zrythm::structure::arrangement::MidiControlEvent::EventType : std::uint8_t

strong

Definition at line 26 of file midi_control_event.h.

Member Function Documentation

◆ channel()

int zrythm::structure::arrangement::MidiControlEvent::channel ( ) const

inline

Definition at line 49 of file midi_control_event.h.

◆ controlEventType()

EventType zrythm::structure::arrangement::MidiControlEvent::controlEventType ( ) const

inline

Definition at line 61 of file midi_control_event.h.

◆ controller()

int zrythm::structure::arrangement::MidiControlEvent::controller ( ) const

inline

Definition at line 53 of file midi_control_event.h.

◆ midiChannel()

std::uint8_t zrythm::structure::arrangement::MidiControlEvent::midiChannel ( ) const

inline

Definition at line 62 of file midi_control_event.h.

◆ midiController()

std::uint8_t zrythm::structure::arrangement::MidiControlEvent::midiController ( ) const

inline

Definition at line 63 of file midi_control_event.h.

◆ midiValue()

std::uint16_t zrythm::structure::arrangement::MidiControlEvent::midiValue ( ) const

inline

Definition at line 64 of file midi_control_event.h.

◆ value()

int zrythm::structure::arrangement::MidiControlEvent::value ( ) const

inline

Definition at line 57 of file midi_control_event.h.

Field Documentation

◆ kMaxChannel

int zrythm::structure::arrangement::MidiControlEvent::kMaxChannel = 15

staticconstexpr

Definition at line 40 of file midi_control_event.h.

◆ kMaxController

int zrythm::structure::arrangement::MidiControlEvent::kMaxController = 127

staticconstexpr

Definition at line 41 of file midi_control_event.h.

◆ kMaxValue7Bit

int zrythm::structure::arrangement::MidiControlEvent::kMaxValue7Bit = 127

staticconstexpr

Definition at line 42 of file midi_control_event.h.

◆ kMaxValuePitchBend

int zrythm::structure::arrangement::MidiControlEvent::kMaxValuePitchBend = 16383

staticconstexpr

Definition at line 43 of file midi_control_event.h.

Property Documentation

◆ channel

int zrythm::structure::arrangement::MidiControlEvent::channel

readwrite

Definition at line 19 of file midi_control_event.h.

◆ controller

int zrythm::structure::arrangement::MidiControlEvent::controller

readwrite

Definition at line 20 of file midi_control_event.h.

◆ controlType

EventType zrythm::structure::arrangement::MidiControlEvent::controlType

readwrite

Definition at line 18 of file midi_control_event.h.

◆ value

int zrythm::structure::arrangement::MidiControlEvent::value

readwrite

Definition at line 21 of file midi_control_event.h.

The documentation for this class was generated from the following file:

src/structure/arrangement/midi_control_event.h

Properties
EventType	controlType
int	channel
int	controller
int	value
Properties inherited from zrythm::structure::arrangement::ArrangerObject
QML_ELEMENT zrythm::structure::arrangement::ArrangerObject *	parentObject
zrythm::structure::arrangement::ArrangerObject::Type	type
zrythm::dsp::AtomicPositionQmlAdapter *	position
zrythm::structure::arrangement::ArrangerObjectBounds *	bounds
zrythm::structure::arrangement::ArrangerObjectLoopRange *	loopRange
zrythm::structure::arrangement::ArrangerObjectName *	name
zrythm::structure::arrangement::ArrangerObjectColor *	color
zrythm::structure::arrangement::ArrangerObjectMuteFunctionality *	mute
zrythm::structure::arrangement::ArrangerObjectFadeRange *	fadeRange
