zrythm::structure::arrangement::AutomationClip Class Referencefinal
Represents an automation clip, which contains a collection of automation points. More...
#include <src/structure/arrangement/automation_clip.h>

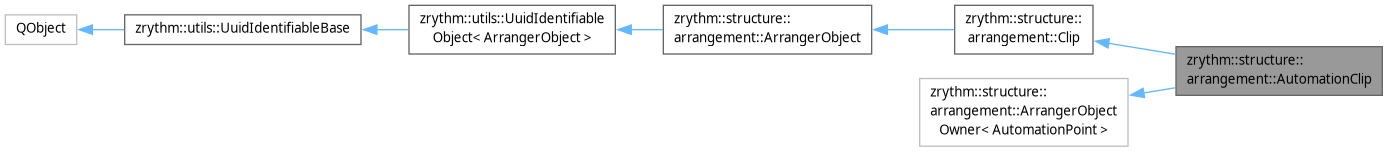

Inheritance diagram for zrythm::structure::arrangement::AutomationClip:
Collaboration diagram for zrythm::structure::arrangement::AutomationClip:
Friends | |
| void | init_from (AutomationClip &obj, const AutomationClip &other, utils::ObjectCloneType clone_type) |
| void | to_json (nlohmann::json &j, const AutomationClip &clip) |
| void | from_json (const nlohmann::json &j, AutomationClip &clip) |
Additional Inherited Members | |
| Public Types inherited from zrythm::structure::arrangement::ArrangerObject | |
| enum class | Type : std::uint8_t { MidiClip , AudioClip , ChordClip , AutomationClip , MidiControlEvent , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint , AudioSourceObject , TempoObject , TimeSignatureObject } |
| The type of the object. More... | |
| Public Types inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject > | |
| using | uuid_base_type |
| Exposes the CRTP parameter for concept checking. | |
| Public Types inherited from zrythm::structure::arrangement::ArrangerObjectOwner< AutomationPoint > | |
| using | ArrangerObjectChildType |
| Public Member Functions inherited from zrythm::structure::arrangement::Clip | |
| dsp::TimelinePosition * | position () const override |
| dsp::ContentTimeWarp * | contentWarp () const |
| dsp::TimebaseProvider * | timebaseProvider () const |
| Q_INVOKABLE void | setLengthTicks (double ticks) |
| Q_INVOKABLE QList< double > | loopPointTimelineTicks (double displayEndTicks) const |
| Timeline delta-tick positions of each loop wrap point. | |
| double | timelineLengthTicks () const |
| Warp-aware length of this clip in timeline ticks. | |
| Q_SIGNAL void | timelineLengthTicksChanged () |
| units::sample_t | get_end_position_samples (bool end_position_inclusive) const |
| Returns the end position of this clip in timeline samples. | |
| units::sample_t | get_sample_duration () const |
| Returns the duration of this clip in timeline samples (end minus start), warp-aware. | |
| bool | is_hit (const units::sample_t frames, bool object_end_pos_inclusive=false) const |
| Returns whether the clip is hit by the given timeline position. | |
| bool | is_hit_by_range (std::pair< units::sample_t, units::sample_t > global_frames, bool range_start_inclusive=true, bool range_end_inclusive=true, bool object_end_pos_inclusive=false) const |
| Whether the clip is hit by the given range. | |
| dsp::ContentPosition * | clipStartPosition () const |
| dsp::ContentPosition * | loopStartPosition () const |
| dsp::ContentPosition * | loopEndPosition () const |
| bool | trackBounds () const |
| void | setTrackBounds (bool track) |
| Q_SIGNAL void | trackBoundsChanged (bool track) |
| void | set_loop_range (dsp::ContentTick clip_start, dsp::ContentTick loop_start, dsp::ContentTick loop_end) |
| Set the three loop positions atomically, bypassing the per-position clamping constraints. | |
| bool | looped () const |
| Q_SIGNAL void | loopedChanged () |
| Q_SIGNAL void | contentChanged () |
| Emitted when the clip's content changes. | |
| Q_SIGNAL void | loopablePropertiesChanged () |
| Emitted when any loop-related property changes. | |
| int | get_num_loops (bool count_incomplete) const |
| Returns the number of loops, optionally including incomplete ones. | |
| dsp::ContentTick | get_loop_length_in_ticks () const |
| Returns the length of the loop in ticks. | |
| Public Member Functions inherited from zrythm::structure::arrangement::ArrangerObject | |
| auto | type () const |
| dsp::ContentPosition * | length () const |
| ArrangerObjectName * | name () const |
| ArrangerObjectColor * | color () const |
| ArrangerObjectMuteFunctionality * | mute () const |
| Q_SIGNAL void | propertiesChanged () |
| Emitted when any of the properties of the object changed. | |
| ArrangerObject * | parentObject () const |
| void | setParentObject (ArrangerObject *object) |
| Q_SIGNAL void | parentObjectChanged (QObject *parentObject) |
| const dsp::TempoMap & | get_tempo_map () const |
| const dsp::TempoMapWrapper & | get_tempo_map_wrapper () const |
| Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject > | |
| UuidIdentifiableObject (QObject *parent=nullptr) | |
| auto | get_uuid () const |
| Public Member Functions inherited from zrythm::utils::UuidIdentifiableBase | |
| UuidIdentifiableBase (QObject *parent=nullptr) | |
| UuidIdentifiableBase (const QUuid &id, QObject *parent=nullptr) | |
| QUuid | raw_uuid () const |
| Public Member Functions inherited from zrythm::structure::arrangement::ArrangerObjectOwner< AutomationPoint > | |
| ArrangerObjectOwner (utils::IObjectRegistry ®istry, T &derived) | |
| auto & | get_children_vector () const |
| auto | get_children_view () const |
| auto | get_sorted_children_view () const |
| void | add_ticks_to_children (dsp::ContentTick ticks) |
| bool | contains_object (const ArrangerObject::Uuid &id) const |
| O(1) lookup if an object with the given ID exists. | |
| ArrangerObjectListModel * | get_model () const |
| ArrangerObjectUuidReference | remove_object (const ArrangerObject::Uuid &id) |
| void | insert_object (const ArrangerObjectUuidReference &obj_ref, int idx) |
| void | add_object (const ArrangerObjectUuidReference &obj_ref) |
| void | clear_objects () |
| virtual std::string | get_field_name_for_serialization (const ChildT *) const=0 |
| Get the children field name to be used during serialization/deserialization. | |
| Protected Types inherited from zrythm::structure::arrangement::ArrangerObject | |
| enum class | ArrangerObjectFeatures : std::uint8_t { Bounds = 1 << 0 , Name = 1 << 1 , Color = 1 << 2 , Mute = 1 << 3 , ClipOwned = 1 << 4 } |
| Protected Member Functions inherited from zrythm::structure::arrangement::Clip | |
| Clip (Type type, const dsp::TempoMapWrapper &tempo_map_wrapper, QObject *parent=nullptr) noexcept | |
| Protected Member Functions inherited from zrythm::structure::arrangement::ArrangerObject | |
| ArrangerObject (Type type, const dsp::TempoMapWrapper &tempo_map_wrapper, ArrangerObjectFeatures features, QObject *parent=nullptr) noexcept | |
| Construct a new ArrangerObject. | |
| Protected Member Functions inherited from zrythm::utils::UuidIdentifiableBase | |
| void | set_raw_uuid (const QUuid &id) |
| Properties inherited from zrythm::structure::arrangement::Clip | |
| zrythm::dsp::ContentTimeWarp * | contentWarp |
| zrythm::dsp::timebase::TimebaseProvider * | timebaseProvider |
| double | timelineLengthTicks |
| zrythm::dsp::ContentPosition * | clipStartPosition |
| zrythm::dsp::ContentPosition * | loopStartPosition |
| zrythm::dsp::ContentPosition * | loopEndPosition |
| bool | trackBounds |
| bool | looped |
| Properties inherited from zrythm::structure::arrangement::ArrangerObject | |
| QML_ELEMENT zrythm::structure::arrangement::ArrangerObject * | parentObject |
| zrythm::structure::arrangement::ArrangerObject::Type | type |
| zrythm::dsp::Position * | position |
| zrythm::dsp::ContentPosition * | length |
| zrythm::structure::arrangement::ArrangerObjectName * | name |
| zrythm::structure::arrangement::ArrangerObjectColor * | color |
| zrythm::structure::arrangement::ArrangerObjectMuteFunctionality * | mute |
Detailed Description
Represents an automation clip, which contains a collection of automation points.
The automation points must always stay sorted by position. The last recorded automation point is also stored.
Definition at line 20 of file automation_clip.h.
The documentation for this class was generated from the following file:
- src/structure/arrangement/automation_clip.h
