#include <src/structure/arrangement/audio_source_object.h>

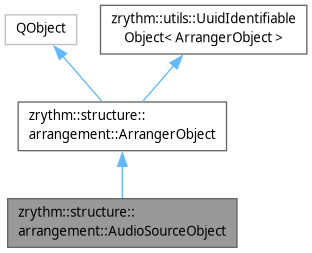

Inheritance diagram for zrythm::structure::arrangement::AudioSourceObject:

[legend]

Collaboration diagram for zrythm::structure::arrangement::AudioSourceObject:

[legend]

Public Member Functions
	AudioSourceObject (const dsp::TempoMapWrapper &tempo_map_wrapper, utils::IObjectRegistry &registry, dsp::FileAudioSourceUuidReference source, QObject *parent=nullptr)
	Construct a new Audio Source Object object.
dsp::ContentPosition *	position () const override
juce::PositionableAudioSource &	get_audio_source () const
dsp::FileAudioSource &	file_audio_source () const
	Returns the underlying FileAudioSource.
dsp::FileAudioSourceUuidReference	audio_source_ref () const
Public Member Functions inherited from zrythm::structure::arrangement::ArrangerObject
auto	type () const
dsp::ContentPosition *	length () const
ArrangerObjectName *	name () const
ArrangerObjectColor *	color () const
ArrangerObjectMuteFunctionality *	mute () const
Q_SIGNAL void	propertiesChanged ()
	Emitted when any of the properties of the object changed.
ArrangerObject *	parentObject () const
void	setParentObject (ArrangerObject *object)
Q_SIGNAL void	parentObjectChanged (QObject *parentObject)
const dsp::TempoMap &	get_tempo_map () const
const dsp::TempoMapWrapper &	get_tempo_map_wrapper () const
virtual std::vector< ArrangerObjectListModel * >	get_child_list_models () const
Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
	UuidIdentifiableObject (QObject *parent=nullptr)
auto	get_uuid () const
Public Member Functions inherited from zrythm::utils::UuidIdentifiableBase
	UuidIdentifiableBase (QObject *parent=nullptr)
	UuidIdentifiableBase (const QUuid &id, QObject *parent=nullptr)
QUuid	raw_uuid () const

Friends
void	init_from (AudioSourceObject &obj, const AudioSourceObject &other, utils::ObjectCloneType clone_type)
void	to_json (nlohmann::json &j, const AudioSourceObject &obj)
void	from_json (const nlohmann::json &j, AudioSourceObject &obj)

Additional Inherited Members
Public Types inherited from zrythm::structure::arrangement::ArrangerObject
enum class	Type : std::uint8_t { MidiClip , AudioClip , ChordClip , AutomationClip , MidiControlEvent , MidiNote , ChordObject , ScaleObject , Marker , AutomationPoint , AudioSourceObject , TempoObject , TimeSignatureObject }
	The type of the object. More...
Public Types inherited from zrythm::utils::UuidIdentifiableObject< ArrangerObject >
using	uuid_base_type
	Exposes the CRTP parameter for concept checking.
Protected Types inherited from zrythm::structure::arrangement::ArrangerObject
enum class	ArrangerObjectFeatures : std::uint8_t { Bounds = 1 << 0 , Name = 1 << 1 , Color = 1 << 2 , Mute = 1 << 3 , ClipOwned = 1 << 4 }
Protected Member Functions inherited from zrythm::structure::arrangement::ArrangerObject
	ArrangerObject (Type type, const dsp::TempoMapWrapper &tempo_map_wrapper, ArrangerObjectFeatures features, QObject *parent=nullptr) noexcept
	Construct a new ArrangerObject.
Protected Member Functions inherited from zrythm::utils::UuidIdentifiableBase
void	set_raw_uuid (const QUuid &id)
Properties inherited from zrythm::structure::arrangement::ArrangerObject
QML_ELEMENT zrythm::structure::arrangement::ArrangerObject *	parentObject
zrythm::structure::arrangement::ArrangerObject::Type	type
zrythm::dsp::Position *	position
zrythm::dsp::ContentPosition *	length
zrythm::structure::arrangement::ArrangerObjectName *	name
zrythm::structure::arrangement::ArrangerObjectColor *	color
zrythm::structure::arrangement::ArrangerObjectMuteFunctionality *	mute

Detailed Description

Audio source for an AudioClip.

This is a separate class so that clip linking can later be implemented more easily via a delegate to ArrangerObjectOwner (since audio clip is now also an ArrangerObjectOwner).

Definition at line 22 of file audio_source_object.h.

Constructor & Destructor Documentation

◆ AudioSourceObject()

zrythm::structure::arrangement::AudioSourceObject::AudioSourceObject	(	const dsp::TempoMapWrapper &	tempo_map_wrapper,
		utils::IObjectRegistry &	registry,
		dsp::FileAudioSourceUuidReference	source,
		QObject *	parent = nullptr )

Construct a new Audio Source Object object.

When constructing for deserialization, source can be a dummy source (from_json will generate the correct one).

Parameters

registry
source
tempo_map
parent

Member Function Documentation

◆ file_audio_source()

dsp::FileAudioSource & zrythm::structure::arrangement::AudioSourceObject::file_audio_source ( ) const

Returns the underlying FileAudioSource.

Carries the raw samples and the clip's permanent source BPM, which the clip needs to compute its musical length and stretch ratios.

◆ position()

dsp::ContentPosition * zrythm::structure::arrangement::AudioSourceObject::position ( ) const

inlineoverridevirtual

Reimplemented from zrythm::structure::arrangement::ArrangerObject.

Definition at line 48 of file audio_source_object.h.

The documentation for this class was generated from the following file:

src/structure/arrangement/audio_source_object.h
