Inheritance diagram for zrythm::gui::actions::MoveTracksInsideFoldableTrackAction:

[legend]

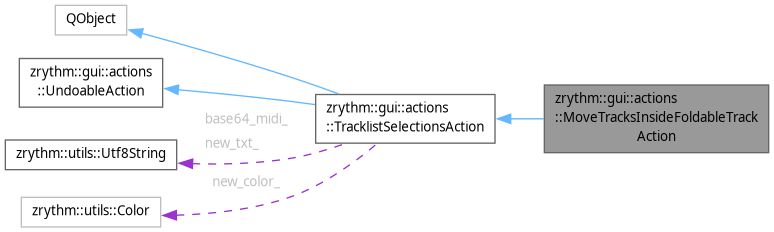

Collaboration diagram for zrythm::gui::actions::MoveTracksInsideFoldableTrackAction:

[legend]

Public Member Functions
	MoveTracksInsideFoldableTrackAction (TrackSpan tls, int track_pos)
	Move inside a foldable track.
Public Member Functions inherited from zrythm::gui::actions::TracklistSelectionsAction
	TracklistSelectionsAction (Type type, std::optional< TrackSpan > tls_before_var, std::optional< TrackSpan > tls_after_var, const PortConnectionsManager port_connections_mgr, std::optional< TrackPtrVariant > track_var, Track::Type track_type, const PluginConfiguration pl_setting, const FileDescriptor file_descr, int track_pos, int lane_pos, const Position pos, int num_tracks, EditType edit_type, int ival_after, const Color color_new, float val_before, float val_after, const utils::Utf8String new_txt, bool already_edited)
	Creates a new TracklistSelectionsAction.
	TracklistSelectionsAction (Track::Type track_type, const PluginConfiguration pl_setting, const FileDescriptor file_descr, int track_pos, const Position *pos, int num_tracks, int disable_track_pos)
	Constructor for a Create action.
QString	to_string () const final
	Stringizes the action to be used in Undo/Redo buttons.
bool	needs_transport_total_bar_update (bool perform) const override
	Returns whether the total transport bars need to be recalculated.
bool	needs_pause () const override
	Returns whether the action requires pausing the engine.
void	get_plugins (std::vector< zrythm::plugins::Plugin * > &plugins) override
Public Member Functions inherited from zrythm::gui::actions::UndoableAction
	UndoableAction (Type type)
	UndoableAction (Type type, dsp::FramesPerTick frames_per_tick, units::sample_rate_t sample_rate)
void	init_loaded (sample_rate_t engine_sample_rate)
	Non virtual function following the NVI pattern.
virtual bool	affects_audio_region_internal_positions () const
	Whether audio region loop/fade/etc.
virtual void	get_plugins (std::vector< plugins::Plugin * > &plugins)
	Get the plugins referenced in this action.
auto	get_frames_per_tick () const
auto	get_ticks_per_frame () const
void	set_num_actions (int num_actions)
	Sets the number of actions for this action.
void	save_or_load_port_connections (bool performing)
	To be used by actions that save/load port connections.
void	perform ()
	Performs the action.
void	undo ()
	Undoes the action.

Additional Inherited Members
Public Types inherited from zrythm::gui::actions::TracklistSelectionsAction
enum class	Type { Copy , CopyInside , Create , Delete , Edit , Move , MoveInside , Pin , Unpin }
enum class	EditType { Solo , SoloLane , Mute , MuteLane , Listen , Enable , Fold , Volume , Pan , DirectOut , Rename , RenameLane , Color , Comment , Icon , MidiFaderMode }
using	Position = zrythm::dsp::Position
using	Color = zrythm::utils::Color
using	PortType = zrythm::dsp::PortType
using	PluginConfiguration = zrythm::plugins::PluginConfiguration
Public Types inherited from zrythm::gui::actions::UndoableAction
enum class	Type { TracklistSelections , ChannelSend , MixerSelections , ArrangerSelections , MidiMapping , PortConnection , Port , Range , Transport , Chord }
	Type of UndoableAction. More...
using	PortConnectionsManager = dsp::PortConnectionsManager
Data Fields inherited from zrythm::gui::actions::TracklistSelectionsAction
Type	tracklist_selections_action_type_ {}
	Type of action.
int	track_pos_ = 0
	Position to make the tracks at.
int	lane_pos_ = 0
	Lane position, if editing lane.
Position	pos_
	Position to add the audio region to, if applicable.
bool	have_pos_ = false
Track::Type	track_type_ {}
	Track type.
bool	is_empty_ = false
	Flag to know if we are making an empty track.
std::unique_ptr< PluginConfiguration >	pl_setting_
	PluginConfiguration, if making an instrument or bus track from a plugin.
fs::path	file_basename_
	The basename of the file, if any.
utils::Utf8String	base64_midi_
	If this is an action to create a MIDI track from a MIDI file, this is the base64 representation so that the file does not need to be stored in the project.
std::optional< dsp::FileAudioSourceUuidReference >	pool_id_
	If this is an action to create an Audio track from an audio file, this is the pool ID of the audio file.
std::vector< std::optional< Track::Uuid > >	out_track_uuids_
	Direct out tracks of the original tracks.
int	num_fold_change_tracks_ {}
	Number of tracks under folder affected.
EditType	edit_type_ {}
std::vector< int >	track_positions_before_
	Track positions.
std::vector< int >	track_positions_after_
int	num_tracks_ = 0
	Number of tracks.
std::optional< std::vector< TrackPtrVariant > >	tls_before_
	Clone of the TracklistSelections, if applicable.
std::optional< std::vector< TrackPtrVariant > >	tls_after_
	Clone of the TracklistSelections, if applicable.
std::optional< std::vector< TrackPtrVariant > >	foldable_tls_before_
	Foldable tracks before the change, used when undoing to set the correct sizes.
std::vector< int >	ival_before_
	Int value.
int	ival_after_ = 0
std::vector< Color >	colors_before_
Color	new_color_
utils::Utf8String	new_txt_
bool	already_edited_ = false
	Skip do if true.
float	val_before_ = 0.f
	Float values.
float	val_after_ = 0.f
Data Fields inherited from zrythm::gui::actions::UndoableAction
Type	undoable_action_type_ {}
	Undoable action type.
dsp::FramesPerTick	frames_per_tick_
	A snapshot of AudioEngine.frames_per_tick when the action is executed.
units::sample_rate_t	sample_rate_ = 0
	Sample rate of this action.
int	num_actions_ = 1
	Number of actions to perform.
std::unique_ptr< dsp::PortConnectionsManager >	port_connections_before_
	An (optional) clone of the port connections at the start of the action, used for reverting port connections when undoing.
std::unique_ptr< dsp::PortConnectionsManager >	port_connections_after_

Detailed Description

Definition at line 1024 of file tracklist_selections_action.h.

Constructor & Destructor Documentation

◆ MoveTracksInsideFoldableTrackAction()

zrythm::gui::actions::MoveTracksInsideFoldableTrackAction::MoveTracksInsideFoldableTrackAction	(	TrackSpan	tls,
		int	track_pos )

inline

Move inside a foldable track.

Parameters

track_pos Foldable track index.

When foldable tracks are included in tls, all their children must be marked as selected as well before calling this.

Note: This should be called in combination with a move action to move the tracks to the required index after putting them inside a group.

Definition at line 1038 of file tracklist_selections_action.h.

The documentation for this class was generated from the following file:

src/gui/backend/backend/legacy_actions/tracklist_selections_action.h
