zrythm::gui::actions::MixerSelectionsMoveAction Class Reference

Inheritance diagram for zrythm::gui::actions::MixerSelectionsMoveAction:

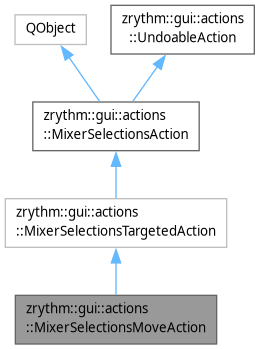

Collaboration diagram for zrythm::gui::actions::MixerSelectionsMoveAction:

Public Member Functions
	MixerSelectionsMoveAction (PluginSpan plugins, const dsp::PortConnectionsManager &connections_mgr, const Track *to_track, plugins::PluginSlot to_slot)
Public Member Functions inherited from zrythm::gui::actions::MixerSelectionsTargetedAction
	MixerSelectionsTargetedAction (PluginSpan plugins, const dsp::PortConnectionsManager &connections_mgr, MixerSelectionsAction::Type type, const Track *to_track, plugins::PluginSlot to_slot)
Public Member Functions inherited from zrythm::gui::actions::MixerSelectionsAction
	MixerSelectionsAction (QObject *parent=nullptr)
	MixerSelectionsAction (std::optional< PluginSpan > ms, const dsp::PortConnectionsManager *connections_mgr, Type type, std::optional< Track::Uuid > to_track_id, std::optional< plugins::PluginSlot > to_slot, const PluginConfiguration *setting, int num_plugins, int new_val, zrythm::plugins::BridgeMode new_bridge_mode, QObject *parent=nullptr)
	Create a new action.
QString	to_string () const override
	Stringizes the action to be used in Undo/Redo buttons.
void	get_plugins (std::vector< Plugin * > &plugins) override
Public Member Functions inherited from zrythm::gui::actions::UndoableAction
	UndoableAction (Type type)
	UndoableAction (Type type, dsp::FramesPerTick frames_per_tick, units::sample_rate_t sample_rate)
void	init_loaded (sample_rate_t engine_sample_rate)
	Non virtual function following the NVI pattern.
virtual bool	needs_pause () const
	Returns whether the action requires pausing the engine.
virtual bool	needs_transport_total_bar_update (bool perform) const
	Returns whether the total transport bars need to be recalculated.
virtual bool	affects_audio_region_internal_positions () const
	Whether audio region loop/fade/etc.
virtual void	get_plugins (std::vector< plugins::Plugin * > &plugins)
	Get the plugins referenced in this action.
auto	get_frames_per_tick () const
auto	get_ticks_per_frame () const
void	set_num_actions (int num_actions)
	Sets the number of actions for this action.
void	save_or_load_port_connections (bool performing)
	To be used by actions that save/load port connections.
void	perform ()
	Performs the action.
void	undo ()
	Undoes the action.

Additional Inherited Members
Public Types inherited from zrythm::gui::actions::MixerSelectionsAction
enum class	Type {   Copy , Paste , Create , Delete ,   Move , ChangeStatus , ChangeLoadBehavior }
using	PluginSlotType = plugins::PluginSlotType
using	Plugin = plugins::Plugin
using	PluginUuid = Plugin::Uuid
using	PluginPtrVariant = plugins::PluginPtrVariant
using	PluginConfiguration = plugins::PluginConfiguration
Public Types inherited from zrythm::gui::actions::UndoableAction
enum class	Type {   TracklistSelections , ChannelSend , MixerSelections , ArrangerSelections ,   MidiMapping , PortConnection , Port , Range ,   Transport , Chord }
	Type of UndoableAction. More...
using	PortConnectionsManager = dsp::PortConnectionsManager
Data Fields inherited from zrythm::gui::actions::MixerSelectionsAction
Type	mixer_selections_action_type_ = Type ()
std::optional< plugins::PluginSlot >	to_slot_
	Starting target slot.
std::optional< Track::Uuid >	to_track_uuid_
	To track position.
bool	new_channel_ = false
	Whether the plugins will be copied/moved into a new channel, if applicable.
int	num_plugins_ = 0
	Number of plugins to create, when creating new plugins.
int	new_val_ = 0
	Used when changing status.
zrythm::plugins::BridgeMode	new_bridge_mode_
	Used when changing load behavior.
std::unique_ptr< PluginConfiguration >	setting_
	PluginConfiguration to use when creating.
std::optional< std::vector< PluginPtrVariant > >	ms_before_
	Clone of mixer selections at start.
std::optional< std::vector< PluginUuid > >	ms_before_simple_
std::optional< std::vector< PluginPtrVariant > >	deleted_ms_
	Deleted plugins (ie, plugins replaced during move/copy).
std::vector< std::unique_ptr< AutomationTrack > >	deleted_ats_
	Automation tracks associated with the deleted plugins.
std::vector< std::unique_ptr< AutomationTrack > >	ats_
	Automation tracks associated with the plugins.
Data Fields inherited from zrythm::gui::actions::UndoableAction
Type	undoable_action_type_ {}
	Undoable action type.
dsp::FramesPerTick	frames_per_tick_
	A snapshot of AudioEngine.frames_per_tick when the action is executed.
units::sample_rate_t	sample_rate_ = 0
	Sample rate of this action.
int	num_actions_ = 1
	Number of actions to perform.
std::unique_ptr< dsp::PortConnectionsManager >	port_connections_before_
	An (optional) clone of the port connections at the start of the action, used for reverting port connections when undoing.
std::unique_ptr< dsp::PortConnectionsManager >	port_connections_after_

Detailed Description

Definition at line 288 of file mixer_selections_action.h.

Constructor & Destructor Documentation

MixerSelectionsMoveAction()

zrythm::gui::actions::MixerSelectionsMoveAction::MixerSelectionsMoveAction ( PluginSpan plugins, const dsp::PortConnectionsManager & connections_mgr, const Track * to_track, plugins::PluginSlot to_slot )

inline

Definition at line 291 of file mixer_selections_action.h.

---

The documentation for this class was generated from the following file:

• src/gui/backend/backend/legacy_actions/mixer_selections_action.h
