Audio clips for the pool. More...

#include <src/dsp/file_audio_source.h>

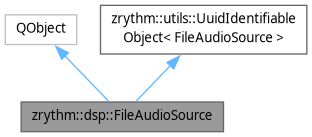

Inheritance diagram for zrythm::dsp::FileAudioSource:

[legend]

Collaboration diagram for zrythm::dsp::FileAudioSource:

[legend]

Public Types
using	BitDepth = zrythm::utils::audio::BitDepth
using	AudioFile = zrythm::utils::audio::AudioFile
using	channels_t = uint_fast8_t
Public Types inherited from zrythm::utils::UuidIdentifiableObject< FileAudioSource >
using	uuid_base_type
	Exposes the CRTP parameter for concept checking.

Public Member Functions
	FileAudioSource (QObject *parent=nullptr)
	FileAudioSource (const std::filesystem::path &full_path, units::sample_rate_t project_sample_rate, QObject *parent=nullptr)
	Creates an audio clip from a file.
	FileAudioSource (const utils::audio::AudioBuffer &buf, utils::audio::BitDepth bit_depth, units::sample_rate_t project_sample_rate, units::bpm_t source_bpm, const utils::Utf8String &name, QObject *parent=nullptr)
	Creates an audio clip by copying the given buffer.
	FileAudioSource (const float arr, units::sample_u64_t nframes, channels_t channels, zrythm::utils::audio::BitDepth bit_depth, units::sample_rate_t project_sample_rate, units::bpm_t source_bpm, const utils::Utf8String &name, QObject parent=nullptr)
	Creates an audio clip by copying the given interleaved float array.
Q_SIGNAL void	samplesChanged ()
	Emitted when the source samples change.
auto	get_bit_depth () const
auto	get_name () const
auto	source_bpm () const
	The clip's permanent source BPM (its intrinsic musical tempo).
const auto &	get_samples () const
auto	get_samplerate () const
void	set_name (const utils::Utf8String &name)
void	expand_with_frames (const utils::audio::AudioBuffer &frames)
	Expands (appends to the end) the frames in the clip by the given frames.
void	replace_frames (const utils::audio::AudioBuffer &src_frames, units::sample_u64_t start_frame)
	Replaces the clip's frames starting from `start_frame` with `frames`.
void	replace_frames_from_interleaved (const float *frames, units::sample_u64_t start_frame, units::sample_u64_t num_frames_per_channel, channels_t channels)
	Replaces the clip's frames starting from `start_frame` with `frames`.
void	clear_frames ()
	Unloads the clip's frames from memory.
auto	get_num_channels () const
auto	get_num_frames () const
void	init_from_file (const std::filesystem::path &full_path, units::sample_rate_t project_sample_rate, std::optional< units::bpm_t > bpm_to_set)
	Initializes members from an audio file.
Public Member Functions inherited from zrythm::utils::UuidIdentifiableObject< FileAudioSource >
	UuidIdentifiableObject (QObject *parent=nullptr)
auto	get_uuid () const
Public Member Functions inherited from zrythm::utils::UuidIdentifiableBase
	UuidIdentifiableBase (QObject *parent=nullptr)
	UuidIdentifiableBase (const QUuid &id, QObject *parent=nullptr)
QUuid	raw_uuid () const

Friends
void	init_from (FileAudioSource &obj, const FileAudioSource &other, utils::ObjectCloneType clone_type)
void	to_json (nlohmann::json &j, const FileAudioSource &clip)
void	from_json (const nlohmann::json &j, FileAudioSource &clip)

Additional Inherited Members
Protected Member Functions inherited from zrythm::utils::UuidIdentifiableBase
void	set_raw_uuid (const QUuid &id)

Detailed Description

Audio clips for the pool.

These should be loaded in the project's sample rate.

Definition at line 25 of file file_audio_source.h.

Member Typedef Documentation

◆ AudioFile

using zrythm::dsp::FileAudioSource::AudioFile = zrythm::utils::audio::AudioFile

Definition at line 32 of file file_audio_source.h.

◆ BitDepth

using zrythm::dsp::FileAudioSource::BitDepth = zrythm::utils::audio::BitDepth

Definition at line 31 of file file_audio_source.h.

◆ channels_t

using zrythm::dsp::FileAudioSource::channels_t = uint_fast8_t

Definition at line 33 of file file_audio_source.h.

Constructor & Destructor Documentation

◆ FileAudioSource() [1/3]

zrythm::dsp::FileAudioSource::FileAudioSource	(	const std::filesystem::path &	full_path,
		units::sample_rate_t	project_sample_rate,
		QObject *	parent = nullptr )

Creates an audio clip from a file.

The clip's source BPM (bpm_) is read from the file's metadata; if the file carries no BPM metadata it is left as 0 (unknown) and musical mode cannot be applied until the BPM is supplied. The basename of the file is used as the clip name.

Exceptions

ZrythmException on error.

◆ FileAudioSource() [2/3]

zrythm::dsp::FileAudioSource::FileAudioSource	(	const utils::audio::AudioBuffer &	buf,
		utils::audio::BitDepth	bit_depth,
		units::sample_rate_t	project_sample_rate,
		units::bpm_t	source_bpm,
		const utils::Utf8String &	name,
		QObject *	parent = nullptr )

Creates an audio clip by copying the given buffer.

Parameters

source_bpm	The clip's permanent source BPM. For material captured in-project (e.g. recording) this is the project tempo at capture time; for duplicated clips, the original's BPM.
name	A name for this clip.

◆ FileAudioSource() [3/3]

zrythm::dsp::FileAudioSource::FileAudioSource	(	const float *	arr,
		units::sample_u64_t	nframes,
		channels_t	channels,
		zrythm::utils::audio::BitDepth	bit_depth,
		units::sample_rate_t	project_sample_rate,
		units::bpm_t	source_bpm,
		const utils::Utf8String &	name,
		QObject *	parent = nullptr )

inline

Creates an audio clip by copying the given interleaved float array.

Parameters

arr	Interleaved array.
nframes	Number of frames per channel.
channels	Number of channels.
name	A name for this clip.

Definition at line 77 of file file_audio_source.h.

Member Function Documentation

◆ clear_frames()

void zrythm::dsp::FileAudioSource::clear_frames ( )

inline

Unloads the clip's frames from memory.

Definition at line 163 of file file_audio_source.h.

◆ expand_with_frames()

void zrythm::dsp::FileAudioSource::expand_with_frames ( const utils::audio::AudioBuffer & frames )

Expands (appends to the end) the frames in the clip by the given frames.

Parameters

frames Non-interleaved frames.

◆ get_bit_depth()

auto zrythm::dsp::FileAudioSource::get_bit_depth ( ) const

inline

Definition at line 108 of file file_audio_source.h.

◆ get_name()

auto zrythm::dsp::FileAudioSource::get_name ( ) const

inline

Definition at line 109 of file file_audio_source.h.

◆ get_num_channels()

auto zrythm::dsp::FileAudioSource::get_num_channels ( ) const

inline

Definition at line 169 of file file_audio_source.h.

◆ get_num_frames()

auto zrythm::dsp::FileAudioSource::get_num_frames ( ) const

inline

Definition at line 170 of file file_audio_source.h.

◆ get_samplerate()

auto zrythm::dsp::FileAudioSource::get_samplerate ( ) const

inline

Definition at line 120 of file file_audio_source.h.

◆ get_samples()

const auto & zrythm::dsp::FileAudioSource::get_samples ( ) const

inline

Definition at line 119 of file file_audio_source.h.

◆ init_from_file()

void zrythm::dsp::FileAudioSource::init_from_file	(	const std::filesystem::path &	full_path,
		units::sample_rate_t	project_sample_rate,
		std::optional< units::bpm_t >	bpm_to_set )

Initializes members from an audio file.

Parameters

full_path	Path to the file.
bpm_to_set	Optional source BPM to use instead of the file's metadata BPM. Used when reloading a project to preserve the previously stored value. If nullopt (or <= 0), the BPM read from file metadata is kept (0 if the file carries none).

Exceptions

ZrythmException on I/O error.

◆ replace_frames()

void zrythm::dsp::FileAudioSource::replace_frames	(	const utils::audio::AudioBuffer &	src_frames,
		units::sample_u64_t	start_frame )

Replaces the clip's frames starting from start_frame with frames.

Warning: Not realtime safe.

Parameters

src_frames	Frames to copy.
start_frame	Frame to start copying to (`src_frames` are always copied from the start).

◆ replace_frames_from_interleaved()

void zrythm::dsp::FileAudioSource::replace_frames_from_interleaved	(	const float *	frames,
		units::sample_u64_t	start_frame,
		units::sample_u64_t	num_frames_per_channel,
		channels_t	channels )

Replaces the clip's frames starting from start_frame with frames.

Warning: Not realtime safe.

Parameters

frames	Frames, interleaved.
start_frame	Frame to start copying to (`src_frames` are always copied from the start).

◆ set_name()

void zrythm::dsp::FileAudioSource::set_name ( const utils::Utf8String & name )

inline

Definition at line 122 of file file_audio_source.h.

◆ source_bpm()

auto zrythm::dsp::FileAudioSource::source_bpm ( ) const

inline

The clip's permanent source BPM (its intrinsic musical tempo).

Set once at construction: from file metadata for file-loaded clips, or from the value supplied by the caller (e.g. the project tempo at recording time) for buffer-backed clips. Used to compute musical-mode stretch ratios. A value of 0 means "unknown" — musical mode cannot be applied.

Definition at line 118 of file file_audio_source.h.

The documentation for this class was generated from the following file:

src/dsp/file_audio_source.h
