zrythm::dsp::AudioInputProcessor Class Reference

Bridges hardware audio input into the DSP graph as output ports. More...

#include <src/dsp/audio_input_processor.h>

Inheritance diagram for zrythm::dsp::AudioInputProcessor:

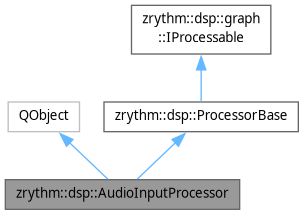

Collaboration diagram for zrythm::dsp::AudioInputProcessor:

Public Types
using	InputDataProvider = std::function<std::span<const float * const> ()>

Public Member Functions
	AudioInputProcessor (InputDataProvider provider, units::channel_count_t hw_input_channel_count, ProcessorBaseDependencies dependencies, QObject *parent=nullptr)
void	custom_process_block (dsp::graph::ProcessBlockInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept override
	Custom processor logic after processing all owned parameters.
dsp::AudioPort *	find_output_port (int first_channel_index, bool stereo) const noexcept
Public Member Functions inherited from zrythm::dsp::ProcessorBase
	ProcessorBase (ProcessorBaseDependencies dependencies, utils::Utf8String name={ u8"ProcessorBase" })
void	set_name (const utils::Utf8String &name)
	Set a custom name to be used in the DSP graph.
void	add_input_port (const dsp::PortUuidReference &uuid)
void	add_output_port (const dsp::PortUuidReference &uuid)
void	add_parameter (const dsp::ProcessorParameterUuidReference &uuid)
auto &	get_input_ports () const
auto &	get_output_ports () const
auto &	get_parameters () const
const ParameterChangeTracker &	change_tracker () const noexcept
	Returns the change tracker.
utils::Utf8String	get_node_name () const final
	Returns a human friendly name of the node.
void	process_block (dsp::graph::ProcessBlockInfo time_nfo, const dsp::ITransport &transport, const dsp::TempoMap &tempo_map) noexcept final
	Calls custom_process_block() internally after processing all the parameters.
void	prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length) final
	Called to allocate resources required for processing.
void	release_resources () final
	Called to release resources allocated by prepare_for_processing().
Public Member Functions inherited from zrythm::dsp::graph::IProcessable
virtual units::sample_u32_t	get_single_playback_latency () const
	Returns the latency of only the given processable, without adding the previous/next latencies (zero latency by default).

Additional Inherited Members
Protected Member Functions inherited from zrythm::dsp::ProcessorBase
virtual void	custom_prepare_for_processing (const graph::GraphNode *node, units::sample_rate_t sample_rate, units::sample_u32_t max_block_length)
virtual void	custom_release_resources ()
auto	dependencies () const

Detailed Description

Bridges hardware audio input into the DSP graph as output ports.

Creates stereo and mono output ports for each hardware input channel pair. During processing, copies data from the hardware input provider into the appropriate output port buffers.

Definition at line 23 of file audio_input_processor.h.

Member Typedef Documentation

InputDataProvider

using zrythm::dsp::AudioInputProcessor::InputDataProvider = std::function<std::span<const float * const> ()>

Definition at line 28 of file audio_input_processor.h.

Member Function Documentation

custom_process_block()

void zrythm::dsp::AudioInputProcessor::custom_process_block ( dsp::graph::ProcessBlockInfo time_nfo, const dsp::ITransport & transport, const dsp::TempoMap & tempo_map )

overridevirtualnoexcept

Custom processor logic after processing all owned parameters.

By default, this does passthrough to same-type ports.

Reimplemented from zrythm::dsp::ProcessorBase.

---

The documentation for this class was generated from the following file:

• src/dsp/audio_input_processor.h
