float_ranges.h File Reference

Optimized DSP functions. More...

#include <cstdint>
#include <span>

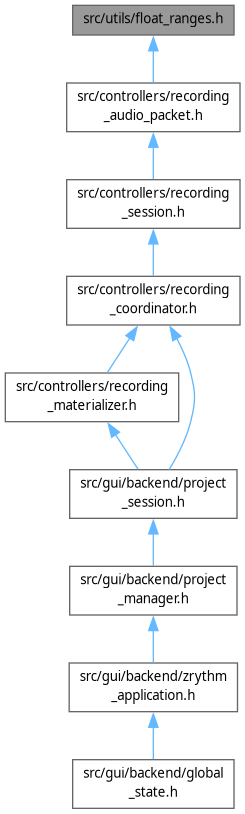

Include dependency graph for float_ranges.h:

Go to the source code of this file.

Namespaces
namespace	zrythm::utils
	String utilities.

Functions
void	zrythm::utils::float_ranges::fill (std::span< float > buf, float val)
	Fill the buffer with the given value.
void	zrythm::utils::float_ranges::clip (std::span< float > buf, float minf, float maxf)
	Clamp the buffer to min/max.
void	zrythm::utils::float_ranges::copy (std::span< float > dest, std::span< const float > src)
	Compute dest[i] = src[i].
void	zrythm::utils::float_ranges::mul_k2 (std::span< float > dest, float k)
	Scale: dst[i] = dst[i] * k.
float	zrythm::utils::float_ranges::abs_max (std::span< const float > buf)
	Gets the maximum absolute value of the buffer (as amplitude).
float	zrythm::utils::float_ranges::min (std::span< const float > buf)
	Gets the minimum of the buffer.
float	zrythm::utils::float_ranges::max (std::span< const float > buf)
	Gets the maximum of the buffer.
void	zrythm::utils::float_ranges::add2 (std::span< float > dest, std::span< const float > src)
	Calculate dst[i] = dst[i] + src[i].
void	zrythm::utils::float_ranges::product (std::span< float > dest, std::span< const float > src, float k)
	Calculate dest[i] = src[i] * k.
void	zrythm::utils::float_ranges::mix_product (std::span< float > dest, std::span< const float > src, float k)
	Calculate dest[i] = dest[i] + src[i] * k.
void	zrythm::utils::float_ranges::reverse (std::span< float > dest, std::span< const float > src)
	Reverse the order of samples: dst[i] <=> src[count - i - 1].
void	zrythm::utils::float_ranges::normalize (std::span< float > dest, std::span< const float > src)
	Calculate normalized values: dst[i] = src[i] / (max { abs(src) }).
void	zrythm::utils::float_ranges::linear_fade_in_from (std::span< float > dest, int32_t start_offset, int32_t total_frames_to_fade, float fade_from_multiplier)
	Calculate linear fade by multiplying from 0 to 1 for total_frames_to_fade samples.
void	zrythm::utils::float_ranges::linear_fade_out_to (std::span< float > dest, int32_t start_offset, int32_t total_frames_to_fade, float fade_to_multiplier)
	Calculate linear fade by multiplying from 1 to 0 for total_frames_to_fade samples.
void	zrythm::utils::float_ranges::make_mono (std::span< float > l, std::span< float > r, bool equal_power)
	Makes the two signals mono.

Detailed Description

Optimized DSP functions.

Note

More at https://github.com/DISTRHO/DPF-Max-Gen/blob/master/plugins/common/gen_dsp/genlib_ops.h#L313

Definition in file float_ranges.h.

Function Documentation

linear_fade_in_from()

void zrythm::utils::float_ranges::linear_fade_in_from	(	std::span< float >	dest,
		int32_t	start_offset,
		int32_t	total_frames_to_fade,
		float	fade_from_multiplier )

Calculate linear fade by multiplying from 0 to 1 for total_frames_to_fade samples.

Note

Does not work properly when fade_from_multiplier is < 1k.

Parameters

dest	Span of frames to process (size is the number of frames).
start_offset	Start offset in the fade interval.
total_frames_to_fade	Total frames that should be faded.
fade_from_multiplier	Multiplier to fade from (0 to fade from silence.)

linear_fade_out_to()

void zrythm::utils::float_ranges::linear_fade_out_to	(	std::span< float >	dest,
		int32_t	start_offset,
		int32_t	total_frames_to_fade,
		float	fade_to_multiplier )

Calculate linear fade by multiplying from 1 to 0 for total_frames_to_fade samples.

Parameters

dest	Span of frames to process (size is the number of frames).
start_offset	Start offset in the fade interval.
total_frames_to_fade	Total frames that should be faded.
fade_to_multiplier	Multiplier to fade to (0 to fade to silence.)

make_mono()

void zrythm::utils::float_ranges::make_mono	(	std::span< float >	l,
		std::span< float >	r,
		bool	equal_power )

Makes the two signals mono.

Parameters

equal_power

True for equal power, false for equal amplitude.

Note

Equal amplitude is more suitable for mono compatibility checking. For reference:

• equal power sum = (L+R) * 0.7079 (-3dB)
• equal amplitude sum = (L+R) /2 (-6.02dB)
